ETP Hydro-Grip Compact-1/2" HSK63F

by ETP
Original price $385.00 - Original price $385.00
Original price
$385.00
$385.00 - $385.00
Current price $385.00

ETP Hydro-Grip Compact-1/2" HSK63F

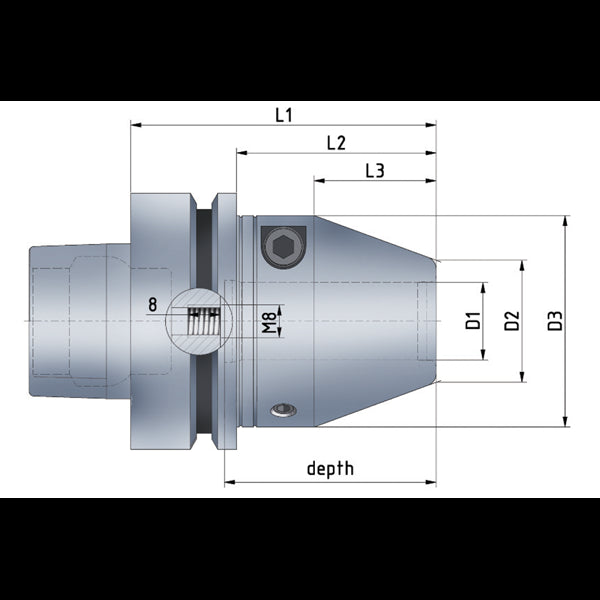

Dimensions

Tool diameter D1 mm 12.7 mm
Dimension D2 mm 22 mm
Dimension D3 mm 43.5 mm
Gauge length L1 mm 75 mm
Dimension L2 mm 49 mm
Dimension L3 mm 18 mm
Tool insert depth 40 mm




Technical Specifications

Machine interface HSK
HSK size 63F
Transmittable torque (T) Nm 260-425 Nm
Tool shank tolerance h6 or h7
Runout accuracy ≤ 0.004 mm at 2.5 x D1 (max. 50 mm).
Balance degree G 2.5 at 25 000 rpm
Weight 1.1 kg
