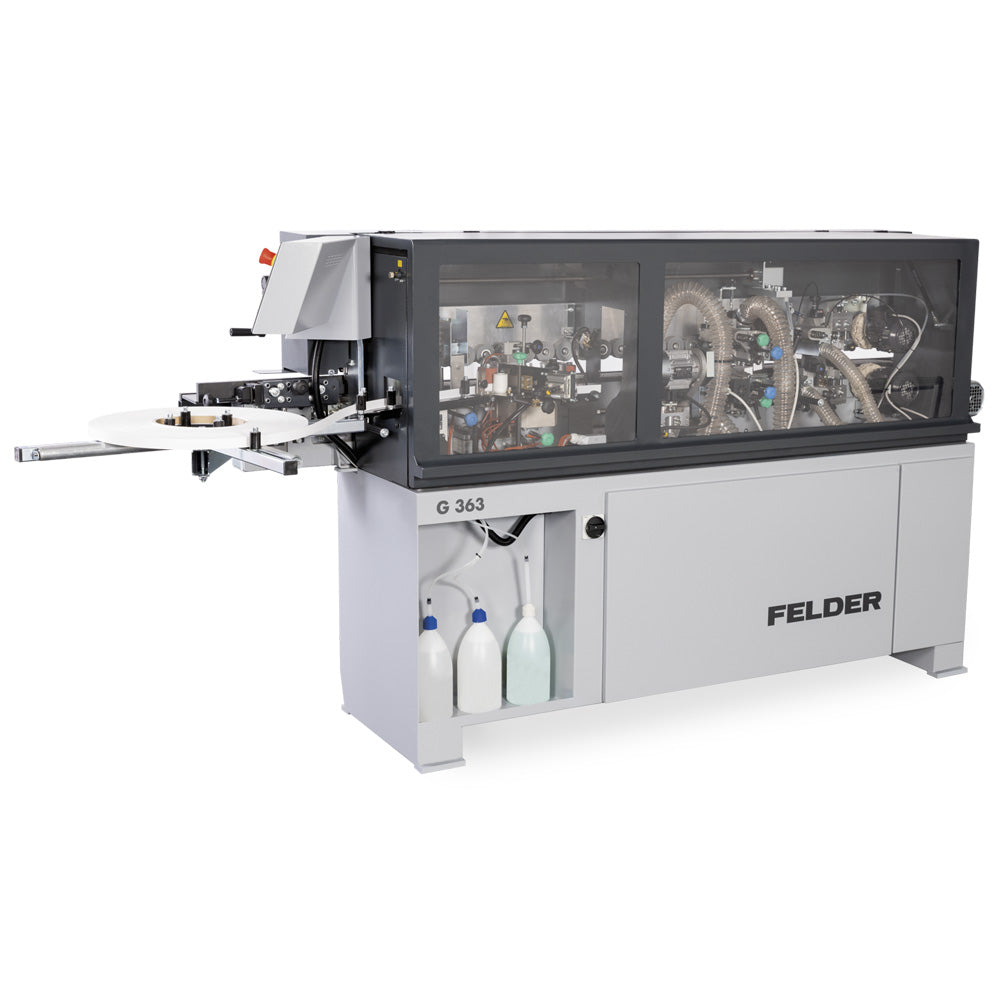

Felder G 363 Edgebander

Performance, flexibility and user comfort all in one!

Compact design, reliable, high-quality mechanical engineering - perfect machining results.

The new Felder edgebanders G 363, G 363R and G 383 with robust chain conveyors and application-controlled premilling unit in the standard version impress with their performance, flexibility and ease of use at the best price-performance ratio.

With the usual high level of Felder operating convenience, it takes just a few simple steps to adjust the machine to different materials or edge thicknesses between 0.4-5 mm. Start processing units, regulate glue temperature and receive feedback on the current machine status via the 7" touch screen.

Ensure valuable productivity by being able to fully machine workpieces up to a thickness of 50 mm without having to compromise on customised features. The new edgebander models G 363, G 363R or G 383 can be individually configured to meet your needs thanks to the Felder modular system - from the Teflon-coated interchangeable glue pot to spraying units for cleaning and release agents.

The new Felder edgebanders

-  G 383 is the top model for the complete processing of workpieces in the standard configuration, with corner rounding unit and free spaces for up to three additional finishing units.

-  G 363R is the economy model for the complete processing of workpieces in the standard configuration, trimming unit with radius processing (corner rounding) and free spaces for up to three additional finishing units.

-  G 363 is the compact class entry-level model with high-quality units, performance, flexibility and ease of use at the best price

Highlights:

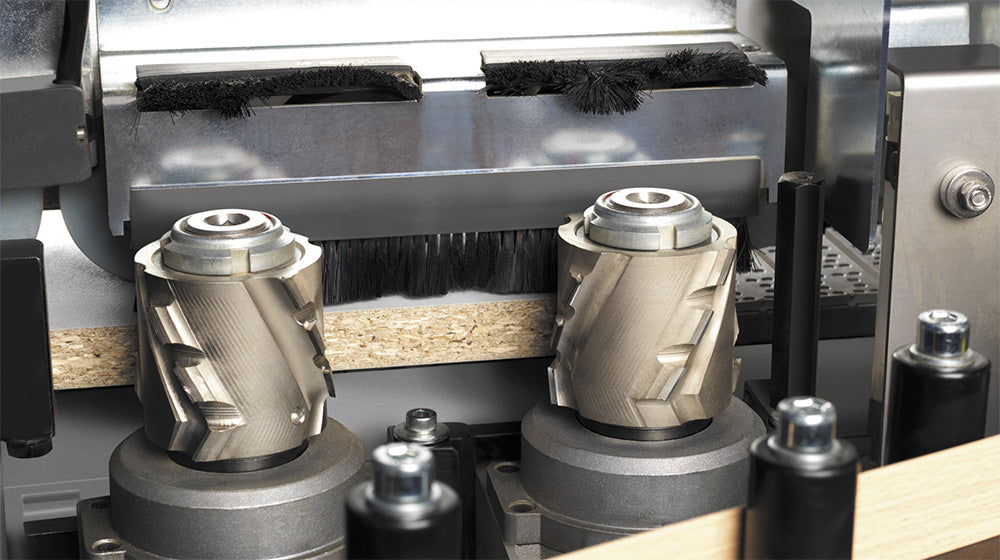

• Premilling unit with diamond milling cutters
• 5mm package for the glueing of solid wood edges
• “Quick Set System” for quick adjustment to different materials

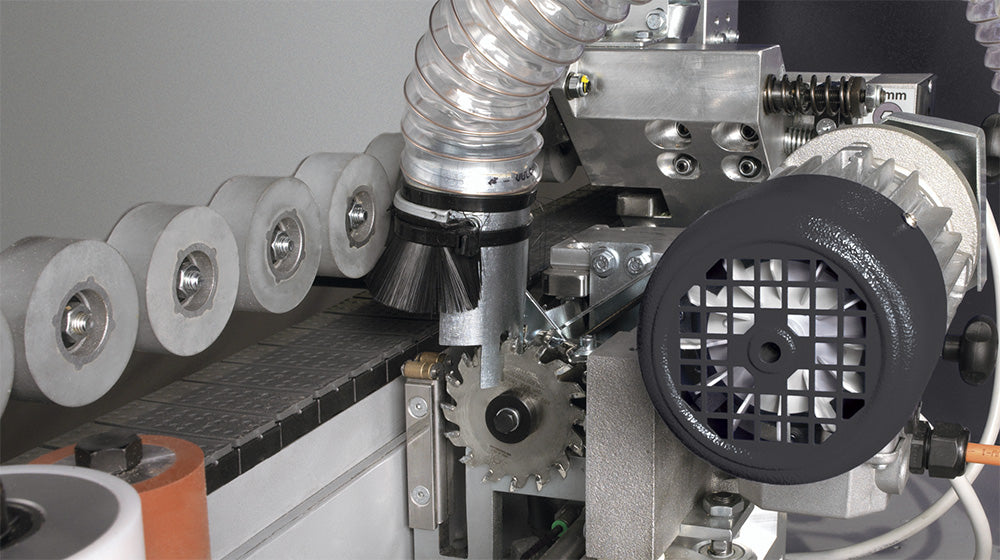

• Highly precise end trimming unit
• 7" colour touchscreen

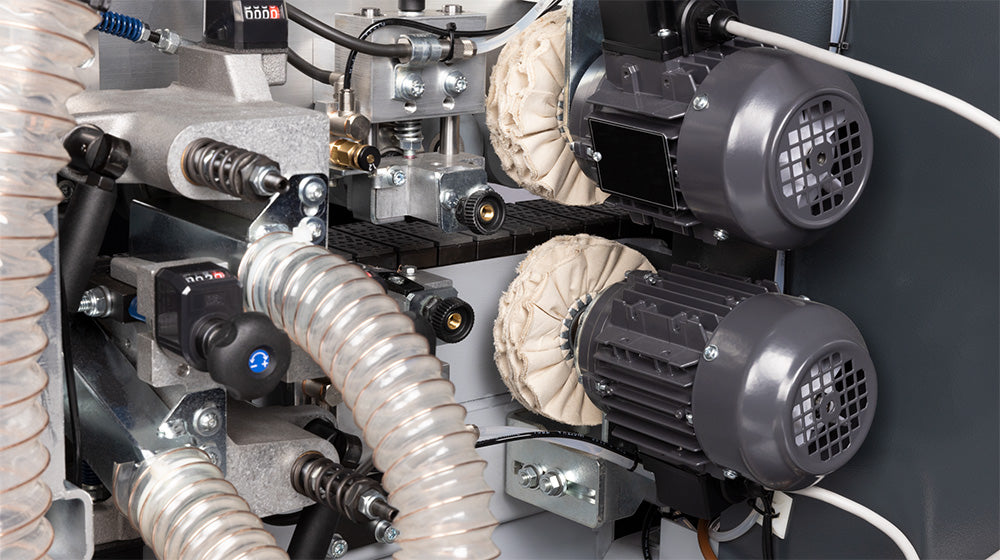

• 3 free spaces for finishing units
• 50 mm working height

Constant workpiece feed with a chain unit and spiral shape feed rollers, leave no marks on the workpiece surface of high quality laminated materials.

Minimum workpiece width 95 mm Minimum workpiece length 210 mm

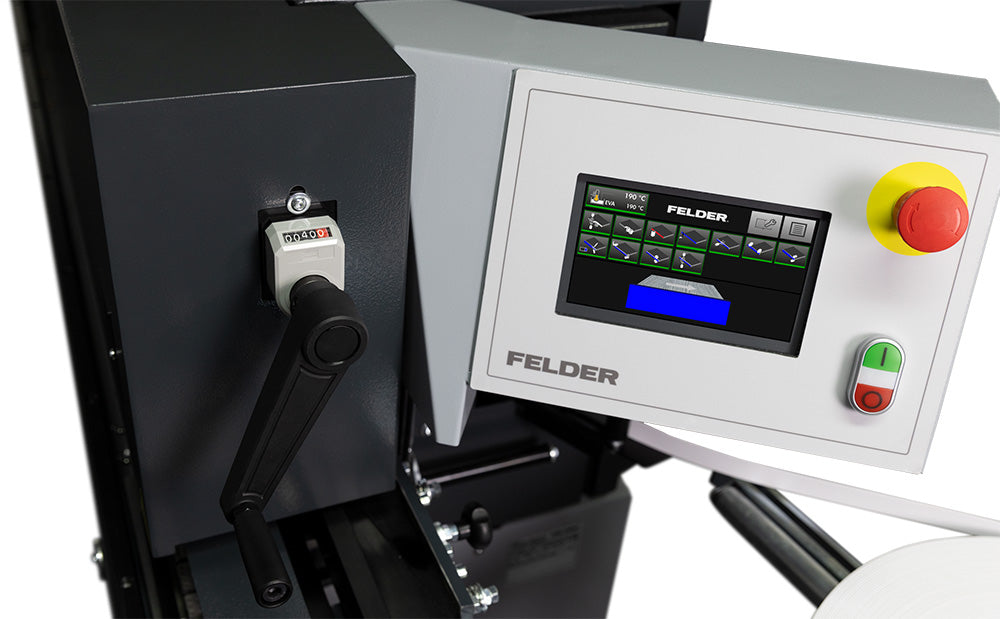

7" colour touchscreen control:
The individual machine aggregates can be switched on and off easily from the clearly laid out touch display.
·Glue temperature settings
·Operating and standby temperature
·Engaging and disengaging of aggregates
·Odometer for amount of material used
·Display of the maintenance intervals
·Plain text error messages
