Felder G 363 R Edgebander

Performance, flexibility and user comfort all in one!

Compact design, reliable, high-quality mechanical engineering - perfect machining results.

The new Felder edgebanders G 363, G 363R and G 383 with robust chain conveyors and application-controlled premilling unit in the standard version impress with their performance, flexibility and ease of use at the best price-performance ratio.

With the usual high level of Felder operating convenience, it takes just a few simple steps to adjust the machine to different materials or edge thicknesses between 0.4-5 mm. Start processing units, regulate glue temperature and receive feedback on the current machine status via the 7" touch screen.

Ensure valuable productivity by being able to fully machine workpieces up to a thickness of 50 mm without having to compromise on customised features. The new edgebander models G 363, G 363R or G 383 can be individually configured to meet your needs thanks to the Felder modular system - from the Teflon-coated interchangeable glue pot to spraying units for cleaning and release agents.

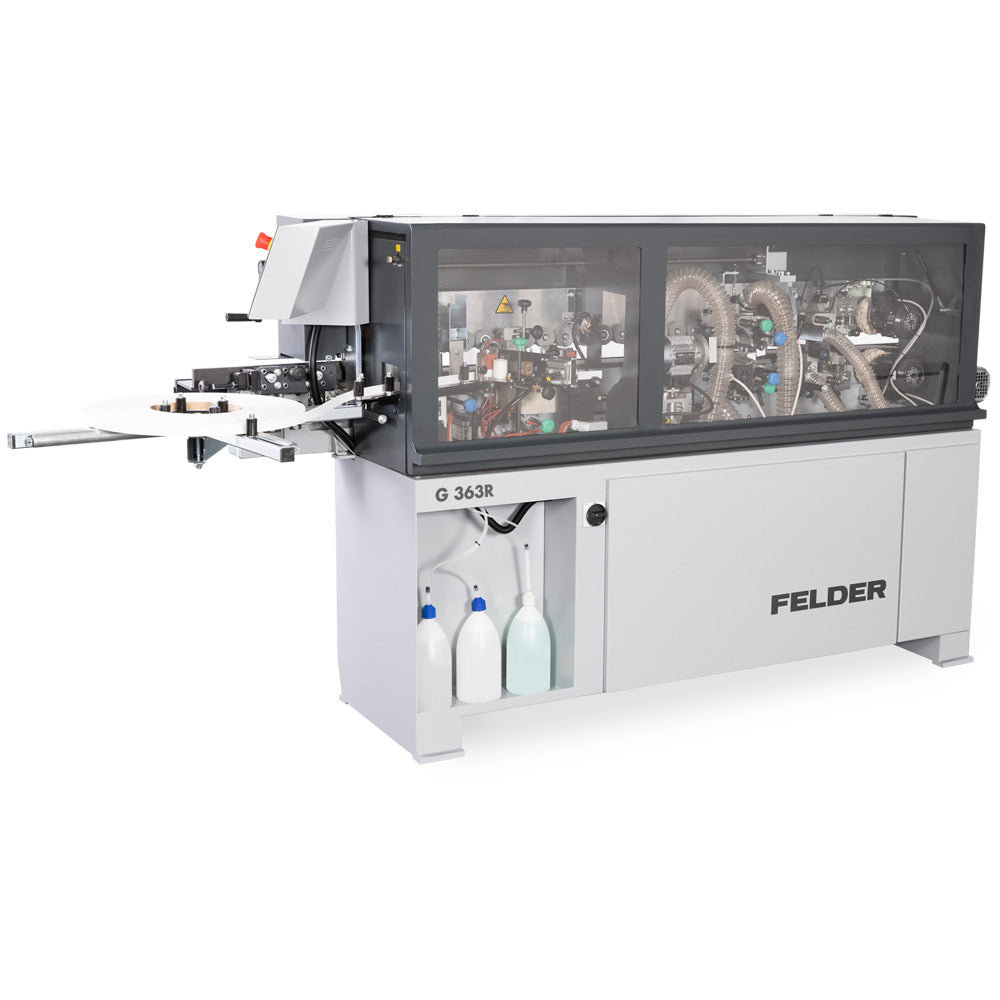

G 363R is the economy model for the complete processing of workpieces in the standard configuration, trimming unit with radius processing (corner rounding) and free spaces for up to three additional finishing units.

Highlights:

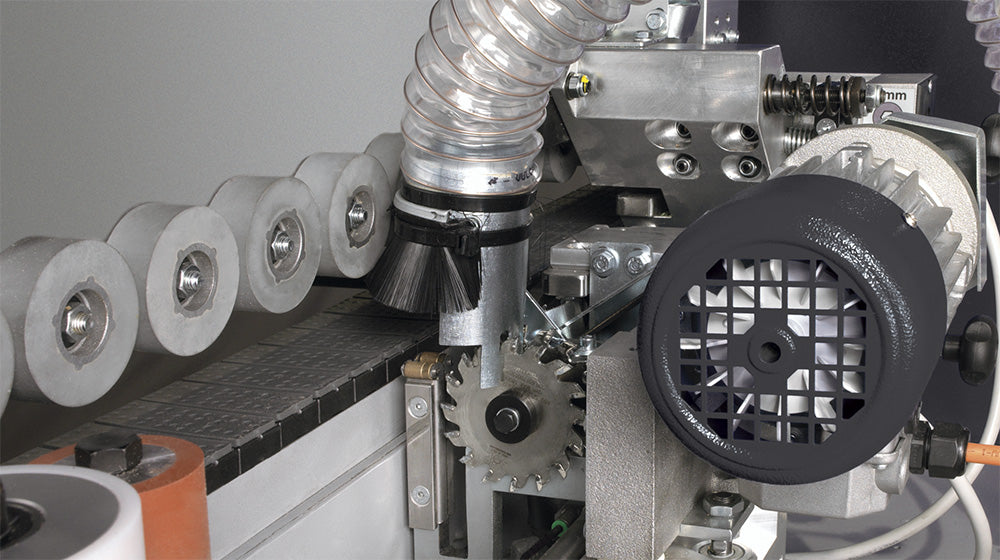

• Highly precise end trimming unit with radius trimming of edge material up to 2mm in thickness

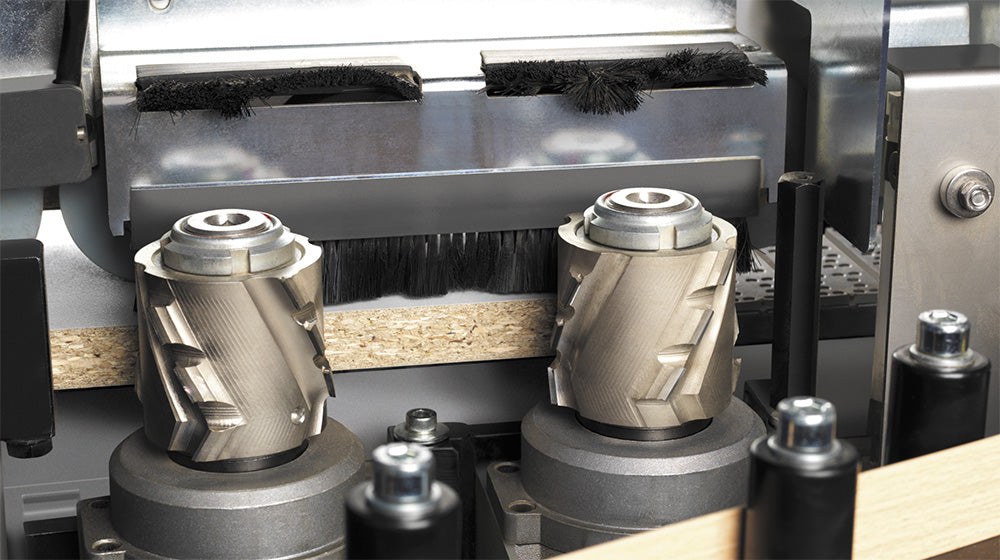

• Premilling unit with diamond milling cutters
• 5mm package for the glueing of solid wood edges
• “Quick Set System” for quick adjustment to different materials

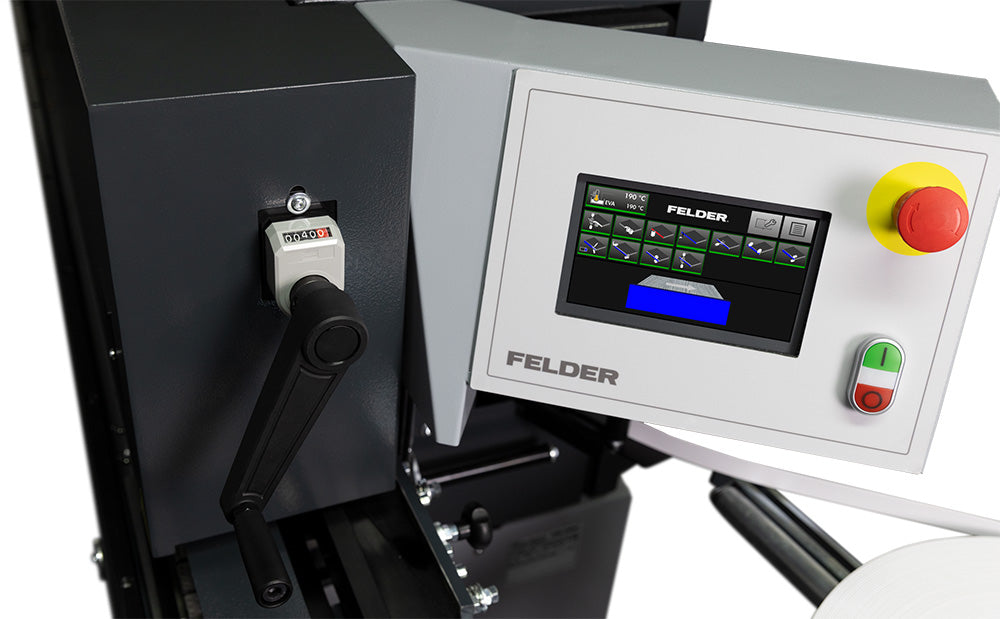

• 7" colour touchscreen control

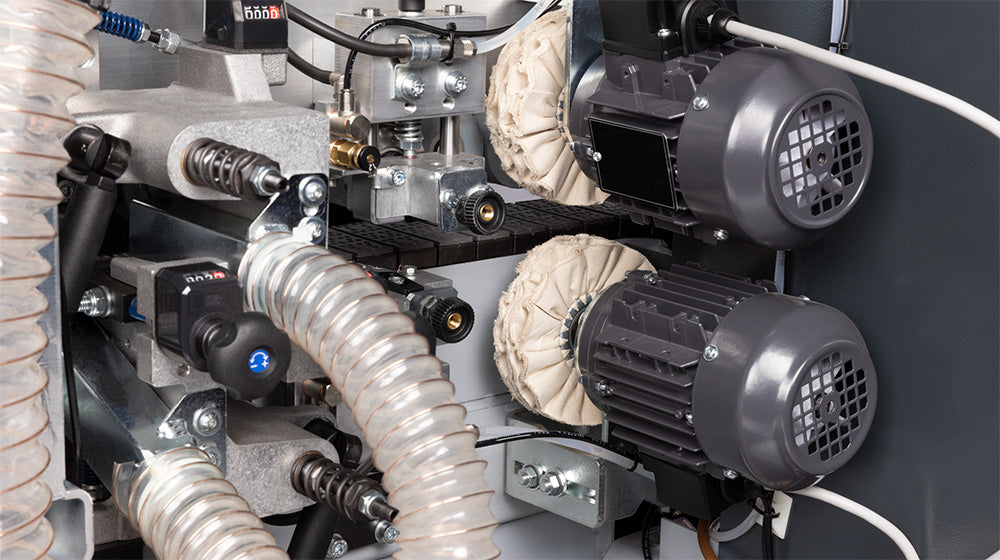

• 3 free spaces for finishing units
• 50 mm working height

Exact workpiece feed with a chain and smooth feed rollers, no scratches on the workpiece surface of high value laminated materials.

Minimum workpiece width 95 mm Minimum workpiece length 210 mm
