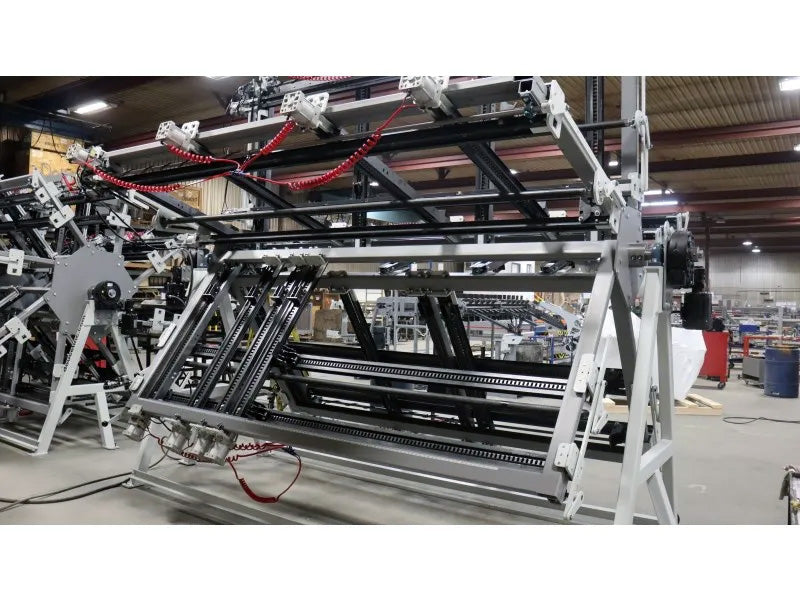

Doucet RDM-TM Rotary Mortise/Tenon Door Clamp

Door Master Model RDM-TM is a five section Rotary Door Clamp for Mortise and Tenon Miter Doors andamp; Cope and Stick Doors (90°). The RDM-TM is designed for quick and accurate assembling, clamping and squaring of your cabinet doors.

The five section Door Master for Mortise and Tenon Miter Doors andamp; Cope and Stick Doors (90°) is available in two models:

• RDM-TM - suitable for assembly of large pantry doors up to 30" x 72" down to drawer fronts 5 ½" x 12 ½". Standard model has four clamps per section.

• RDM2-TM - suitable for double door assembly up to 30" x 48" down to drawer fronts 5 ½" x 12 ½". Standard model has six clamps per section.

• Automatic Sections Indexing.

The RDM-TM is also available
• A capacity of 48" x 96" or 30" x 96"

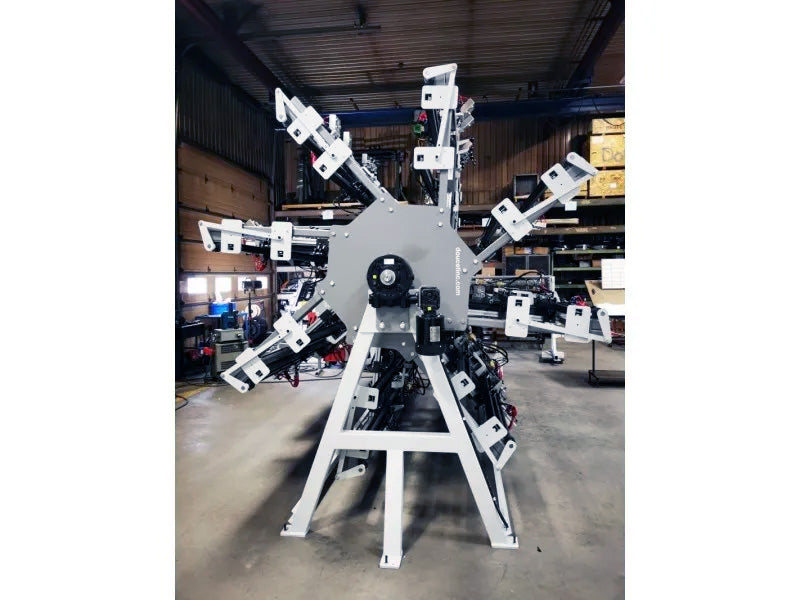

• In eight sections
• In combined sections

Available Options
• Variable speed rotation

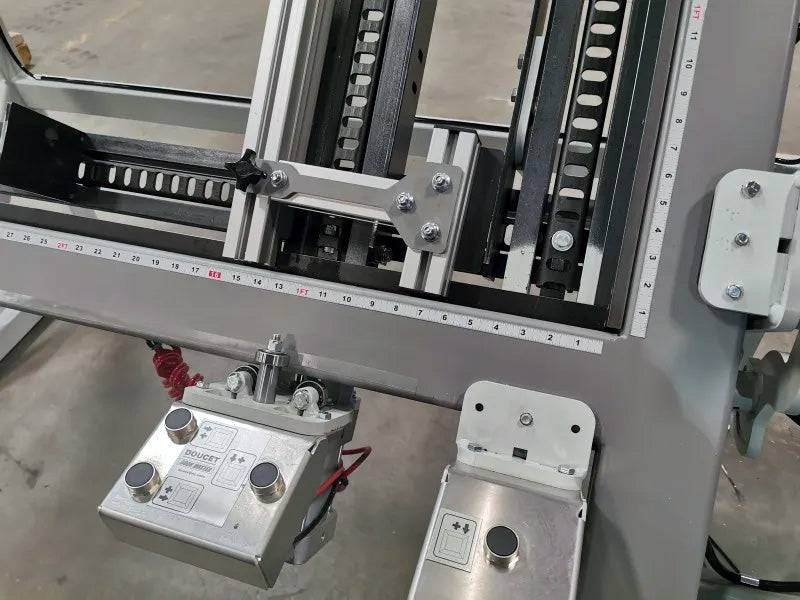

• Small part insert for minimum door sized 5 ½" x 5 ½"
• Contact surfaces covered with UHMW (for MDF doors)
• Additional vertical clamp

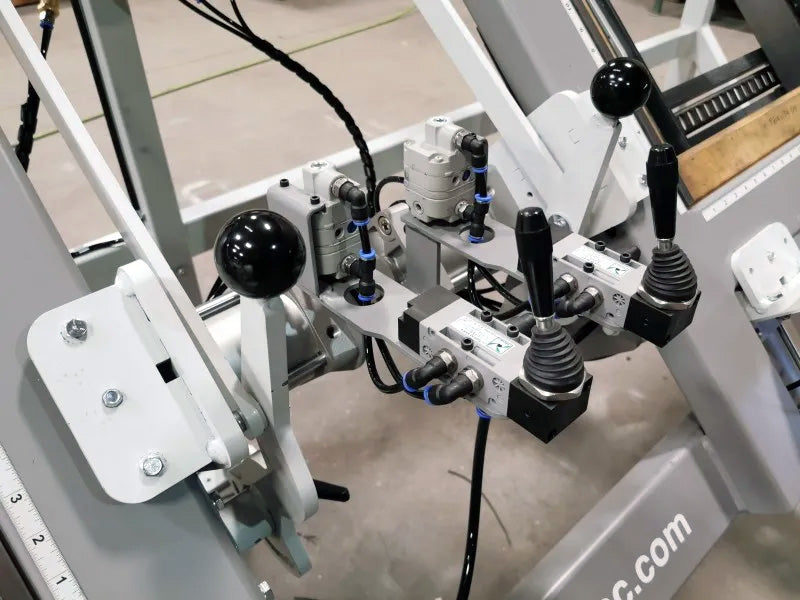

• Modified Pneumatic System to allow two preset levels of clamping pressure for different materials.

SLIM DOOR OPTION AVAILABLE ON THE RDM-TM
The four inserts increase the support of narrow door frames. Pair this with a predefined two step pneumatic clamping system for the more delicate door frames.
