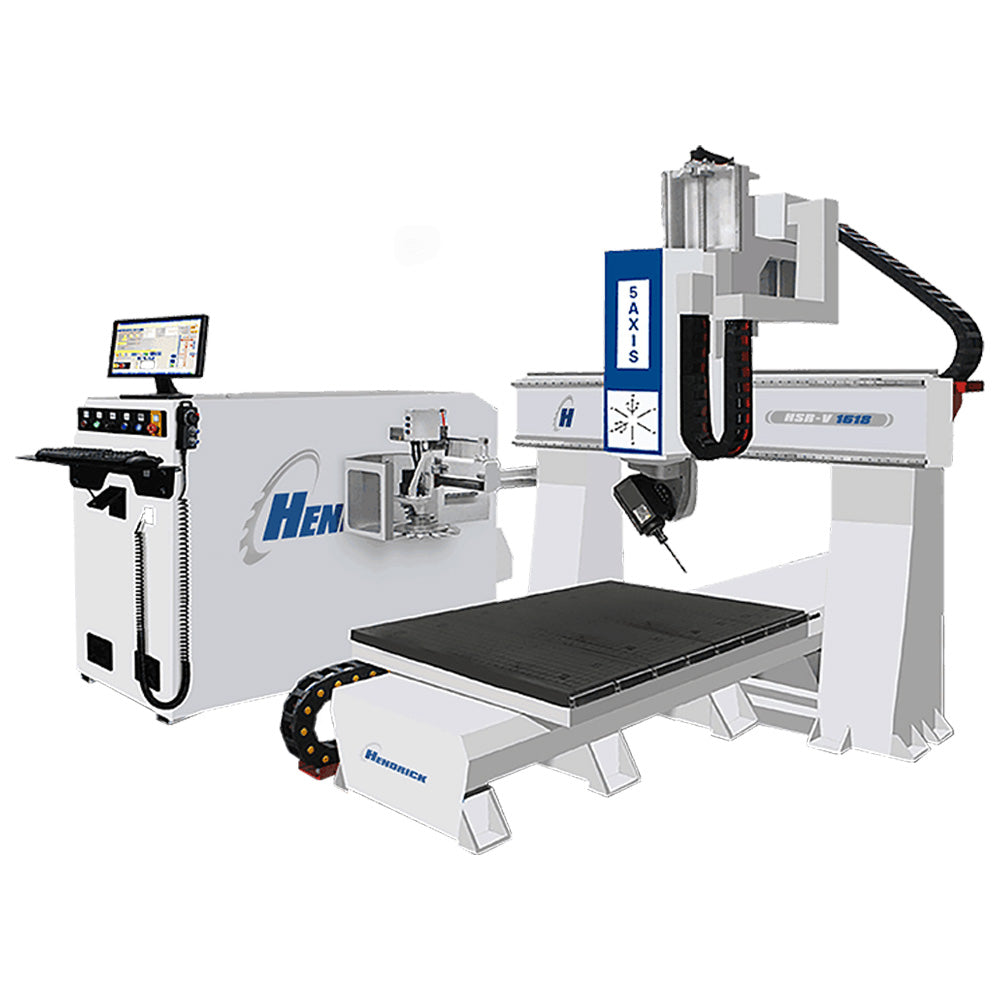

Hendrick HSR-V Series 5 Axis CNC Router

3D Machining Made Easy
Get the complete spectrum of industrial production with precision 5 axis CNC routing with the HSR–V 5 axis CNC Router. Process everything from yacht and automotive parts to molded product trimming on 3D curved surfaces. With real time tool center point rotation and all 5 axes fully synchronized, it’s easy. Built with world class components, the HSR–V is designed to deliver optimal performance, while maintaining exceptional positioning and cutting speeds. The HSR–V is a versatile 5 axis machining center – increase productivity with our twin moving table model or save on floor space with our single stationary table, moving gantry model. CNC routing on 3D surfaces is faster, more accurate, and more adaptable than ever with the HSR–V 5 Axis CNC Router Series.

The HSR-V Series Routes

Corrugated	Aluminum	Plastic	Wood

5–Axis Features

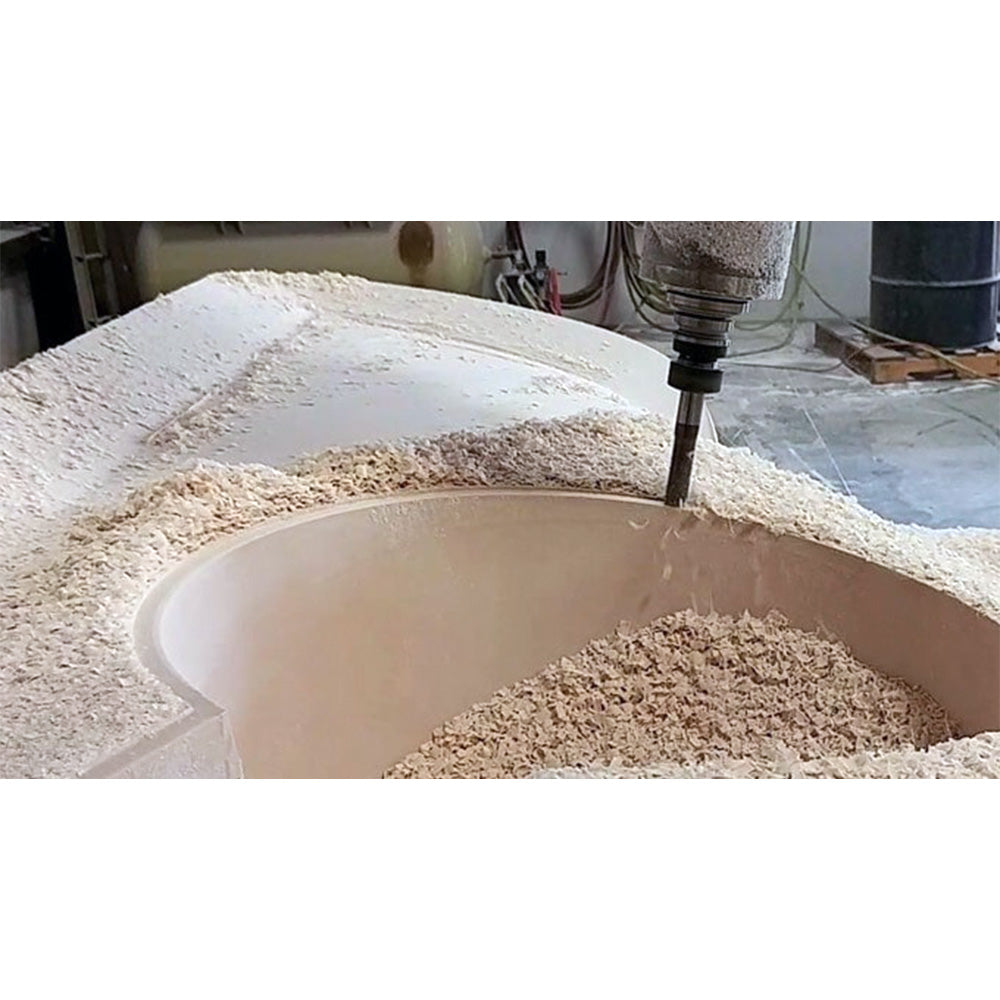

3D Curved Surface Processing
5 axis precision allows positioning and cutting along curved material surfaces with ease.

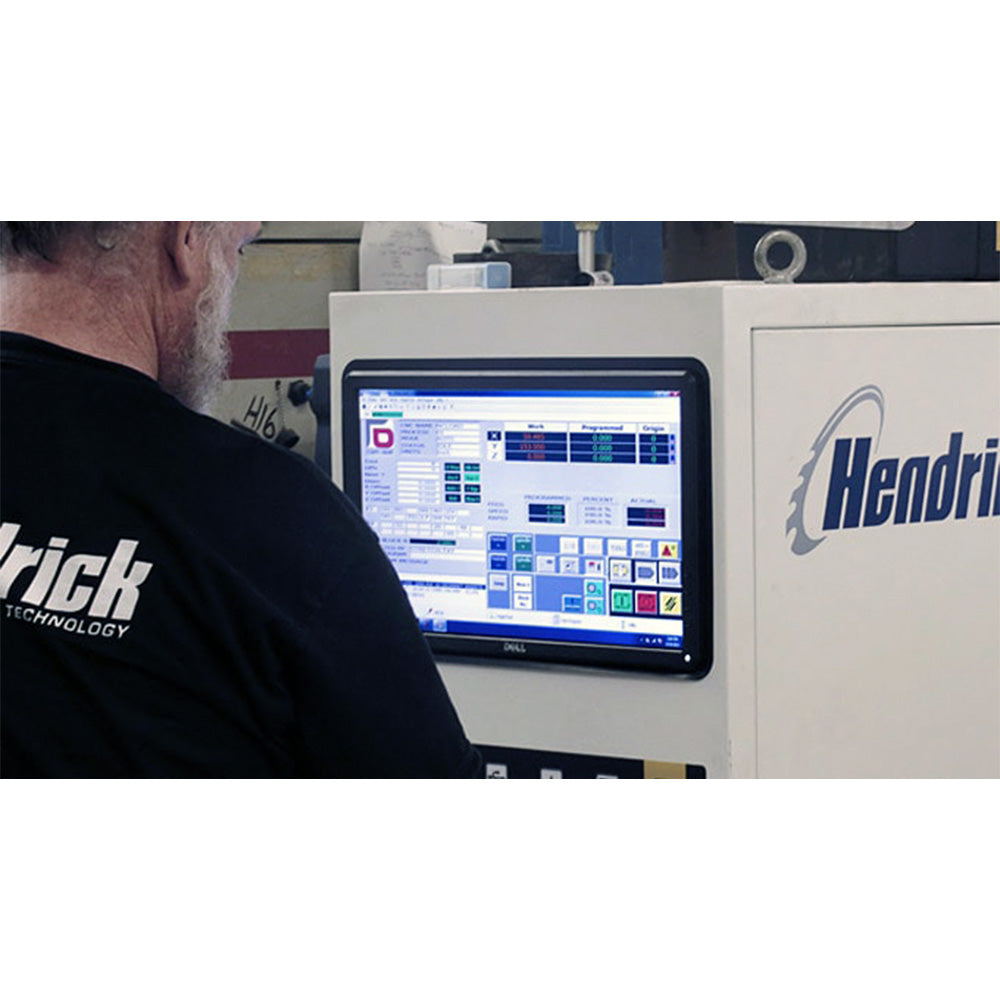

Versatile Control System
• OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN–ready Ethernet interface.
• International standard machine code language (G&M), integrates with all industry standard CAD/CAM programming software packages, built–in diagnostics, tool path graphics and more.
• Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

Applications
Applications include but aren’t limited to the automotive, aviation, ship andamp; yacht, chairs, fiberglass, and molded product trimming.

Precision Components
The HSR–V is designed to never quit with best–in–class mechanical and electronic components, including OSAI Open control, Yaskawa drives, THK linear ways, precision ground helical rack and pinion, and precision ball screws.

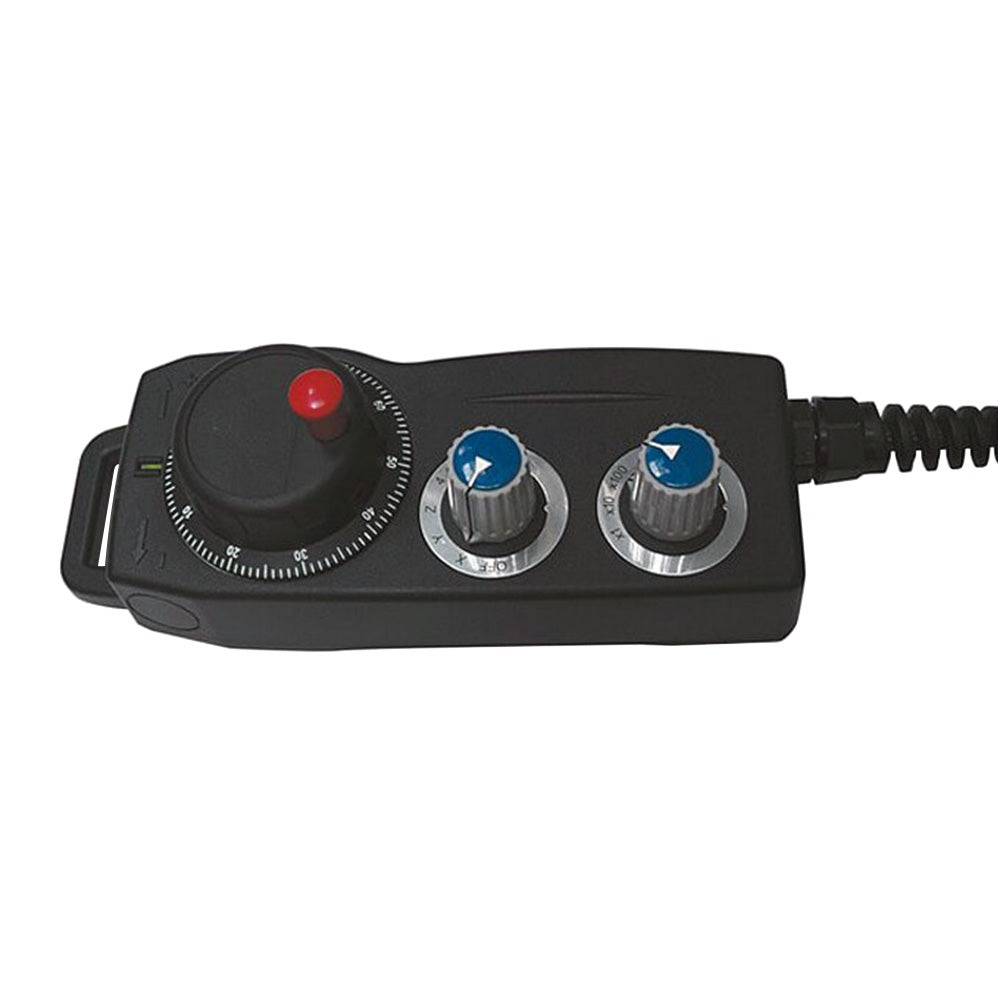

Manual Pulse Generator
MPG allows manual axis movements for fine adjustments.
