Uncompromising Quality at an Attractive Price

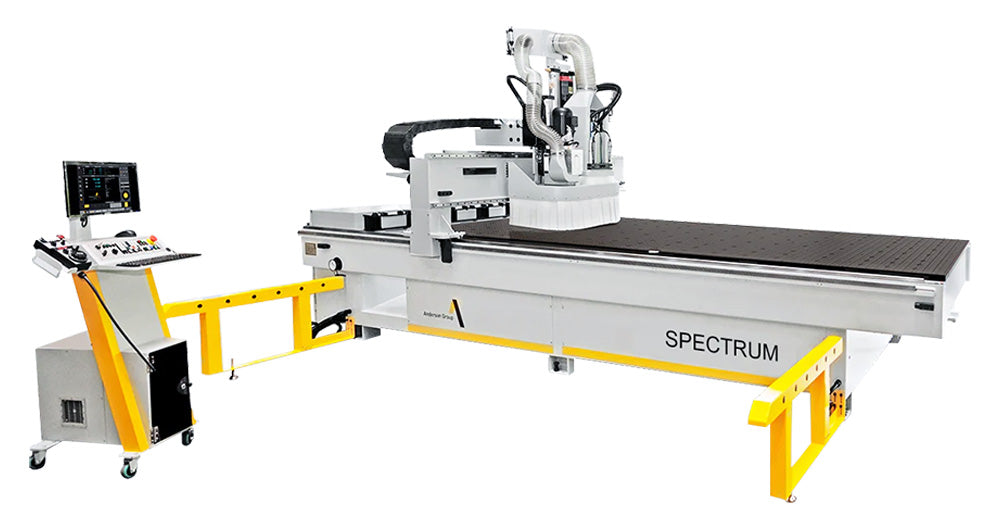

Step into a world of high-quality CNC machining without breaking the bank with the Anderson Spectrum-M Series CNC Router. This series is designed to be the go-to solution for industries dealing with wood, plastic, aluminum, or composites, offering a blend of user-friendliness, compact design, and robust performance.
Exceptional Performance in a Compact Design
The Spectrum-M Series, equipped with the reliable FANUC control and electronics systems, offers exceptional precision and versatility. With its robust construction and advanced features, it can handle a wide variety of materials and applications.
Key Features
•User-Friendly Interface: Designed for ease of access and straightforward connectivity.
•Compact Footprint:Ideal for companies with limited budget or floor space.
•High-Quality Components: Shares many features and components with our larger, premium models, including the spindle, racks and pinions, and FANUC control systems.
•100% Steel Construction: Ensures long-lasting durability and performance.
•Versatile Sizing Options: Available in sizes ranging from 4'x8' to 5'x12'.
Detailed Specifications of the Anderson Spectrum-M Series CNC Router
Dive into the comprehensive specifications to fully grasp the capabilities of the Anderson Spectrum-M Series CNC. These details provide a clear, easy-to-understand overview of the key specifications, features, and additional options available in this state-of-the-art CNC router. From its 100% steel construction to its versatile sizing options and FANUC control systems, every aspect of the Spectrum-M Series is engineered to meet your CNC machining needs.

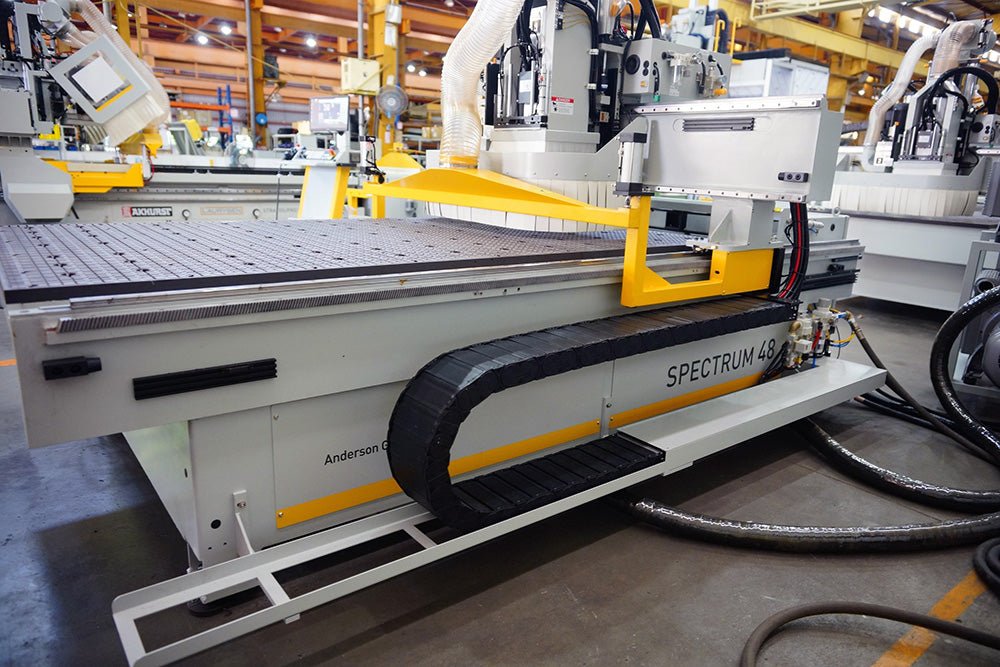

| Basic Configuration SPECTRUM | M48 | M510 | M512 |
| No. of vacuum zones | 1 | 2 | 3 |
| Table Size X | 2500mm(98") | 3100mm(122") | 3700mm(146") |
| Table Size Y | 1300mm (51") | 1550mm(61") | |
| Stroke of X-axis | 2580mm(101") | 3180mm(125") | 3880mm(152") |
| Stroke of Y-axis | 1585mm(62") | 1835mm(72") | |
| Stroke of Z-axis | 200mm(8") | ||
| Rapid Travel Speed in X | 60m/min(2,362"/min) | ||
| Rapid Travel Speed in Y | 60m/min(2,362"/min) | ||
| Rapid Travel Speed in Z | 12m/min(472"/min) | ||
| Maximum Rapid Traverse | 85m/min(3,350"/min) | ||
| Spindle Power | 12HP | ||
| Max Speed(RPM) | 22,000 | ||
| Clamping System | HSK-63F | ||

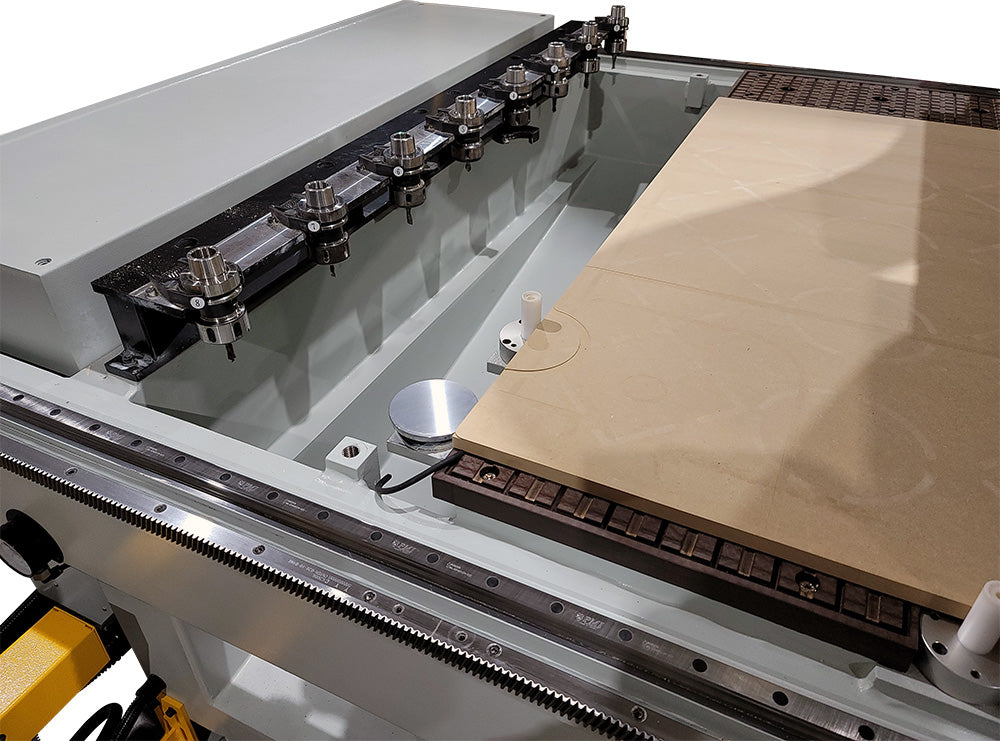

| Rack Style Tool Changer | 6 | 8 | |

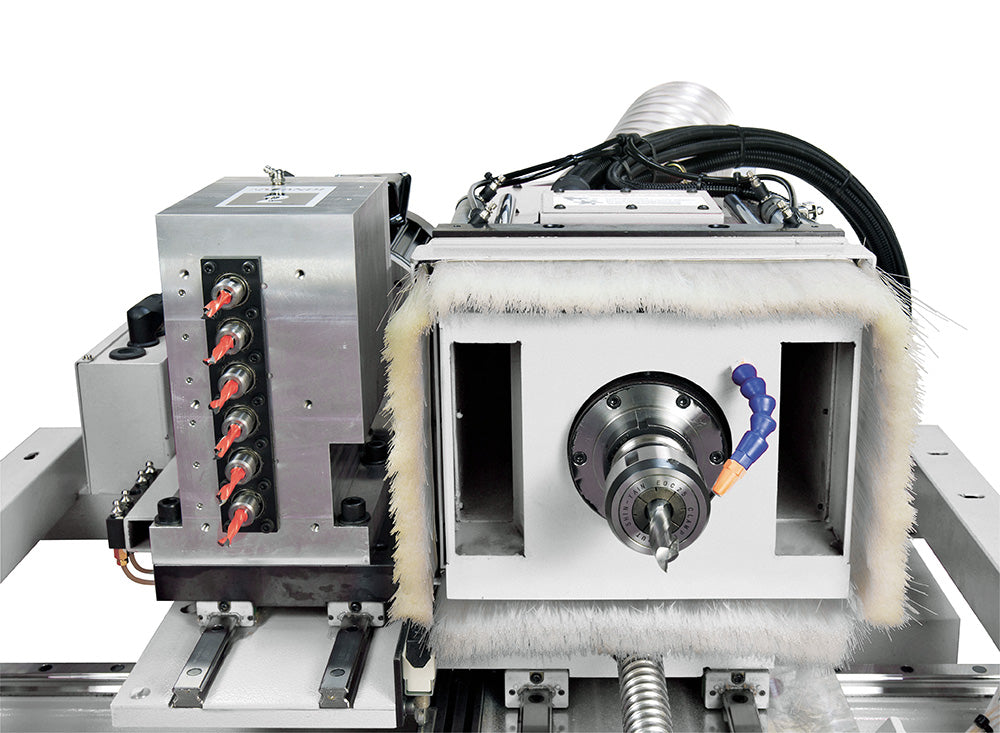

| Boring Block | 6 inline or 5+5 | ||
| Vacuum pump | 10/25/40HP | ||
| Controller | FANUC 0i | ||
| X-Drive System | Helical Rack and Pinion | ||
| Y-Drive System | Helical Rack and Pinion | ||
| Z-Drive System | Ball Screw | ||
| Weight | 2,700Kg (6,000lbs) | 3,100Kg (6,800lbs) | 3,700Kg (8,200lbs) |
| OPTIONAL | |||
| Reverse Air Flow | Optional | ||
| Bar-Code Reader | Optional | ||
| Aggregate Capability | Compact aggregate ability is Standard | ||
| C-Axis | N/A | ||
| Offload Pusher Sweeper | Optional | ||
| Automatic Off-Loading | Optional | ||
