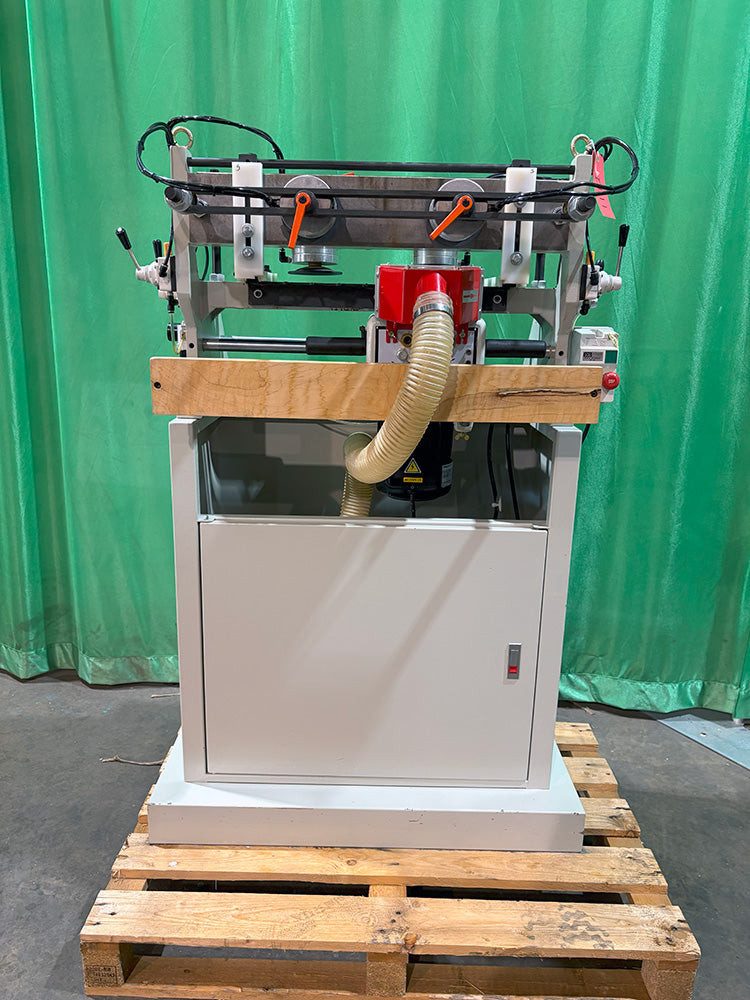

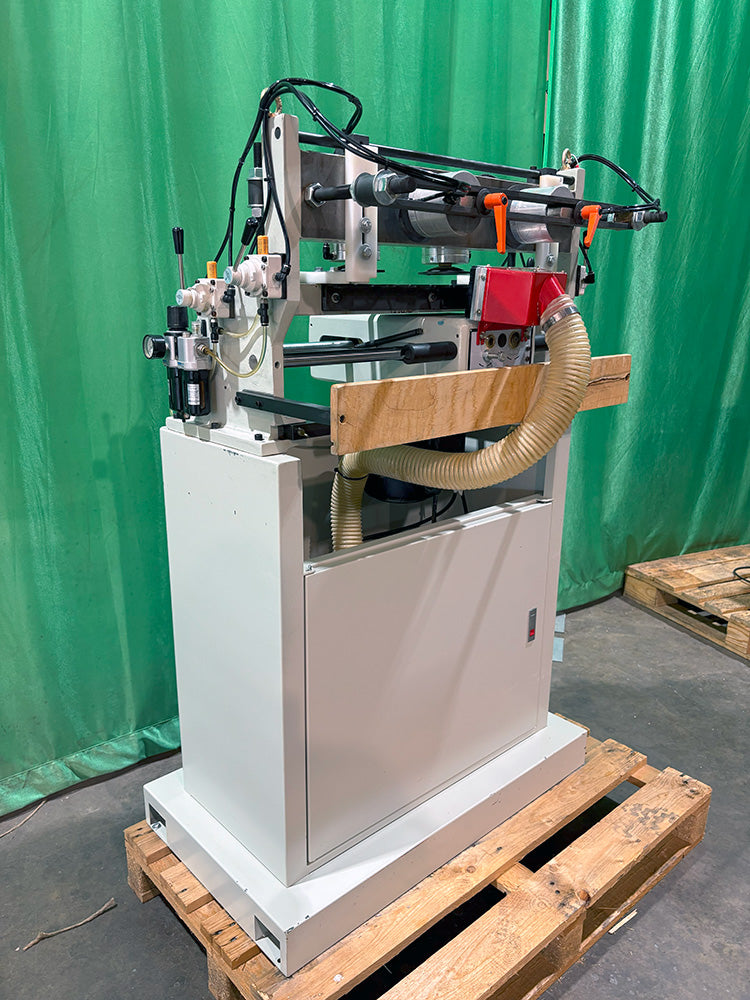

Used Cantek STO-JDT65 Dovetailer

Used Cantek STO-JDT65 Dovetailer

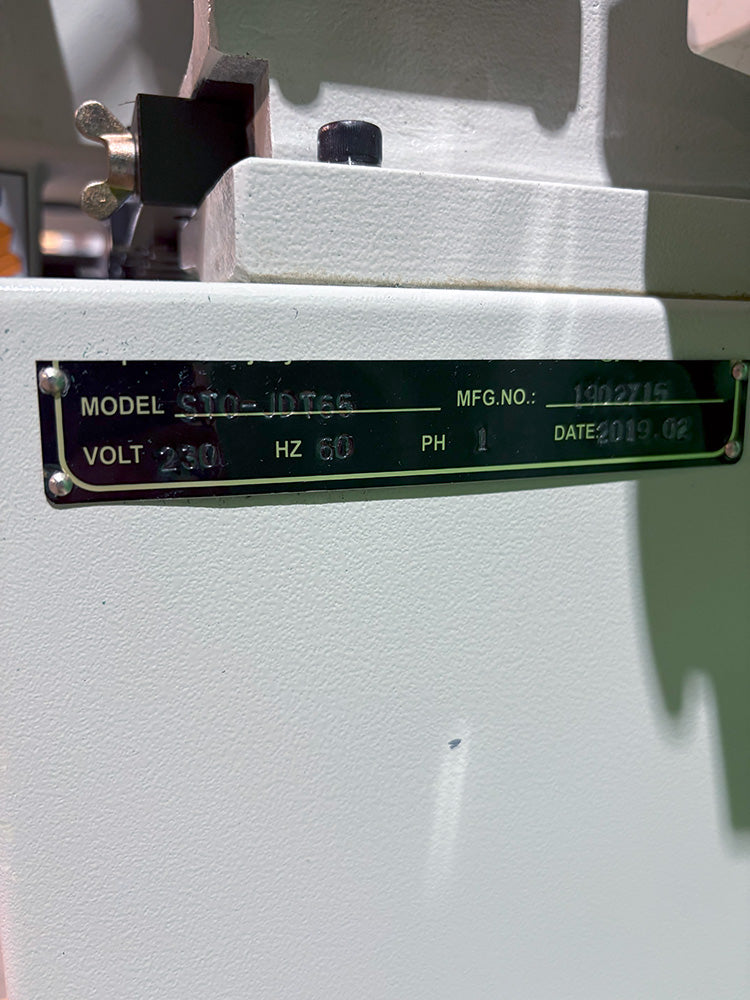

230V/60Hz/1Ph

Max. workpiece size 59" x 16 ½"
Workpieces are clamped by air clamps.
Enclosed-type stand.
Equipped with an indication bar for indicating cutting position.
Tenon width can be micro-metrically adjusted in 2 mm.
Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.

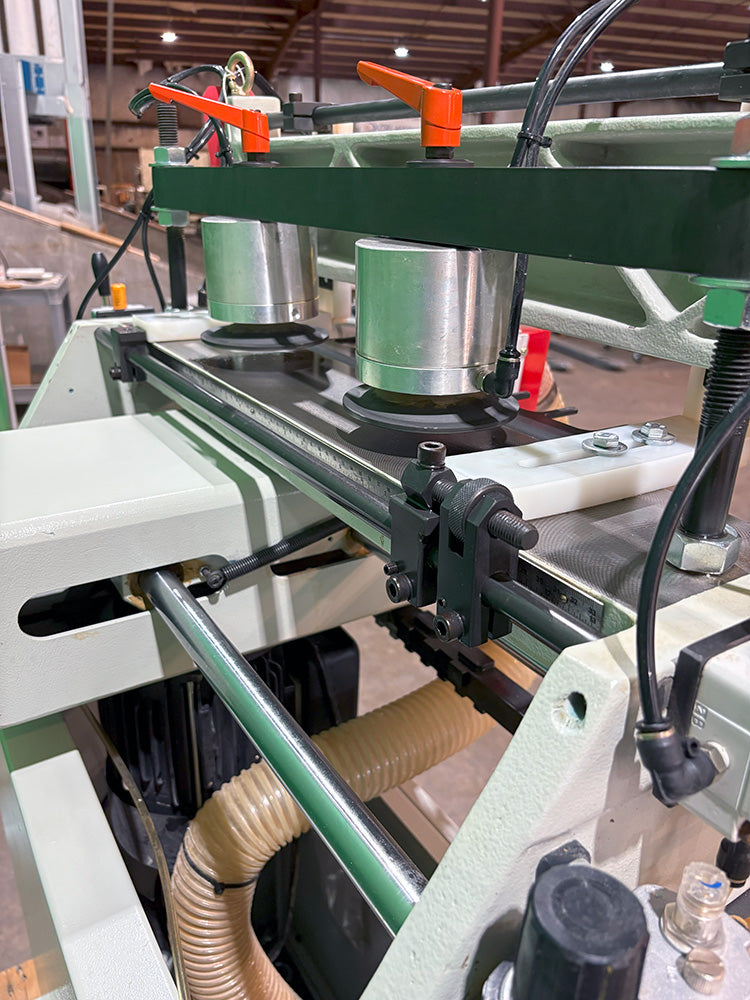

Equipped with one four-sided template providing four types of pitches between dovetails.
Standard pitch 1″, 1 ½", 2″ and 2 ½" (Other sizes available on request)
The spindle accommodates 12 mm T.C.T. cutter bit.
Specifications

Min. workpiece size: 7.9″ x 2.4″
Max. workpiece size: 59″ x 16.5″
Min/Max dovetail height: 0.2″ ~ 7.1″
Min/Max front thickness: 0.28″ ~ 2.36″
Min/Max side thickness: 0.28″ ~ 3.6″
Number of spindles: 1
Spindle speed (RPM): 18500 RPM
Dovetail spacing: 1″, 1.5″, 2″, 2.5″
Table height from floor: 46.5″
Dust collection ports: front: 2.5″ / rear: 4″
Air pressure required: 6 bar

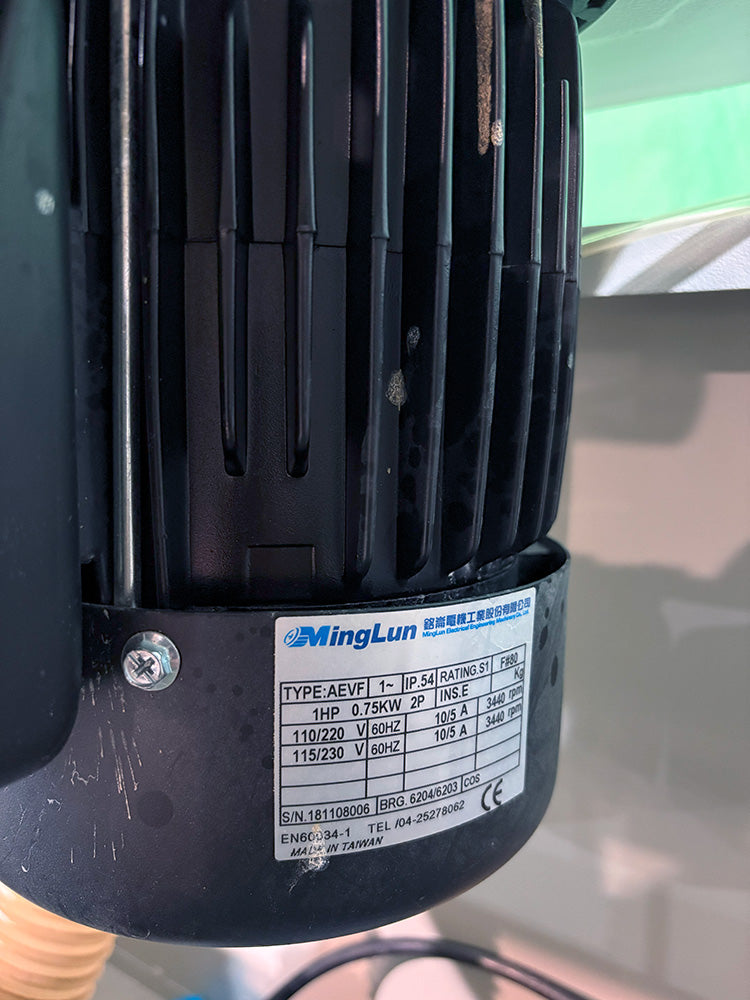

Motor power: 1 HP
Shipping dimensions: 42" x 31" x 63"
Machine weight: 440 lbs.
