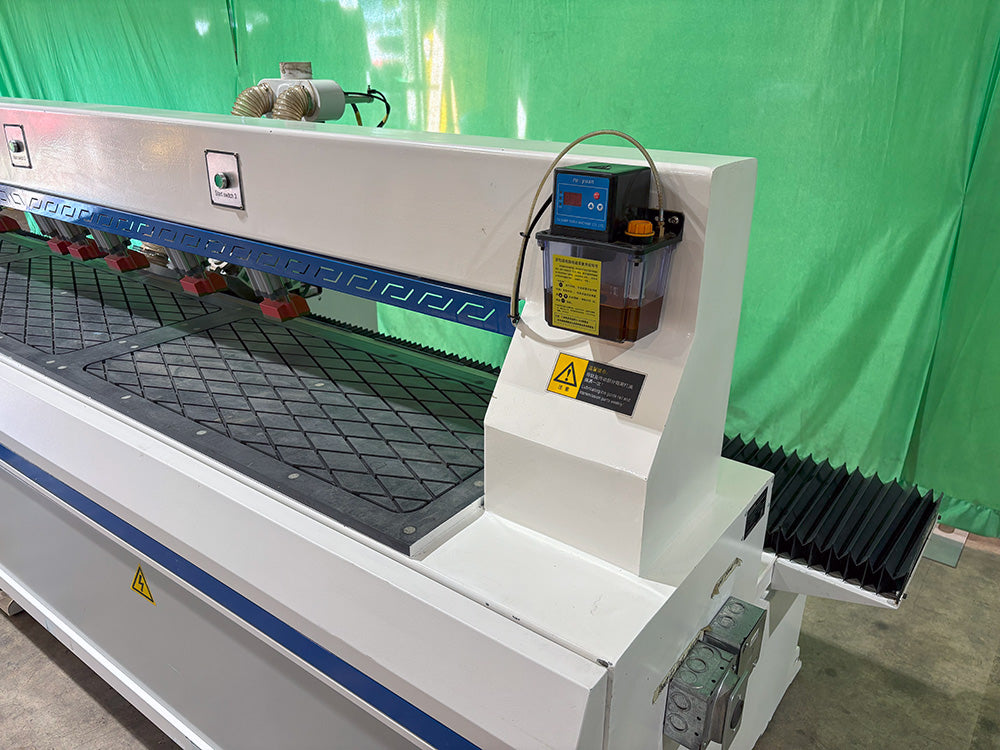

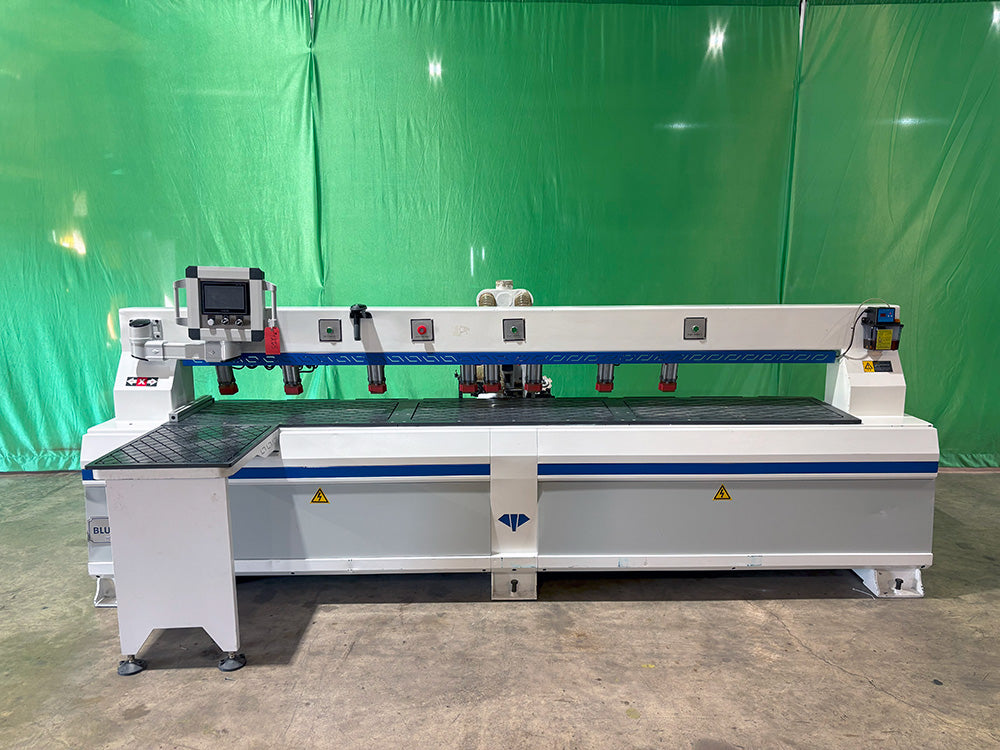

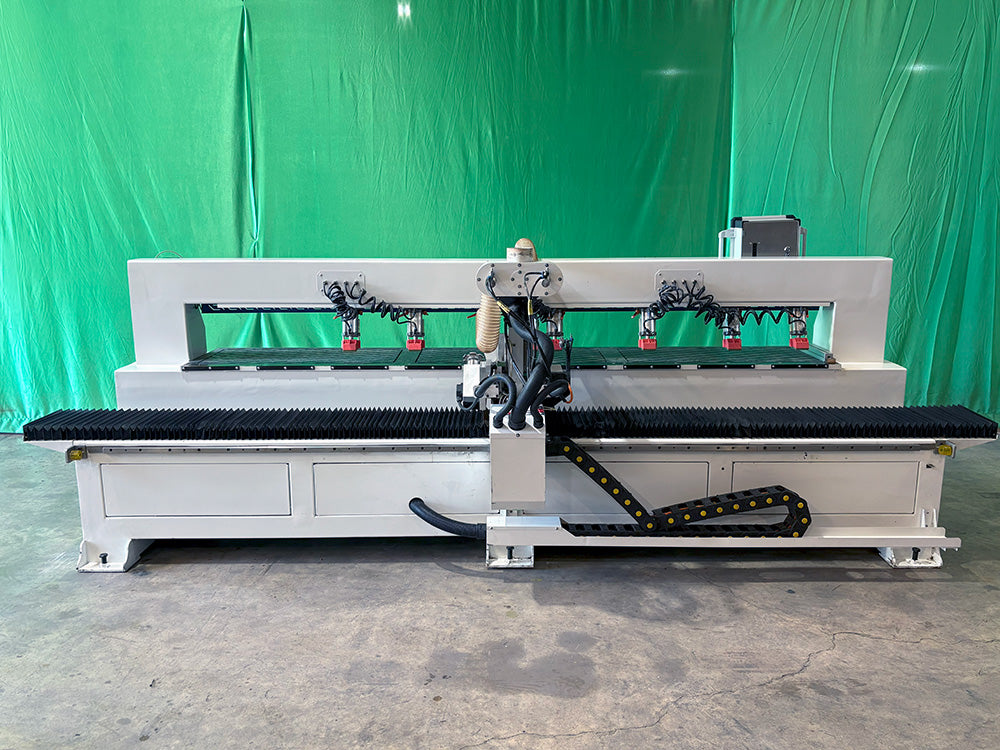

Used 2021 Blue Elephant 45 Side Hole Drilling Machine
Used 2021 Blue Elephant 45 Side Hole Drilling Machine is backordered and will ship as soon as it is back in stock.

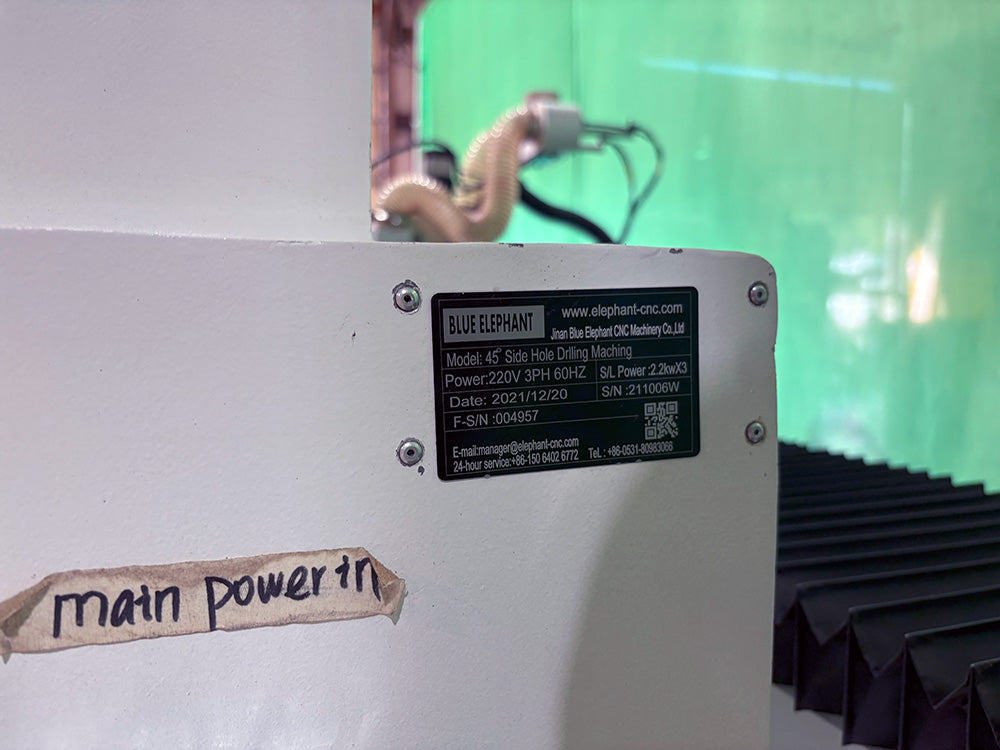

220V 3 Phase, 60HZ
Machine Size 3600x1300x1450mm Table height 750mm. Left and right X-axis working stroke 0-2800mm. Spindle motor brand SCS/Huajiang/Changsheng/Oakmond
Front and rear Y-axis working stroke 0-50mm
Spindle motor speed 18000 rpm/min
Up and down Z axis working stroke 0-50mm
Spindle motor power T1/T2 spindle 2.2KW, T3/T4 spindle 3.5KW
Maximum sheet size (length/width/thickness) 2800x1300x50mm

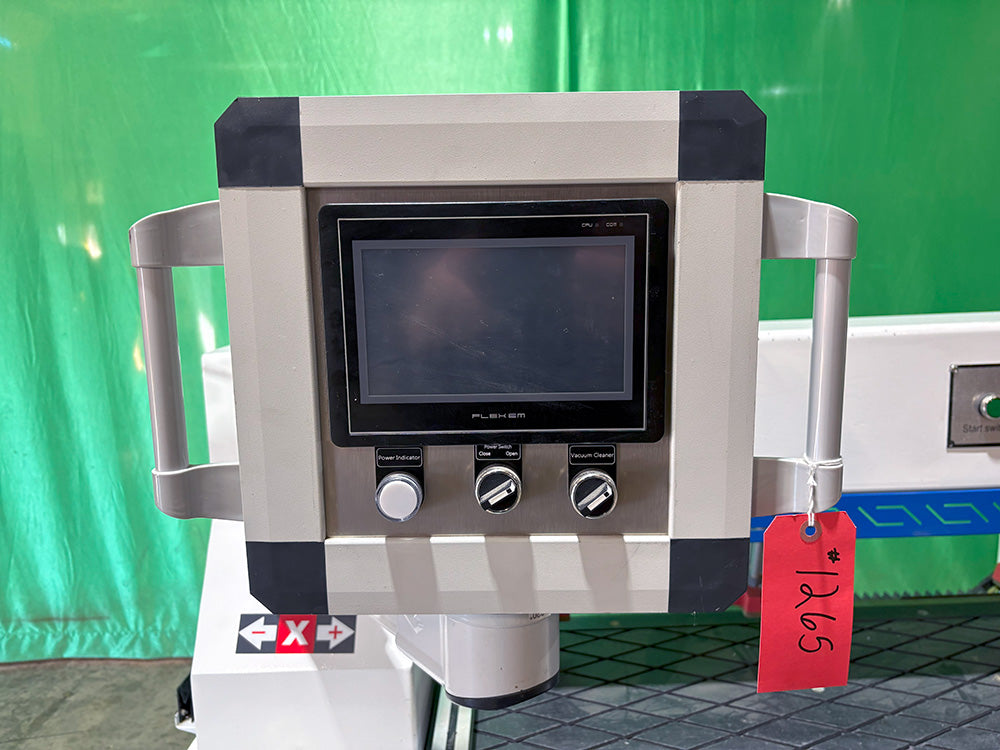

Control system Lorenchi scanning code scanning dual system
Drive motor brand Division servo motor. Laser sensor - American Banner laser head. Drive motor power 750W servo x 3 (Z axis with brake). Screen 7 inch touch screen.
Electrical main parts Chint Electric. Inverter Best 4KW. Rack - Jarl rack
Reducer Taiwan Planet, Lead screw Z+Y axis 25 high-precision grinding screw, Motor base - Die-casting high-precision grinding. Taiwan Renben
Highland Article #: 1265
