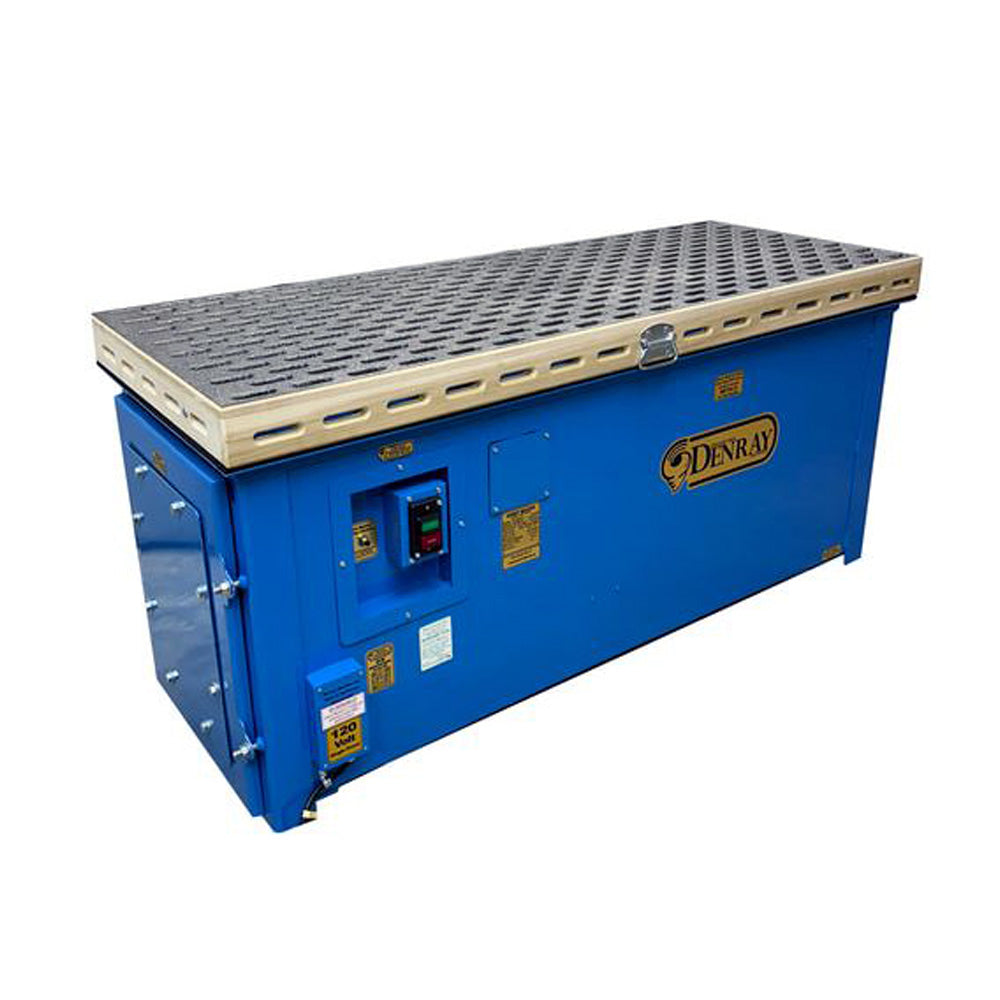

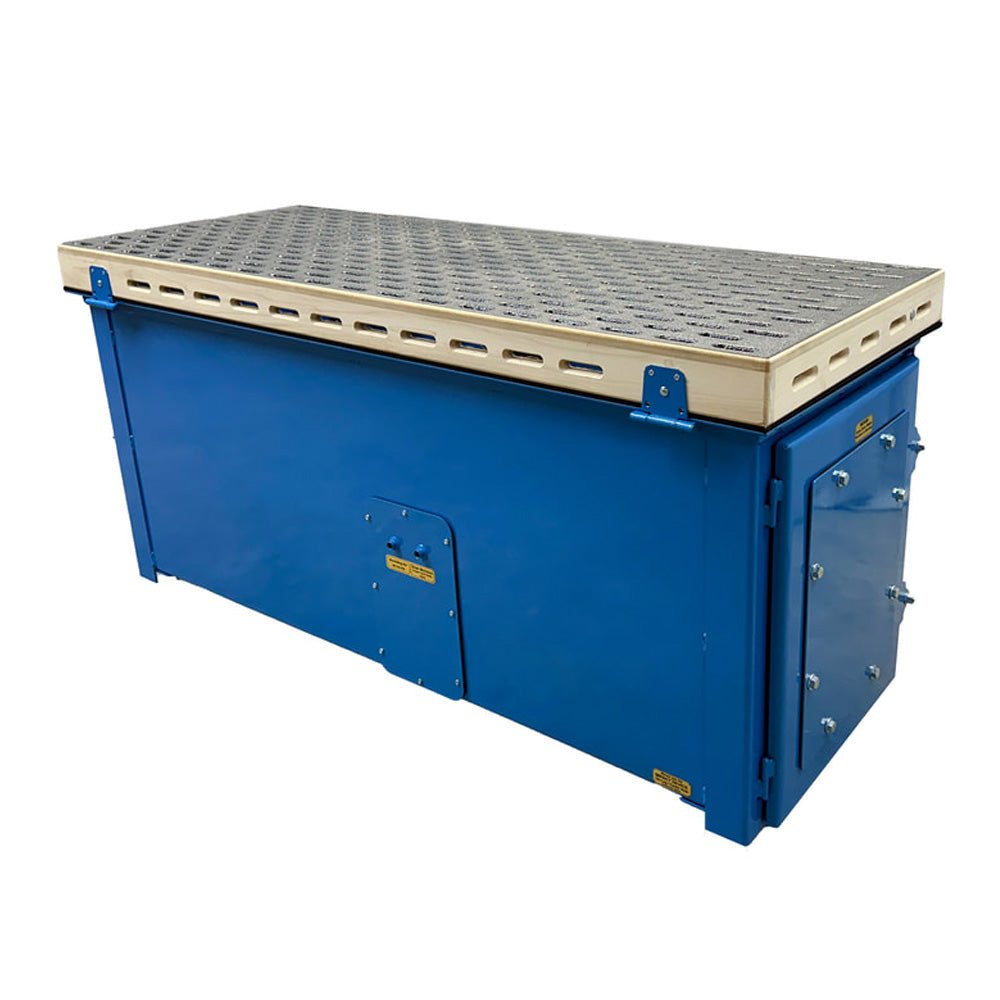

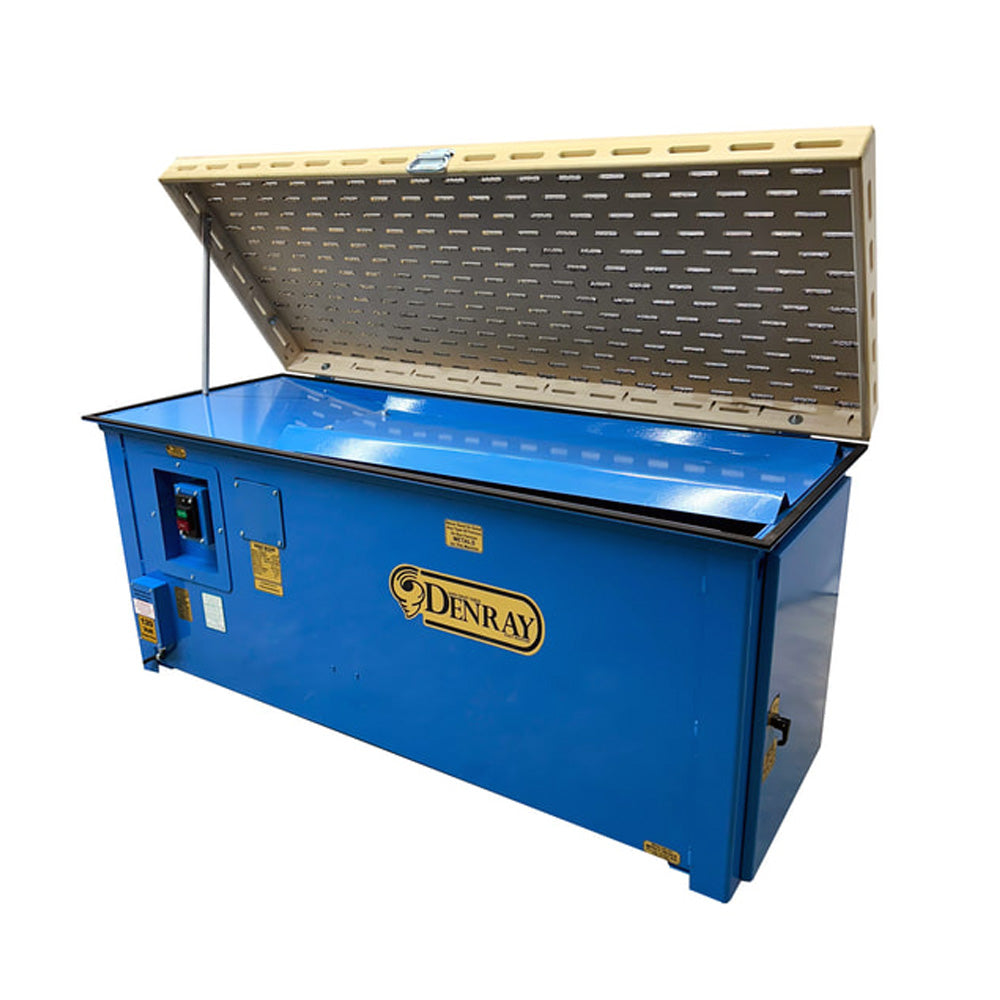

Denray Model 2872B Cartridge Filtration Downdraft Table

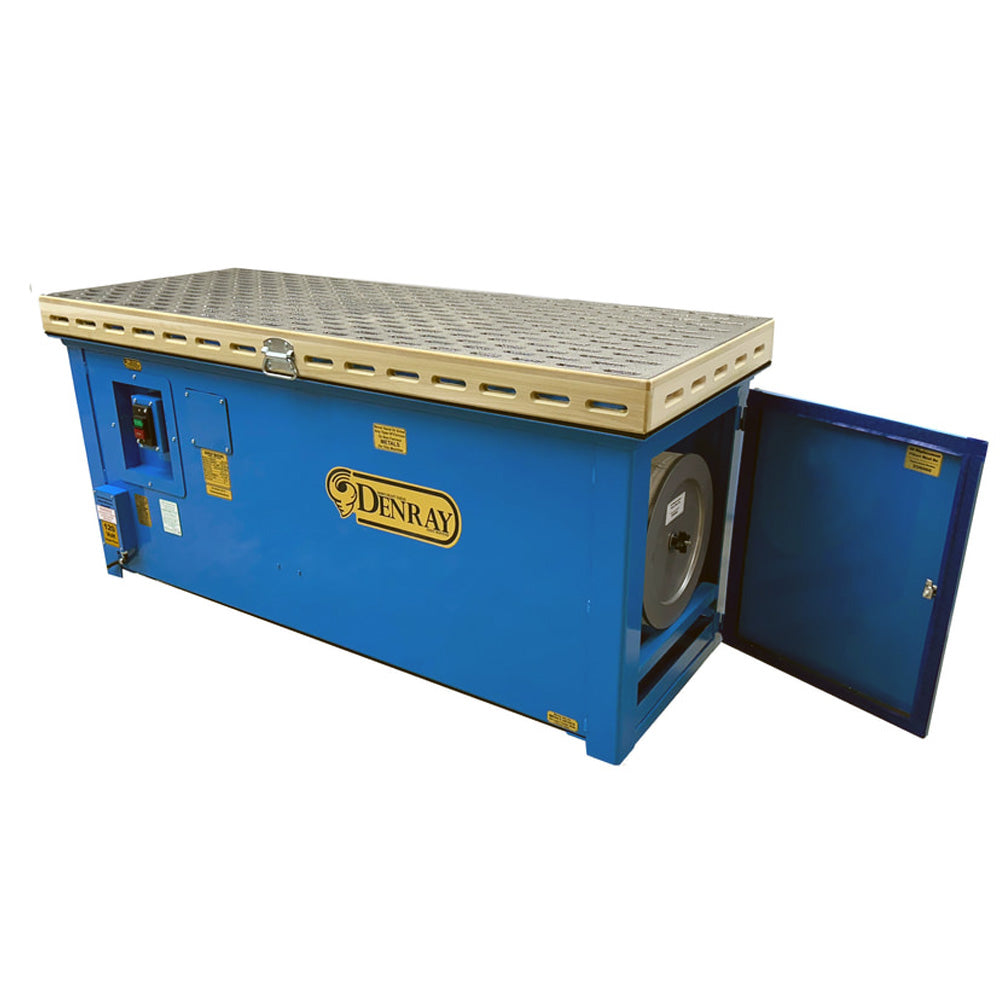

This model is great for medium sized jobs, and can be used for plastics, woods and finishing materials. The 2872B comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray's "Jet Pulse" push–button cleaning, rubber coated top, along with motor access on the left end and filter access on the right end.

Product Information
• 28" x 72"
• 36"
• 650 lbs
• 2 HP Motors
• 16.5" Fans
• 3000 CFM
• 72 Decibels Sound Level

Phase/Voltage Options

SINGLE–PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE–PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
Explosion Proof Motor (3 Phase only)
Light Bar
Casters
Auto–timer
Muffler (reduces sound level 10–12 dbs.)
100% Spunbond Polyester Filters
Carbon Filter Bank (odor only)
HEPA Filter bank
Three–sided Hinged Safety Shield
HDPE Plastic Tabletop
Hydraulic Height Adjustment
Larger Motor/Fan Upgrade
