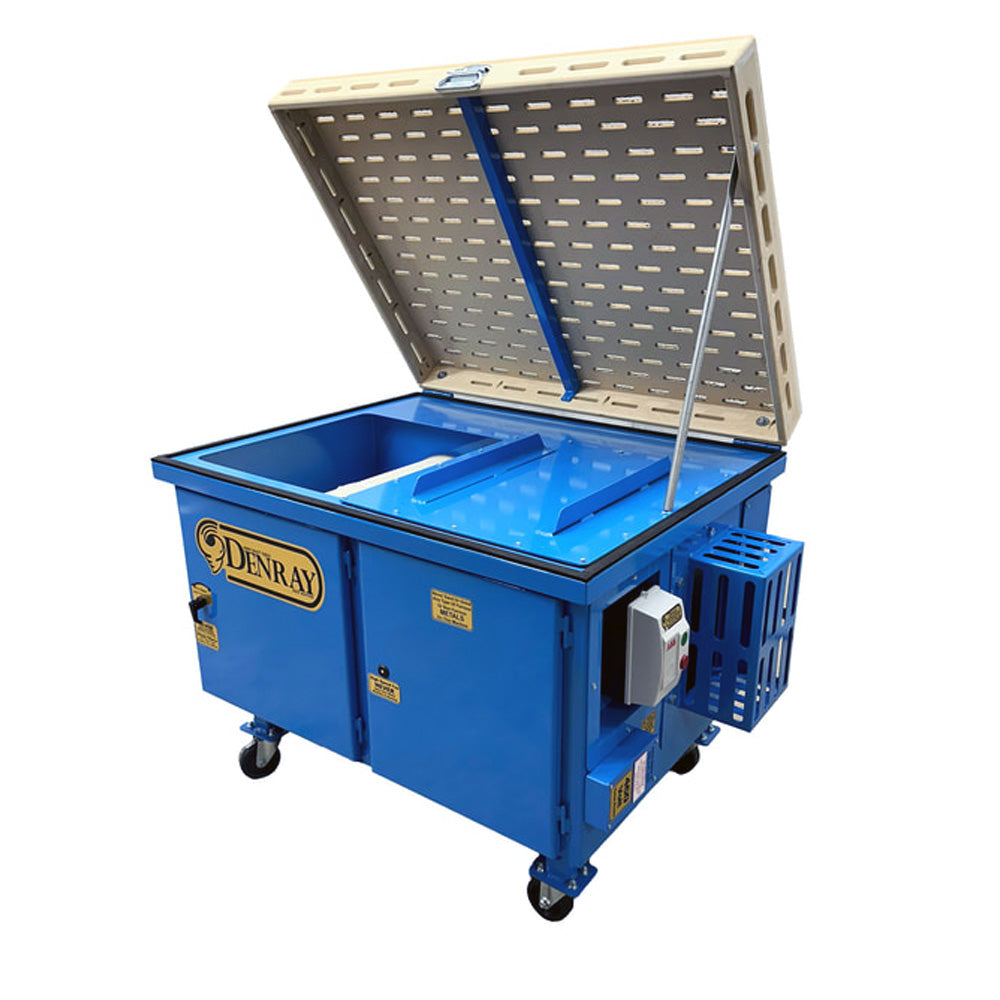

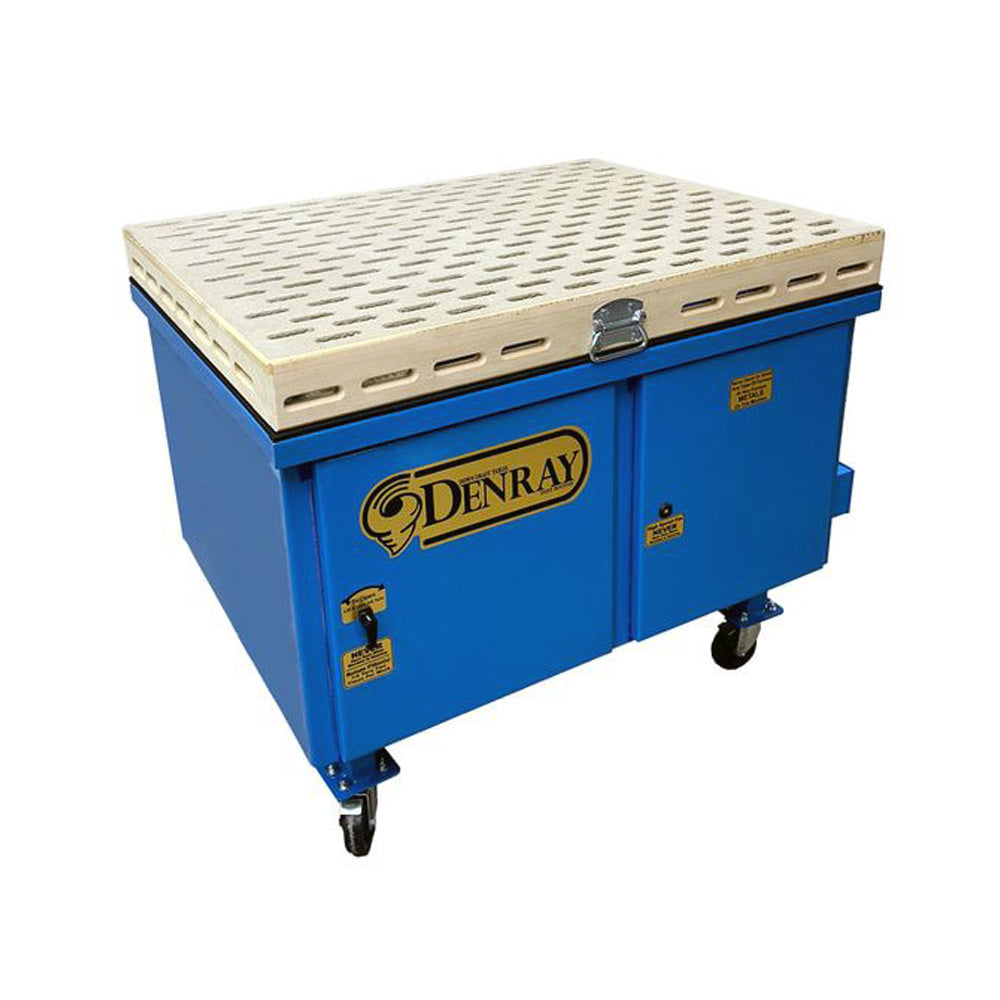

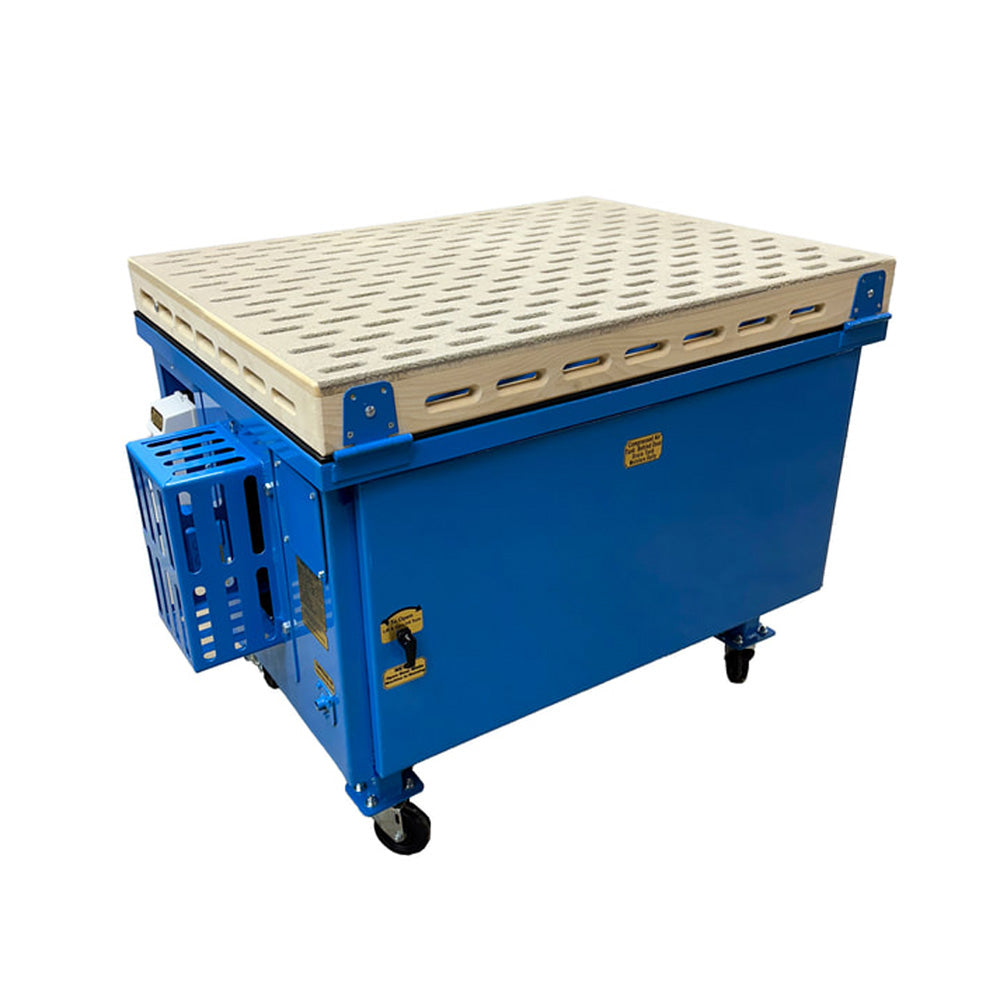

Denray Model 3444B Cartridge Filtration Downdraft Table

This model is great for smaller shops, and can be used for plastics, woods and finishing materials. The 3444B comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with casters, rubber coated top, and the Denray "Jet Pulse" push–button cleaning system. This model also comes with the options of a tilt out front edge and 7" working vise as add–ons.

Product Information
• 34" x 44"

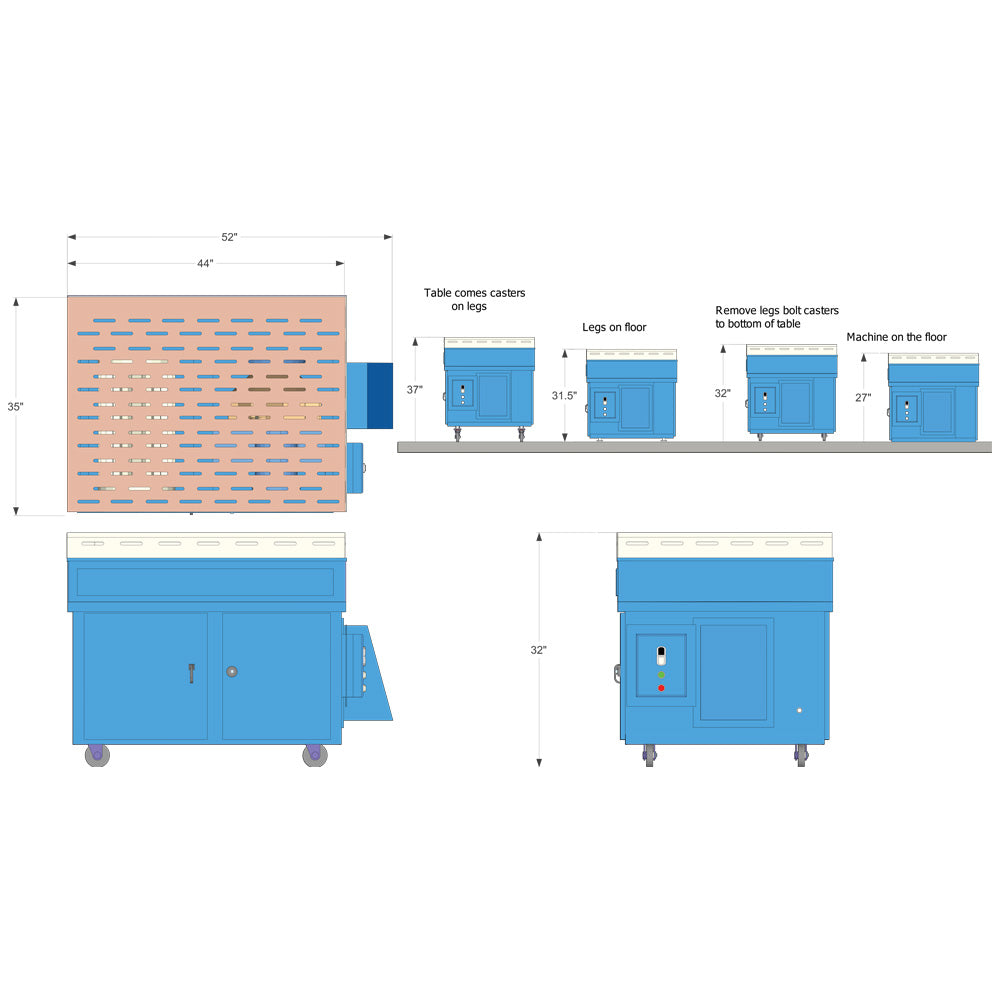

• 27", 31.5", 32", 37" Height (Four height options the operator can choose from in facility)
• 400 lbs
• 1.5 HP Motor (1Ph)
• 2HP Motor (3Ph)
• 15" Fan
• 1800 CFM
• 65 Decibels Sound Level
• Caster/Leg Combo Kit

Phase/Voltage Options

SINGLE–PHASE
115 VOLTAGE (14 AMPS)
220 VOLTAGE (7 AMPS)
THREE–PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Tilt out front edge
• 7" working vise
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Auto–timer
• Muffler (reduces sound level 10–12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three–sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade
