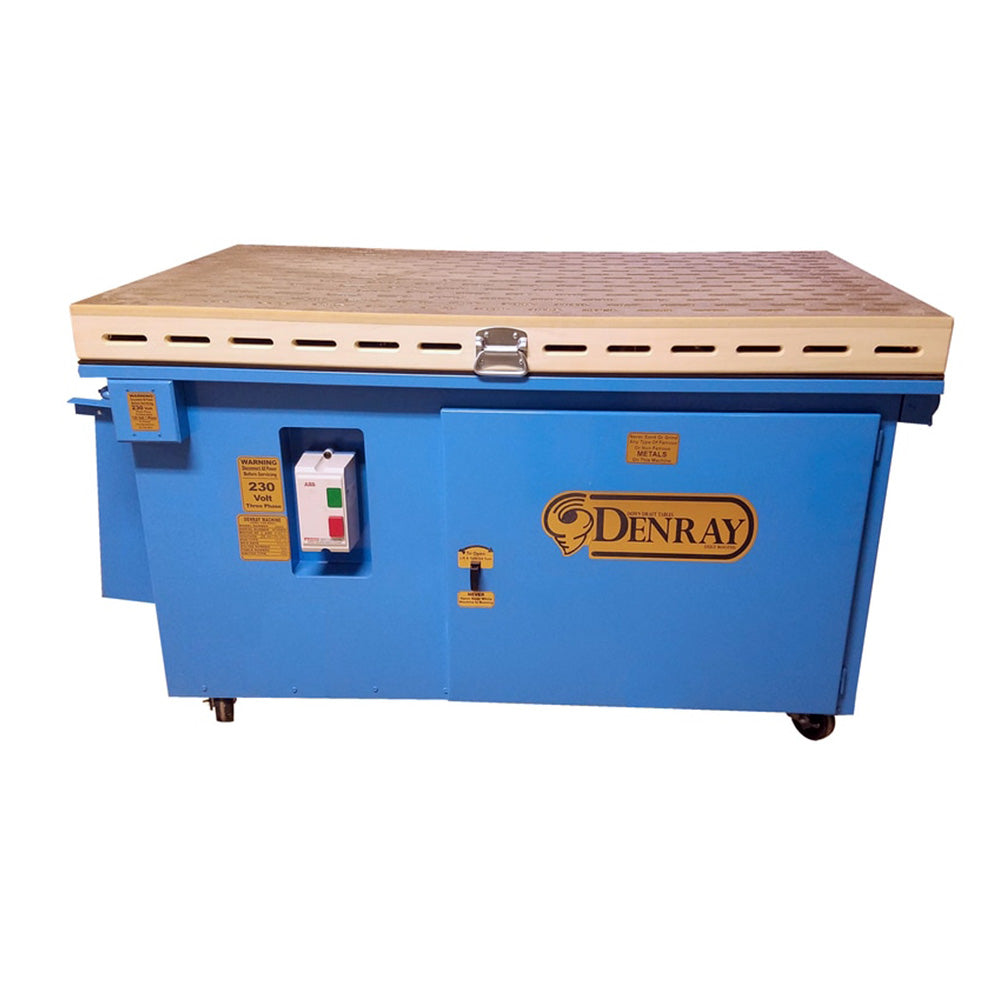

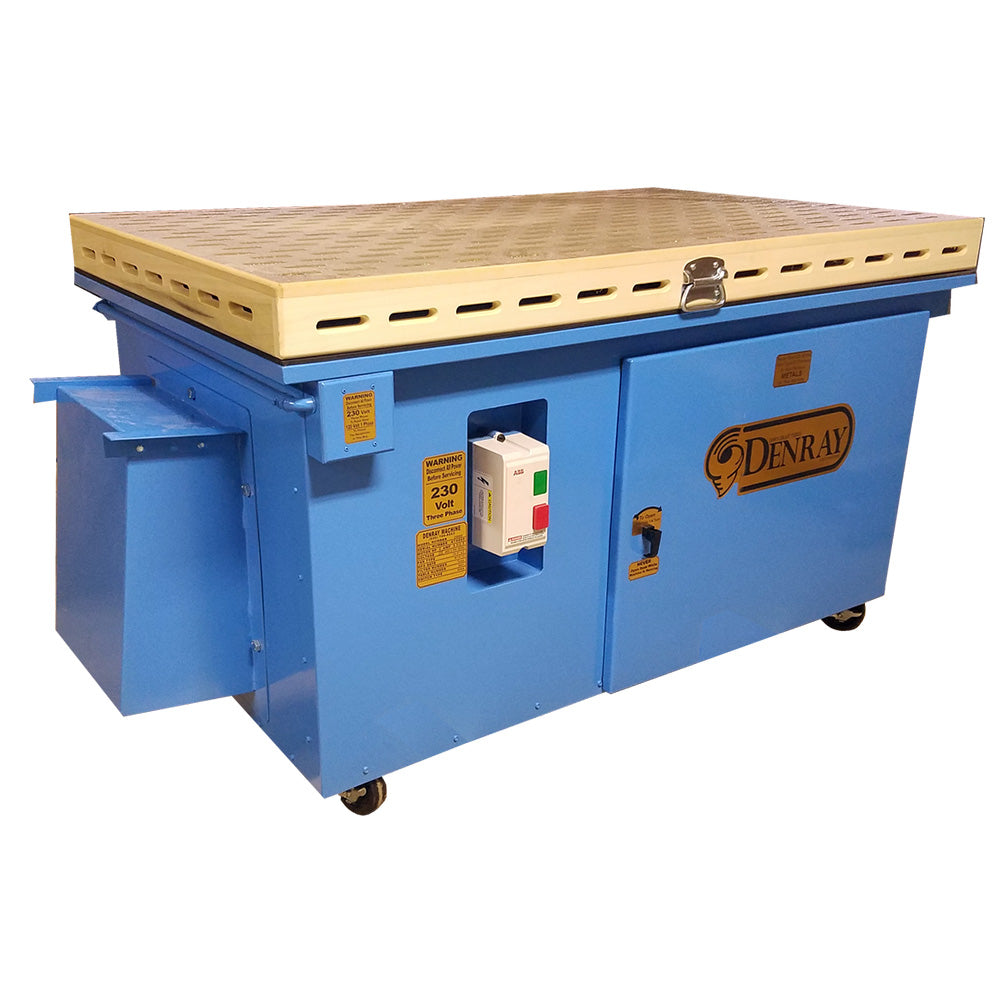

Denray Model 3660 Tube Filtration Downdraft Table

This model is great for medium sized jobs and is ideal for sanding woods. The 3660 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood applications. This model also comes standard with a filter brush/handle for manually cleaning the filters, casters, and a rubber coated top.

Product Information
• 36" x 60"
• 36" Height
• 500 lbs
• 2HP Motor
• 16.5" Fan
• 3400 CFM
• 77 Decibels Sound Level

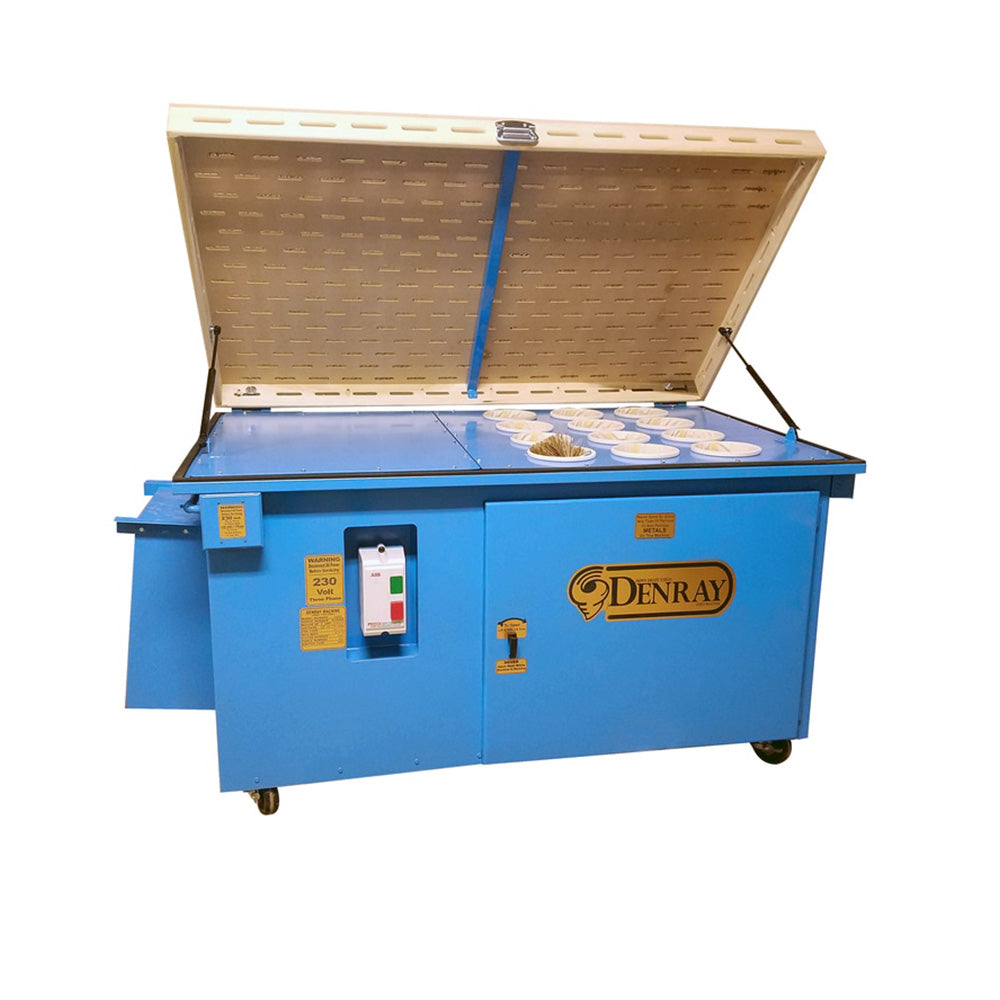

• 12 Tube Filters
• 3 Receptables

Phase/Voltage Options

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE plastic tabletop
• Larger Motor/Fan Upgrade
