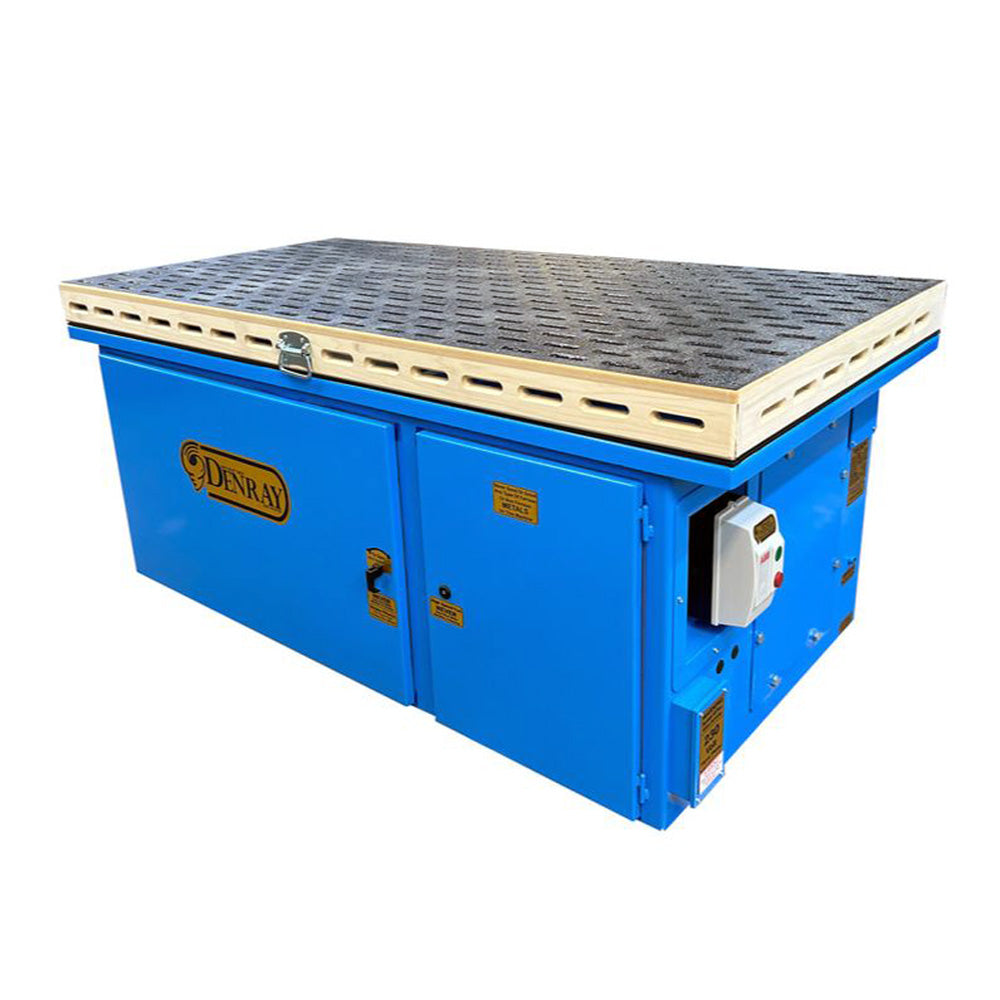

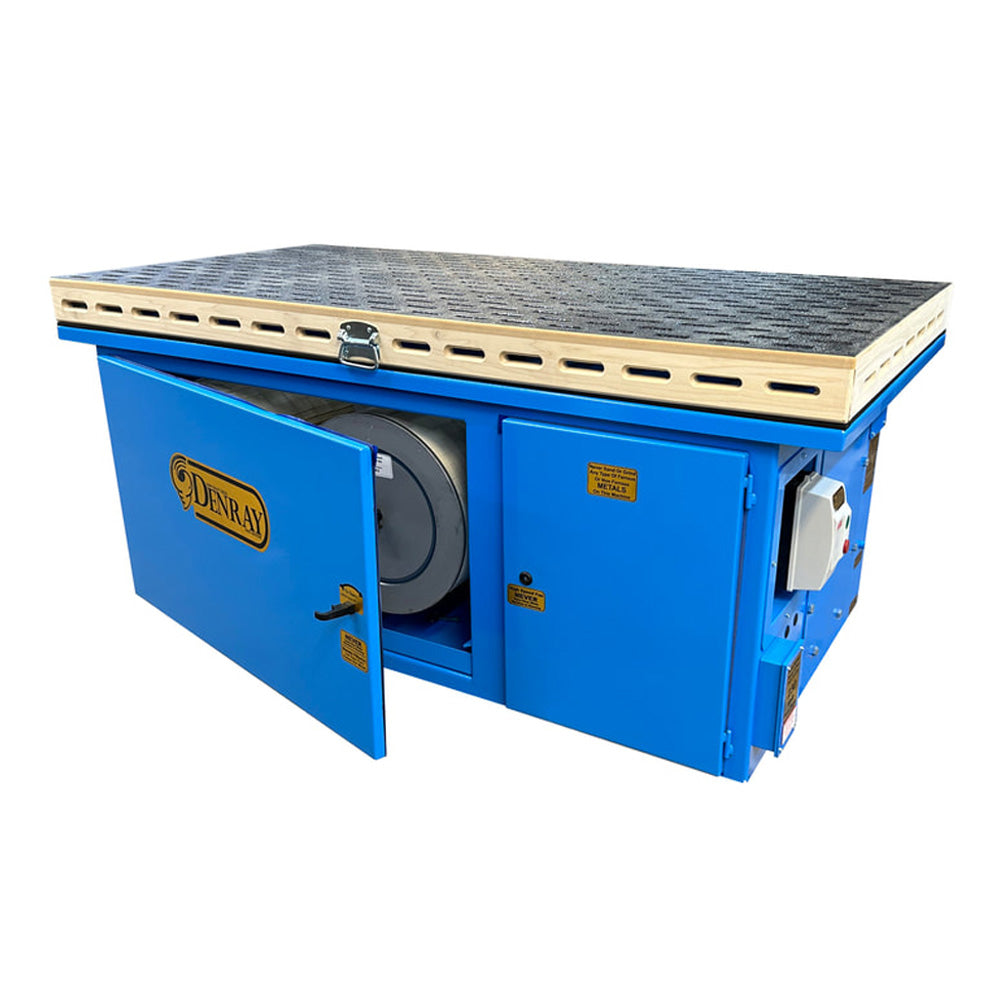

Denray Model 3672B Cartridge Filtration Downdraft Table

This model is great for medium sized jobs, and can be used while sanding plastics, woods, and finishing materials. This is a popular model for cabinet shops, with two operators using the same table. The 3672B also comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray's "Jet Pulse" push–button cleaning, rubber coated top, and a magnetic starter.

Product Information
• 36" x 72"
• 36" Height
• 650 lbs
• 2 HP Motor
• 16.5" Fan
• 3400 CFM
• 84 Decibels Sound Level

Phase/Voltage Options

SINGLE–PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE–PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Addtional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto–timer
• Muffler (reduces sound level 10–12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three–sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade
