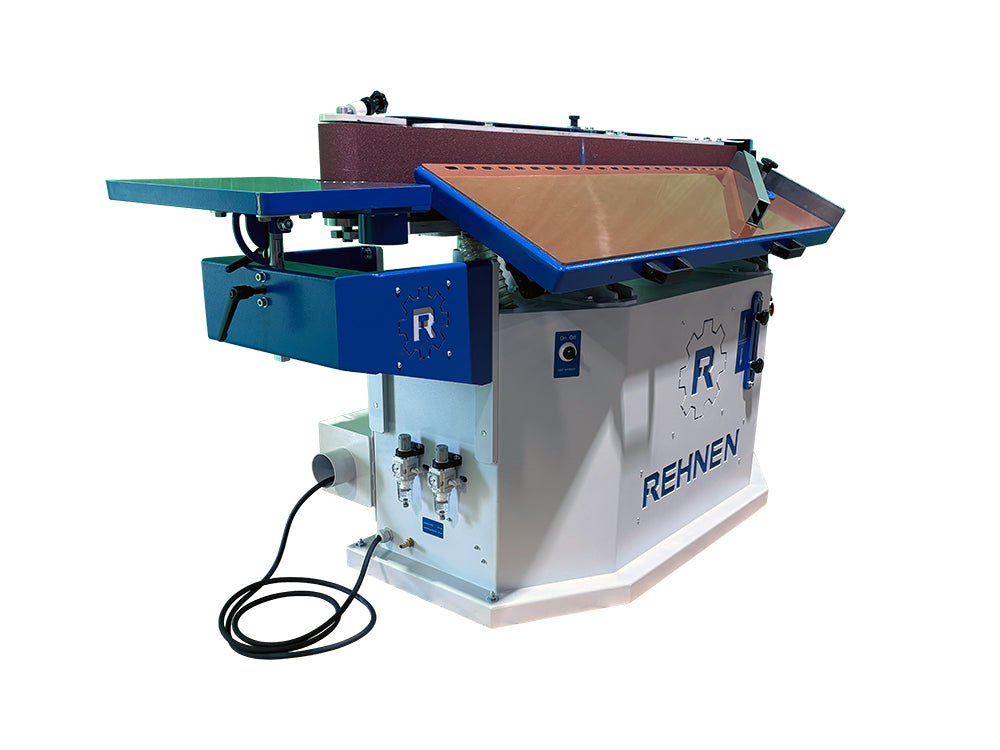

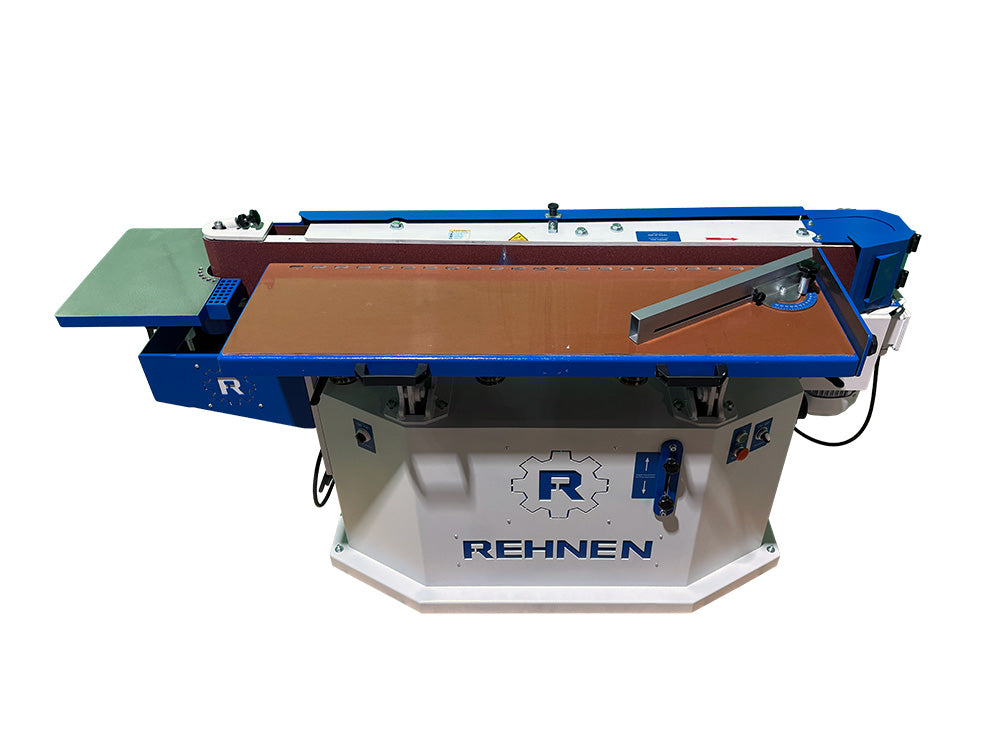

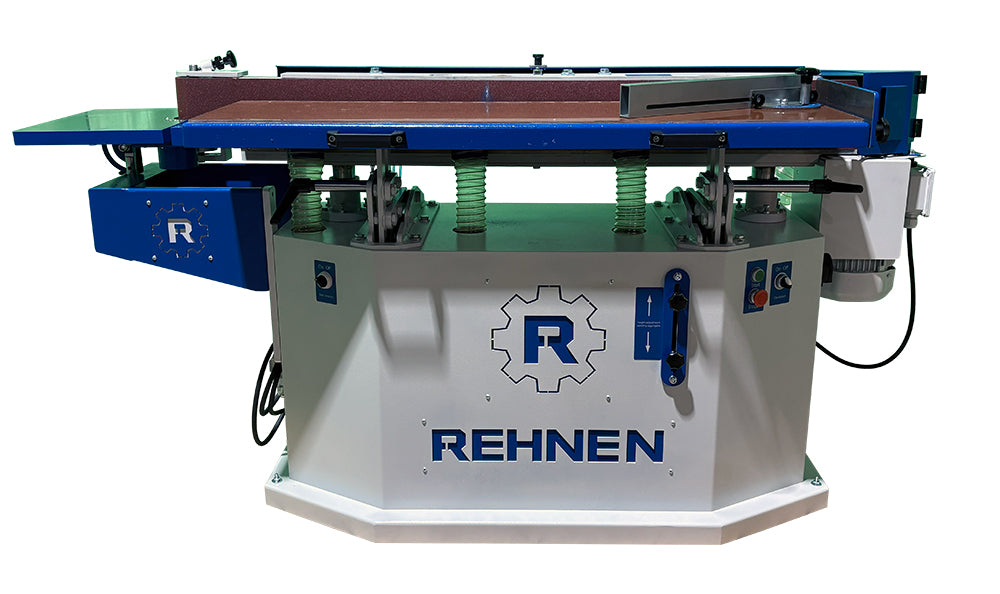

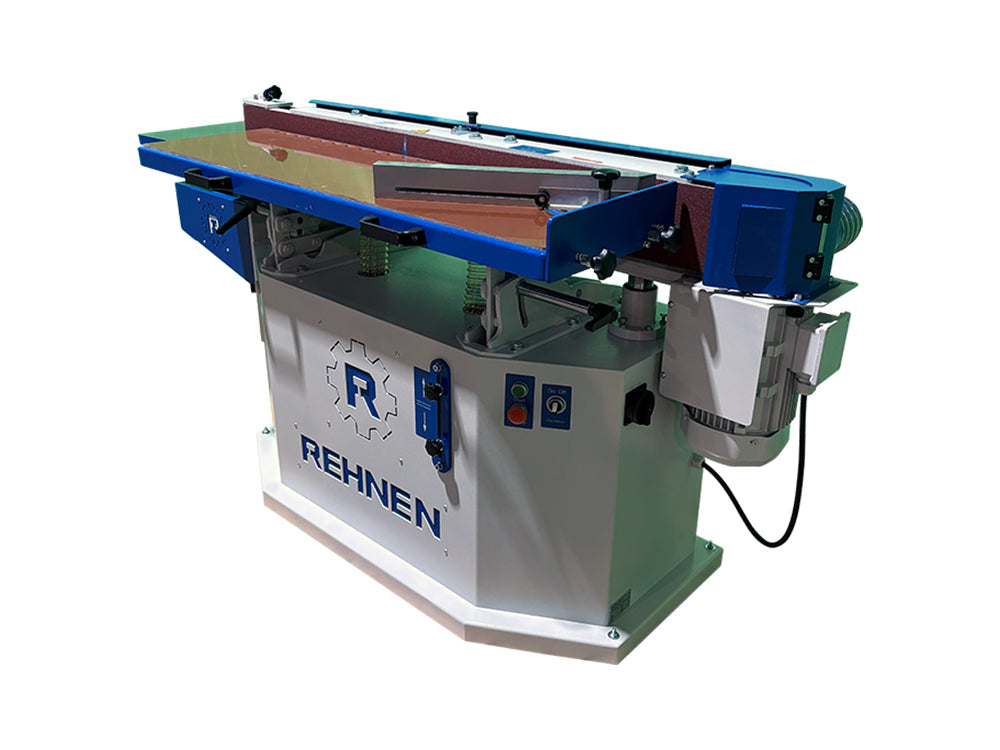

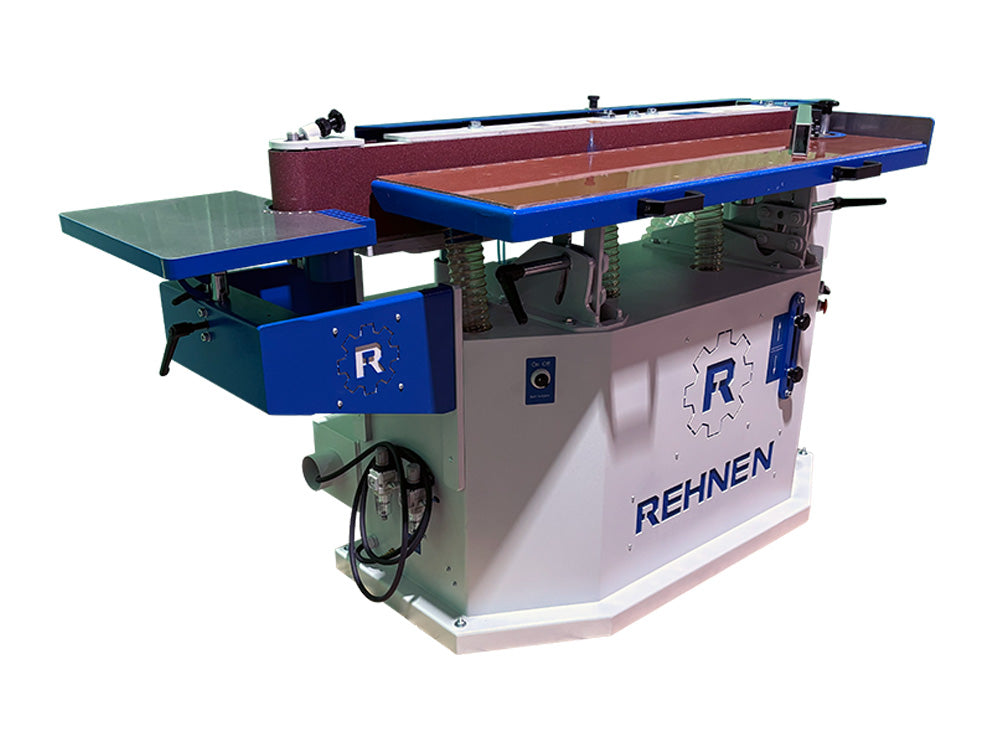

Rehnen SK4 Edge Sanding Machine
by Rehnen
Rehnen Edge Sanding Machine Sk4.
Model: SK-4
Motor: 4kW, 5.4 HP
Belt size: 150x3330mm (5.9x131.1”)
Platen size: 180x1370mm (7.09x53.94”)
Table working height: 930mm (36.61”)

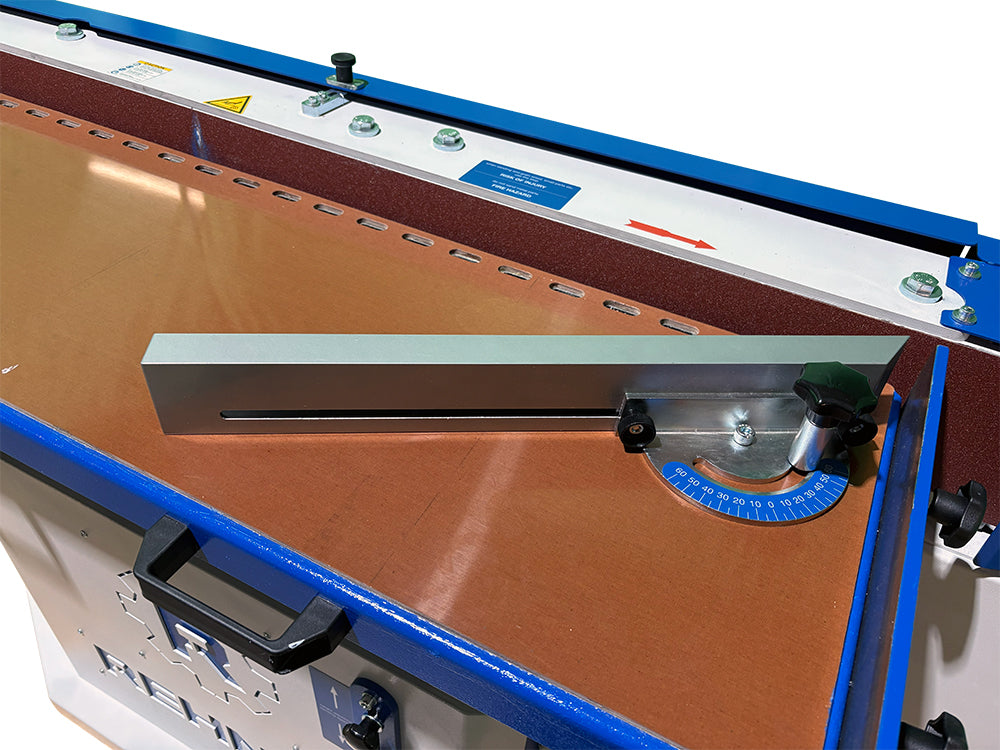

Main table size: 350x1250mm (13.78x49.21”)
Belt speed: 11 m/s (2952 fpm)

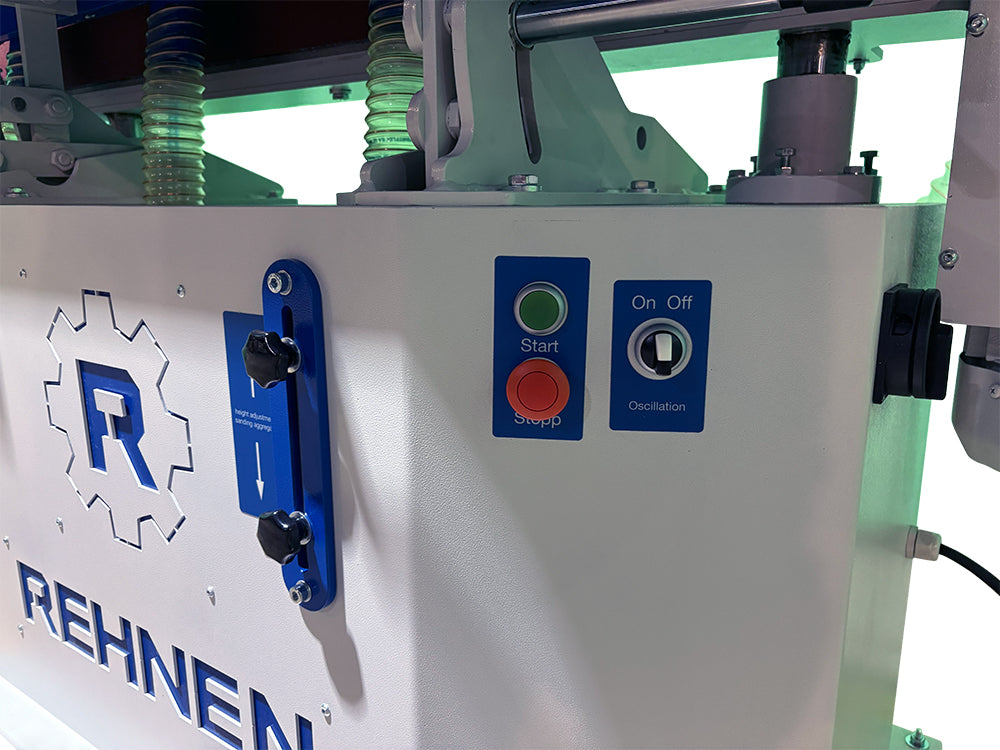

Oscillation per Minute: Varies

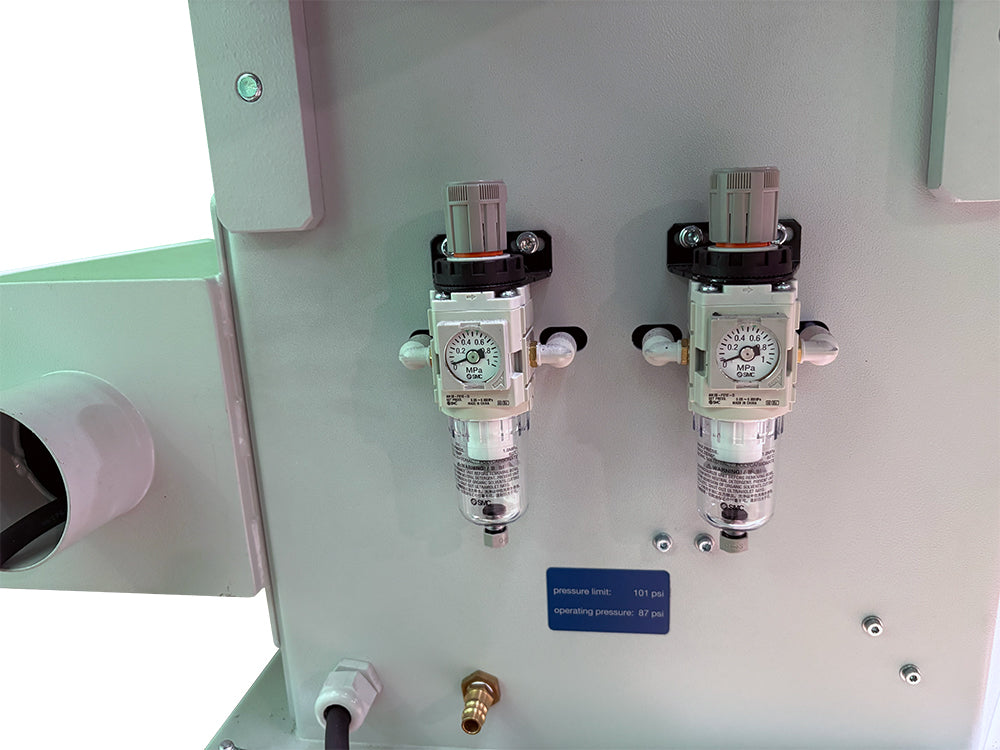

Operating pressure for pneumatic belt tension: 72 psi
Operating pressure for pneumatic oscillation: 87 psi
Drum Diameter: 140 & 80mm (5.51” & 3.15”)

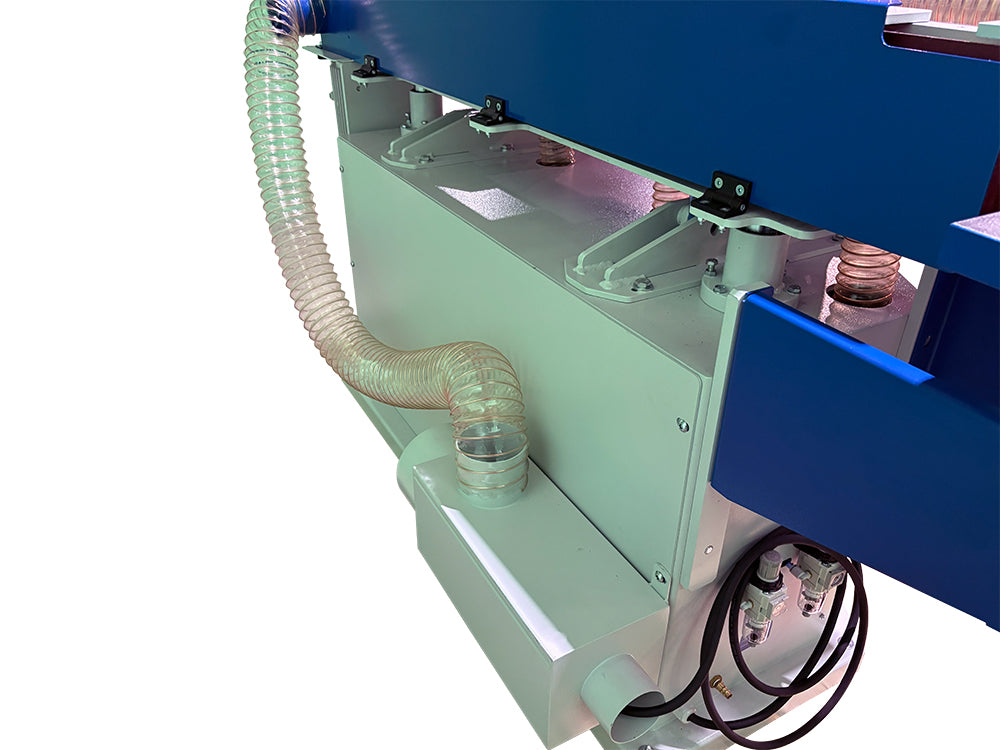

Dust Connection Diameter Main: 160mm (6.3”)
Dust Collection Minimum CFM Required: 480
Overall Dimensions: 1970x750x1120mm (77x30x44)
Shipping Dimensions: 2000x1000x1200mm (79x39x47”)
Weight Shipping/Net: 490/470kg (1080/1036lbs)
