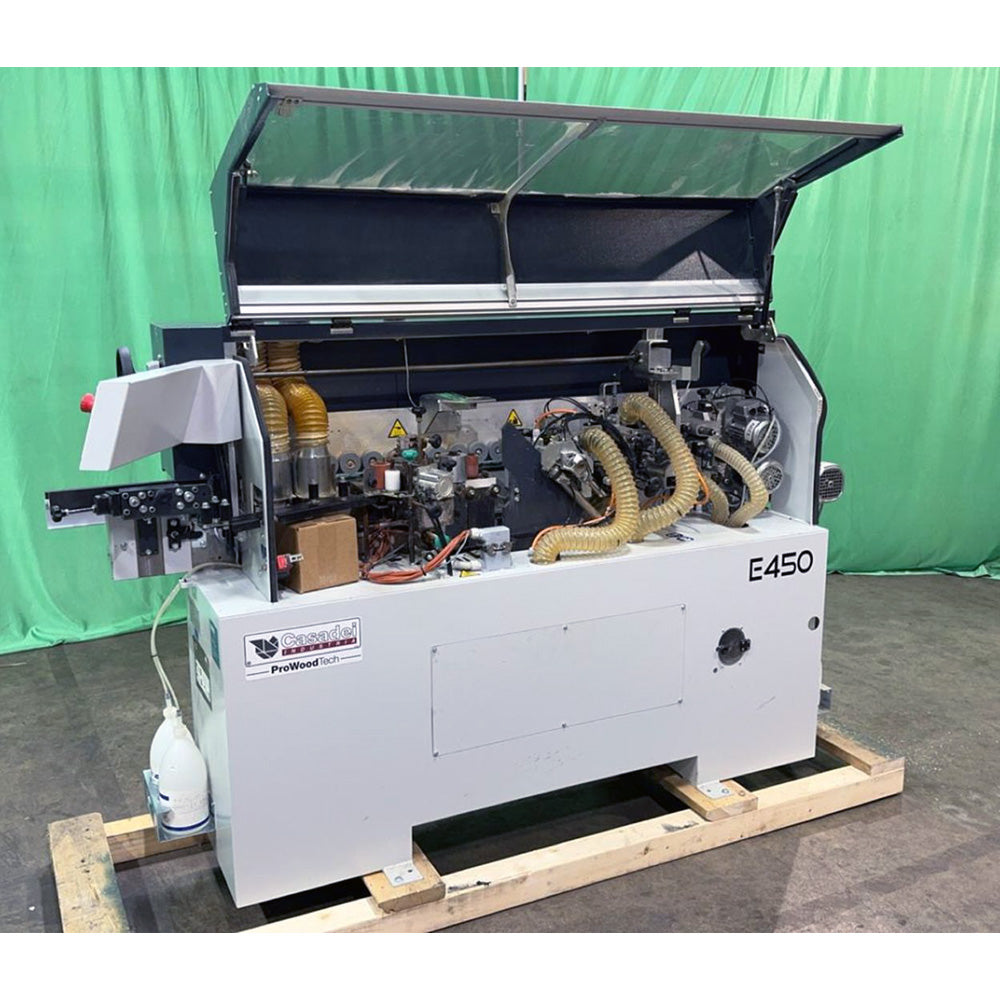

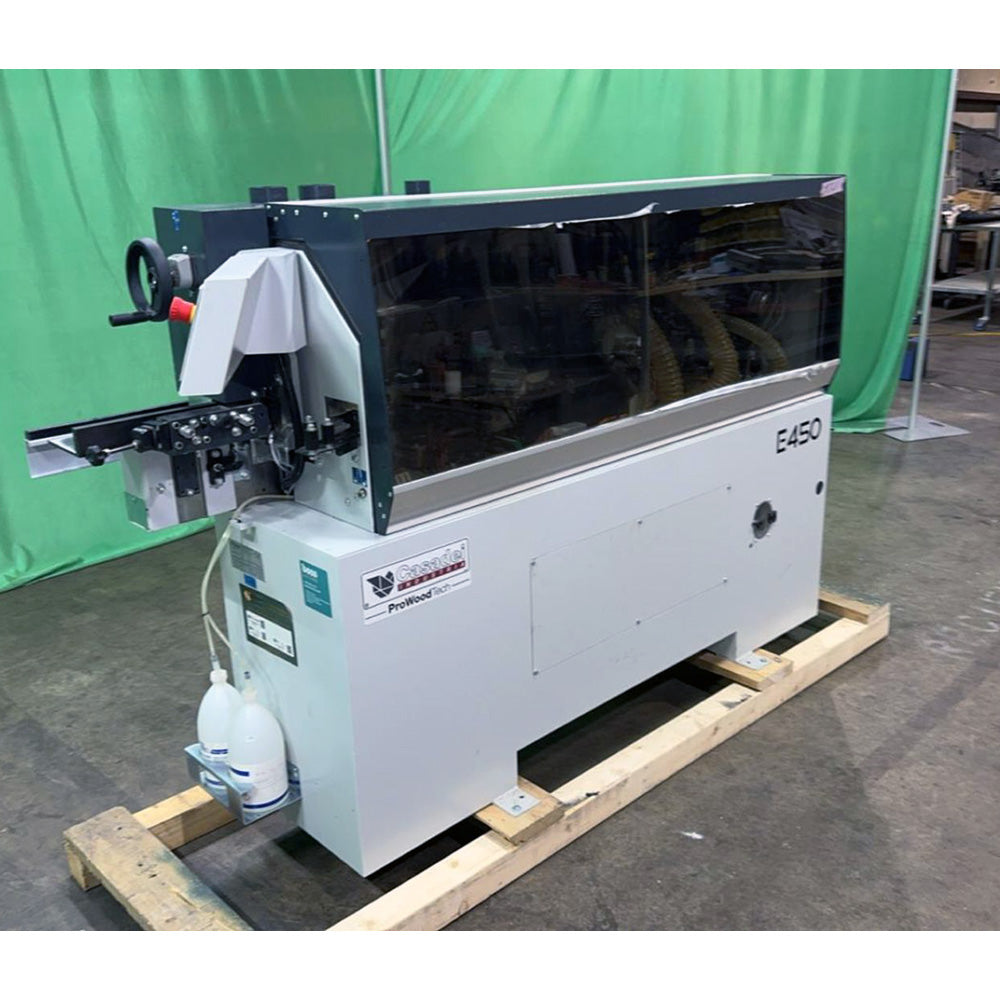

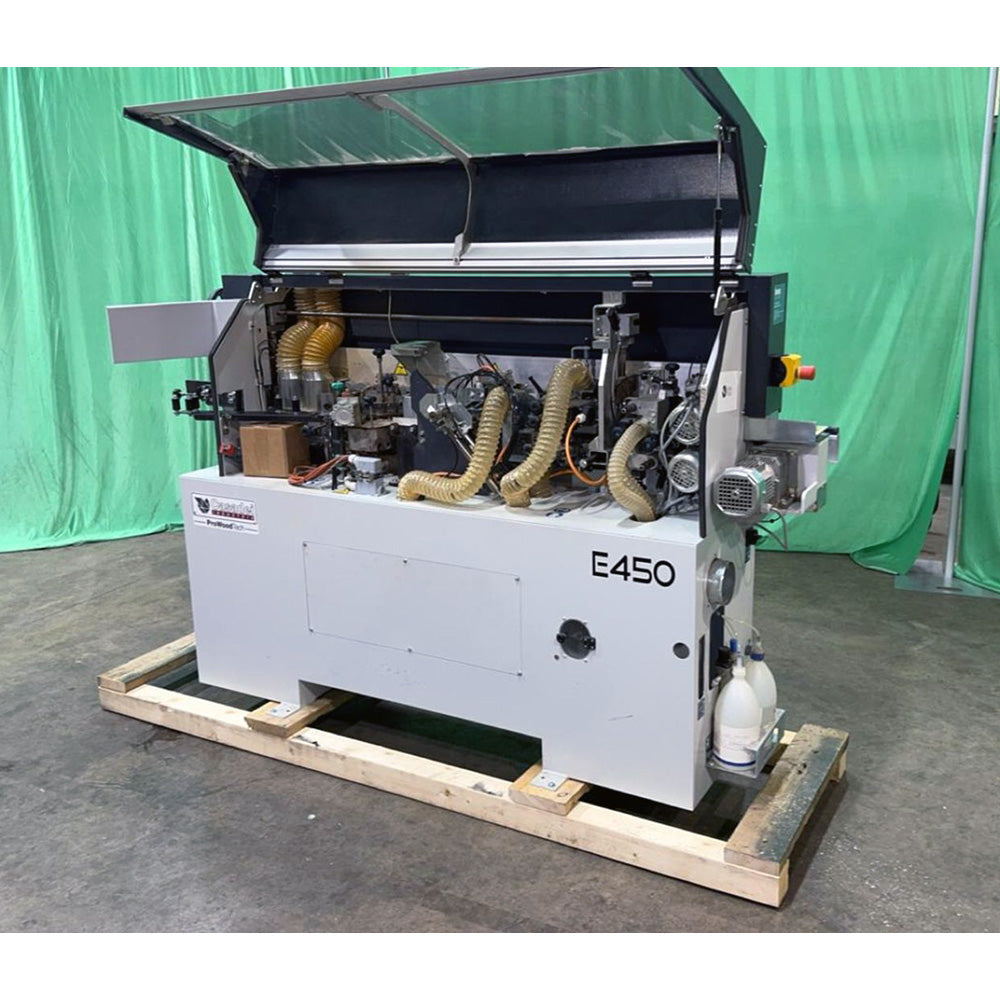

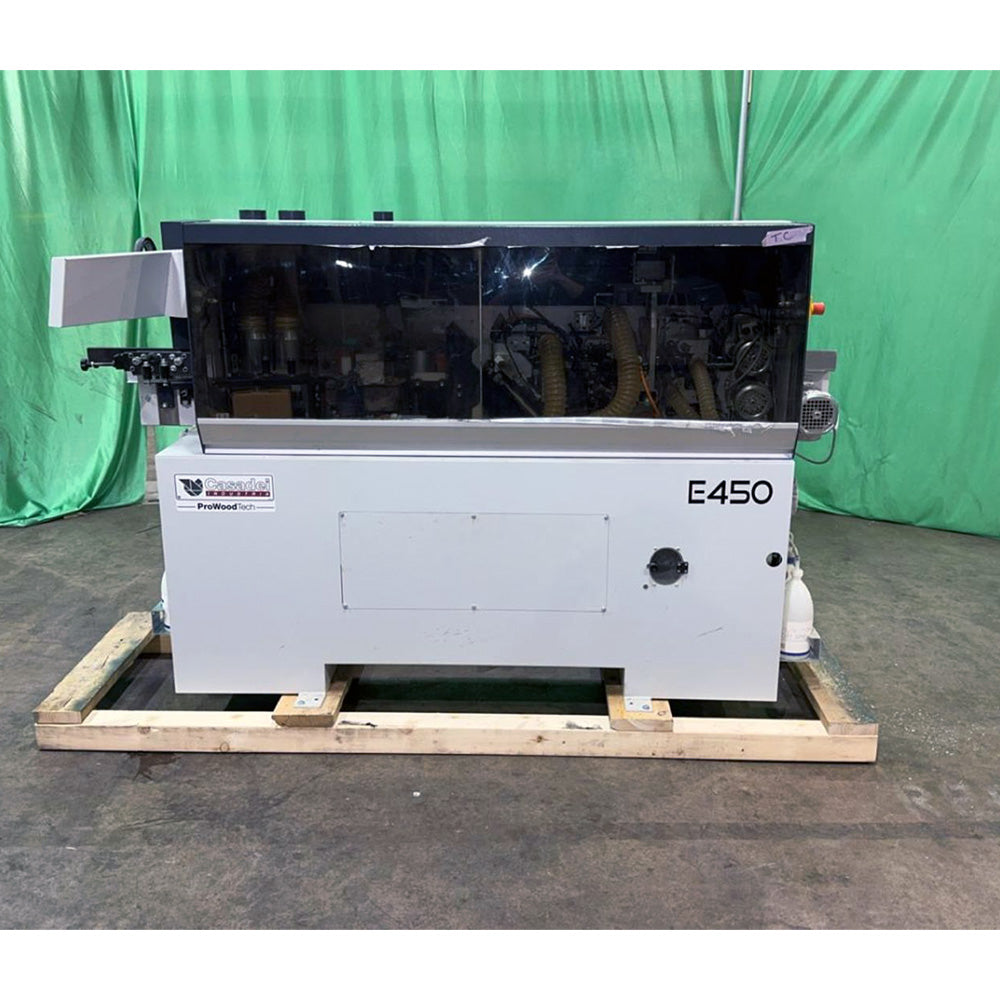

Used 2022 Casadei E450 PM Automatic Edgebander (with Vertical Radius End Trim)

Automatic edgebander with pre–milling, VR end trim, and flush trimming units. Manufactured in Italy, this machine combines ease of use, high performance, maximum finishing quality with a minimal special footprint. This machine is perfect for your edgebanding needs.

Features and Specifications:
With VR end trim unit
Voltage: 230V / 60 Hz / 3 Phase
Feed speed: 23 feet/min
Panel thickness: Min. 0.3" – max. 1.8"
Edge thickness in coils: 0.015" – 0.12"
Edge thickness in strips (manual feeding): 0.015" – 0.16"
Maximum coil diameter: 31.5"
Minimum panel length (side being processed): 8.3"
Minimum panel width: 3.7"
Pre––milling unit – maximum milling: 0.08"
Pre––milling unit – HF motors (high frequency): 2 x 1 HP
Pre––milling unit – Dimensions of diamond cutterblock: Diameter = 2.4" / H = 2.1"
Pre––milling unit – Tool rotation speed: 12,000 RPM
Gluing Unit – Heating elements power (6 cartridges): 2 HP
Gluing Unit – Glue heating time from ambient temperature: 14 – 16 mins
Gluing Unit – Glue heating time from stand–by: 4 – 6 mins
Gluing Unit – Glue pot capacity: 2.2 lbs
Standard end trimming unit –  Motor power: 2 x 0.5 HP
Standard end trimming unit – blade rotation speed: 11,000 RPM
Flush trimming unit – motor power: 2 x 0.5 HP
Flush trimming unit – tool rotation speed: 12,000 RPM
Approximate dimensions: 111" x 40" x 55"
Approximate weight: 926 lbs
