ETP | SKU:
ETP HS 3/4" - 3/8" Reduction Sleeve
$131.00
Unit price
/
Unavailable

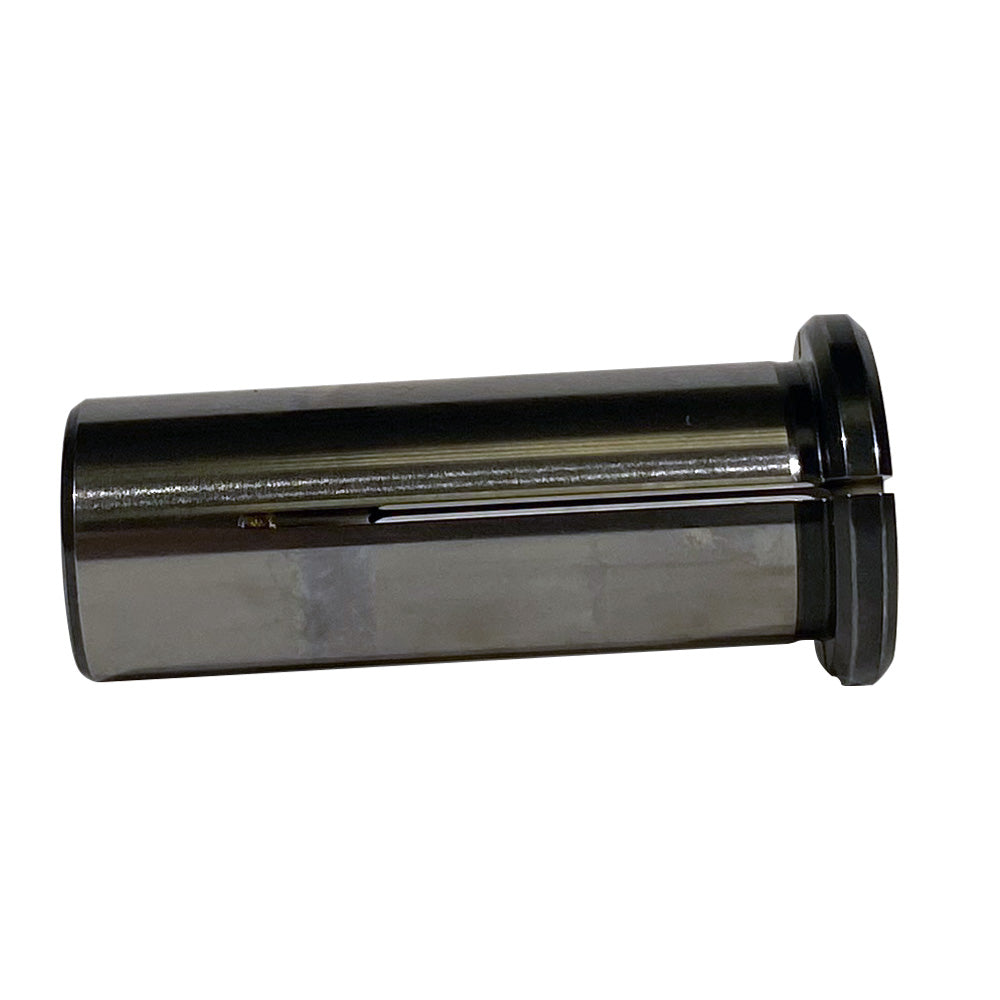

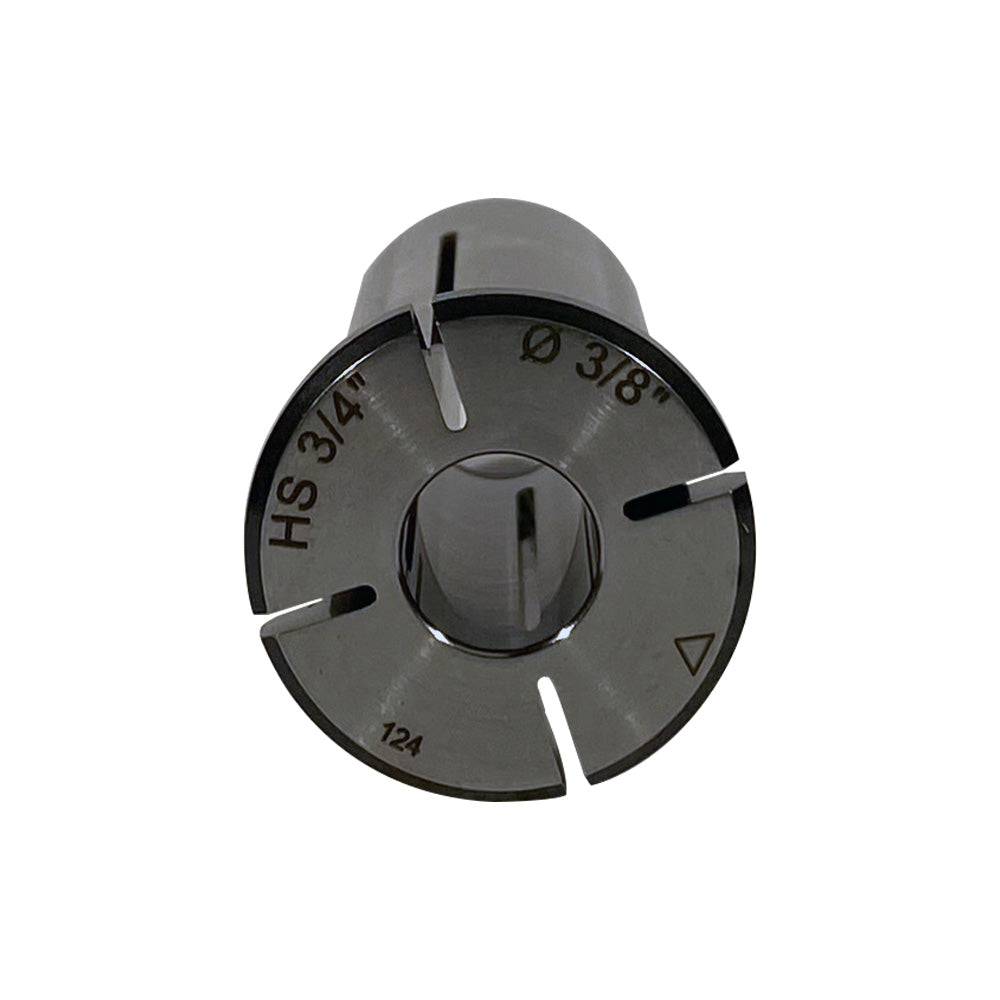

ETP HS 3/4" - 3/8" Reduction Sleeve
The reduction sleeves are designed to fit with the ETP Toolholders.
They are especially suited for high precision clamping of cylindrical tool shanks per DIN 6335 form HA, HB and HE, as well as tool shanks per DIN 1835 form B, C, D and E. The special design of the reduction sleeves allows an efficient use of coolant through cutting tools.
Dimensions
| Tool diameter D1 mm | 6.35 mm |
|---|---|
| Dimension D2 mm | 19.05 mm |
| Dimension D3 mm | 25 mm |
| Dimension L1 mm | 50 mm |
| Dimension L2 mm | 36 mm |
| Dimension L3 mm | 4 mm |
Features
| Type of cooling | For Internal cooling |
|---|---|
| Type of reduction sleeve | Inch to inch |
ETP HS 3/4" - 3/8" Reduction Sleeve
$131.00
Unit price
/
Unavailable
