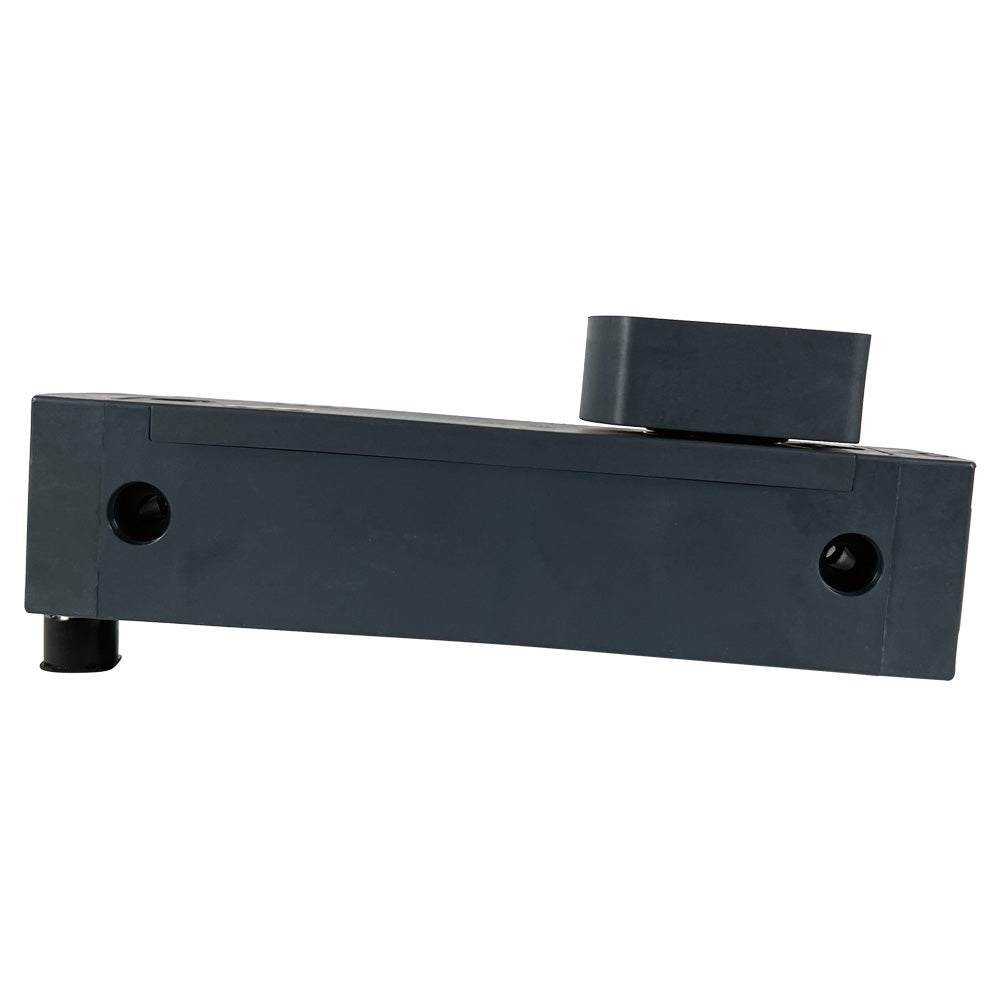

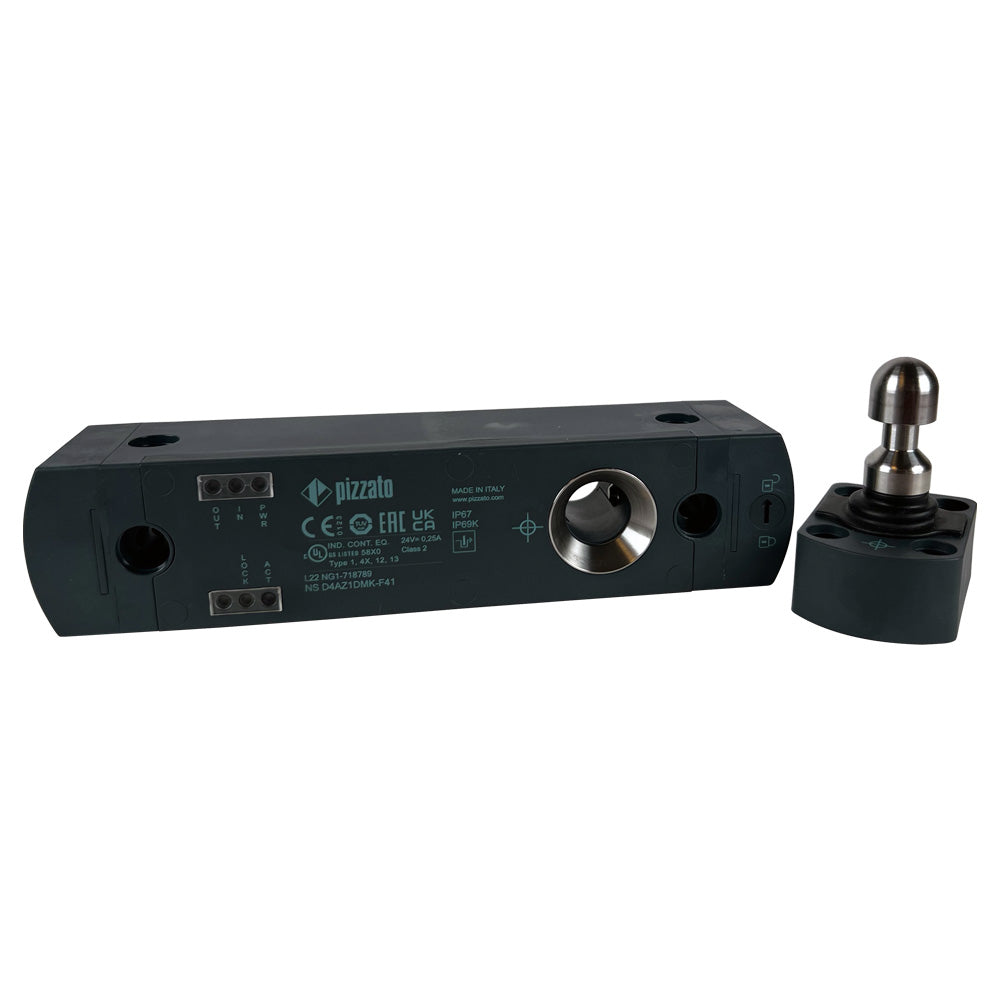

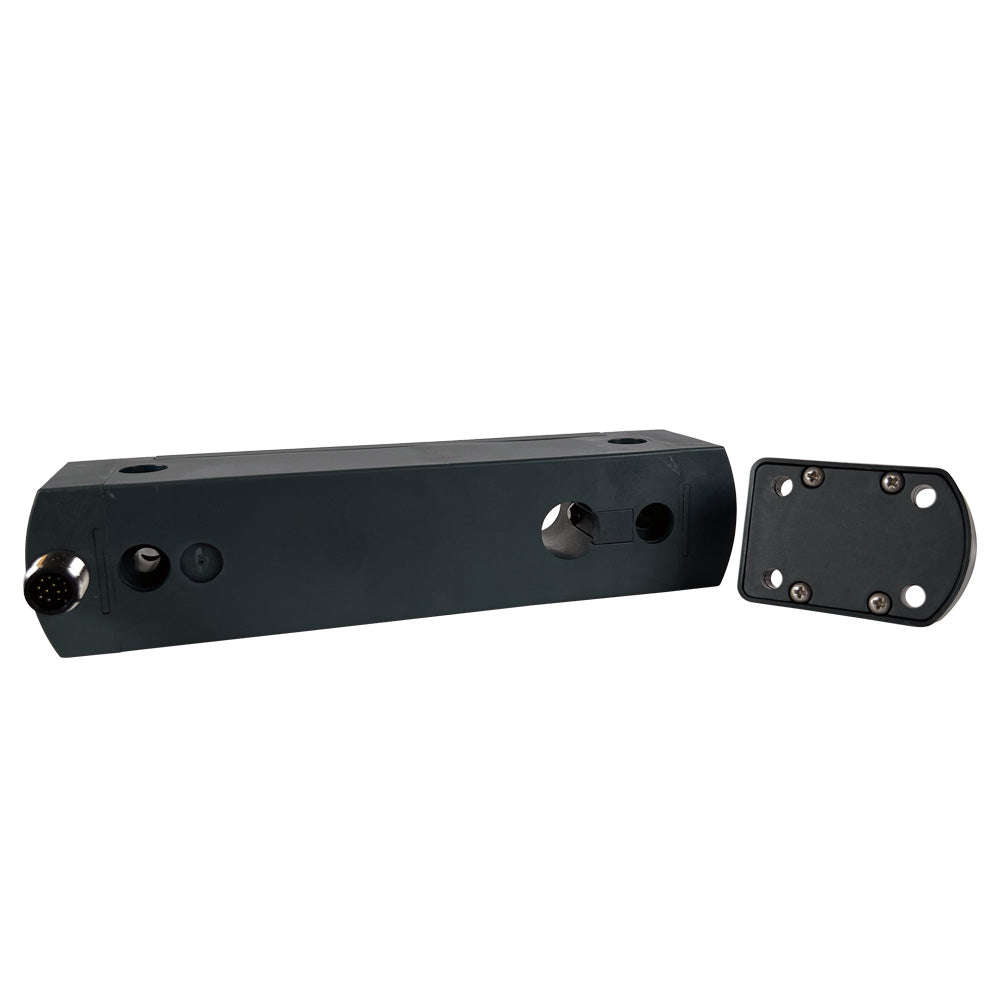

Pizzato NS D4AZ1DMK-F41 NS Series Safety Switch
Pizzato NS D4AZ1DMK-F41 NS Series Safety Switch is backordered and will ship as soon as it is back in stock.
Pizzato NS D4AZ1DMK-F41 NS Series Safety Switch for Marinus Powermax Door Safety.
Item # NSD4AZ1DMK-F41 RFID Safety switch with
NS Series Information
• Actuation without contact, using RFID technology
• Digitally coded actuator
• SIL 3 and PL e also with series connection of up to 32 devices
• Actuator holding force: 2100 N
• SIL 3 and PL e with a single device
• Protection degrees IP67 and IP69K
• Versions with key release and emergency release button
• 6 signalling LEDs
| Manufacturer Part Number | NS D4AZ1DMK-F41 |
| Manufacturer | Pizzato |
| Product Series | NS |
| Family Series | Pizzato Safety Switches, NS Series |
| Description | RFID Safety switch with electromagnet NS series, with solenoid |
| Solenoid Interlocking | Yes |
| Thermal Current Rating | 0.25 A |
| Operating Voltage | 24VDC |
| Holding Force | 2,100 N |
| Extraction Force | 20 N |
| Auxiliary Release | Yes |
| Connection Type | 12 Pin M12 Connector |
| IP Rating | IP67, IP69K |
| Approvals | CE, cULus, EAC |
