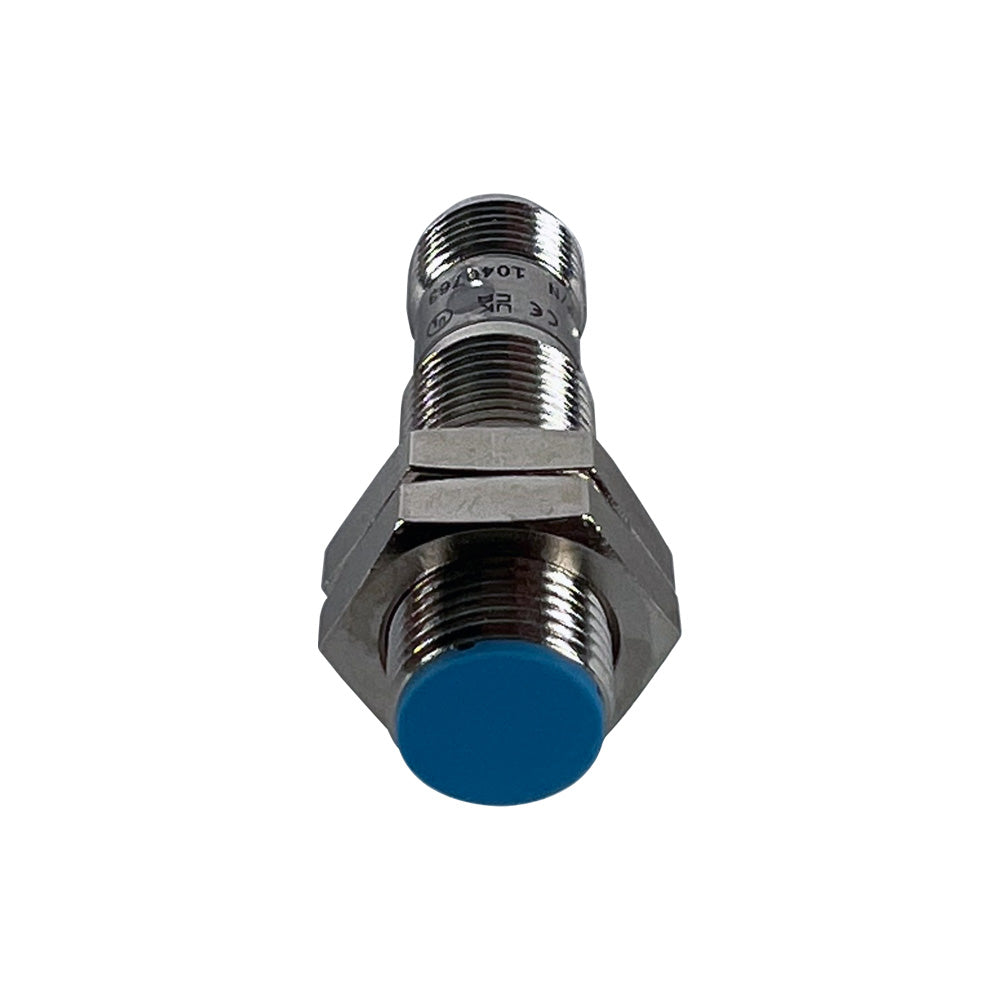

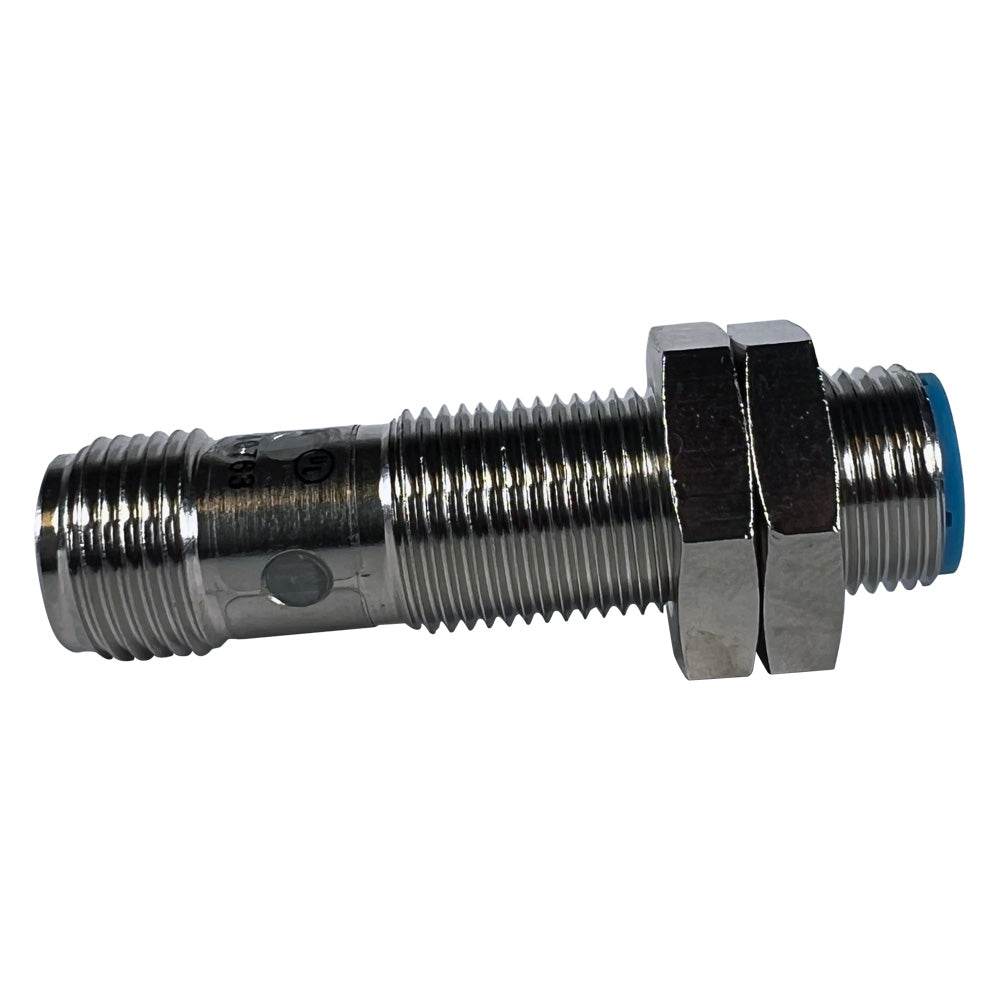

SICK IME12-04BPSZC0K Inductive Proximity Sensors - 1040763
$97.50
Unit price
/
Unavailable
SICK IME12-04BPSZC0K Inductive Proximity Sensors - 1040763 for the Marinus Powermax
| Housing | Metric - Short-body |
| Thread size | M12 x 1 |
| Diameter | ⌀ 12 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |

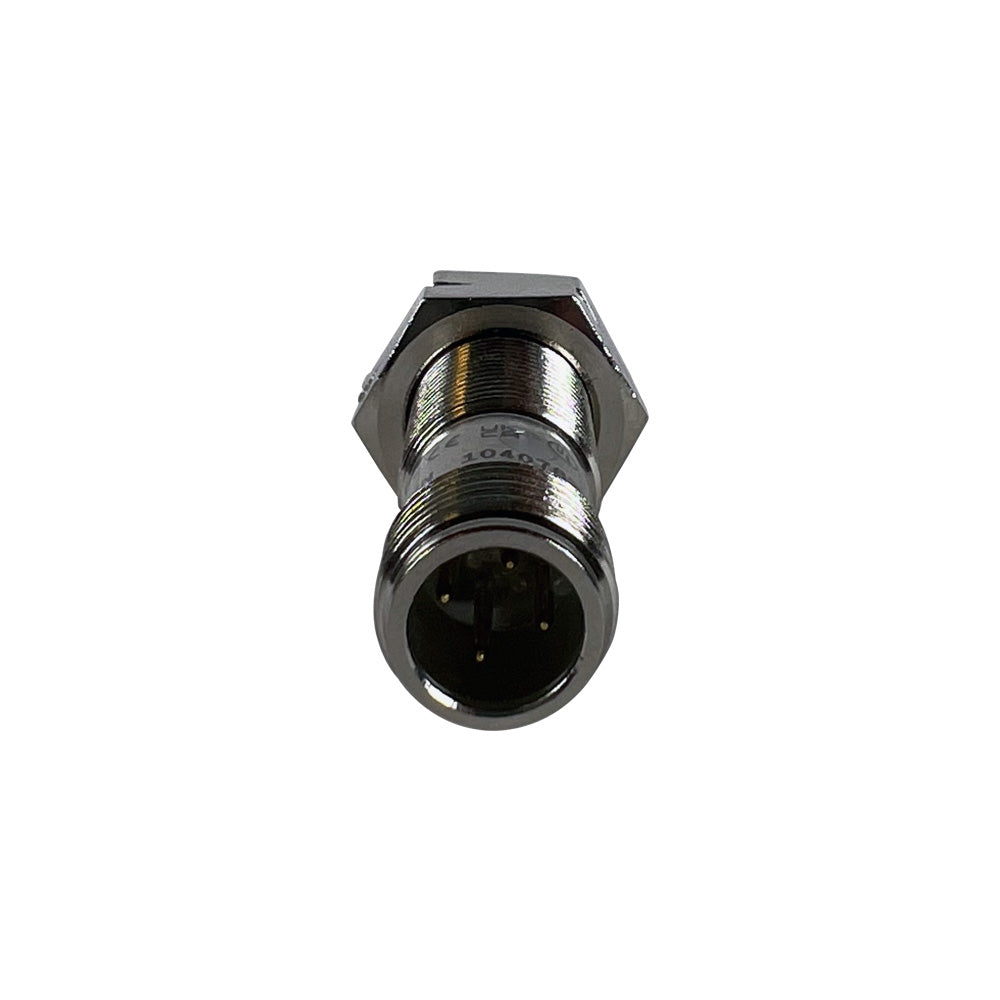

| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 According to EN 60529 |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10% |
| Voltage drop | ≤ 2 V At Ia max |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5% ... 15% |
| Reproducibility | ≤ 2% Supply voltage UB and constant ambient temperature Ta Of Sr |
| Temperature drift (of Sr) | +- 10% |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Shock and vibration resistance | 30 g, 11 ms 10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature | –25°C ... +75°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 46 mm |
| Thread length | 29 mm |
| Tightening torque, max. | ≤ 12 Nm |
| UL File No. | NRKH.E181493 |
