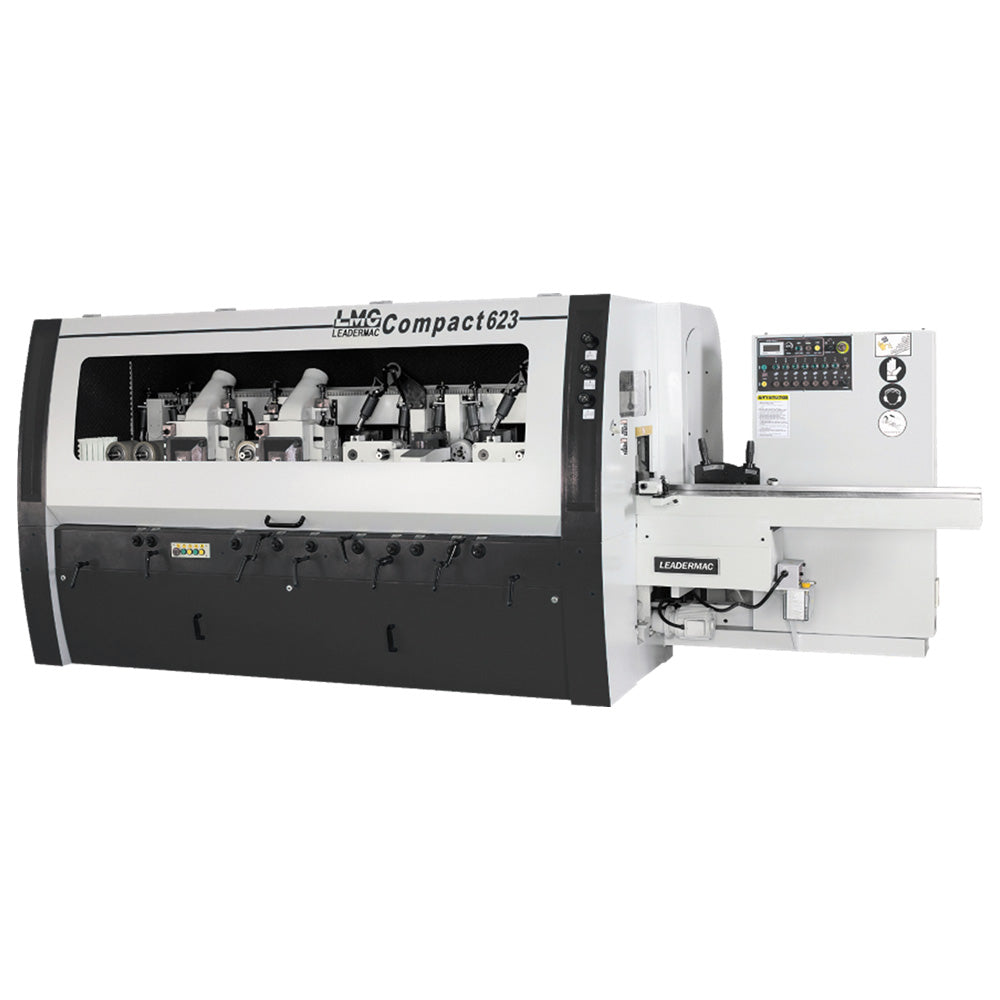

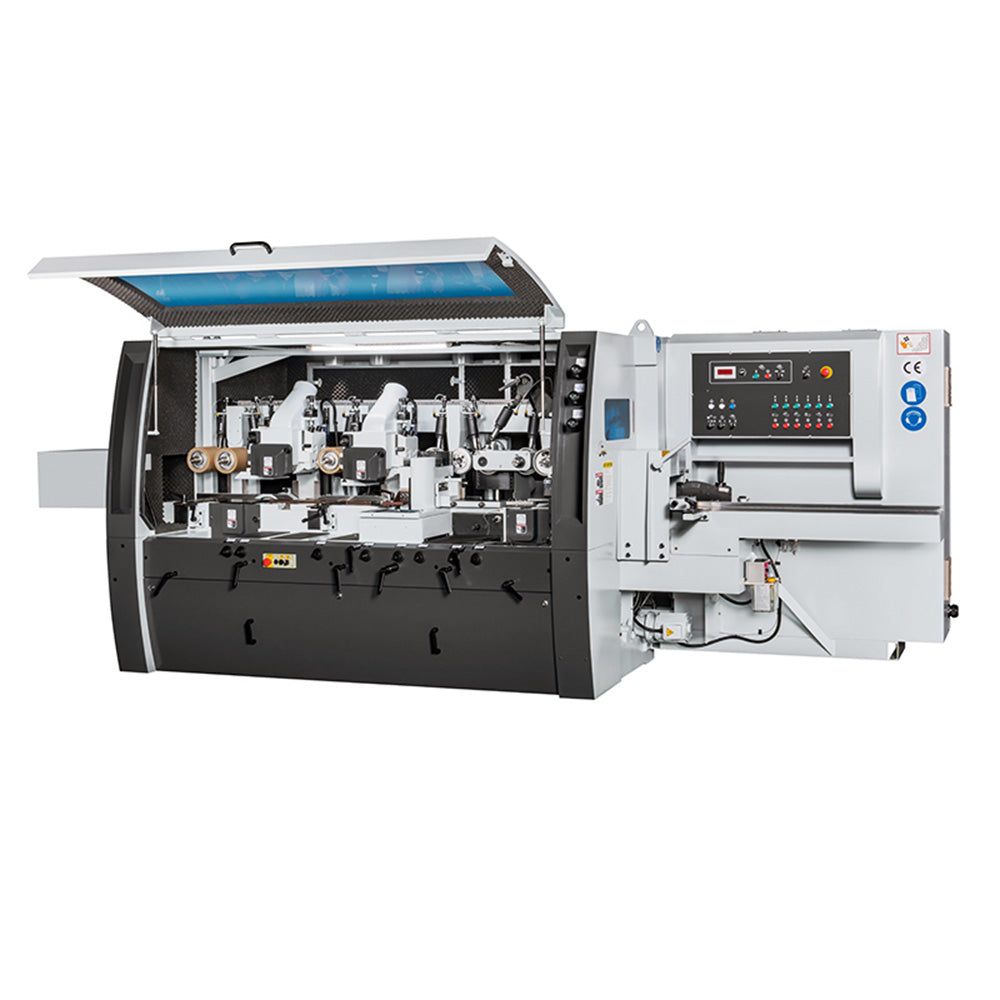

Leadermac Compact Moulder Series

Powerful, precise, efficient moulder, available in a configuration to meet your requirements.

The Leadermac Compact Moulder Series has been designed to ensure a high–quality finish, with a range of options to meet your particular needs. The Compact is a tight coupled machine to ensure total control and smooth feeding of the workpiece as it passes thru. Many powerful features come standard with the Compact, ensuring fast and repeatable setups with reduced changeover time, allowing you to meet your production requirements day in and day out.

Key Advantages
• Heavy-duty cast iron frame provides superior vibration damping, which produces superiorly finished parts and promotes long bearing & machine life.
• Tightly coupled machine ensures smooth and consistent feeding to assist in producing high-quality finish.
• All tables and fences hard chromed with approximately 0.012”-0014” thick hard chrome, which ensures maximum longevity.

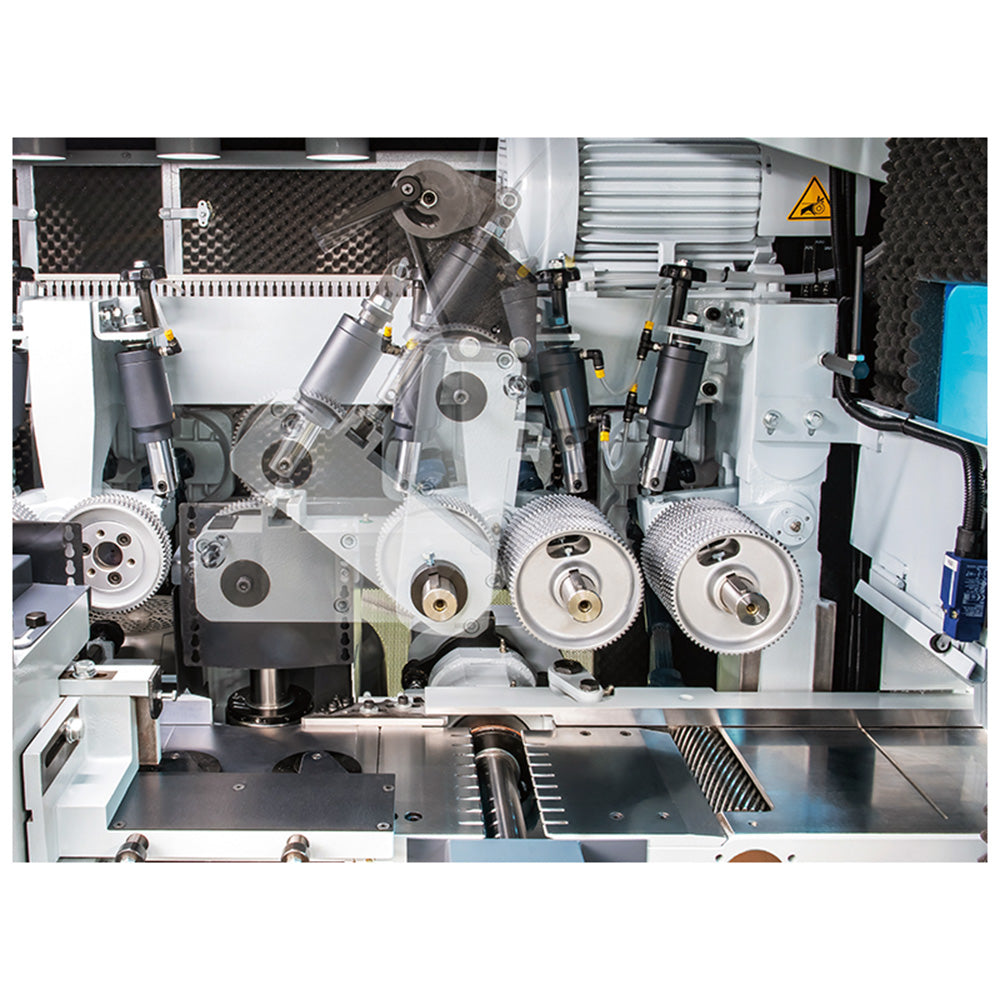

• Comes with more top-driven and bottom full-width driven feed rolls than other moulders of its size.
• 6000 RPM spindles each with (4) ABEC 6 precision bearings per spindle which provides smooth surface finish results.
• All spindles driven by individual motors.
• Pneumatic side holdover provides consistent side pressure to the fence.

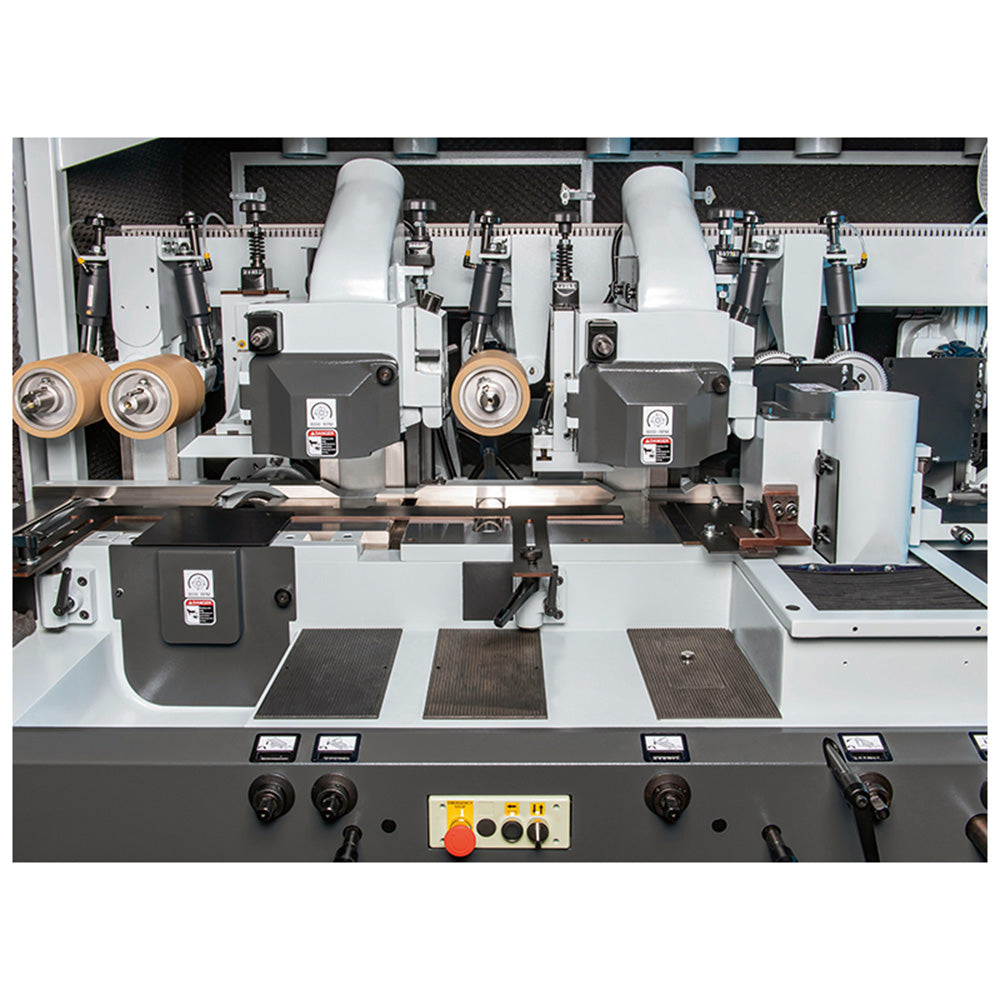

• Pneumatic hold down pressure to all top feed rolls provides consistent and repeatable pressure.
• Pneumatic chip breakers ensuring consistent pressure.
• Full width driven infeed & outfeed bed rolls.
• Short stock feed roll station.
• Dual SIKO quick set counters to assist in quick and accurate changeovers (other setworks systems available to increase automation).
• Axial adjustment of last bottom head from front of machine.
• Automatic and programmable table lubrication system.
• Centralized grease lubrication system.

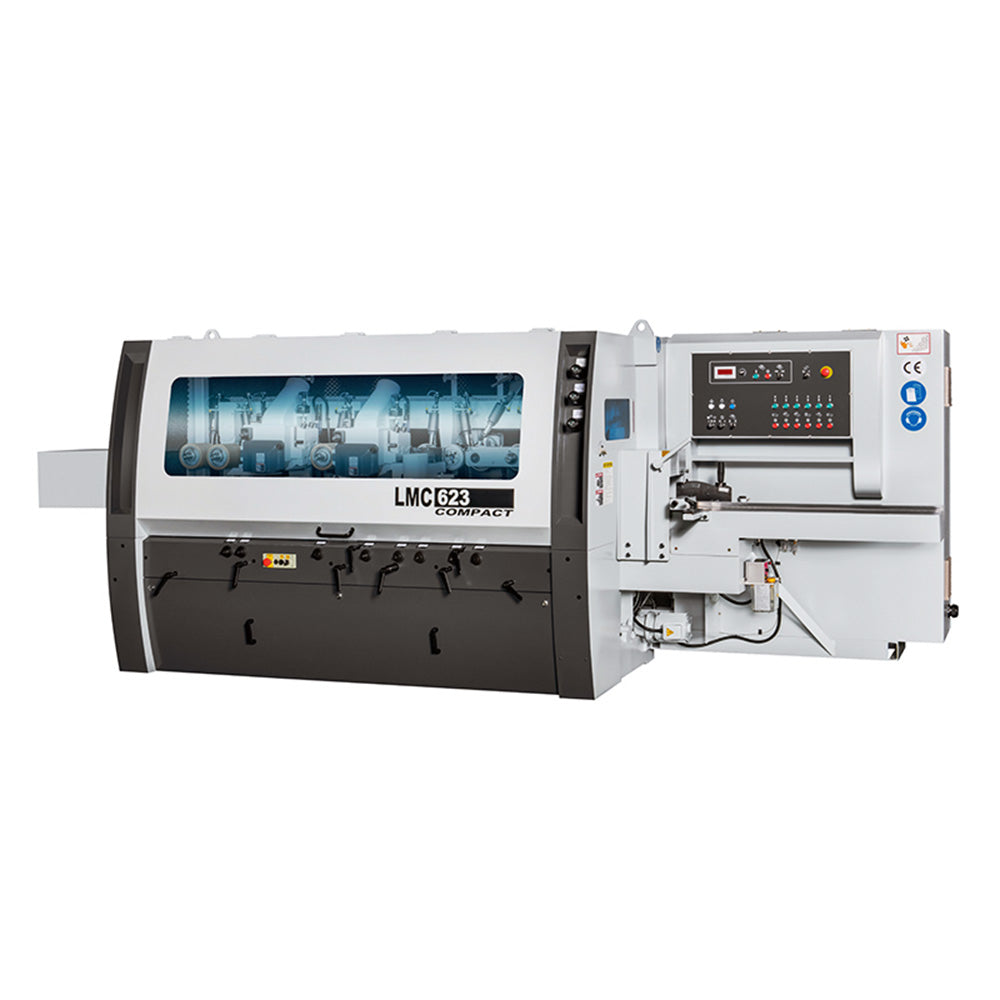

• Safety sound enclosure is standard.
• Pneumatic pressure to chip breakers, holdovers, and top feed rolls.

Options
• Variable frequency drives for spindles: allow RPM of spindles to be varied and act as a fully electronic braking system.
• Split hold down pressure shoe
• Anti-kickback fingers for ripping operations
• Rip bed plates / special pressure shoe for ripping operations
• Universal spindle
• 7200 RPM spindles for increase feed speeds
• 12” or 13” wide machines with outboard bearings
• Grooved bed machines for short part feeding
• Telescopic top feed roll unit opposite left vertical side head

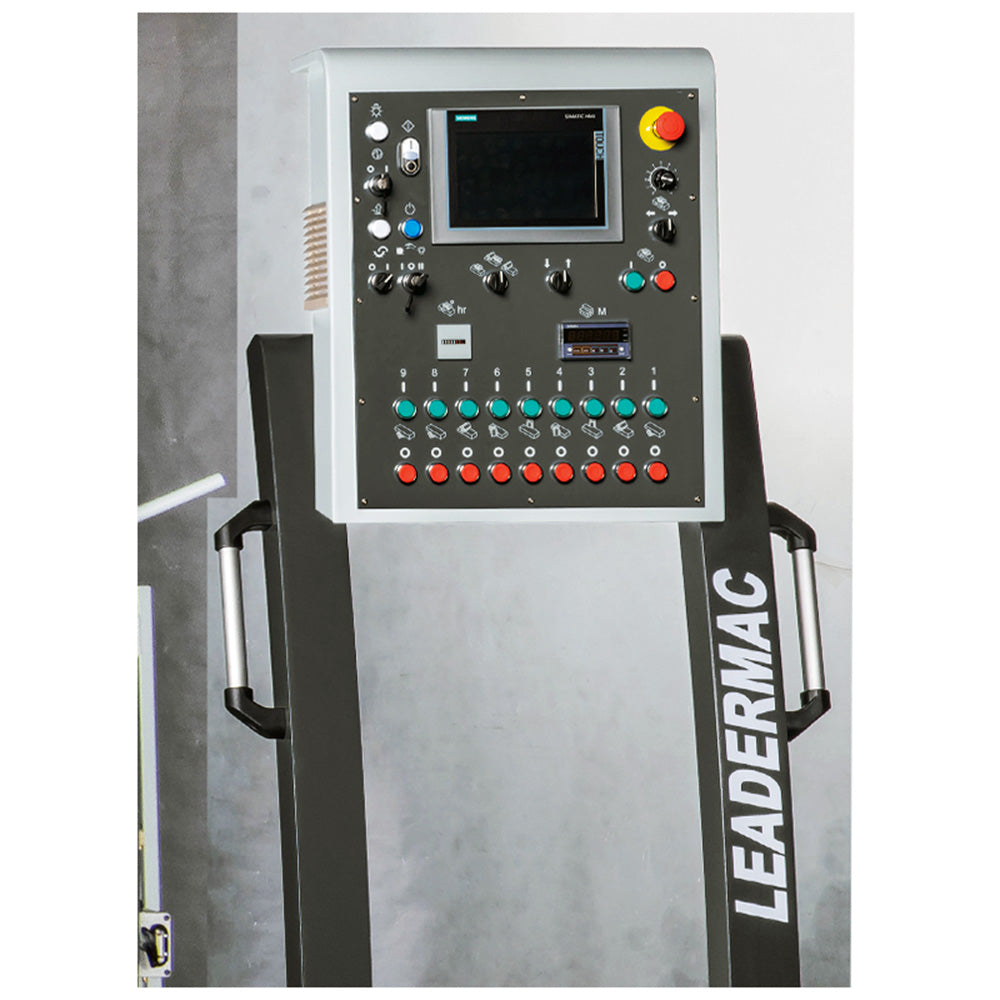

• Easyset Setworks System with touch screen control, memory, and motorized positioning for near side and top head
• Smartset 100 Setworks System with touch screen control, memory system, and motorized positioning for near side and top head, utilizing ball screw and rotary encoder for true accurate and repeatable positioning.
• Router spindles for special profiling
• Automatic width setting with measuring probe for random width material
• Multiple ripsaw spindle with sleeve
• Vertical spindle slicing/ripping system
• Special requirements on request.
