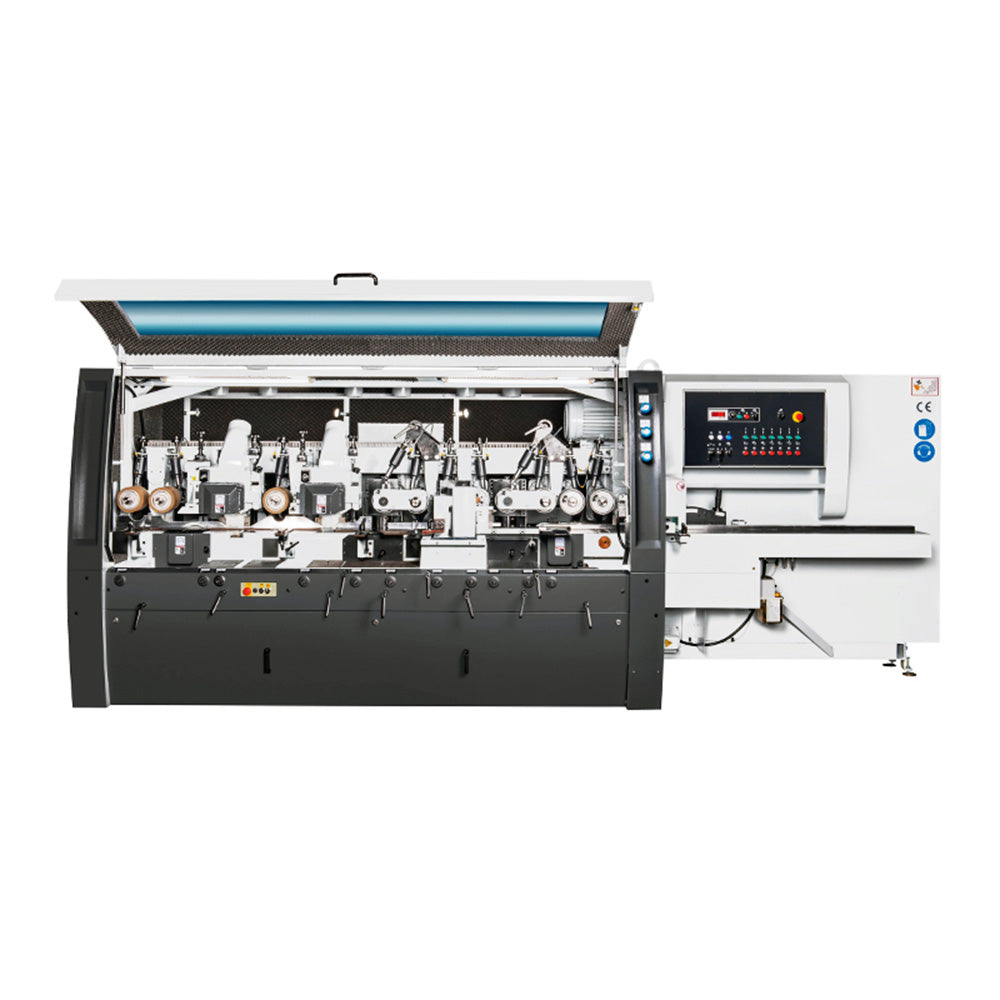

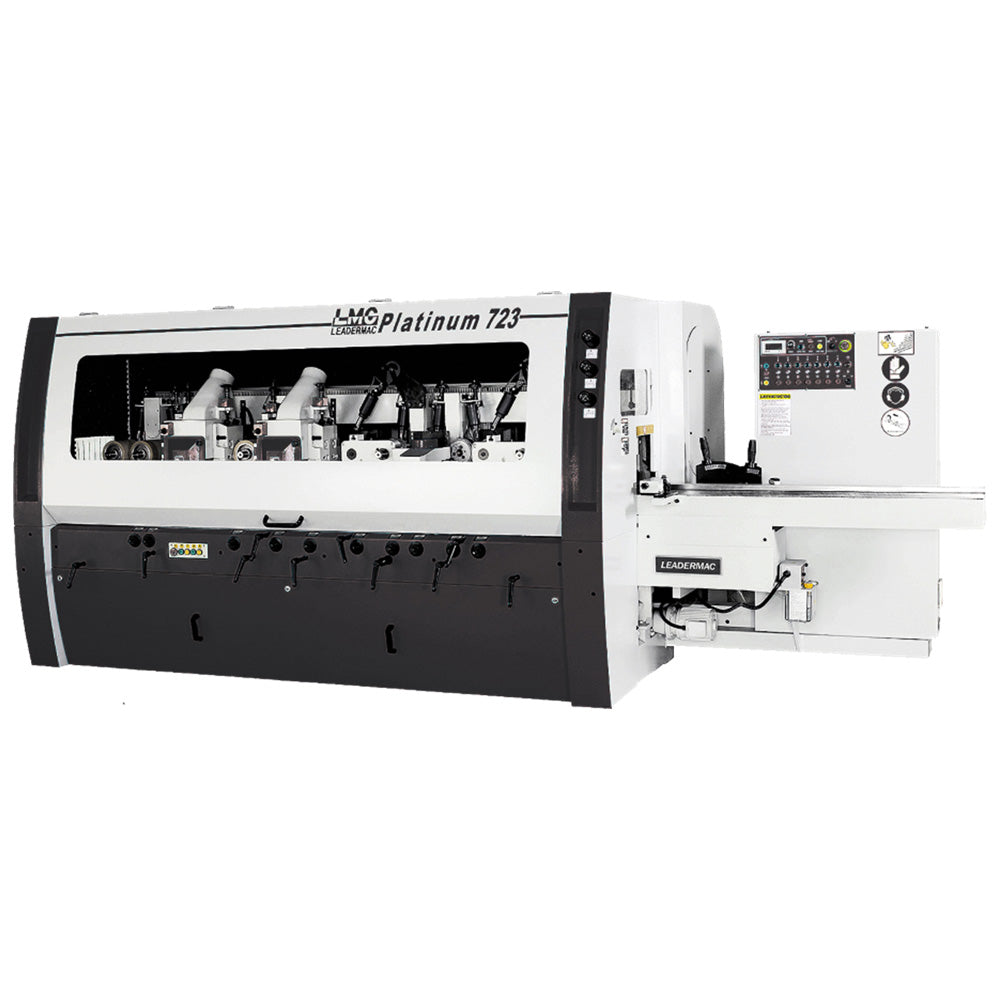

Leadermac Platinum Moulder Series

A high RPM moulder designed with efficiency in mind ensuring precise, high–quality finished product, available in a configuration to meet your requirements.

The Leadermac Platinum Moulder Series has been designed to ensure a high–quality finish, with a range of options to meet your particular needs. The Platinum moulder is brought in with 8000 rpm spindles, allowing you to run 33% faster than a 6000 rpm machine, producing an excellent quality finish. It is a tight coupled machine to ensure total control and smooth feeding of the workpiece as it passes thru.  Many powerful features come standard with the Platinum ensuring fast and repeatable setups with reduced changeover time, allowing you to meet your production requirements day in and day out.

Key Features
• Heavy-duty cast iron frame provides superior vibration damping, which produces superiorly finished parts and promotes long bearing & machine life.
• Tightly coupled machine ensures smooth and consistent feeding to assist in producing a high-quality finish.

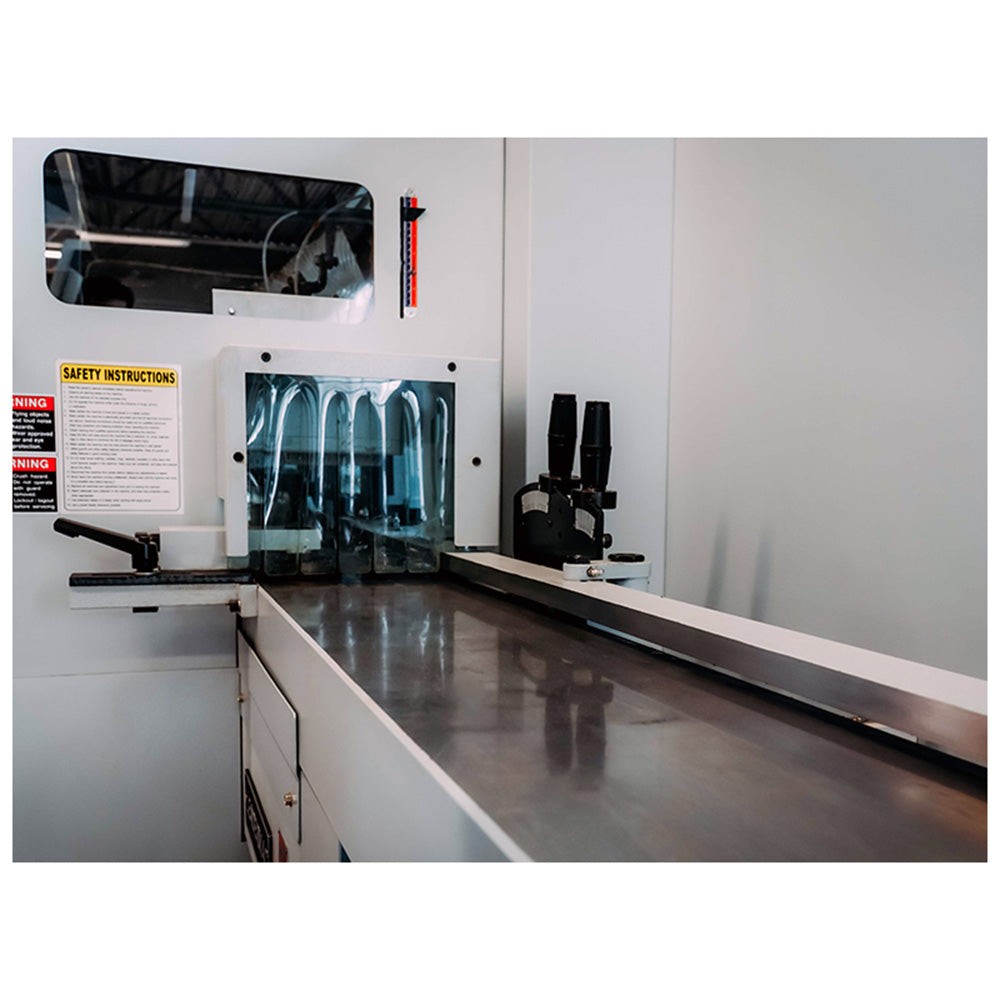

• All tables and fences hard chromed with approximately 0.012″-0014″ thick hard chrome, which ensures maximum longevity.

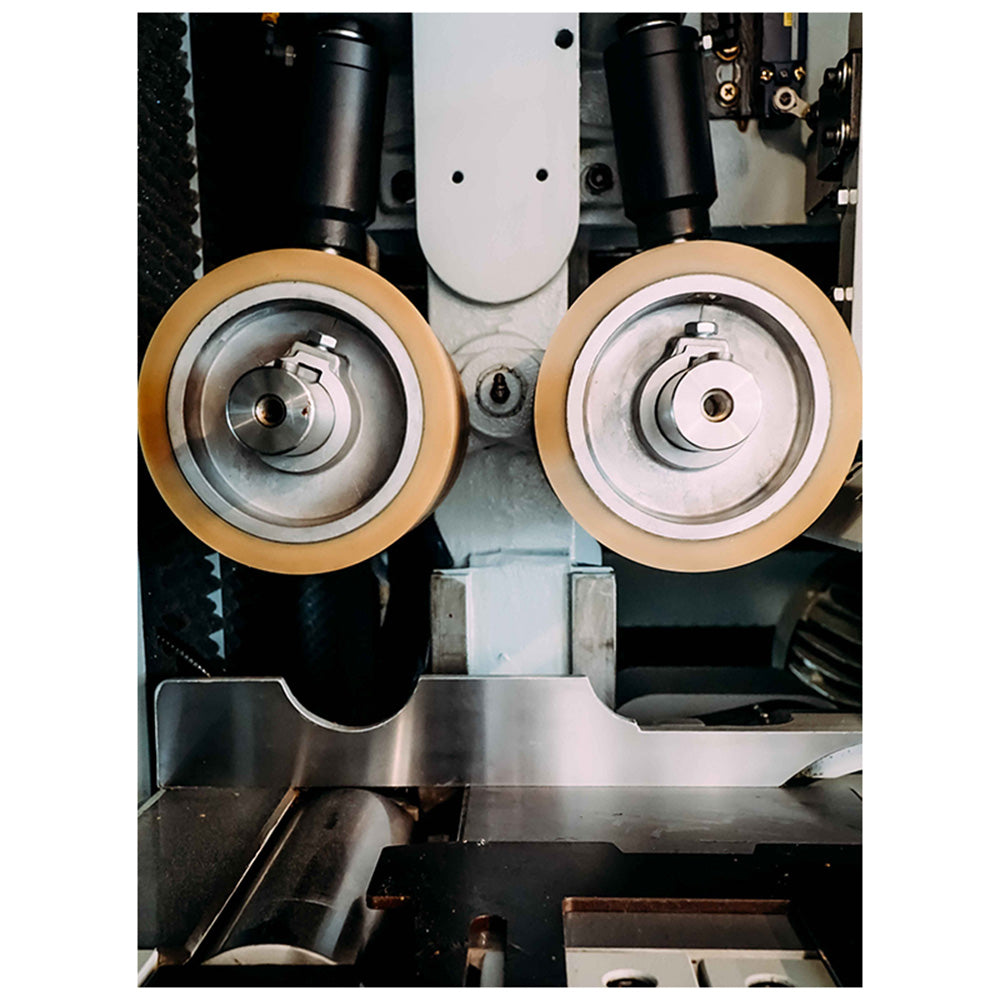

• Comes with more top-driven and bottom full-width driven feed rolls than other moulders of its size.
• 8000 RPM spindles each with (4) ABEC 7 precision bearings per spindle which provides smooth surface finish results.

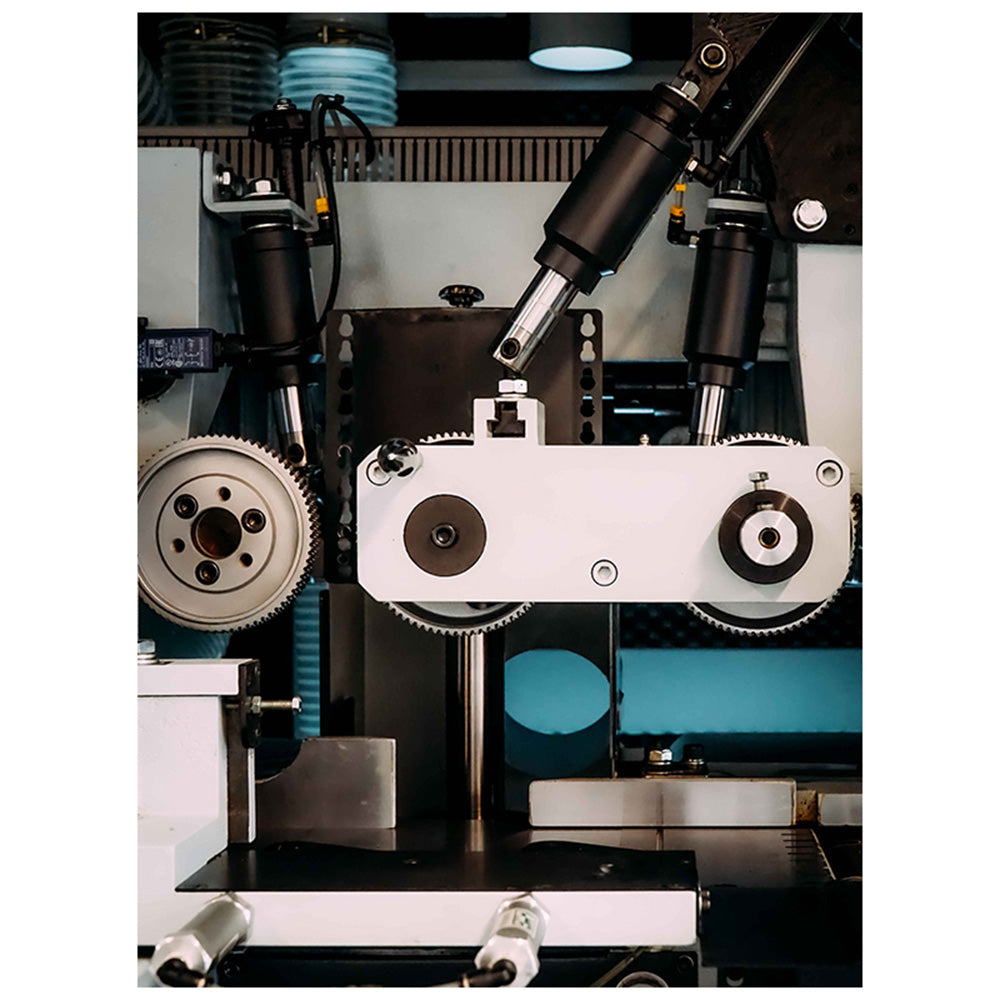

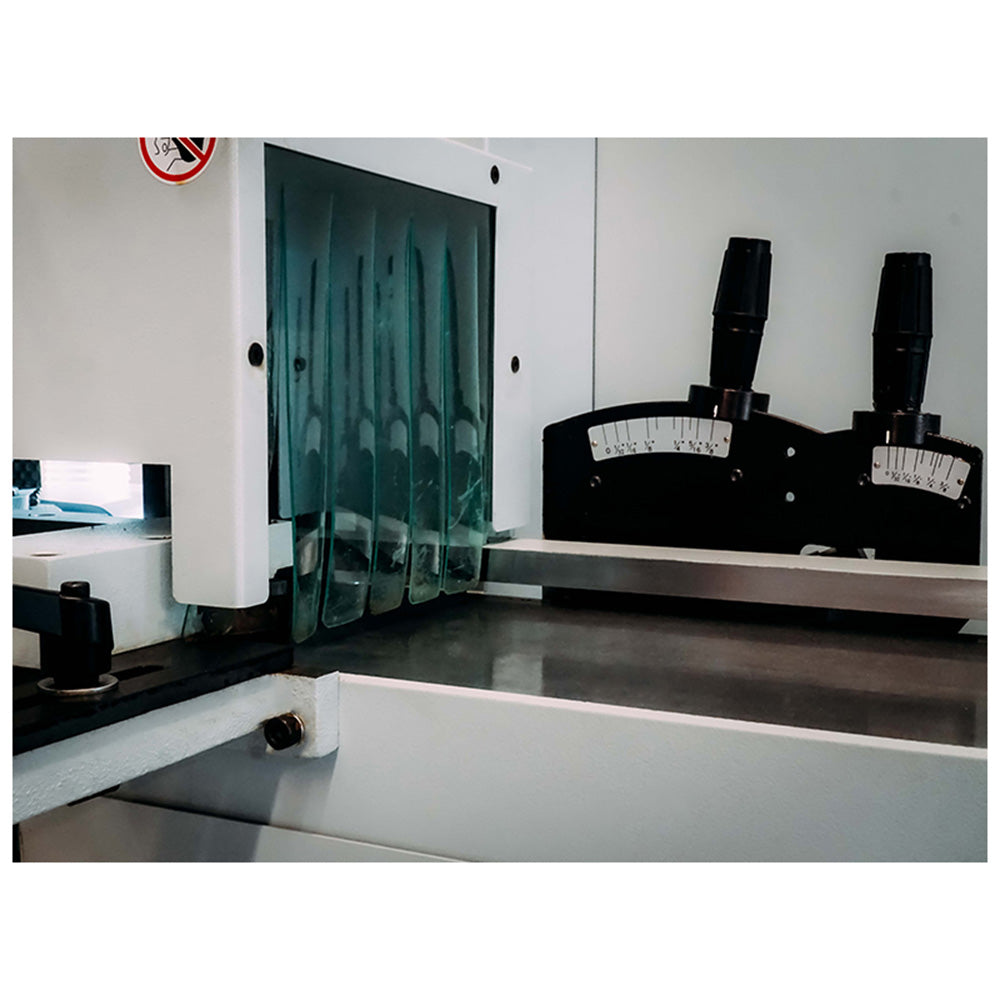

• Pneumatic side holdover provides consistent side pressure to the fence.

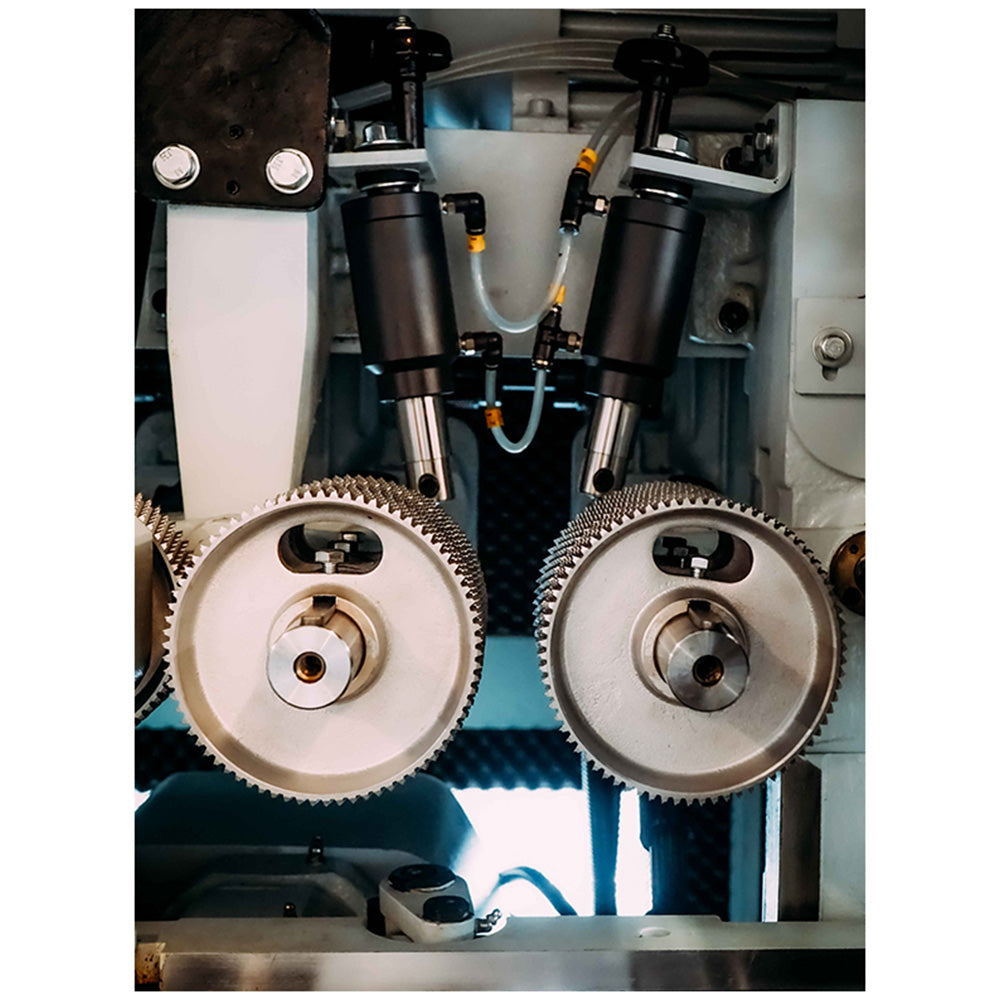

• Pneumatic hold down pressure to all top feed rolls provides consistent and repeatable pressure.

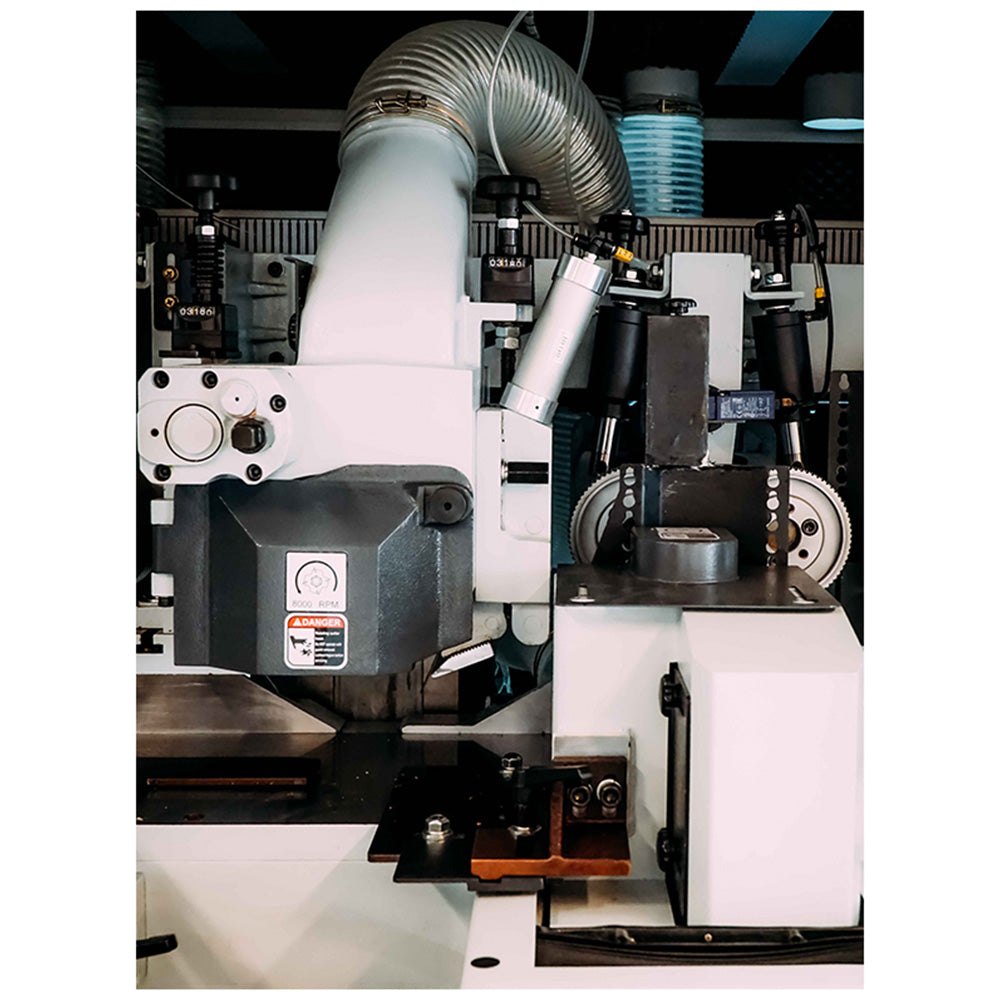

• Pneumatic chip breakers ensuring consistent pressure.

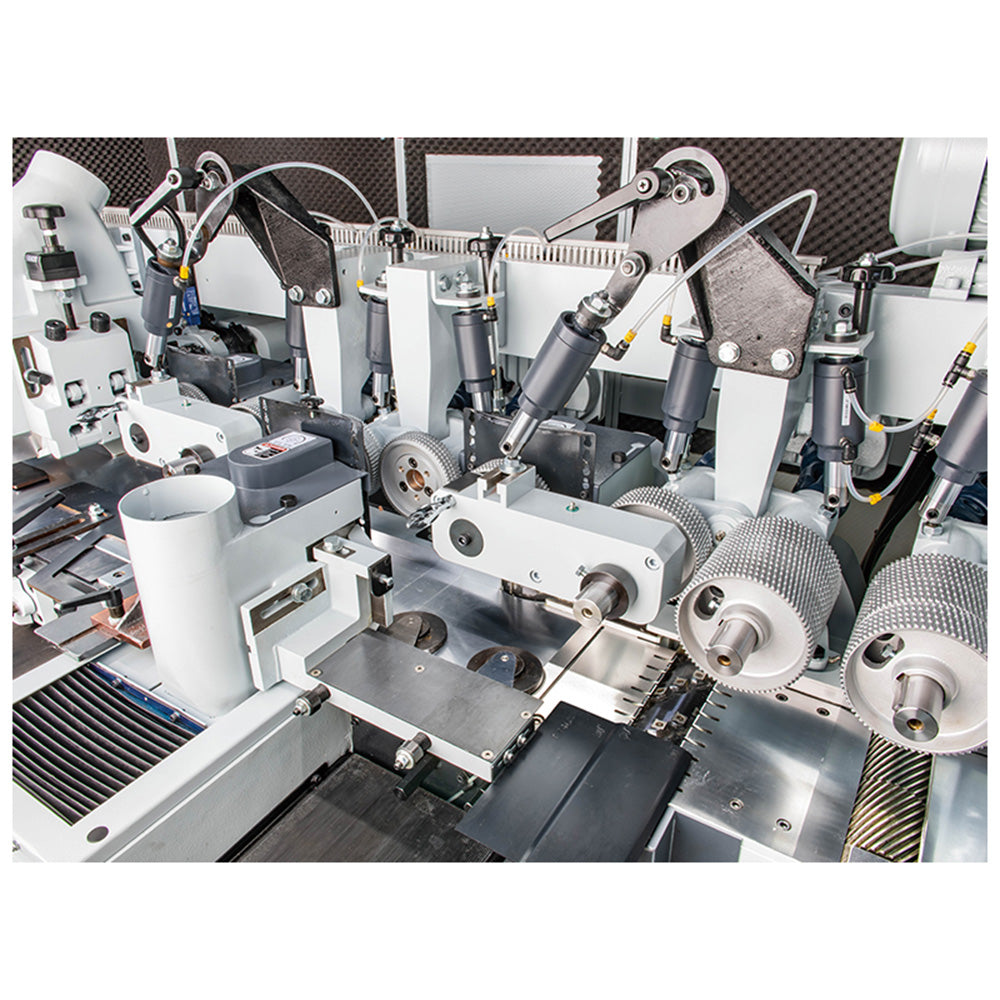

• Full width driven infeed & outfeed bed rolls.
• Increased Axial adjustment to vertical spindles.

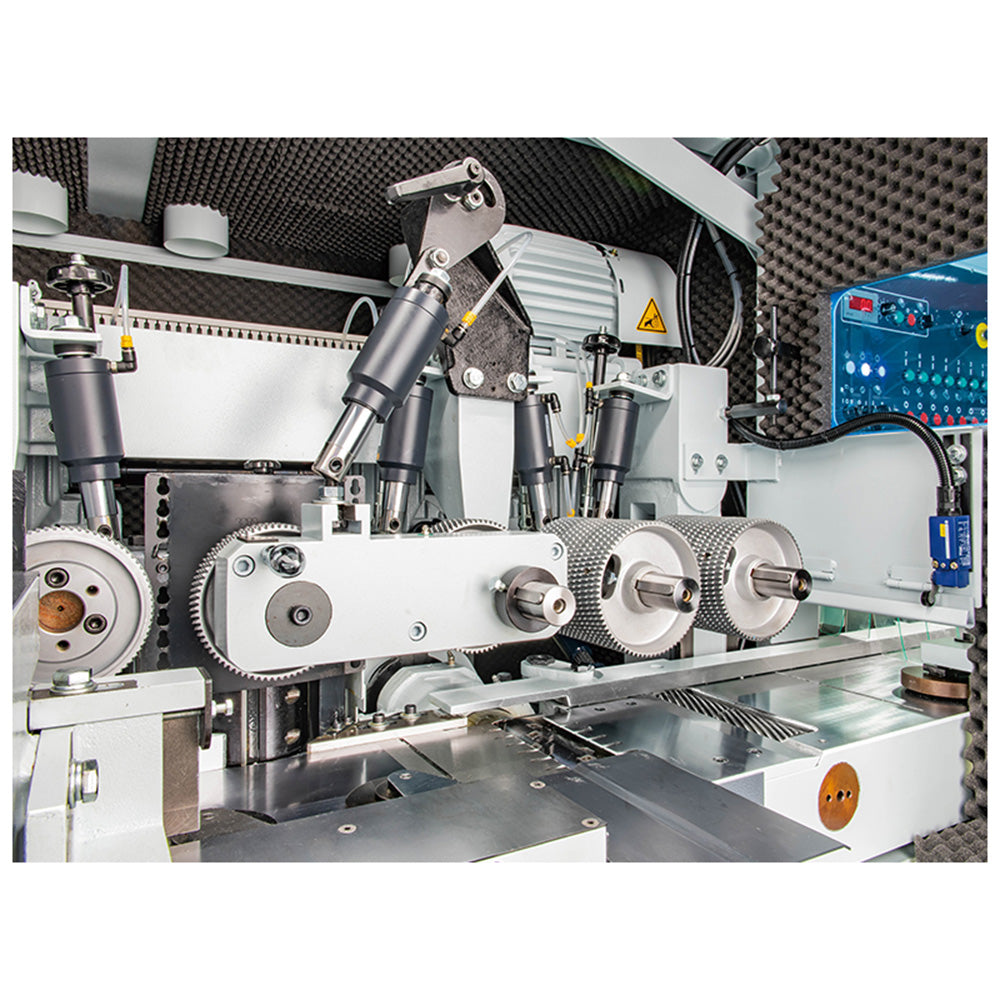

• Short stock feed roll station.
• Dual SIKO quick set counters to assist in quick and accurate changeovers (other setworks systems available to increase automation).
• Axial adjustment of last bottom head from the front of the machine.

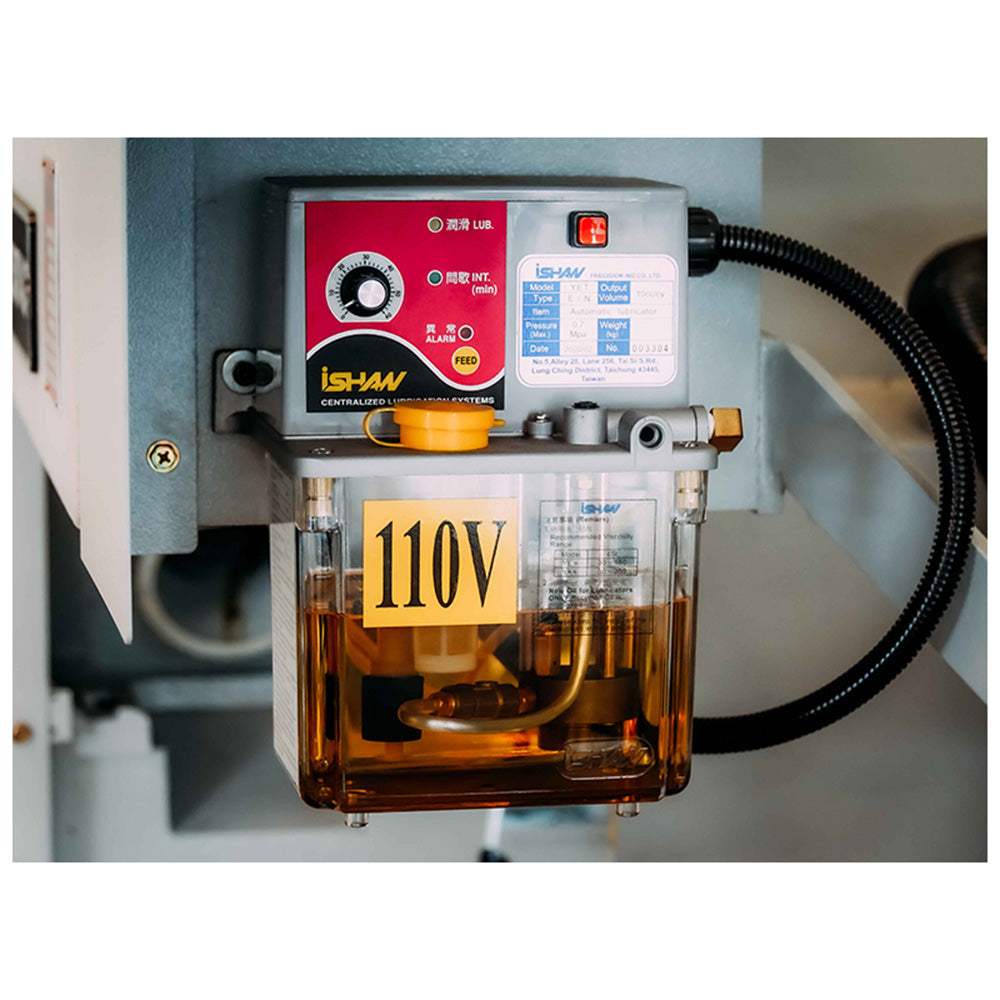

• Automatic and programmable table lubrication system.
• Centralized grease lubrication system.

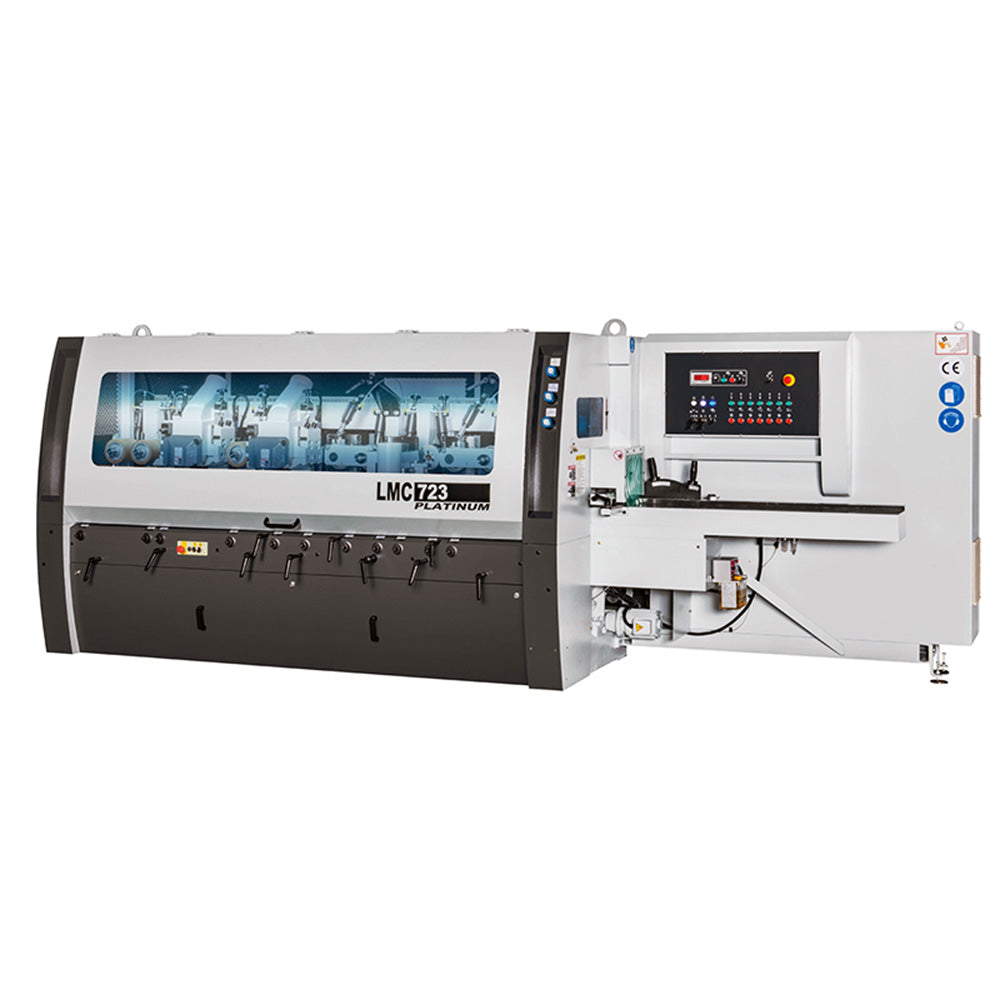

• Safety sound enclosure is standard.

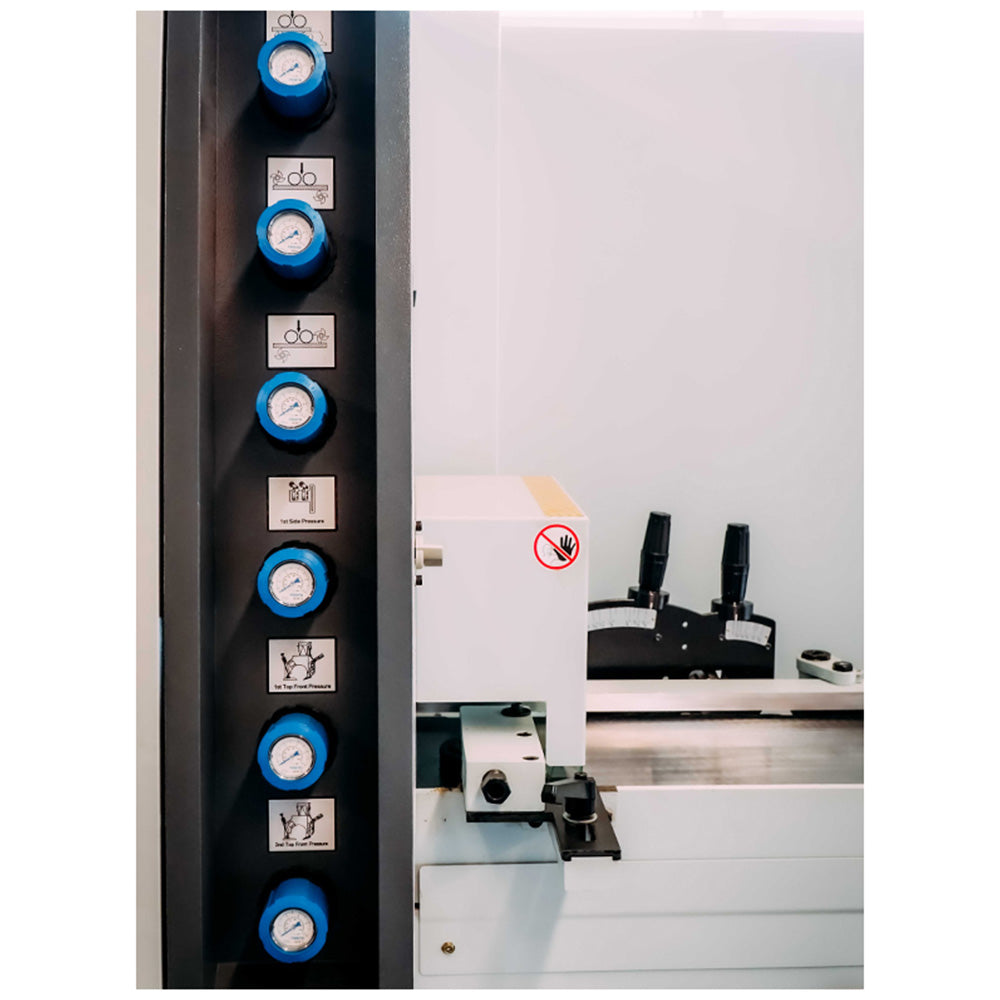

• Pneumatic pressure to chip breakers, holdovers, and top feed rolls.

Key Advantages
• Industrial moulder design with a solid cast iron frame produces unparalleled finished part quality in its class.
• The Platinum moulder comes with high-quality components, ensuring the best finish possible.
• 4 pieces of Abec 7 Precision Bearings per spindle – ensuring an excellent finish on your products.
• 8000 RPM spindles allow faster production to meet your needs.
• The Platinum moulders design ensures easy and consistent set up by your operator, ensuring quick changeovers.
• Turnkey solutions include on-site operator and maintenance training.

Options
• Variable frequency drives for spindles: allow RPM of spindles to be varied and act as a fully electronic braking system.

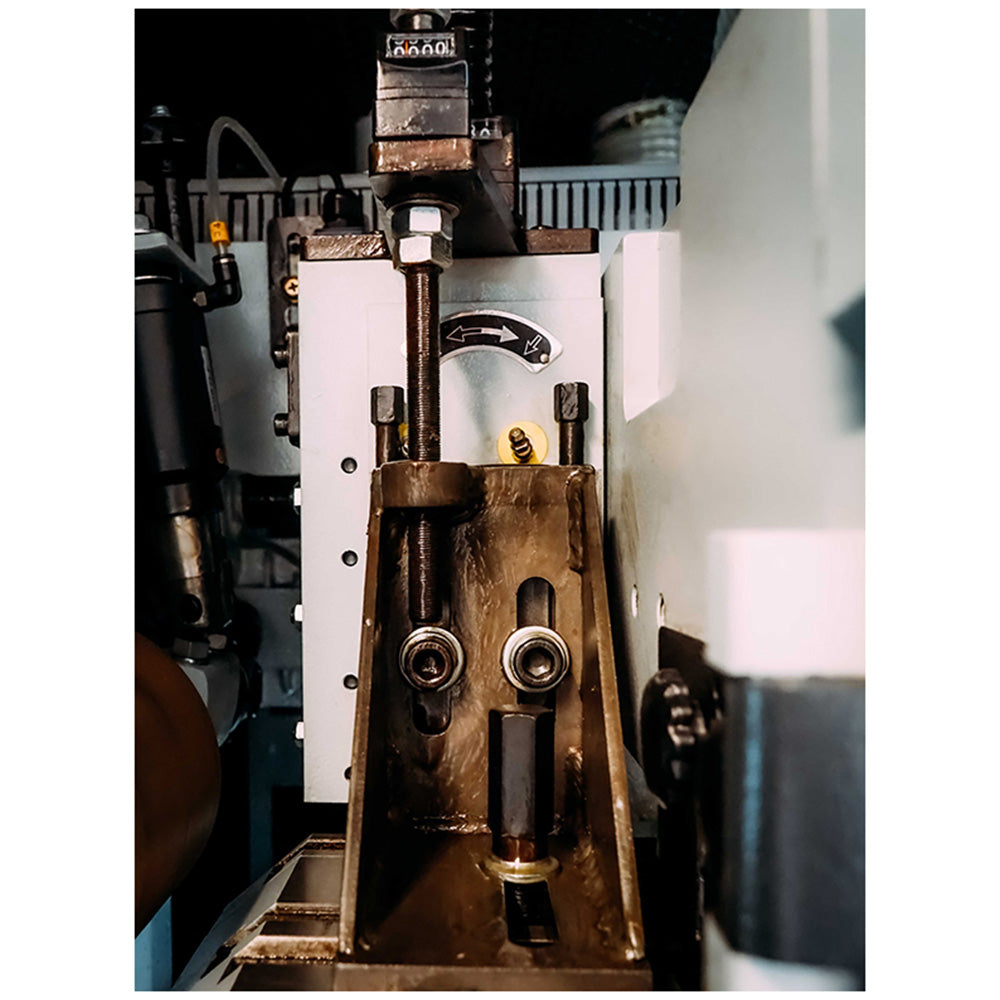

• Split hold down pressure shoe.
• Anti-kickback fingers for ripping operations.
• Rip bed plates / special pressure shoe for ripping operations.
• Universal spindle.
• 7200 RPM spindles for increase feed speeds.
• 12″ or 13″ wide machines with outboard bearings.
• Grooved bed machines for short part feeding.
• Telescopic top feed roll unit opposite left vertical side head.
• Easyset Setworks System with touch screen control, memory, and motorized positioning for near side and top head.
• Smartset 100 Setworks System with touch screen control, memory system, and motorized positioning for near side and top head, utilizing ball screw and rotary encoder for true accurate and repeatable positioning.

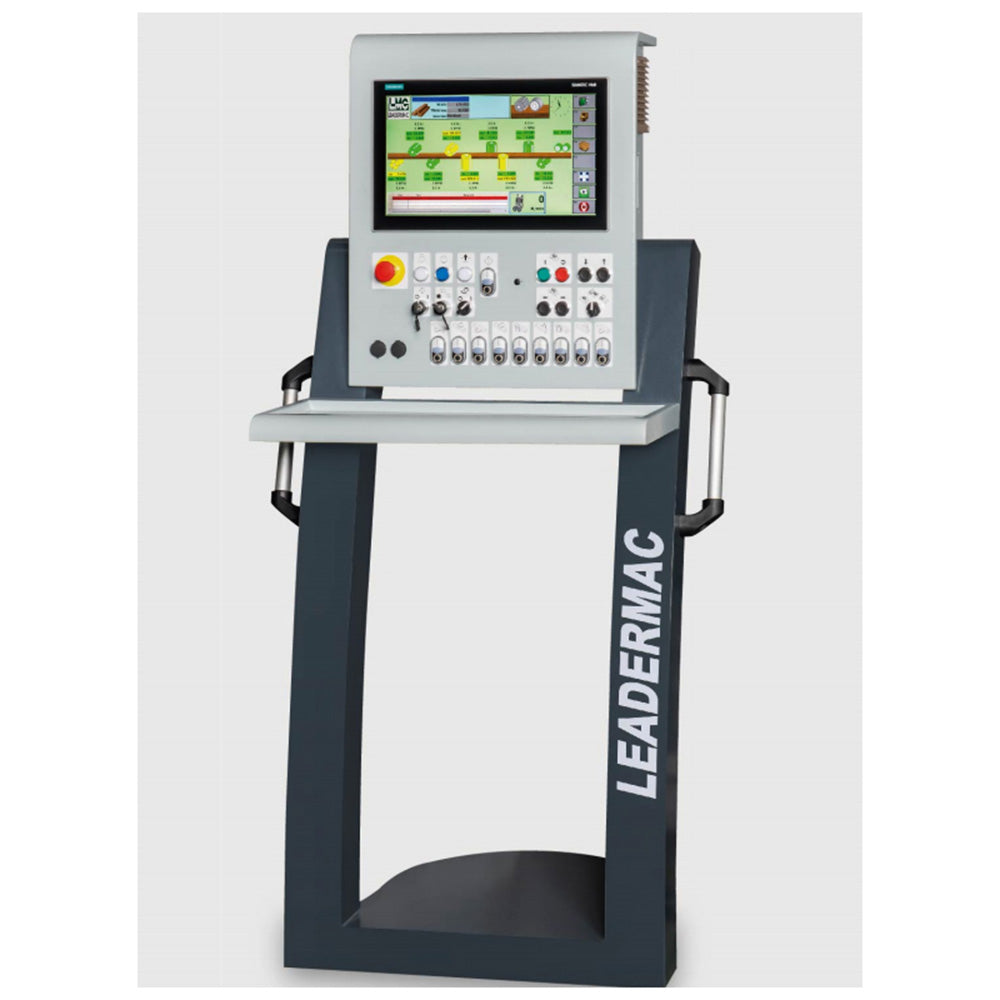

• Proset Setworks system, with link to the grinding room, allowing the building of tool, profile libraries. Transfer of measurements after grinding via a video measurement stand to the PC to update all profiles. This system is designed to ensure the fastest of changeovers, allowing easy management of larger numbers of tools, product profiles, and changeovers as required.
• Router spindles for special profiling.
• Automatic width setting with measuring probe for random width material.
• Multiple ripsaw spindle with sleeve.
• Vertical spindle slicing/ripping system.
• Special requirements on request.
