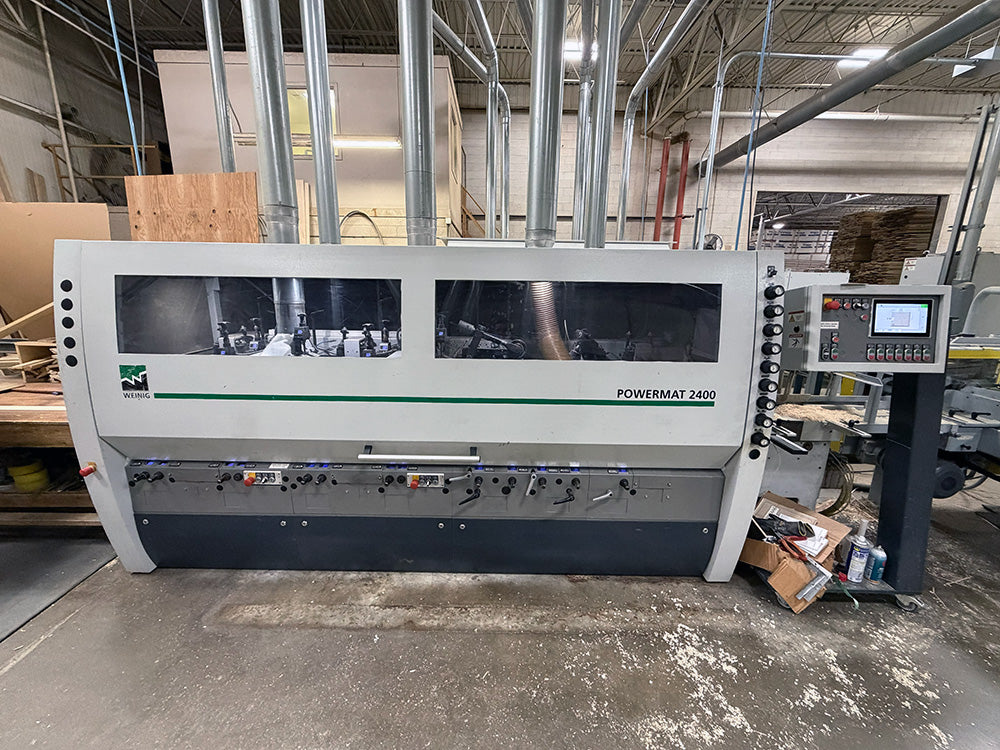

Used 2017 Weinig Powermat 2400 Automatic Planer and Moulder
Used 2017 Weinig Powermat 2400 Automatic Planer and Moulder is backordered and will ship as soon as it is back in stock.
Used 2017 Weinig Powermat 2400 Automatic Planer and Moulder

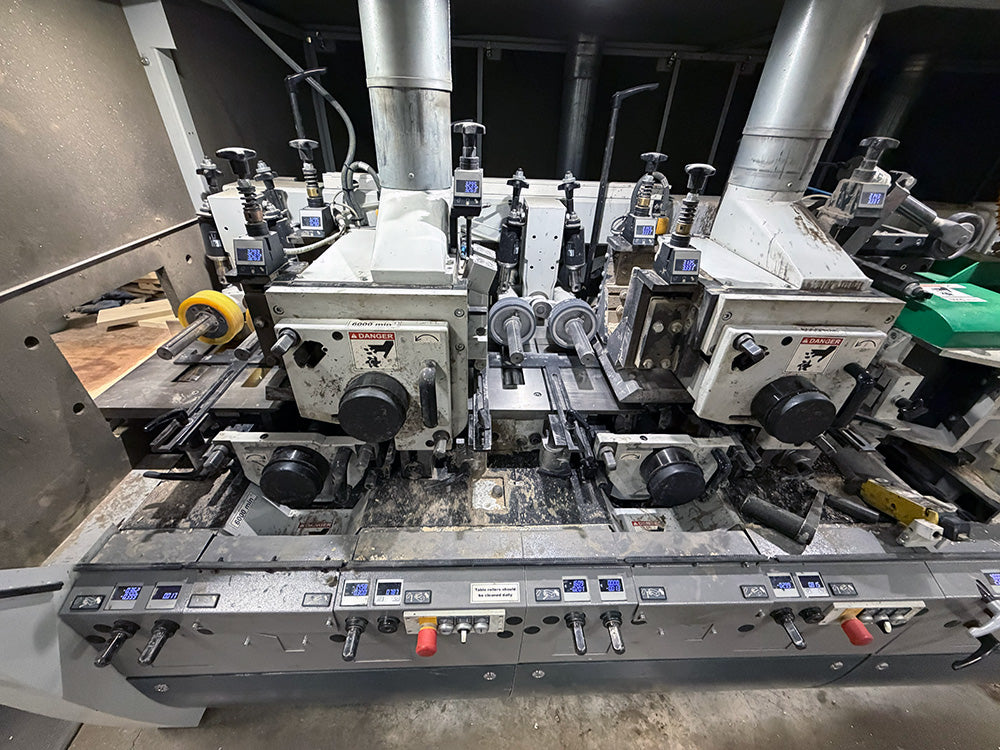

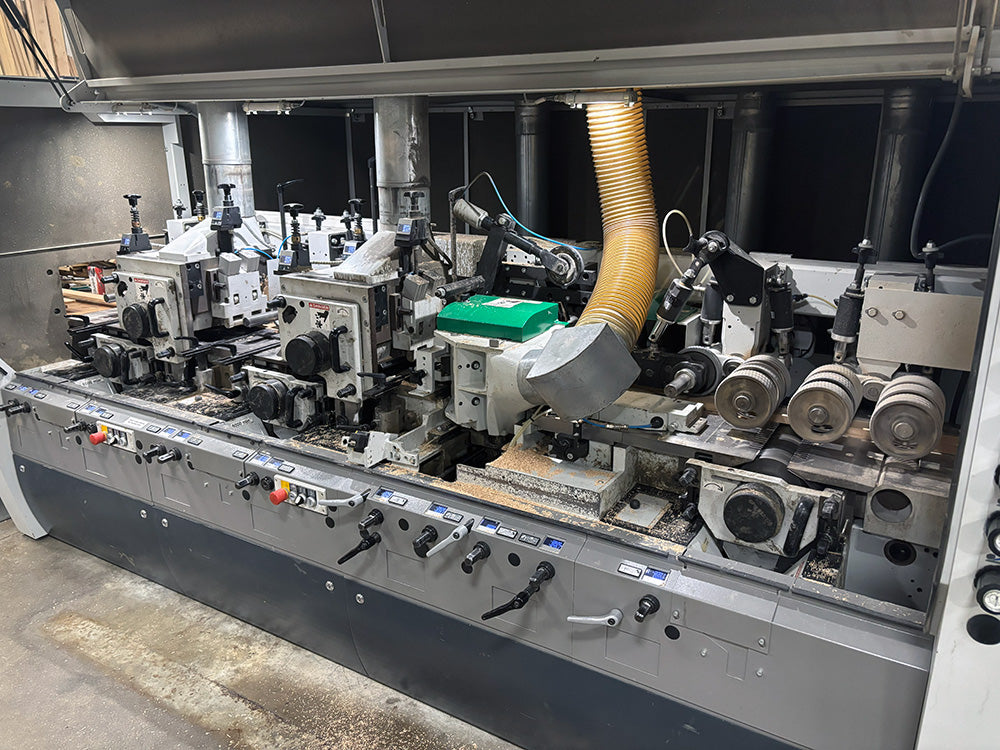

7 Spindles

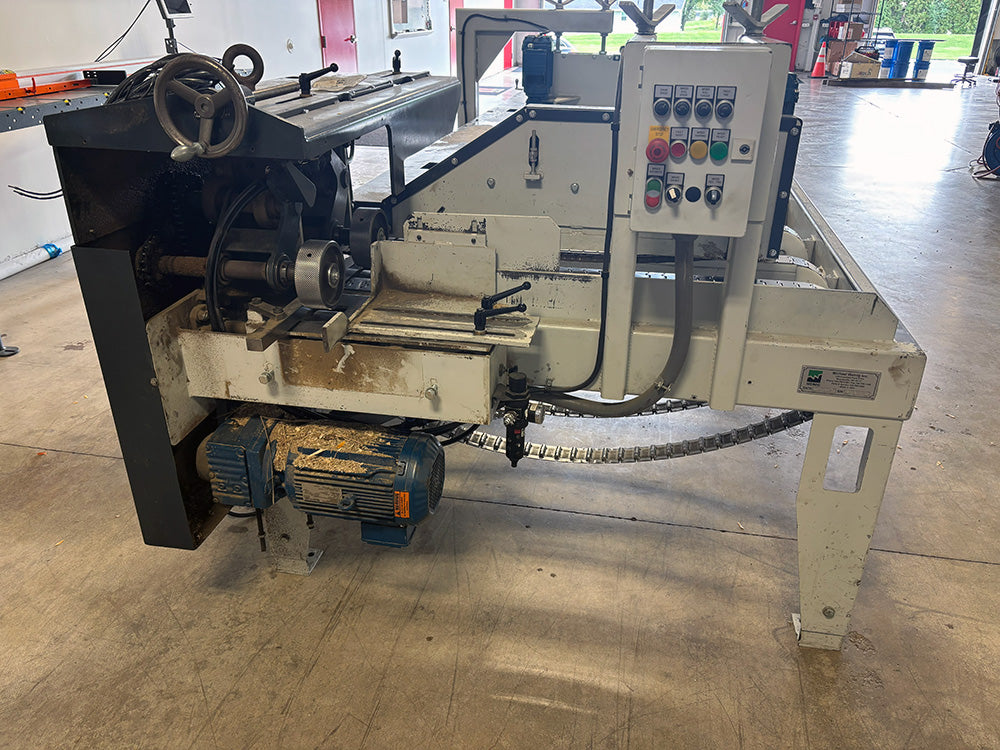

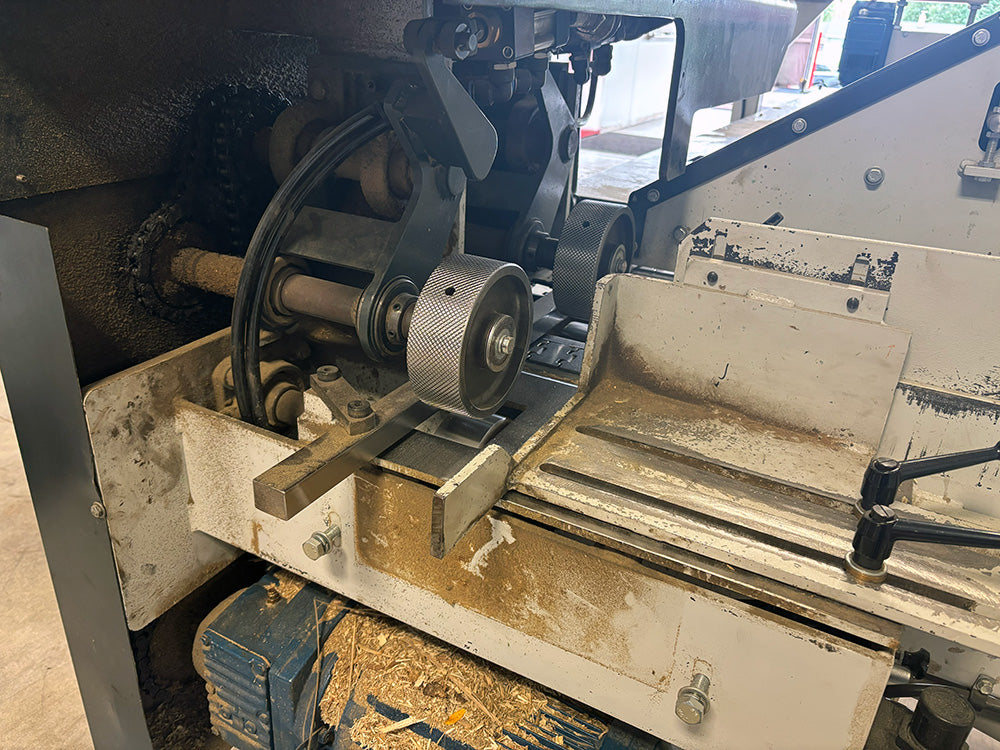

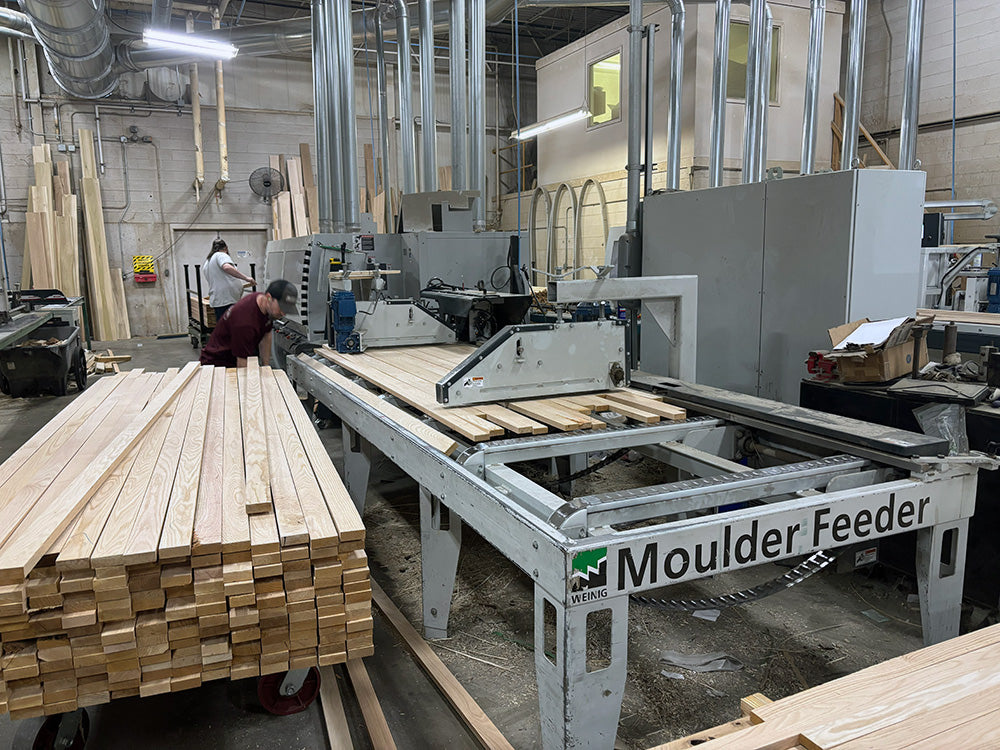

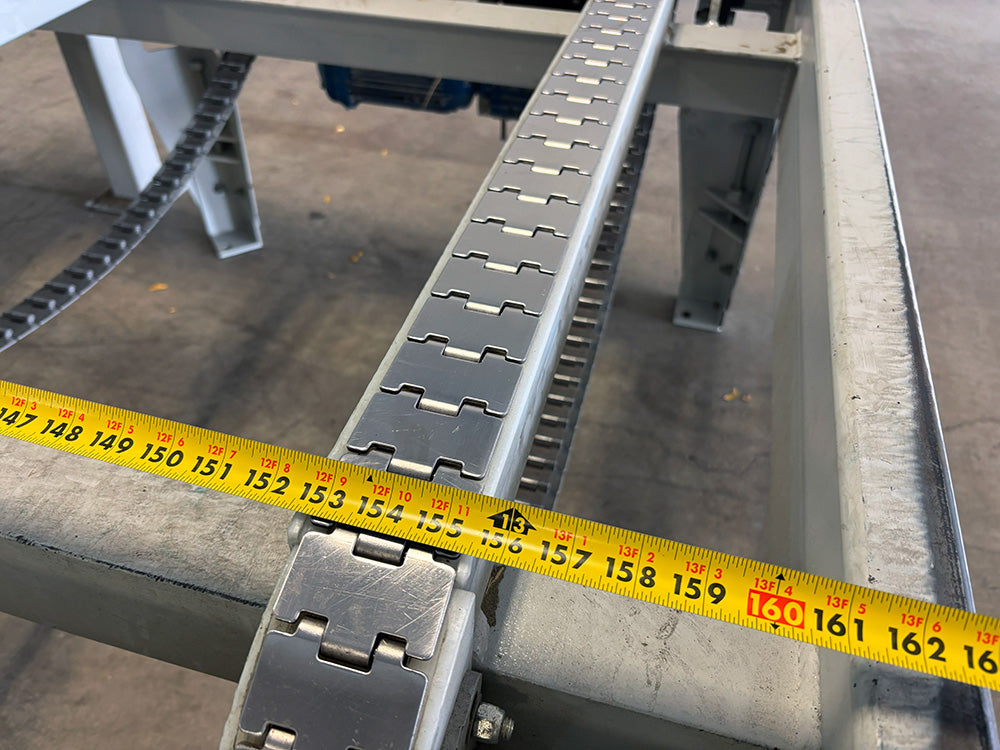

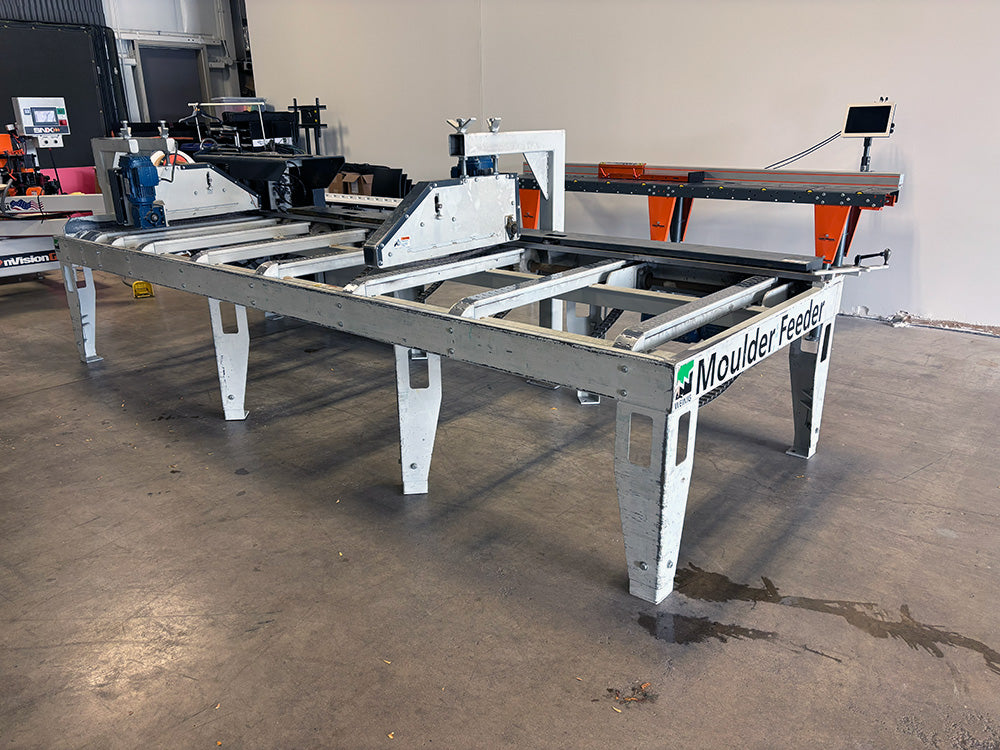

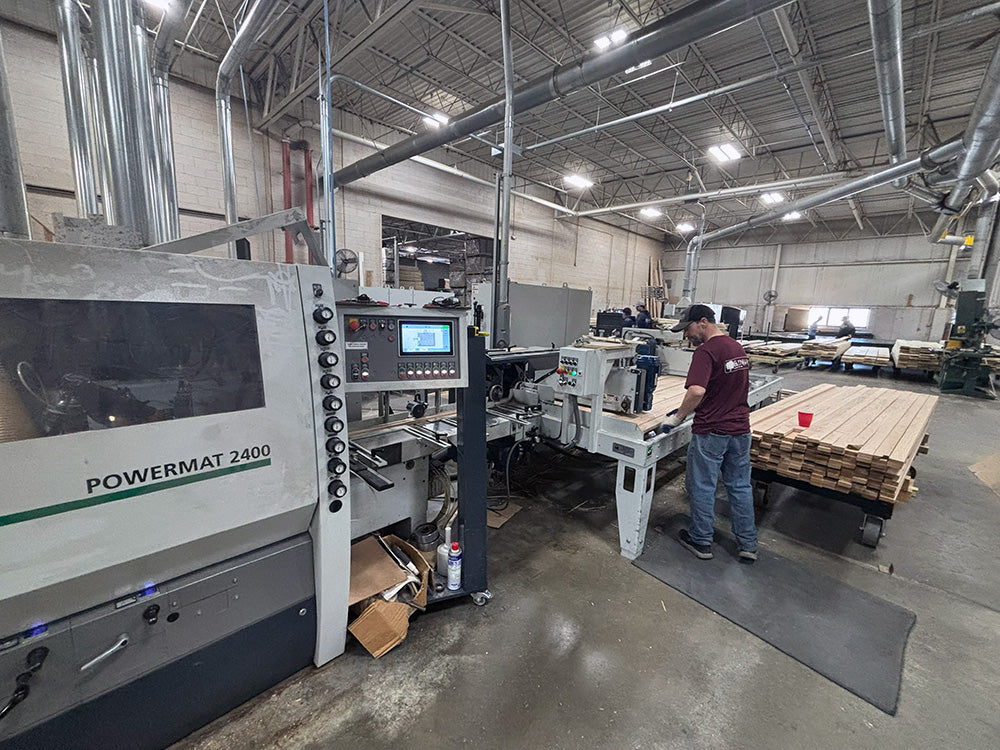

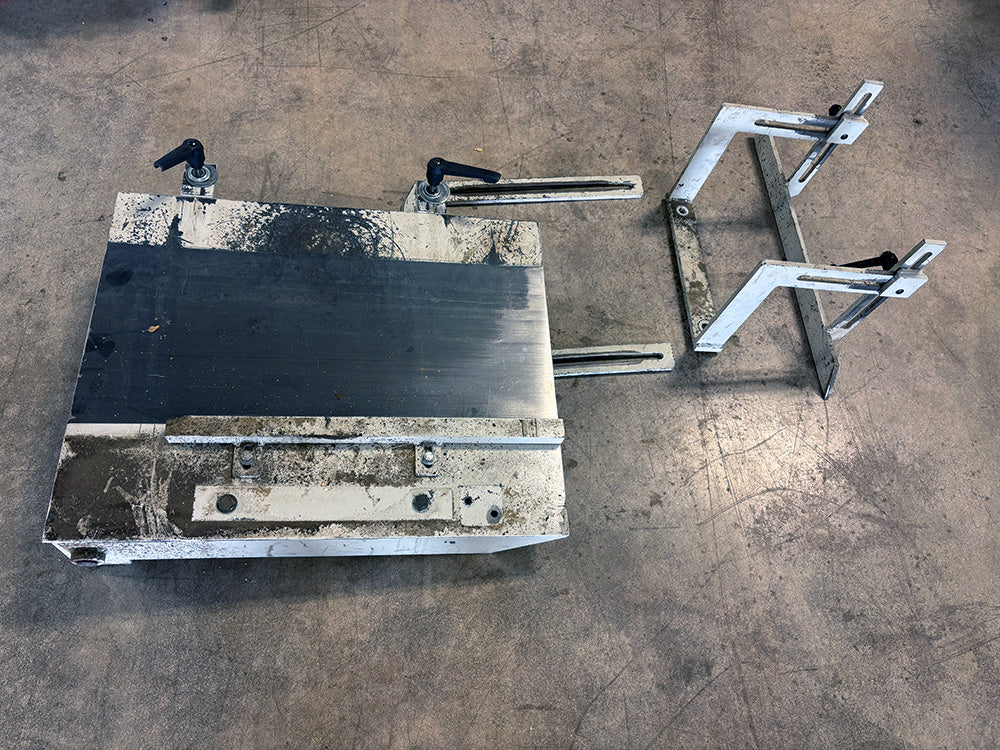

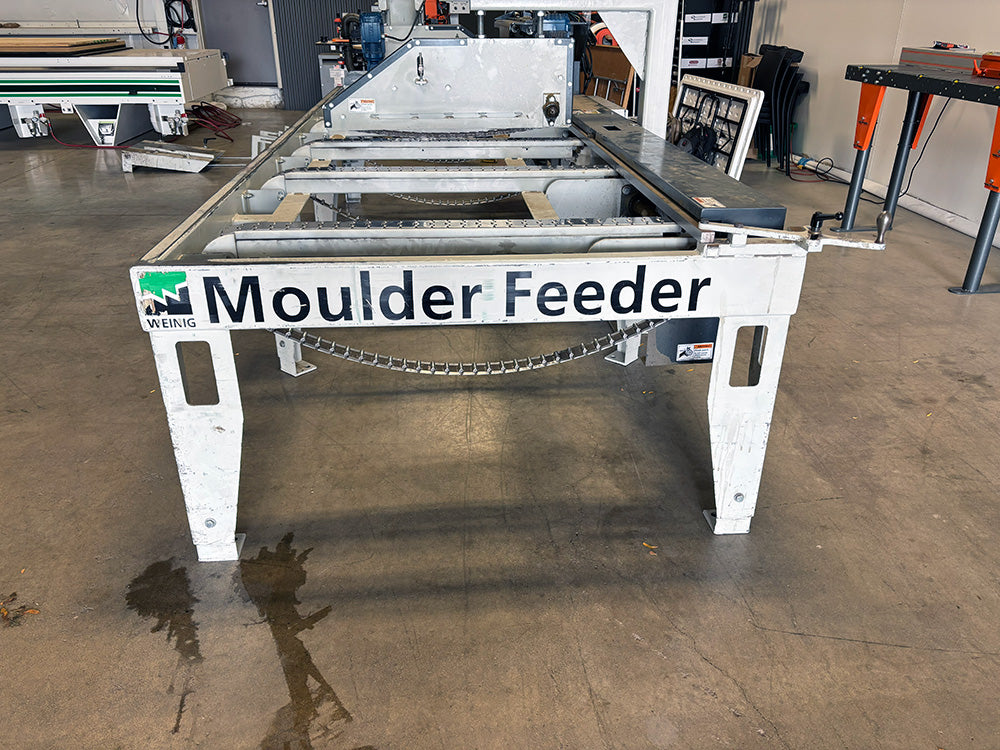

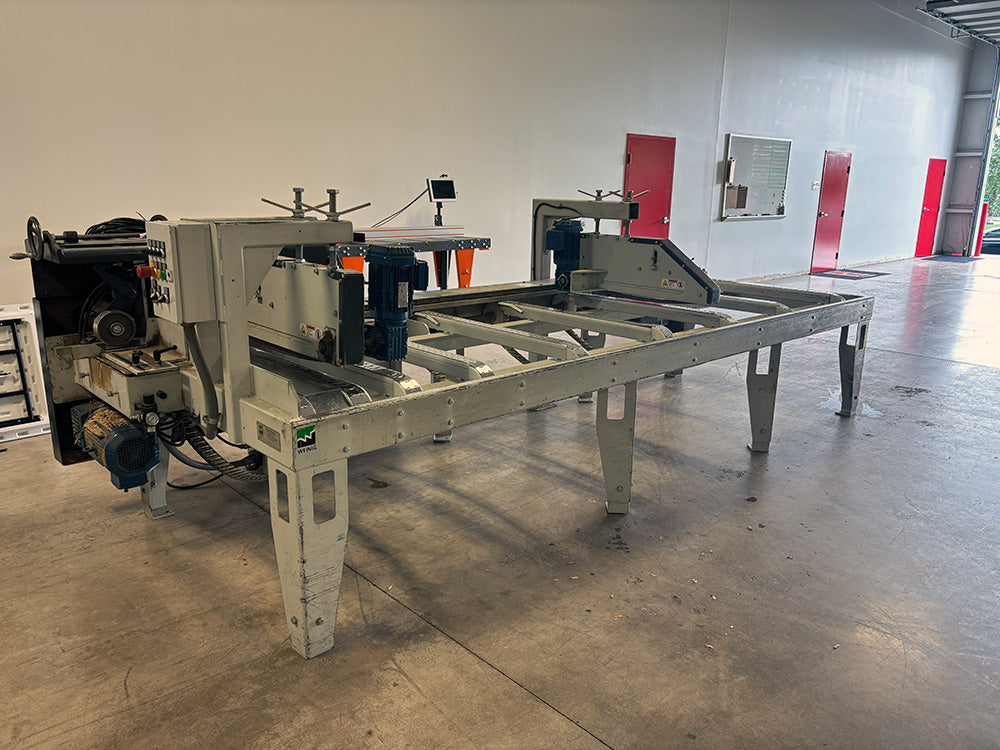

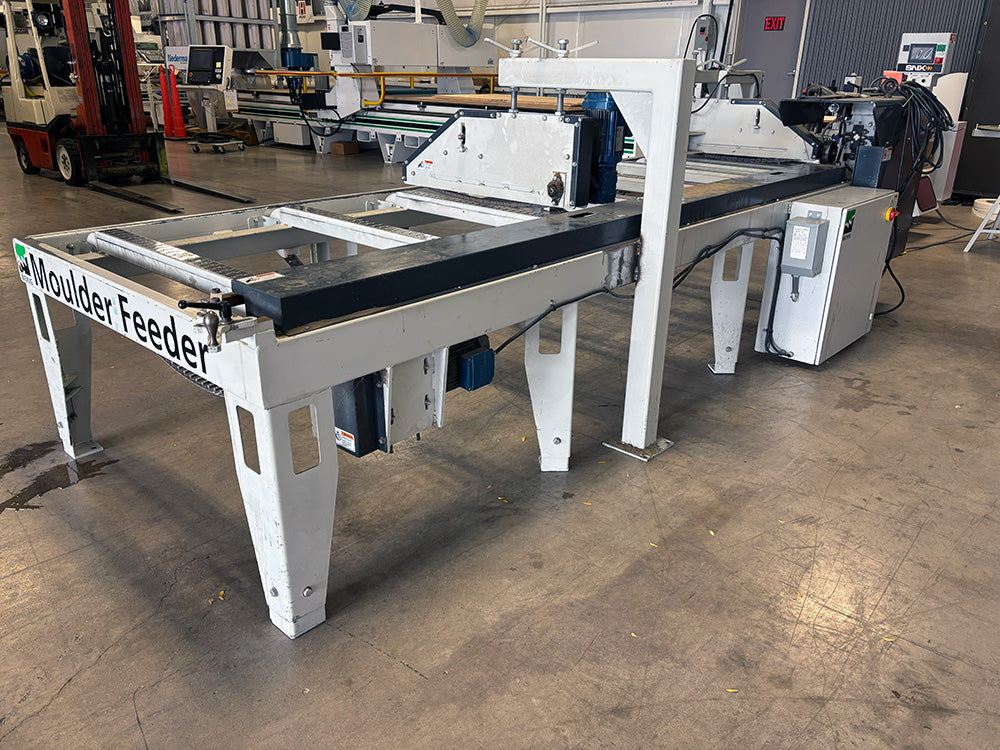

Includes Moulder and Feeder

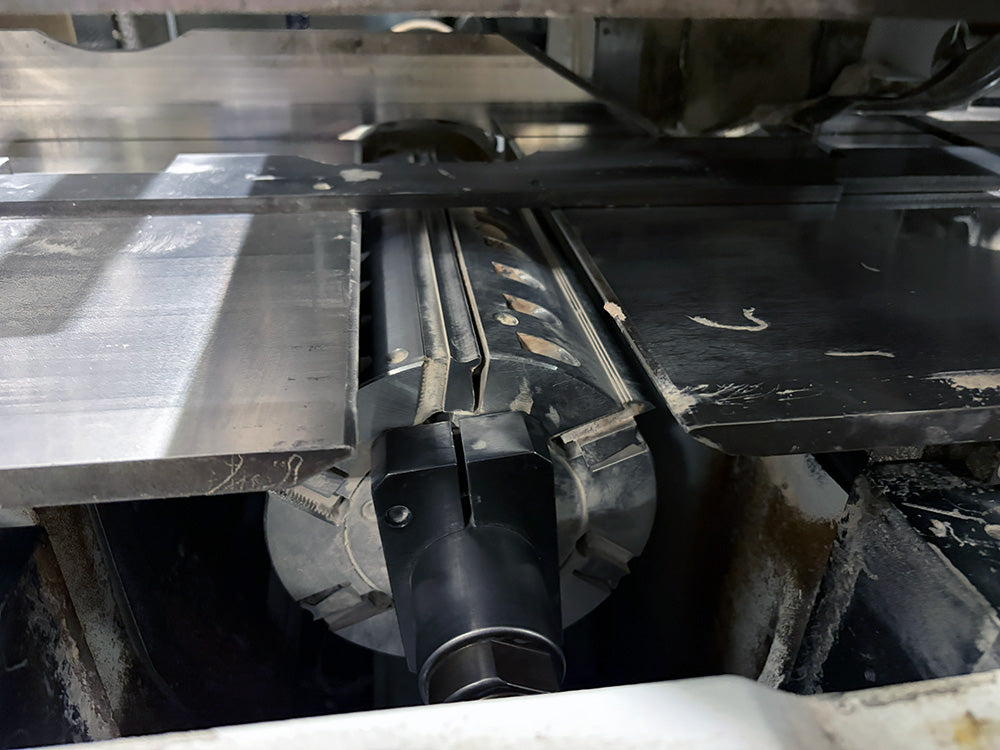

First Horizontal Bottom Spindle
| Motor | 22KW (30HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool Cutting Circle | 143-180mm |
| Hydro – Outboard Bearing - Including interlocking of the "up-down" movement of the bottom spindle. Readjustment is only feasible after opening the clamping. Axial adjustment of the spindle feasible with closed outboard bearing. Tool cutting circle min. 143 mm. | |

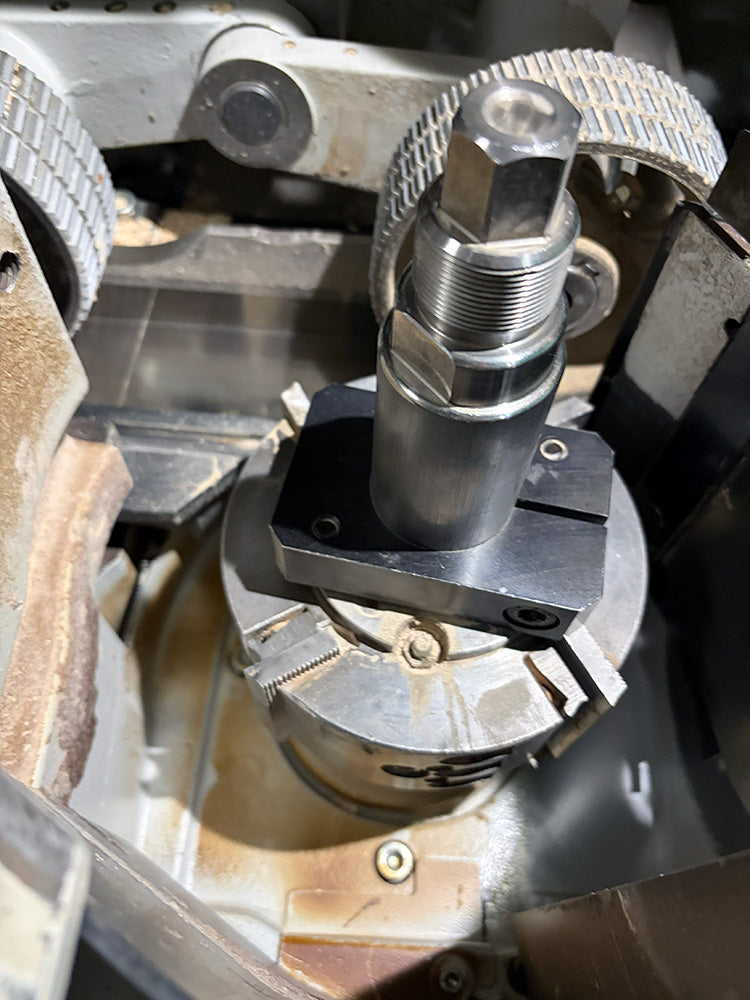

First Right Vertical Spindle
| Motor | 15KW (20HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool cutting circle max. | 93 - 250 mm |
| Max. tool diameter behind fence level | 207 mm |
| Maximum profile depth | 35 mm |
| Setting range axial | 80 mm |
| Reduced roller distance opposite right spindle | |
First Left Vertical Spindle
| Motor | 15KW (20HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool Cutting Circle | 93 - 250mm |
| Tool Cutting circle for straight heads max | 180mm |
| Maximum Profile Depth | 35mm |
| Setting Range Axial | 80mm |
| Pressure shoe in front of 1st left spindle hardened and receding from the tool, incl. steel lateral roller pressure, pneumatic | |

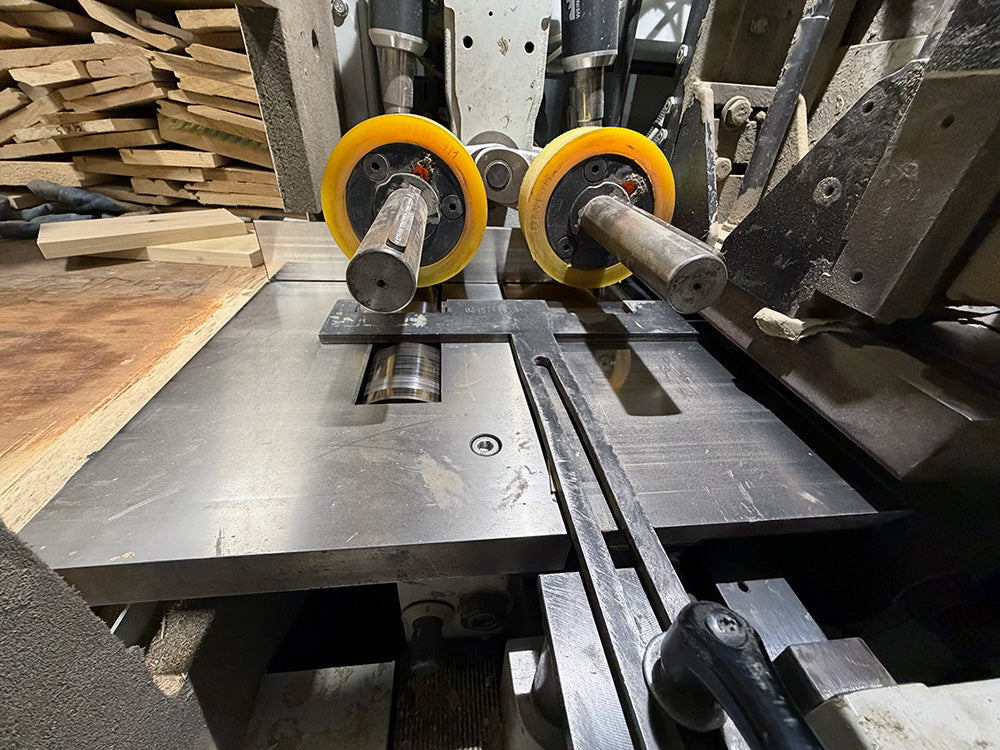

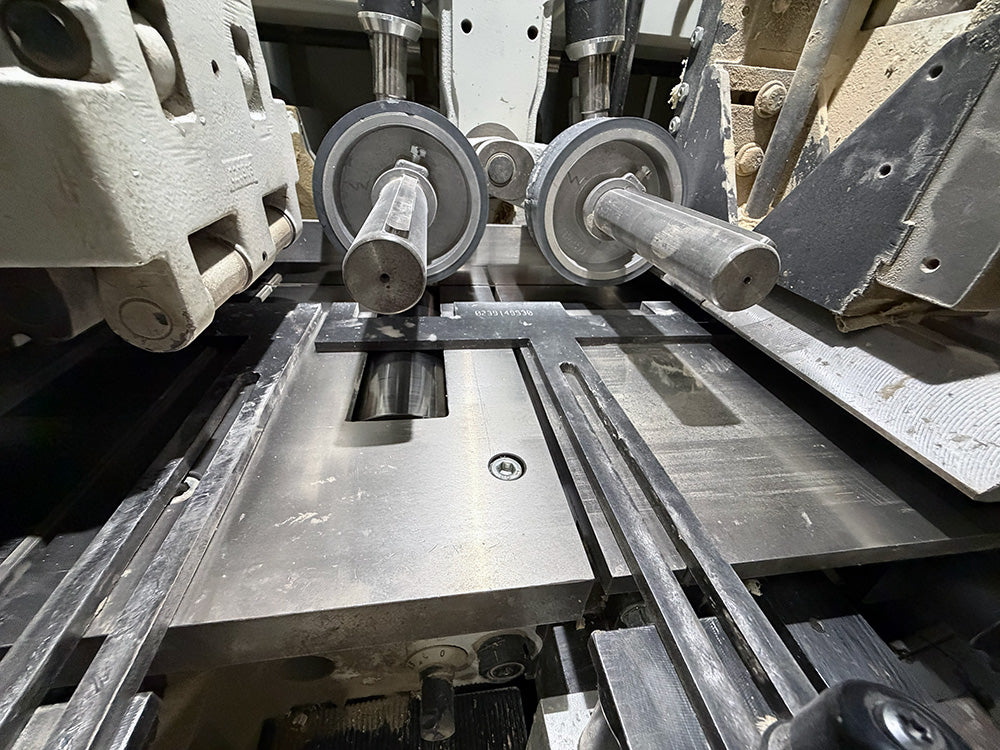

| Setting range of the feed rollers opposite left spindle, axial 35 mm Advantage - Easy adaptation of feed roller track for optimal guidance near the left spindle |
|
| Extension of the pendulum arbor opposite the left spindles to 150 mm Advantage - Easy adaptation of feed roller track for optimal guidance near the left spindle |
|
First Horizontal Top Spindle
| Motor | 37KW (50HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool Cutting Circle | 93 - 250mm |
| Tool Cutting Circle for straight planer heads max | 180mm |
| Maximum Profile Depth | 35mm |
| Adjustment Range Axial | 40mm |
| Split pressure shoe in front of top spindle, adjustable to tool cutting circle and receding from tool, pneumatic | |
| Radial CNC-controlled adjustment and positioning of tool holders in combination with Memory - Function or the PowerCom. | |
| Hydro - Outboard bearing: With pneumatic clamping, including interlocking of the "up-down" movement of the top spindle. Readjustment is only feasible after opening the clamping. Thickness adjustment feasible with closed hood. Axial adjustment of the spindle feasible with closed outboard bearing. Tool cutting circle min. 140 mm. | |
Second Horizontal Bottom Spindle
| Motor | 22KW (30HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool Cutting Circle | 93 - 250mm |
| Tool Cutting Circle for straight planer heads max | 180mm |
| Maximum Profile Depth | 15mm |
| Adjustment Range Axial | 40mm |
| Setting Range Radial | |
| Min. Tool Diameter to table level | 93mm |
| Max. Tool Diameter 6mm below table level | 250mm |
| Hydro - Outboard bearing: Including interlocking of the "up-down" movement of the bottom spindle. Readjustment is only feasible after opening the clamping. Axial adjustment of the spindle feasible with closed outboard bearing. Tool cutting circle min. 143 mm. | |
Second Horizontal Top Spindle
| Motor | 22KW (30HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool Cuting Circle | 93 - 250mm |
| Tool Cutting Circle for straight planer heads max | 180mm |
| Maximum Profile Depth | 35mm |
| Adjustment Range Axial | 40mm |
| Split pressure shoe in front of top spindle, adjustable to tool cutting circle and receding from tool, pneumatic | |
| Radial CNC-controlled adjustment and positioning of tool holders in combination with Memory - Function or the PowerCom. | |
| Hydro - Outboard bearing: With pneumatic clamping, including interlocking of the "up-down" movement of the top spindle. Readjustment is only feasible after opening the clamping. Thickness adjustment feasible with closed hood. Axial adjustment of the spindle feasible with closed outboard bearing. Tool cutting circle min. 140 mm. | |
Third Horizontal Bottom Spindle
| Motor | 18.5KW (25HP) |
| Diameter | 1-13/16" |
| Revolution Speed | 6000 RPM |
| Tool Cutting Circle | 93 - 250mm |
| Tool Cutting Circle for straight planer heads max | 180mm |
| Maximum Profile Depth | 15mm |
| Adjustment Range Axial | 40mm |
| Setting Range Radial | |
| Min. tool diameter to table level | 93mm |
| Max. tool diameter 6 mm below table level | 250mm |
| Hydro - Outboard bearing: Including interlocking of the "up-down" movement of the bottom spindle. Readjustment is only feasible after opening the clamping. Axial adjustment of the spindle feasible with closed outboard bearing. Tool cutting circle min. 143 mm. | |
Highland Article #: 1294
Used 2017 Weinig Powermat 2400 Automatic Planer and Moulder
