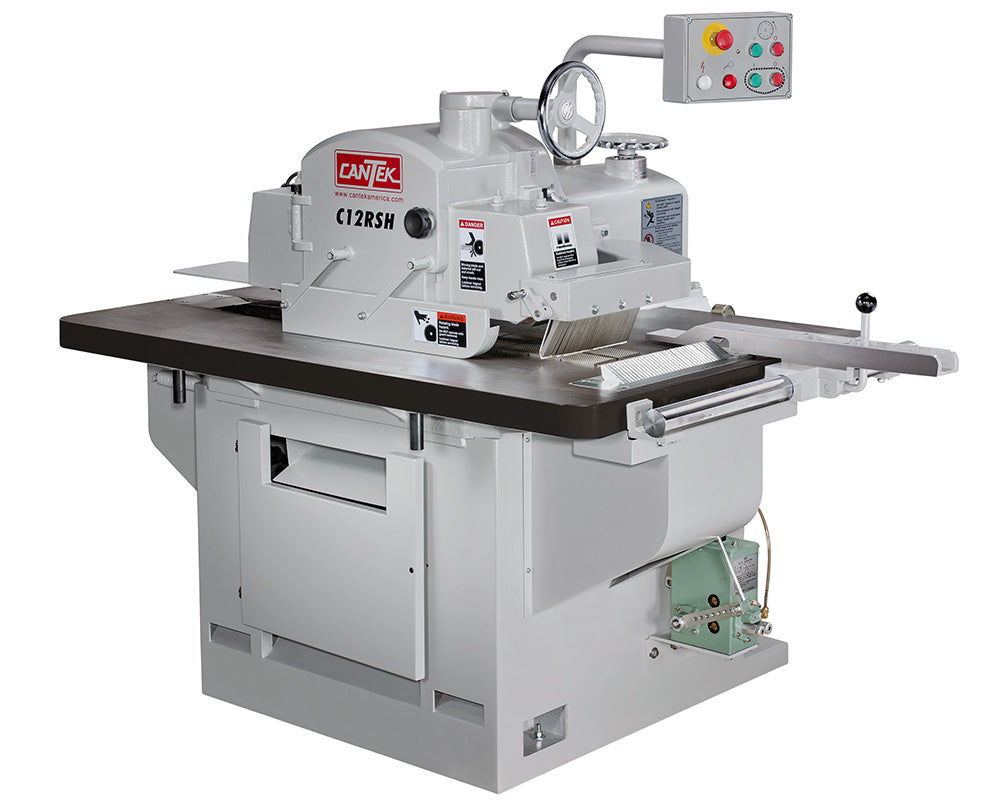

Cantek C12RSH 12" Straight Line Ripsaw

The Cantek C12RSH Straight Line Ripsaw is a single-blade ripsaw geared towards the shop looking to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.

• Produces a guaranteed glue joint finish to 10′, which eliminates the need to joint the material after ripping
• Precision straight line feeding for parallel and accurate rip cuts

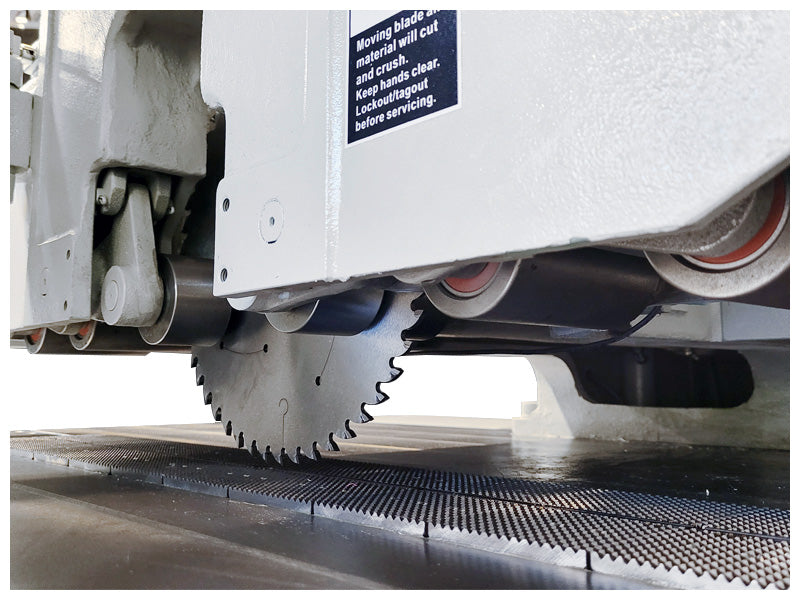

• Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut.
• Maintenance-free chain track with the use of a reliable mechanical lubrication system.
• Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
• Rigid machine body consists of a thick welded steel frame.

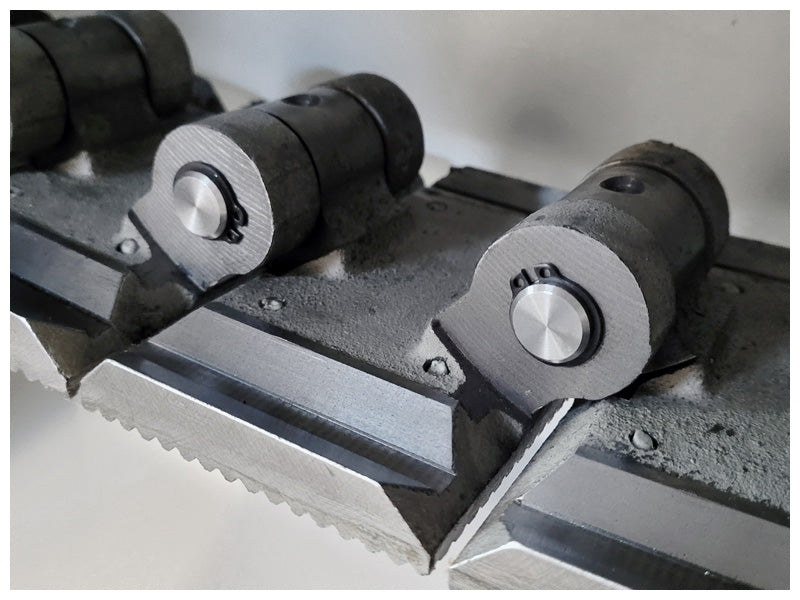

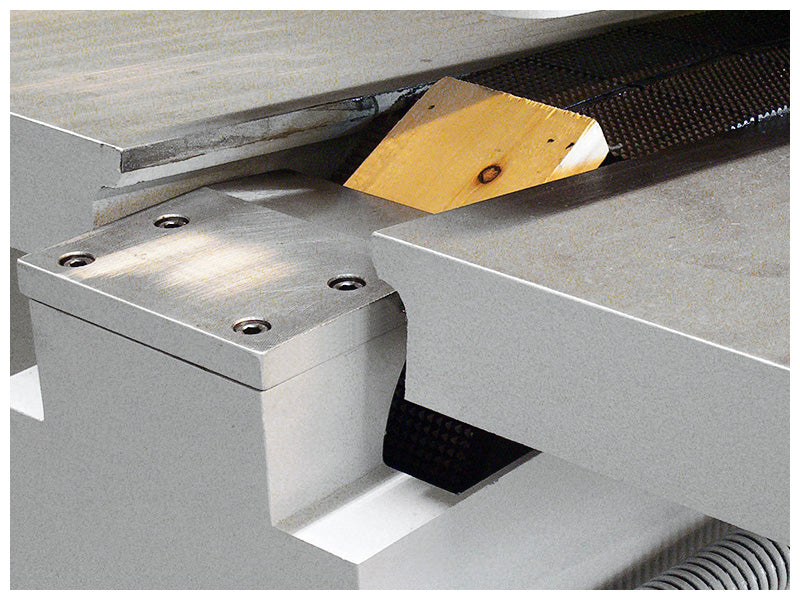

• FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life.
• Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
• Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.

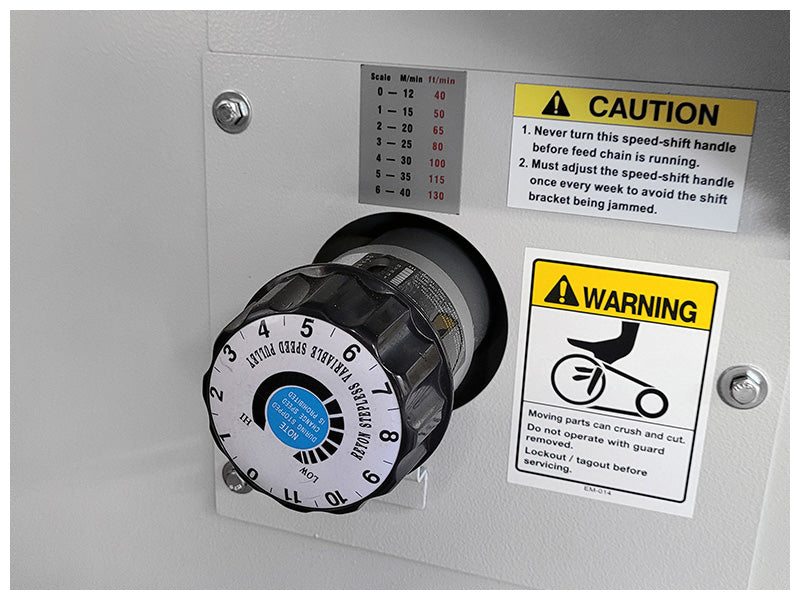

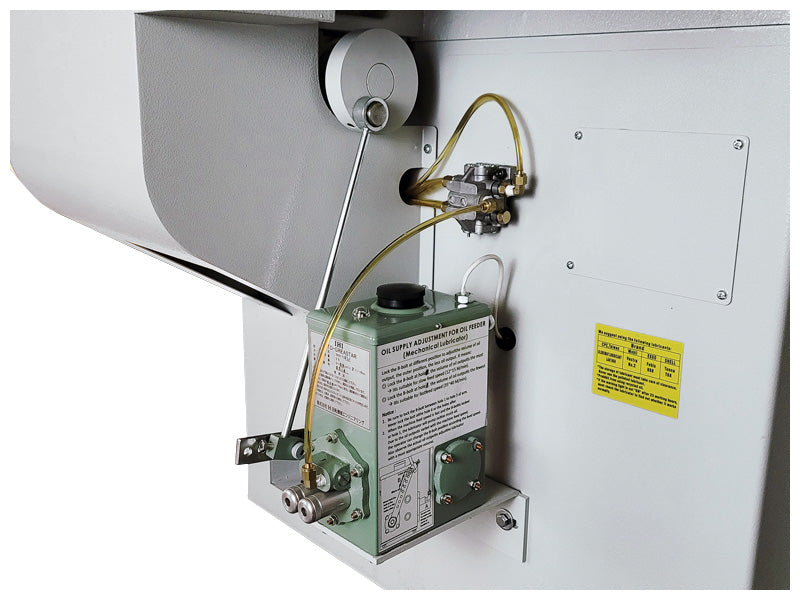

• Mechanical operation Chain Oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.

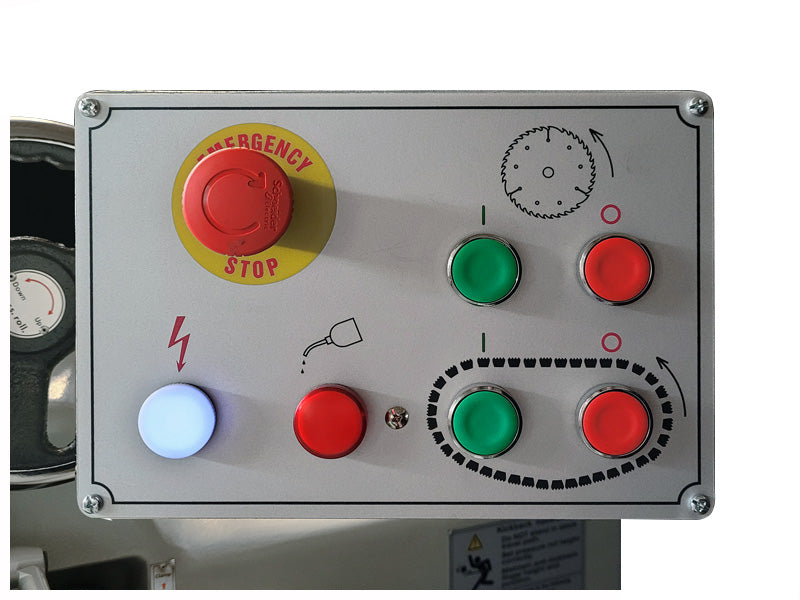

• When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.

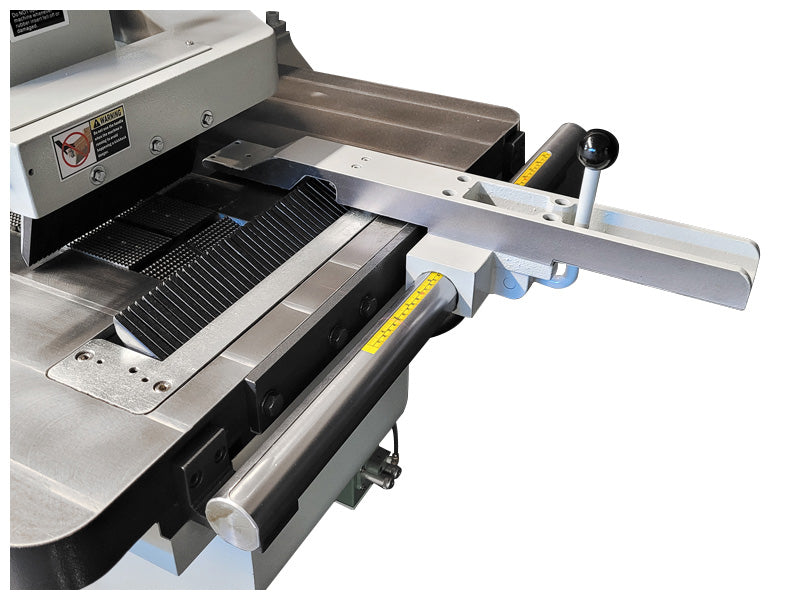

• Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.

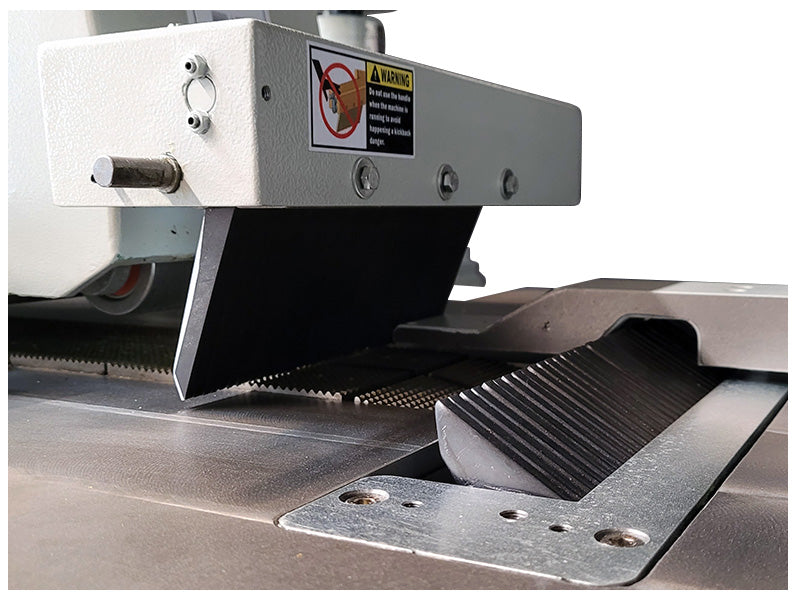

• 3 sets of anti-kickback fingers. 2 top and 1 set in the table for added operator safety.

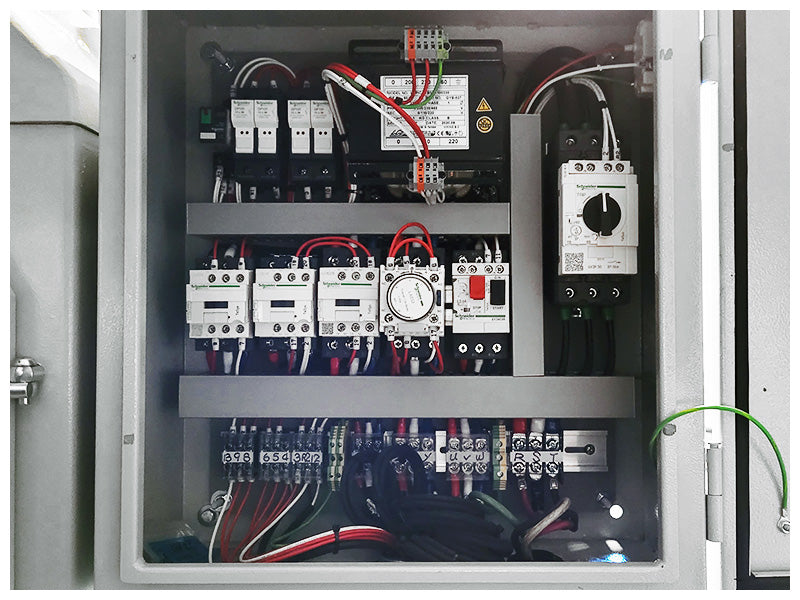

• Soft start – Star Delta starter reduces the amp draw on startup.
•Optional laser light to project the cutting line to achieve maximum material yield.
