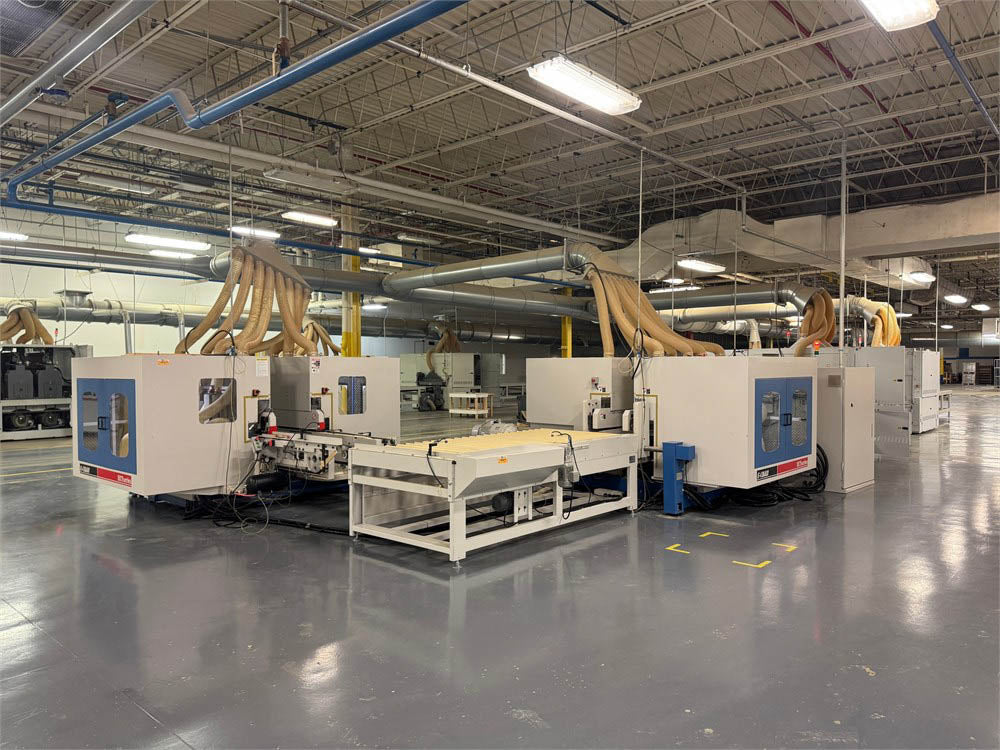

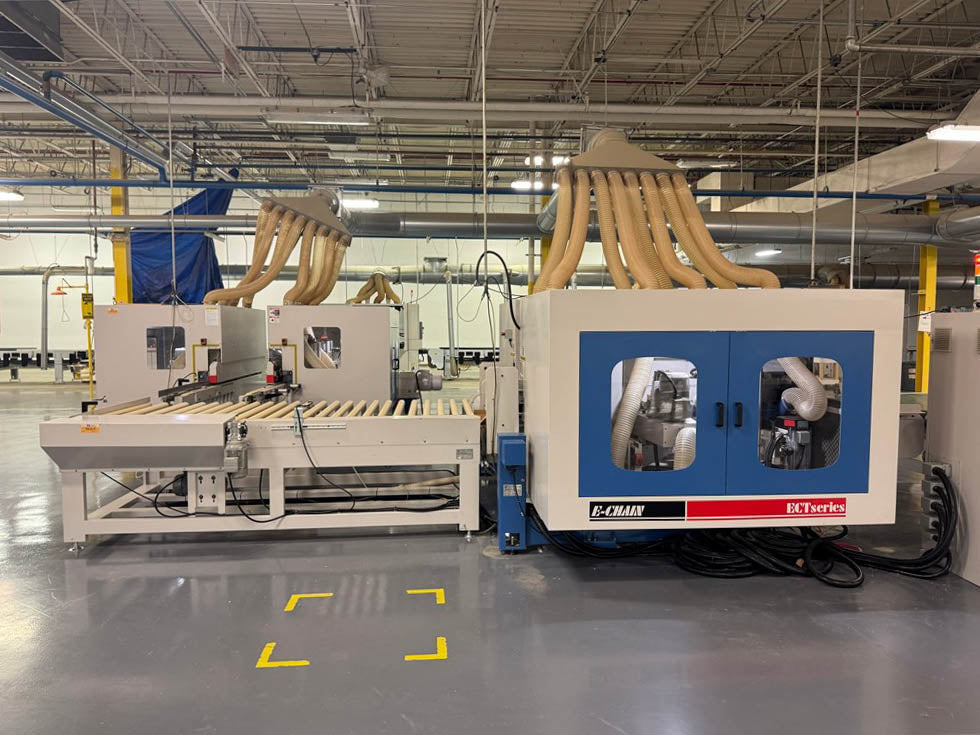

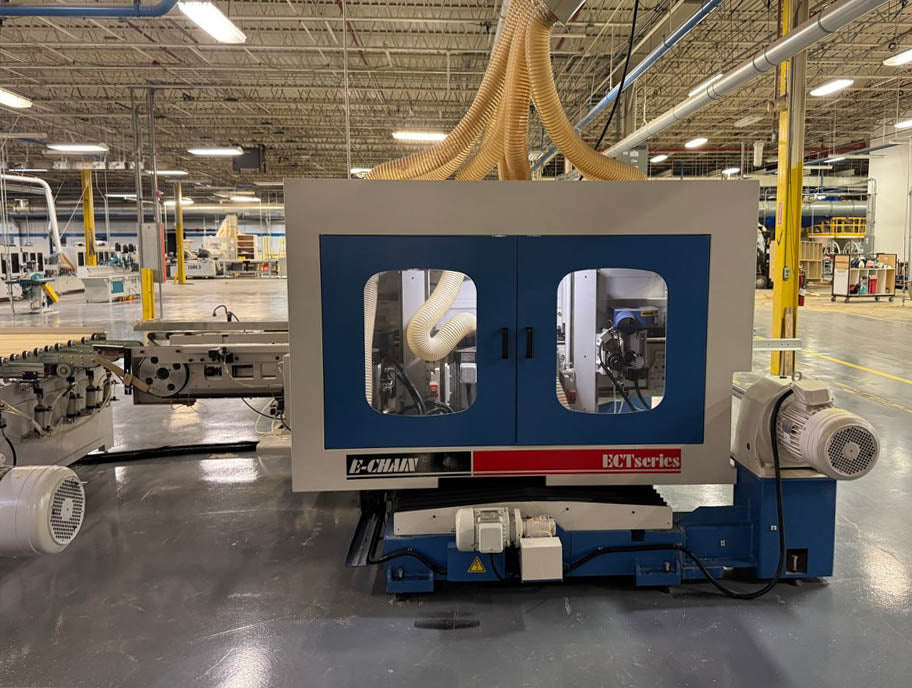

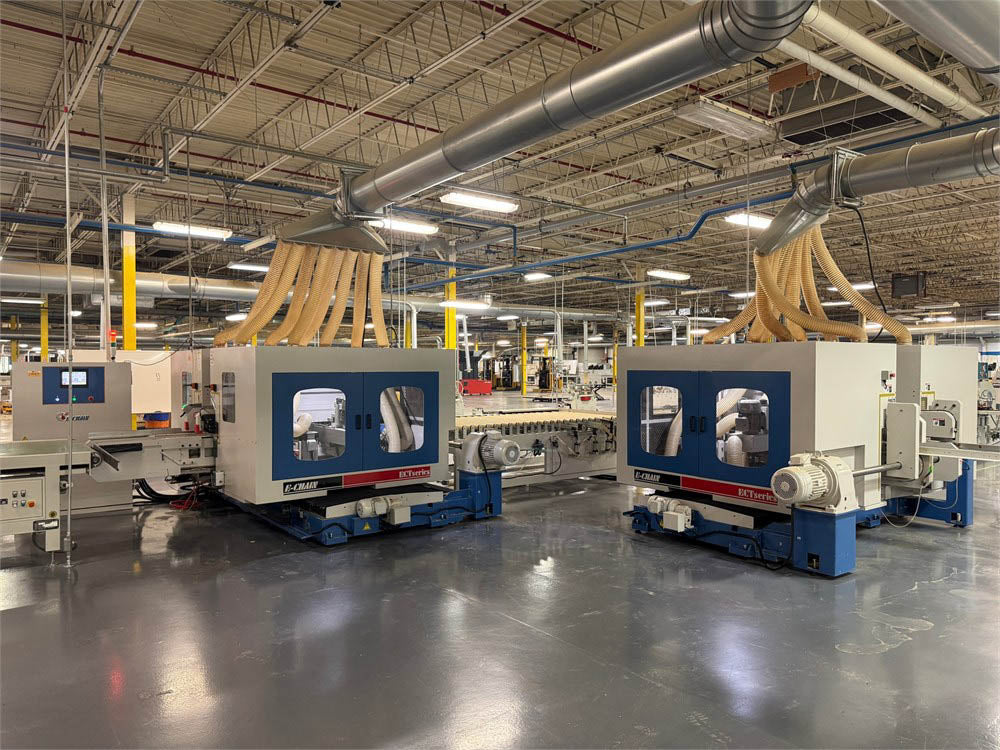

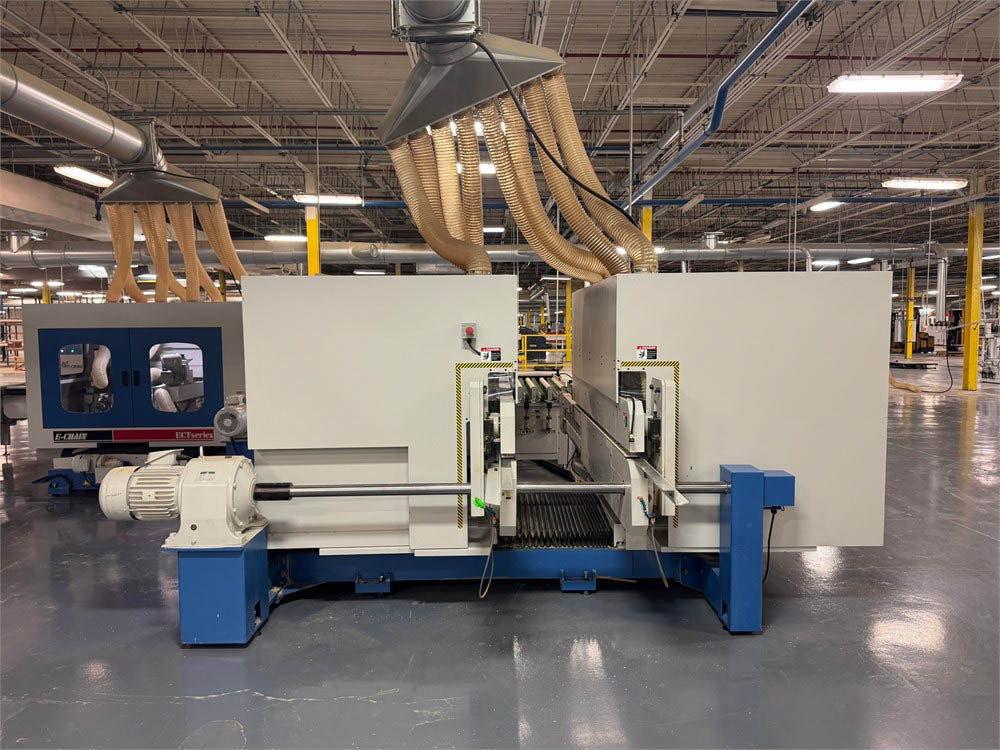

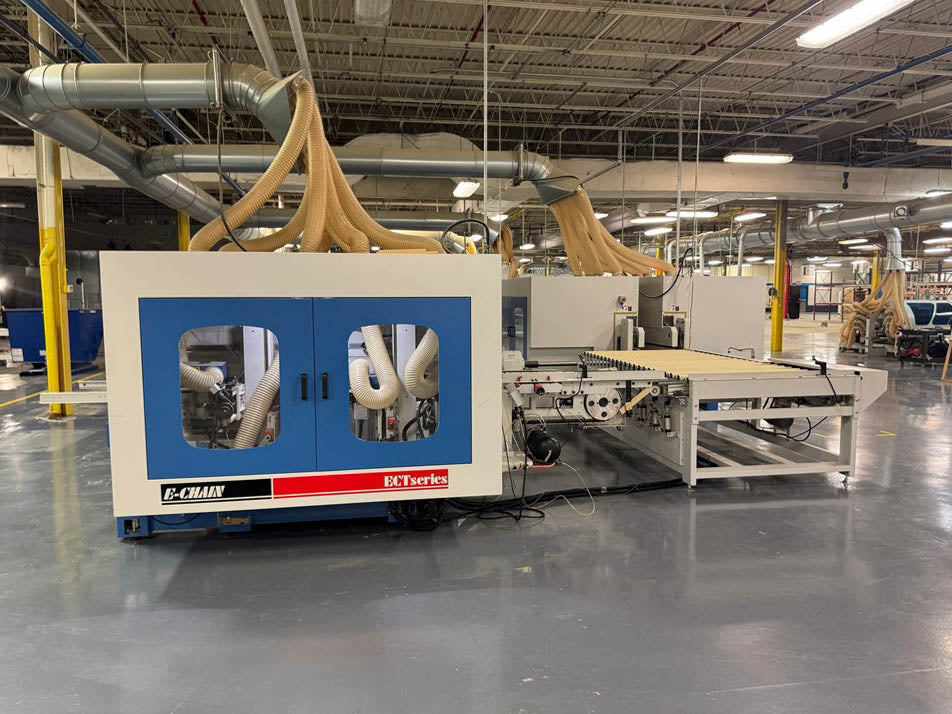

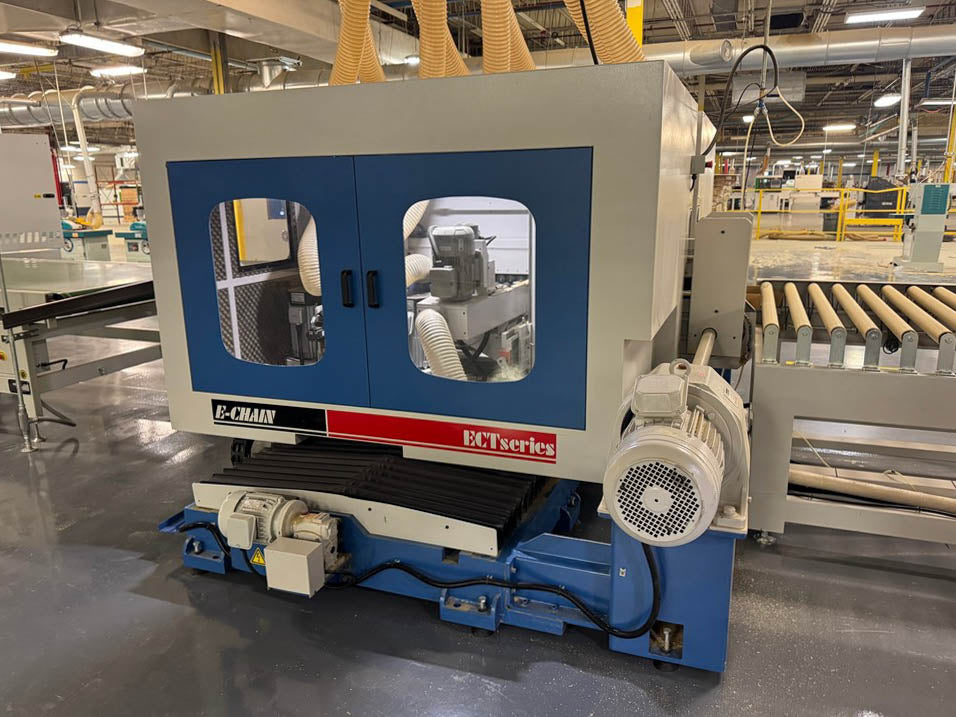

Used 2019 E-Chain ECT Series Angular Double End Tenoner Line

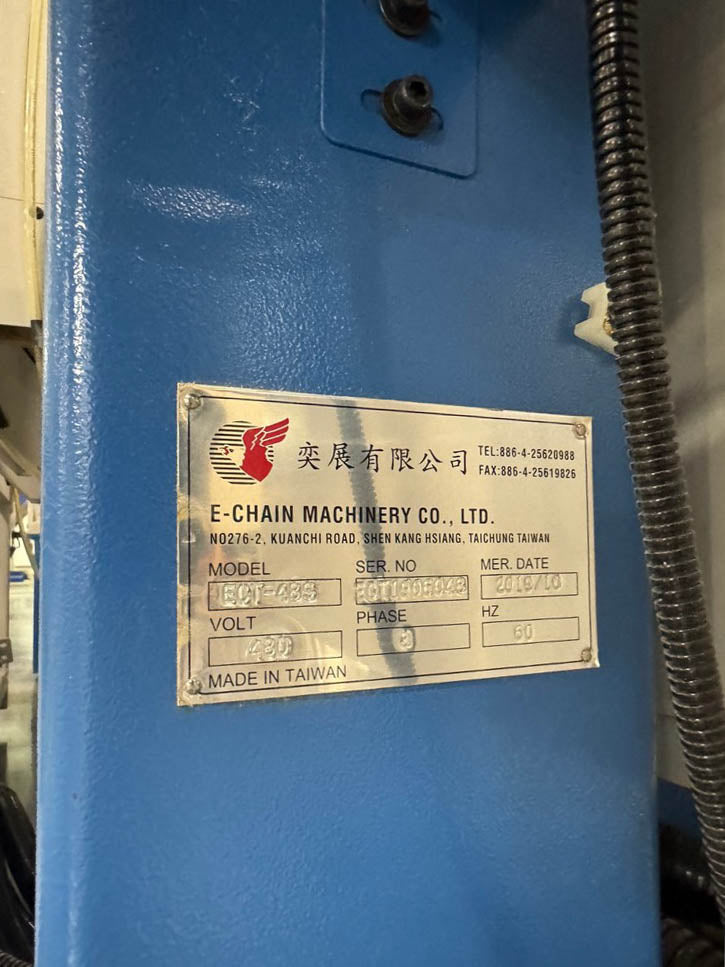

480V 3 Phase 60hz 65amp

Model: ECT-48S Longitudinal Processing

Working width range: 250-1300mm
Max. working thickness calibration: 120mm
Max. workpiece thickness for sanding: 40mm

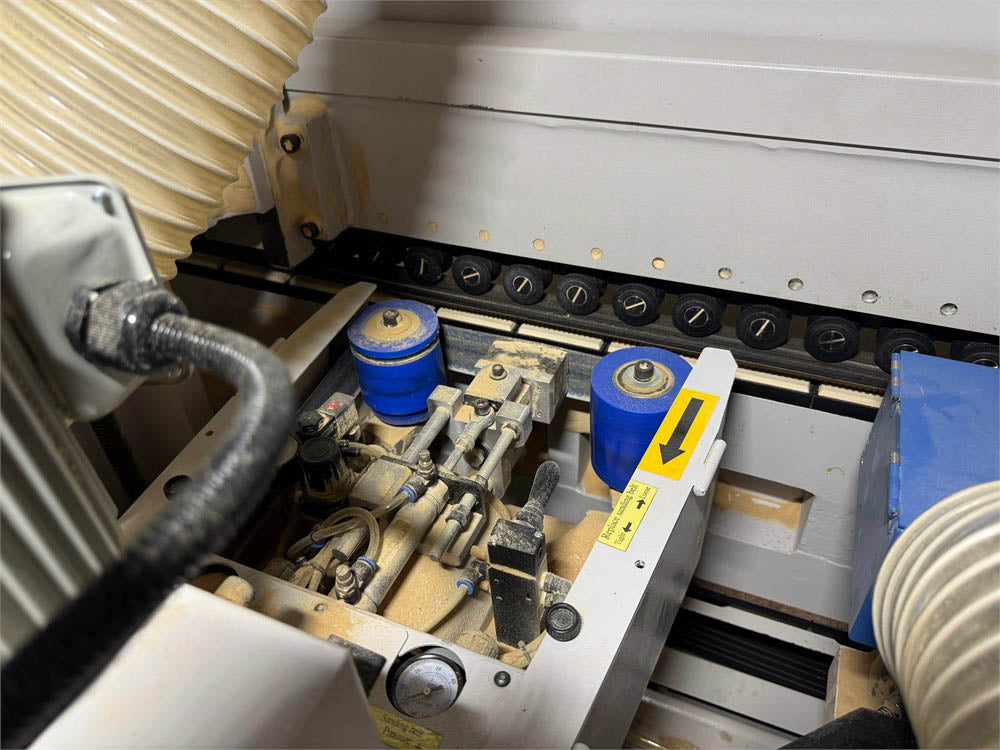

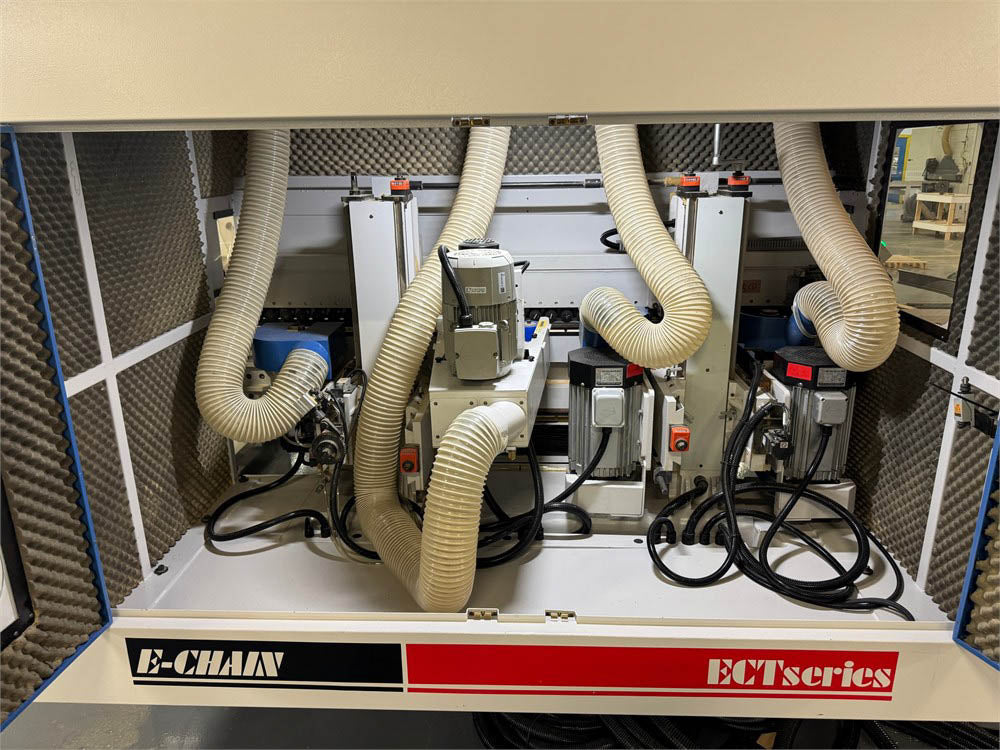

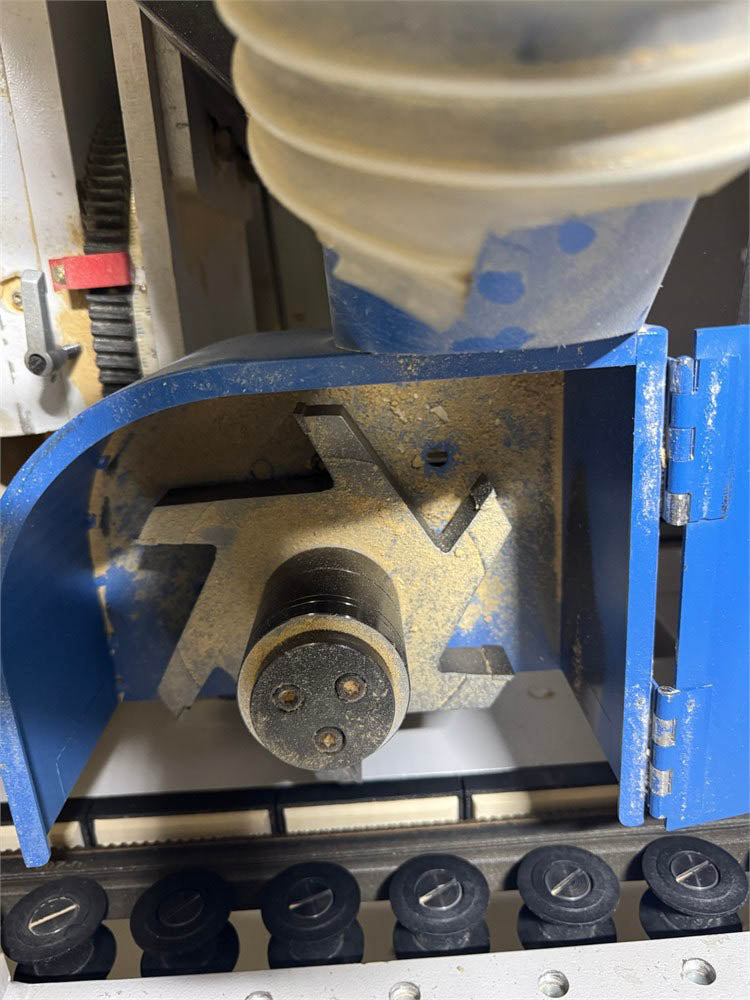

1st Moulding unit

• 7. 5hp x 2pcs at 8000rpm (cutter) ø 130 - 180mm;
•  (spindle) ø 40mm, length 90mm; with jumping function;
• not tiltable

2nd Moulding unit :

• 10hp x 2pcs at 8000rpm (cutter) ø 180 - 210mm;
• (spindle) ø 40mm, length 90mm;
•  tiltable to ±90º


Belt sanding system:

• 3hp x 2 units at 0 - 1800rpm (Standard-type) (variable via inverter);
•  oscillating motor 0.25hp x 2 units;
• sanding belt width 60mm;
• sanding belt length 2040mm;
• tiltable to +30˚, -20˚


Spindle sanding system:

• 3hp x 2 units at 0 - 1500rpm
  (variable via inverter);
•  (aggregate) ø 180 - 210mm;
  (spindle) ø 25.4mm, length 90mm; with jumping fuction;
• tiltable to ±90º
• equipped with auto-compensation function tracking lineal footage,
• fixed compensation at 0.08mm


Feed motor: 5hp at 6-25m/min

Width Adjustment motor : 1hp

Total Hp: 53.5 hp

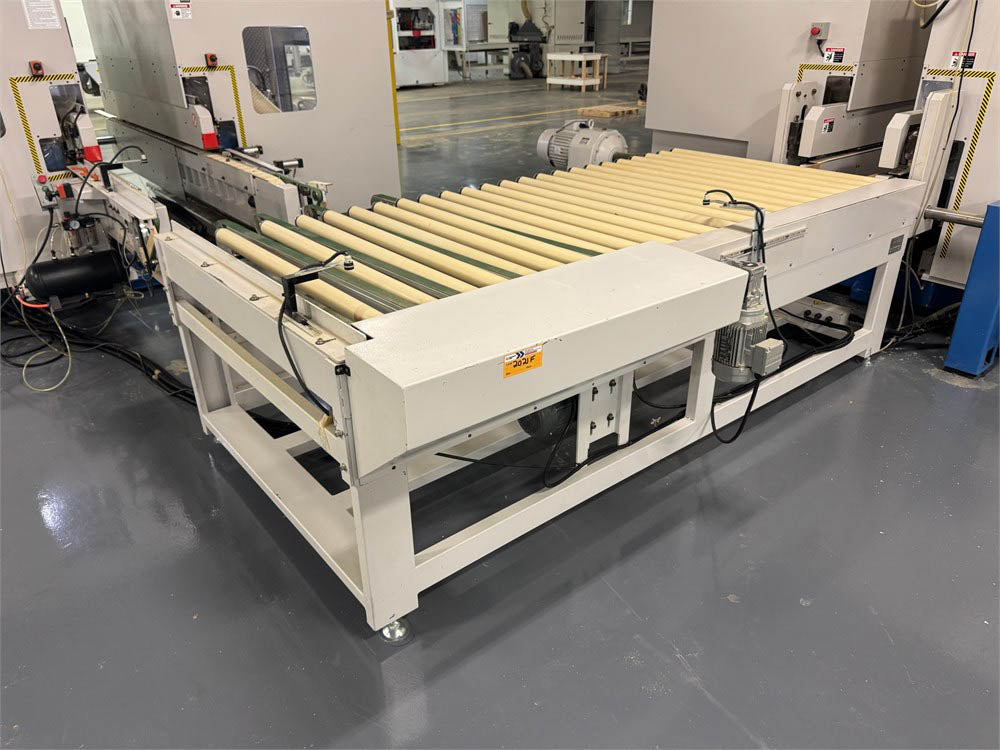

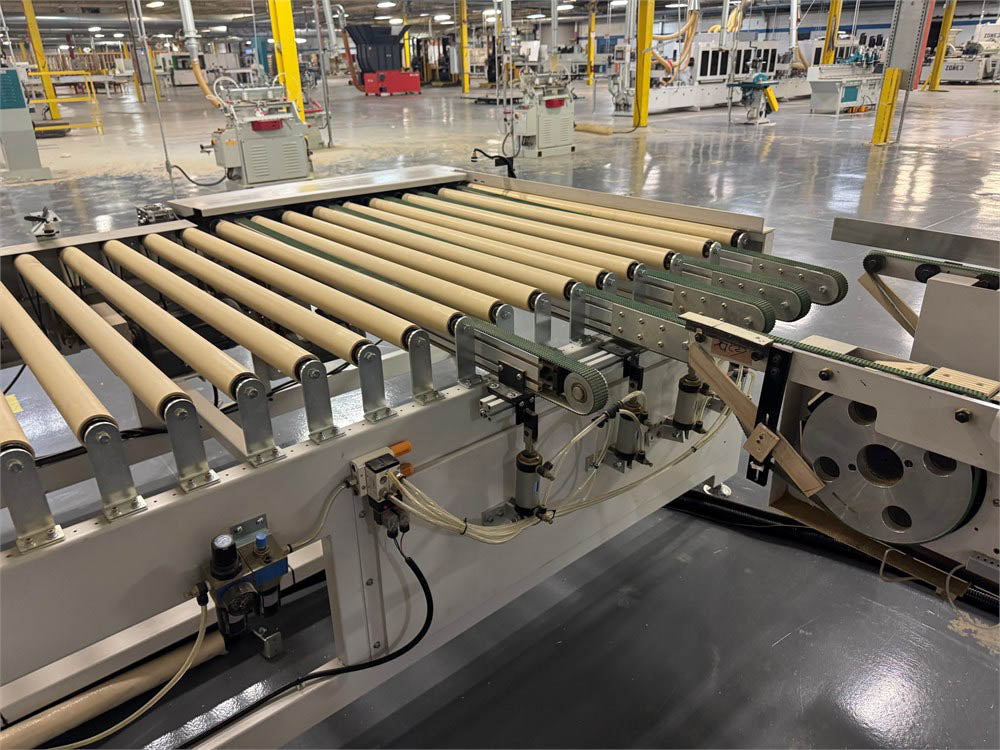

Cross Transfer Conveyor (3 Stage)
Model: ECT-3L
* Working Range: Length 420~ 2000mm , Width 420~650mm
* Conveyor motor：1HP x 2PCS
* Cross belt motor：1HP x 1PC

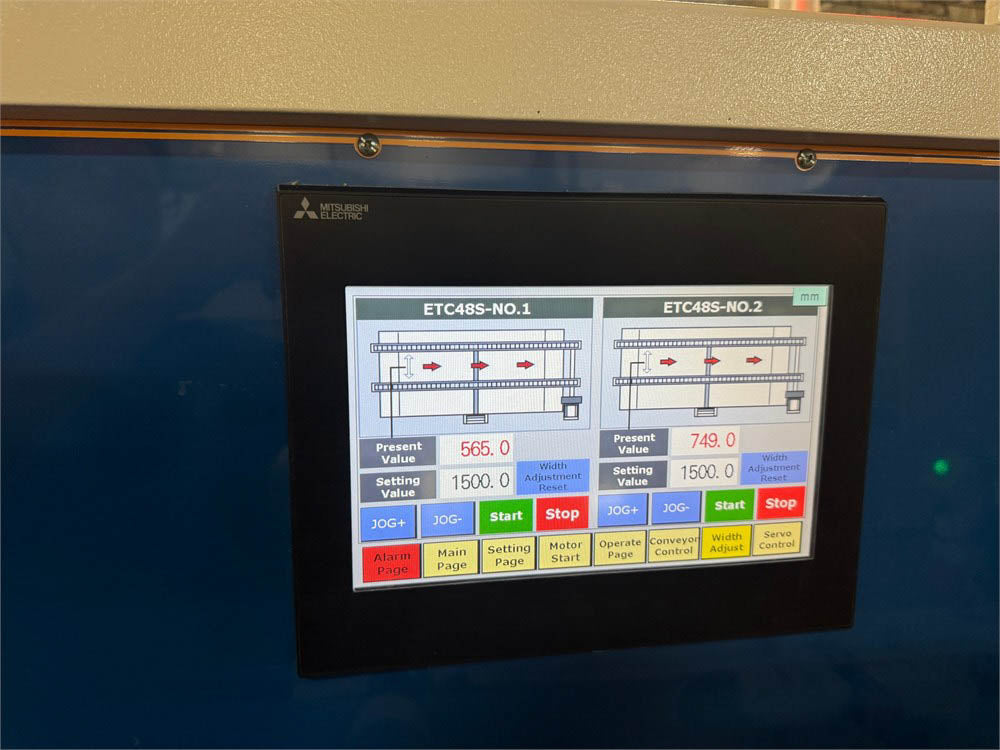

Model: ECT-68S (Transverse processing)
Working Width Range: 420-2000mm
Max. working thickness calibration: 120mm
Max. workpiece thickness for sanding: 40mm


1st Moulding unit :

• 7. 5hp x 2pcs at 8000rpm (cutter) ø 130 - 180mm;
• (spindle) ø 40mm, length 90mm;with jumping function;
• not tiltable


2nd Moulding unit :

• 10hp x 2pcs at 8000rpm (cutter) ø 180 - 210mm;
• (spindle) ø 40mm, length 90mm;
• tiltable to ±90º

Belt sanding system:

• 3hp x 2 units at 0 - 1800rpm
• (Standard-type) (variable via inverter);
•  oscillating motor 0.25hp x 2 units;
• sanding belt width 60mm;
• sanding belt length 2040mm;
• tiltable to +30˚, -20˚


Spindle sanding system:

• 3hp x 2 units at 0 - 1500rpm
  (variable via inverter);
• (aggregate) ø 180 - 210mm;
• (spindle) ø 25.4mm, length 90mm; with jumping fuction;
• tiltable to ±90º
• equipped with auto-compensation function tracking lineal footage,
• fixed compensation at 0.08mm


Feed motor: 5hp at 6-25m/min

Width Adjustment motor : 1hp
Total Hp: 53.5 hp
