ETP-EXPRESS 50
Regular price
$607.75
Unit price
/
Unavailable

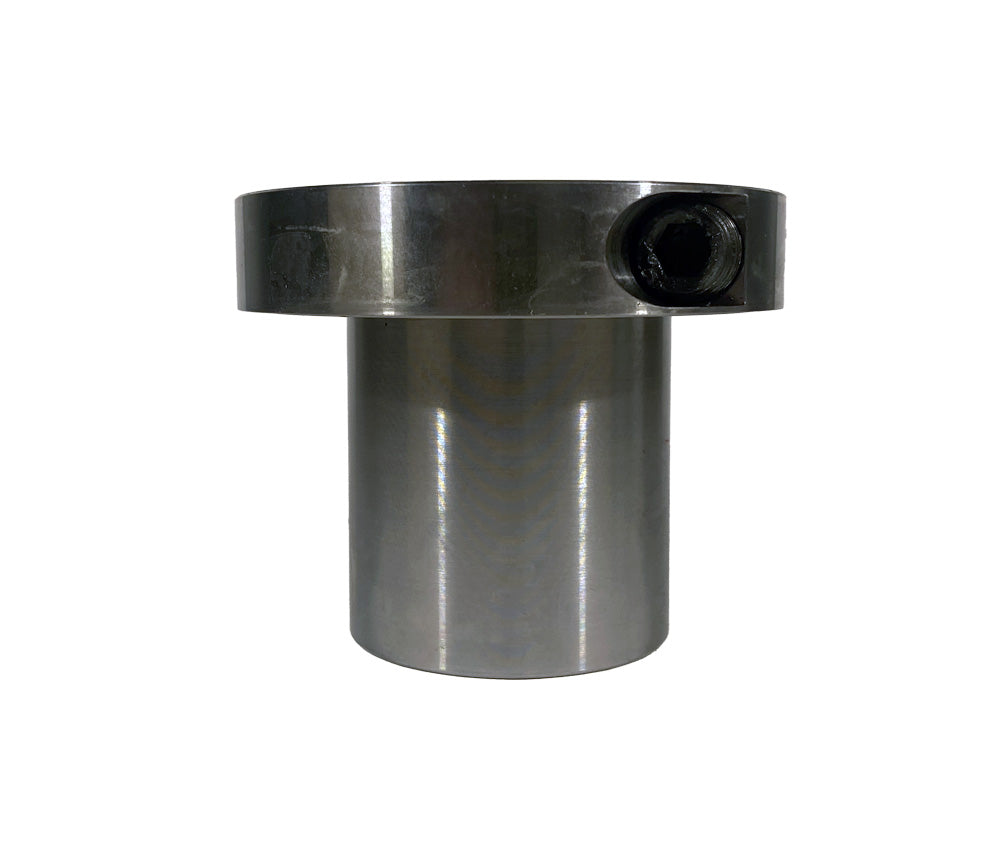

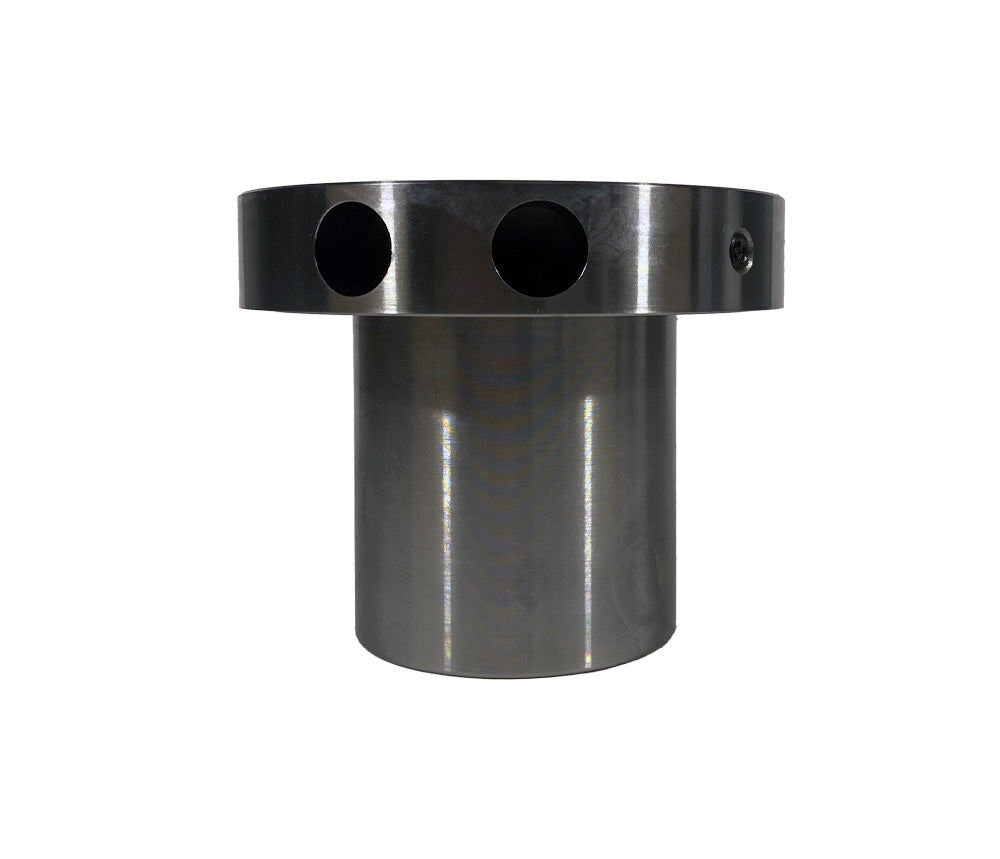

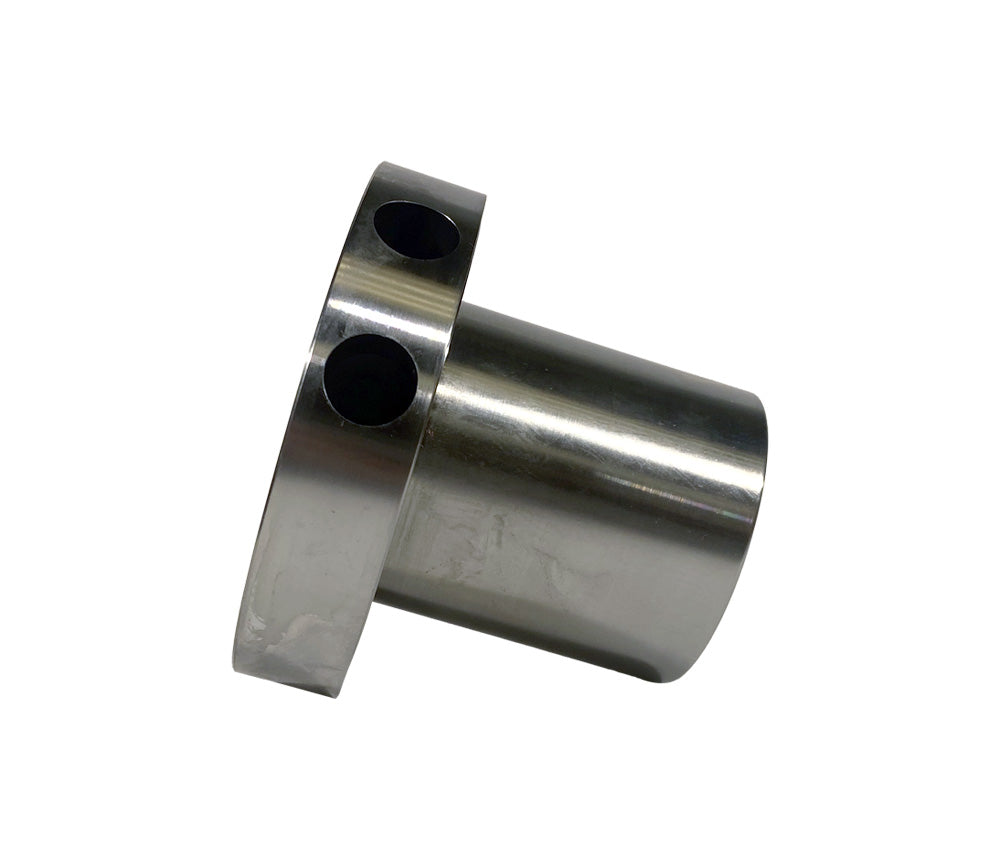

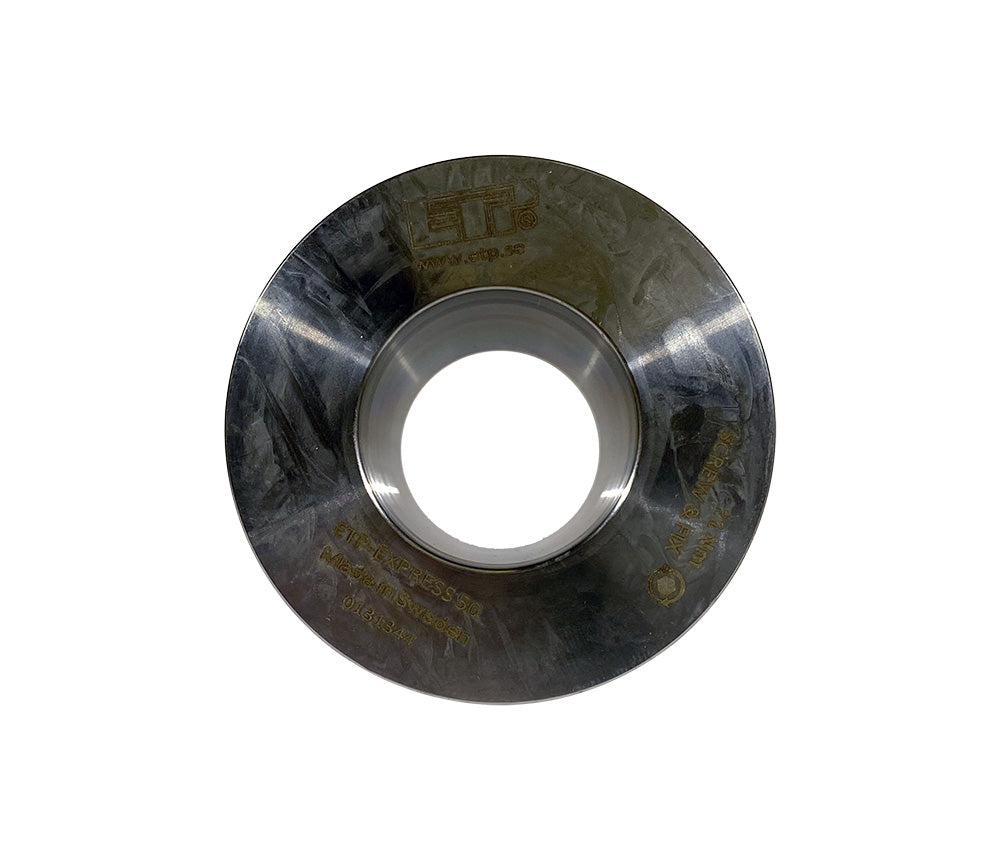

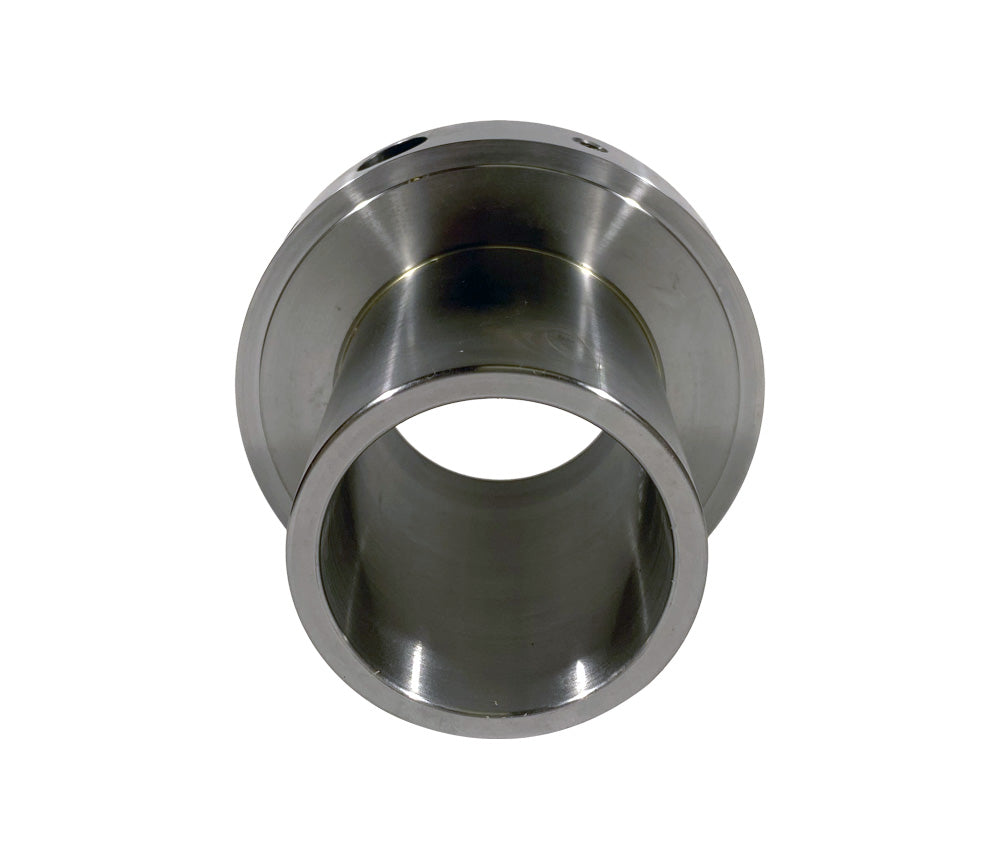

ETP-Express 50
Construction
ETP-EXPRESS is a hydraulic connection which consists of a double-walled hardened steel sleeve filled with a pressure medium and a flange. The flange part contains screw and piston with seals to maintain pressure.
Operation
When the pressure screw is tightened, the double-walled sleeve expands uniformly against shaft and hub and creates a rigid joint.
Dismantling is done by loosening the screw. ETP-EXPRESS returns to its original dimensions and can easily be dismantled.

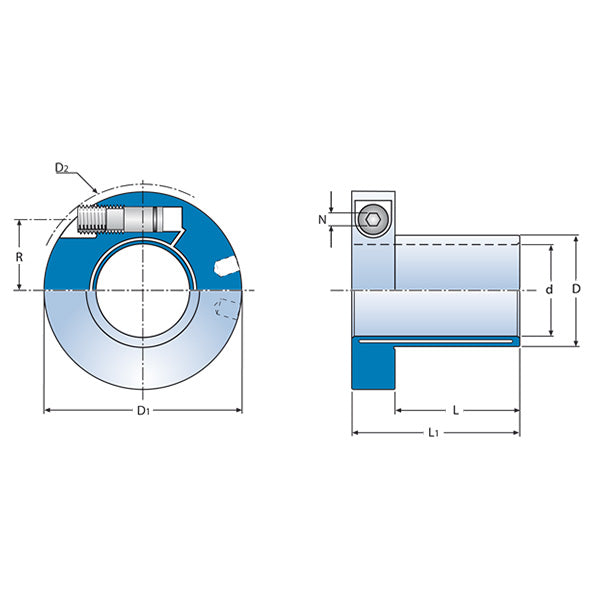

Dimensions
| Shaft outer diameter d mm | 50 mm |
|---|---|
| Hub inner diameter D mm | 60 mm |
| Flange outer diameter D1 mm | 98.5 mm |
| Dimension D2 (valid before mounting) mm | 105.1 mm |
| Hub contact length L mm | 60 mm |
| Shaft contact length L1 mm | 80 mm |
| Dimension R mm | 37.5 mm |
| Dimension N mm | 8 mm |
Technical Specifications
| Weight | 1.2 kg |
|---|---|
| Recommended Shaft tolerance | h8 |
| Recommended Hub tolerance | H7 |
| Transmittable torque T Nm | 1900 Nm |
| Transmittable axial force FA kN | 63 kN |
| Transmittable radial force FR kN | 4.5 kN |
| Pressure screw - Number of screws | 1 pcs. |
| Pressure screw - Dimension | M16 |
| Pressure screw - Tigthening torque Tt Nm | 21 Nm |
| Pressure screw - quality standard | DIN 915, 12.9 |
| Polar moment of inertia J | 1.52 kgm2 10-3 |
