ETP Hydro-Grip Slender-1/2" HSK63F
by ETP
Original price
$450.00
-
Original price
$450.00
Original price
$450.00
$450.00
-
$450.00
Current price
$450.00
ETP Hydro-Grip Slender-1/2" HSK63F
HYDRO-GRIP SLENDER is extremely user friendly which means quick and easy tool changes. It has a tough and slender design for improved reach and accessibility!

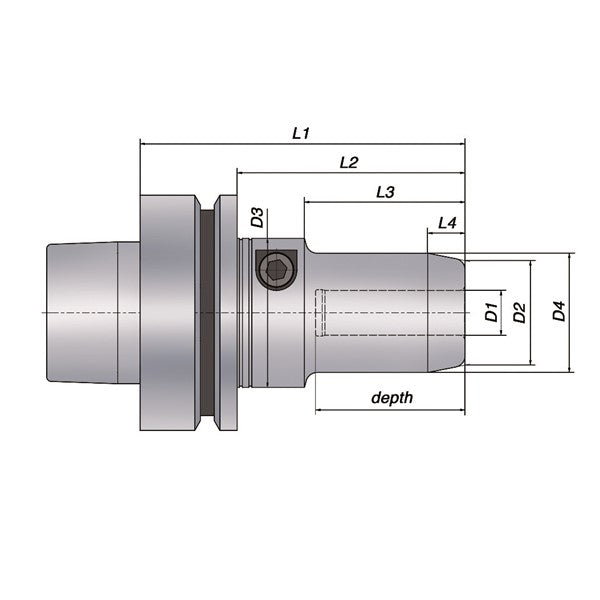

Dimensions
| Tool diameter D1 mm | 12.7 mm |
| Dimension D2 mm | 28 mm |
| Dimension D3 mm | 40 mm |
| Dimension D4 mm | 32 mm |
| Gauge length L1 mm | 87 mm |
| Dimension L2 mm | 61 mm |
| Dimension L3 mm | 43 mm |
| Dimension L4 mm | 10 mm |
| Tool insert depth | 40 mm |
Technical Specifications
| Machine interface | HSK |
| HSK size | 63F |
| Transmittable torque (T) Nm | 60-125 Nm |
| Tool shank tolerance | h6 or h7 |
| Runout accuracy | ≤ 0.004 mm at 2.5 x D1 (max. 50 mm). |
| Balance degree | G 2.5 at 25 000 rpm |
| Weight | 1 kg |
