ETP Hydro-Grip Slender-1" HSK63F
Regular price
$450.00
Unit price
/
Unavailable

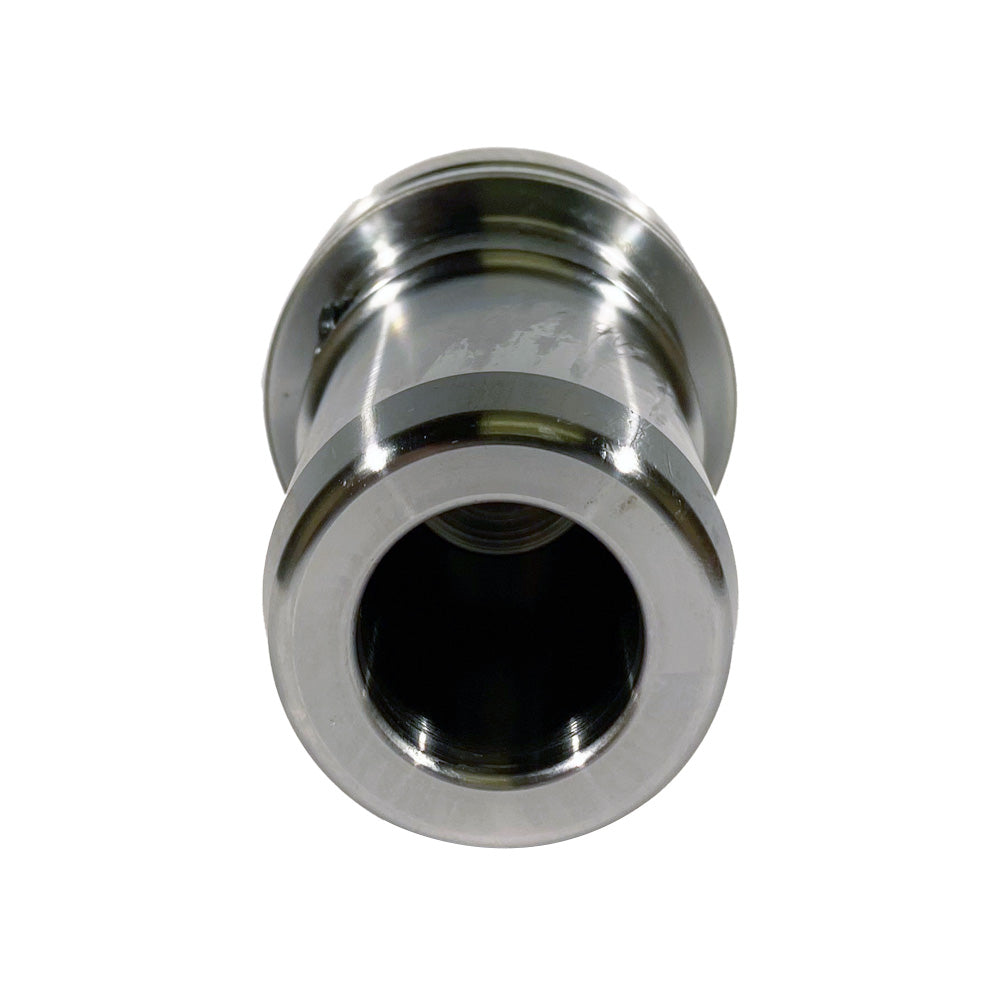

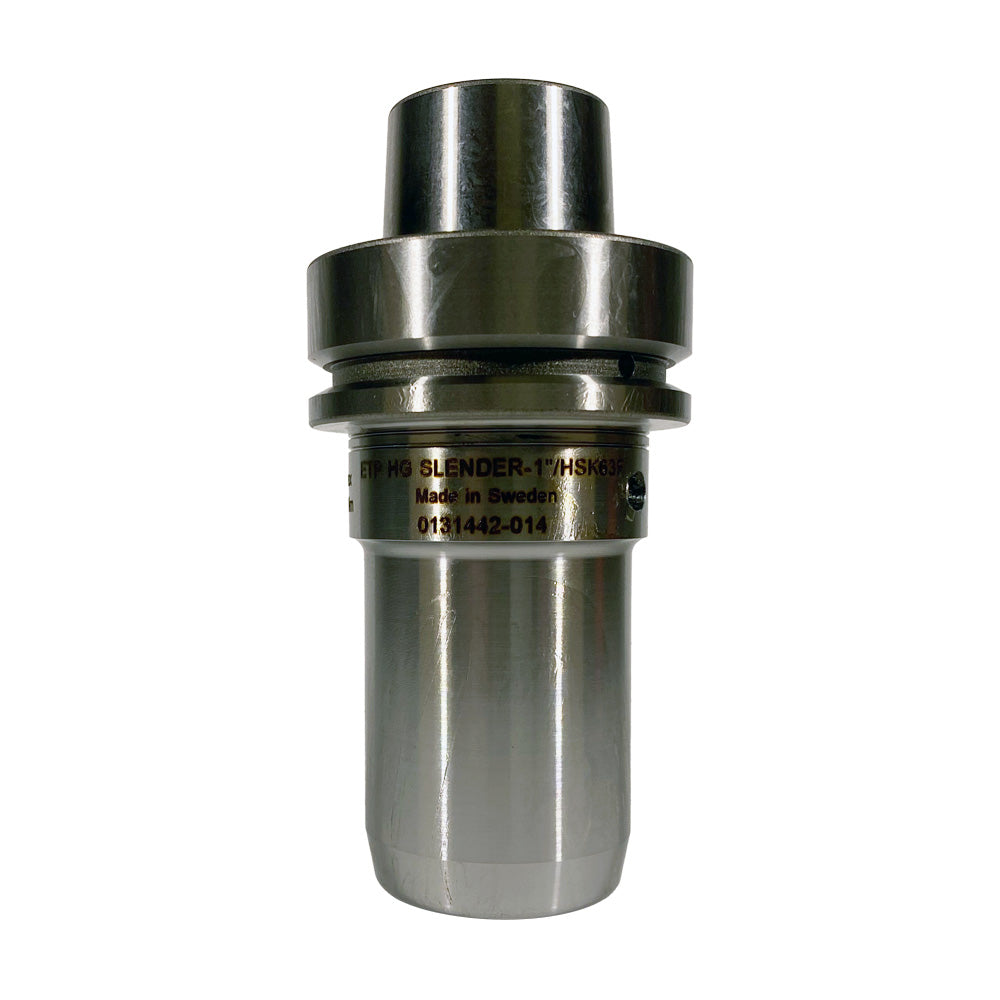

ETP Hydro-Grip Slender-1" HSK63F
HYDRO-GRIP SLENDER is extremely user friendly which means quick and easy tool changes. It has a tough and slender design for improved reach and accessibility!

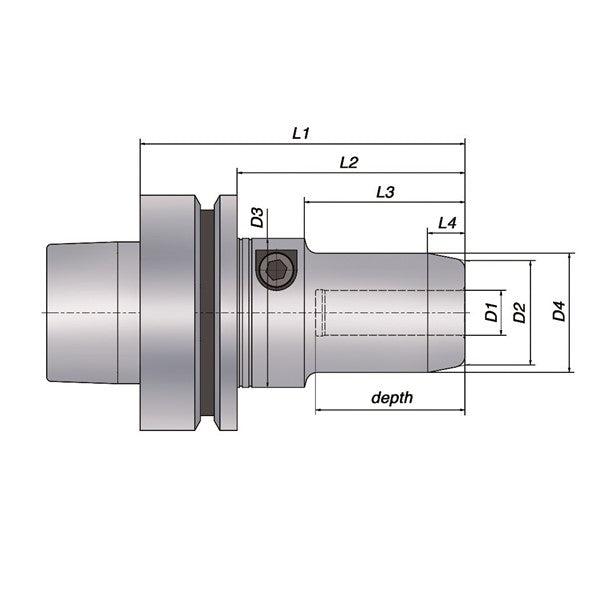

Dimensions
| Tool diameter D1 mm | 25.4 mm |
| Dimension D2 mm | 41 mm |
| Dimension D3 mm | 50 mm |
| Dimension D4 mm | 45 mm |
| Gauge length L1 mm | 103 mm |
| Dimension L2 mm | 77 mm |
| Dimension L3 mm | 59 mm |
| Dimension L4 mm | 10 mm |
| Tool insert depth | 56 mm |
Technical Specifications
| Machine interface | HSK |
| HSK size | 63F |
| Transmittable torque (T) Nm | 480-710 Nm |
| Tool shank tolerance | h6 or h7 |
| Runout accuracy | ≤ 0.004 mm at 2.5 x D1 (max. 50 mm). |
| Balance degree | G 2.5 at 25 000 rpm |
| Weight | 1.4 kg |
Highland Article #: 639140
