ETP | SKU:
ETP Hydro-Grip Slender-3/4" HSK63F
Regular price
$450.00
Unit price
/
Unavailable
ETP Hydro-Grip Slender-3/4" HSK63F
HYDRO-GRIP SLENDER is extremely user friendly which means quick and easy tool changes. It has a tough and slender design for improved reach and accessibility!

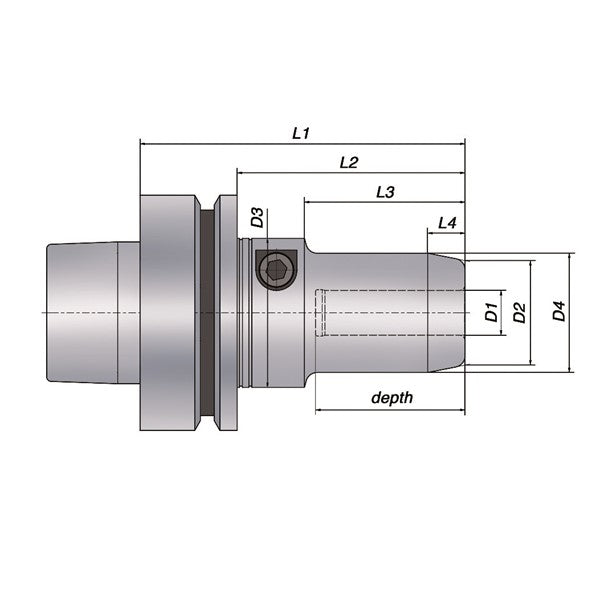

Dimensions
| Tool diameter D1 mm | 19.05 mm |
| Dimension D2 mm | 36 mm |
| Dimension D3 mm | 50 mm |
| Dimension D4 mm | 40 mm |
| Gauge length L1 mm | 99 mm |
| Dimension L2 mm | 73 mm |
| Dimension L3 mm | 55 mm |
| Dimension L4 mm | 10 mm |
| Tool insert depth | 52 mm |
Technical Specifications
| Machine interface | HSK |
| HSK size | 63F |
| Transmittable torque (T) Nm | 260-425 Nm |
| Tool shank tolerance | h6 or h7 |
| Runout accuracy | ≤ 0.004 mm at 2.5 x D1 (max. 50 mm). |
| Balance degree | G 2.5 at 25 000 rpm |
| Weight | 1.3 kg |
Highland Article #: 642730
ETP Hydro-Grip Slender-3/4" HSK63F
Regular price
$450.00
Unit price
/
Unavailable
