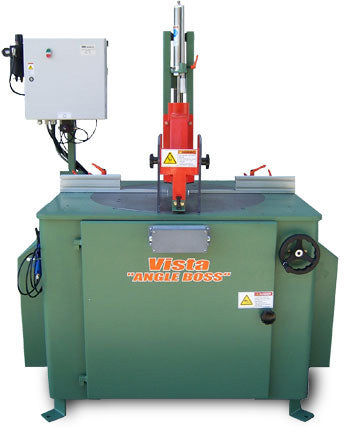

Vista Model M-24 "ANGLE BOSS" Cut-Off Saw

Quick and easy set-up.

Table is easily adjusted via handwheel conveniently located at front of machine.
Any miter angle can be set-up within 10 seconds!

M-24 machines miter cut up to 75 degrees from 0 (90 degree cut).

Cut length on 2 x material with fence at standard position (single point of cut) - 12 inches.
Typical cuts are: 90 deg.on 2x12s - 30 deg. on 2x10s - 45 deg. on 2x8s - 60 deg. on 2x6s - 70 deg. on 2x4s.

M-24 machines are capable of cutting 2x8s on edge for bevel cuts. 8x8s cut with ease.
Other models available include M-20 (20" Blade) & MB-18 (18" Blade for compound angle cutting)

Standard Equipment:
• 24" Carbide Tipped Saw Blade
• 10 HP, tefc, 3 phase arbor drive motor
• 2 Hand cycle control
• PLC machine control
• Magnetic starter in dust proof enclosure
• Saw access door safety switch
• "Quick Adjust Rod" for proper clamp/guard height
• Large easy to read scales 0-75 or 90-15 degree
• Air filter/regulator/lubricator
• Air supply shut off valve
• OSHA safety blow gun

Optional Equipment:
Digital Display (displays to 1/10th degree)
Accu-Lube system for cutting aluminum
Hydro-pneumatic saw cut control
Laser light (shows blade position on top surface of workpiece with clamp/guard raised)
Solid or roller infeed & outfeed tables.
Manual & Air operated 6" high x 9" long swing up material stops.
Full CNC automatic cut off stop/feed systems.
Only quality components which are readily available from Vista Machines or any number of supply houses across the country are used in the manufacture of “ANGLE BOSS” cut off saws.

Made with pride in the U.S.A.
