Doucet RDM Rotary Cope and Stick Door Clamp

by Doucet

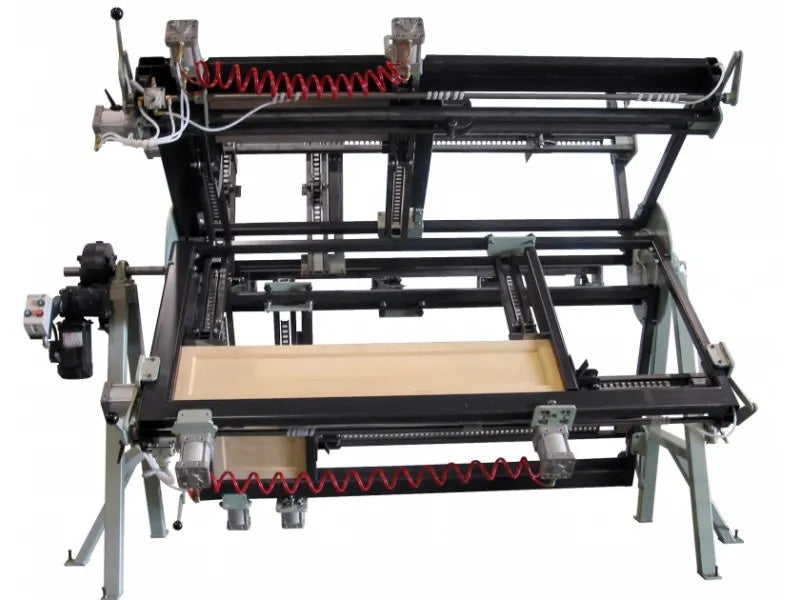

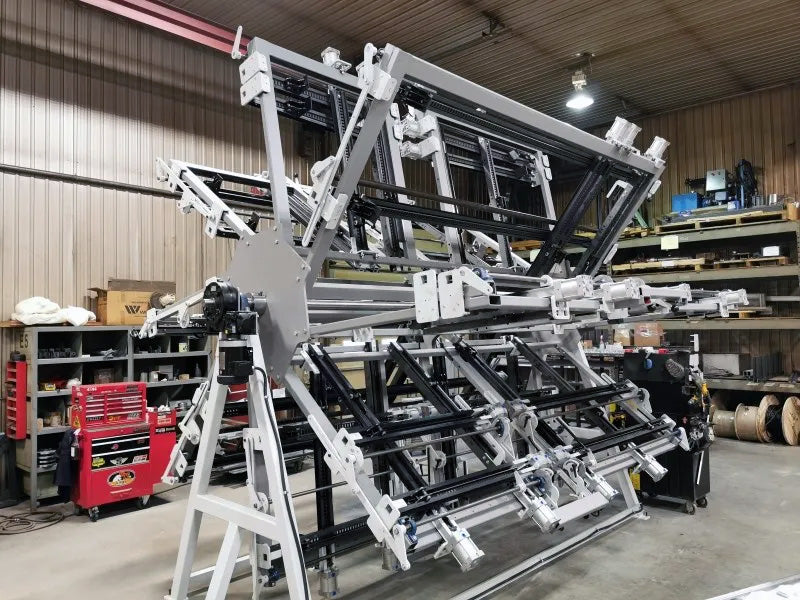

The Doucet Door Master Model RDM is a five section Rotary Door Clamp for Cope and Stick Doors (90°). The RDM is designed for quick and accurate assembly, clamping and squaring of your cabinet doors.

The five section Door Master for Cope and Stick Doors (90°) is available in two models:

RDM - suitable for assembly of large pantry doors up to 30" x 72" down to drawer fronts of 5 ½" x 12 ½". Standard model has three clamps per section.

RDM2 - suitable for double door assembly up to 30" x 48" down to drawer fronts of 5 ½" x 12 ½". Standard model has five clamps per section.

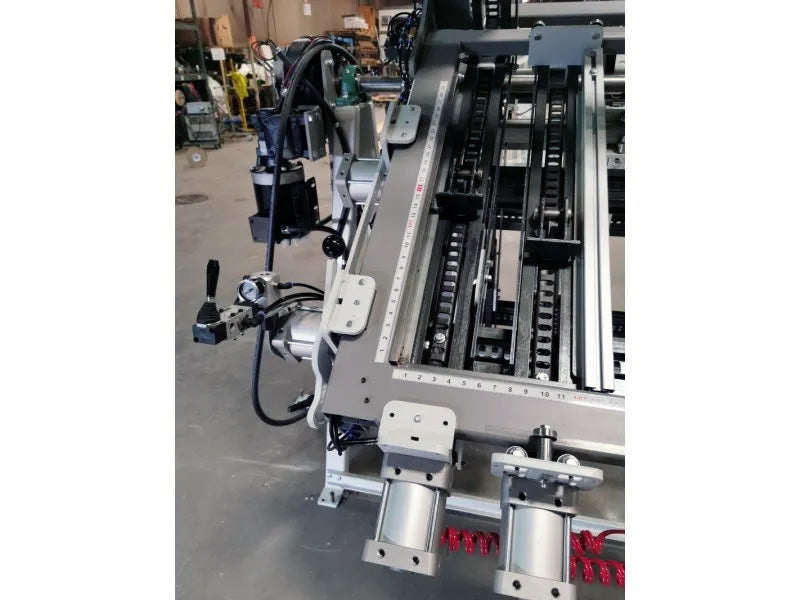

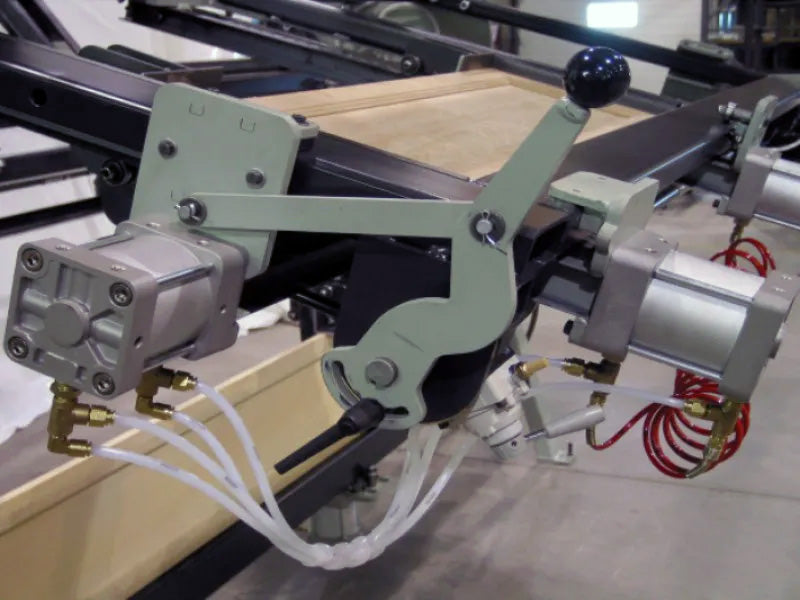

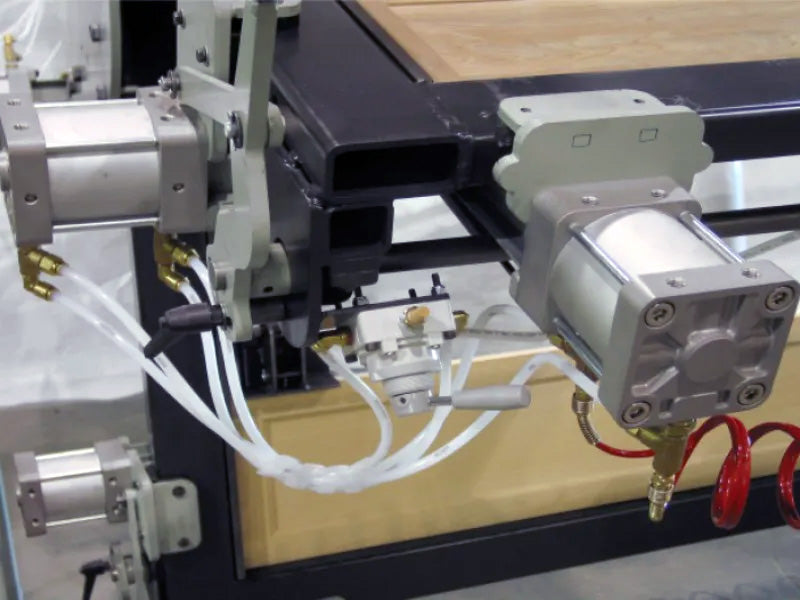

Built on an Industrial strength welded tubular frame, the Door Master RDM and RDM2 feature "no compromise" pneumatics - brand name air valves and real double action air cylinders, and a gear motor for counterclockwise rotation of its sections.

• Effortless Setups
• Automatic Sections Indexing

The RDM is also available
• With a capacity of 48" x 96" or 30" x 96"
• In eight sections
• In combined sections

Available Options
• Small part insert for minimum door size 5 ½" x 5 ½"
• Additional vertical clamp
• Modified pneumatic system to allow 2 preset levels of clamping pressure for different materials
