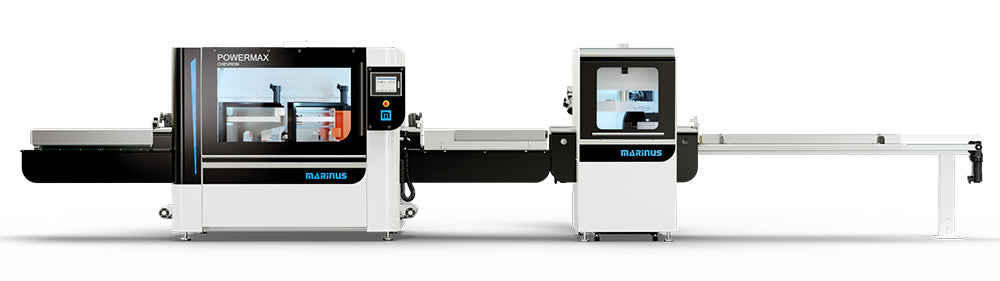

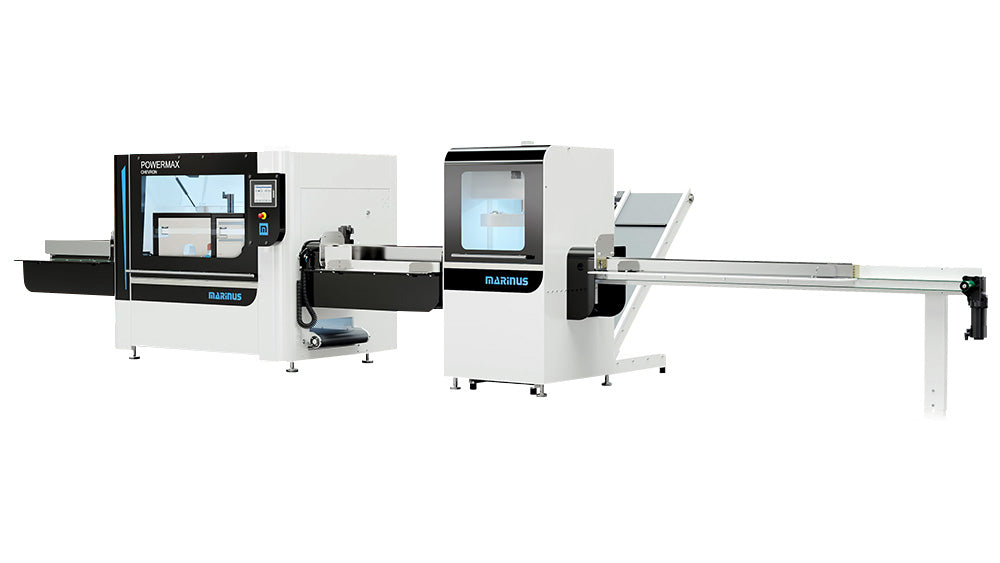

Marinus Powermax Chevron End Matcher
The Powermax Chevron end matcher by Marinus is an advanced machine line to produce Hungarian-point (Chevron) floor sections. The Powermax Chevron end matcher features unique high-tech in and outfeed combination of feed belts with open and closing slides to ensure optimal product supply. The automated crosscut saw provides a constant supply of cut-to-size boards. Boards are fixed sideways and clamped upwards against the accurate fixed ruler, allowing for high profile and angle accuracies. This is the most suitable methos for producing Hungarian-point (Chevron) floor sections.
Features:
High capacity up to 10 boards per minute
Absolute angle accuracy
High profile accuracy
Unique production method
Integrated automatic cross cut saw
No blow-outs or splintering
CNC controlled positioning clapms
Driven belt conveyor for waste
CE Safety and Electrical Standards - UL/CSA Standards
User-Friendly control panel
Online remote support management
Advanced Servo Drive & Control Technology by Lenze

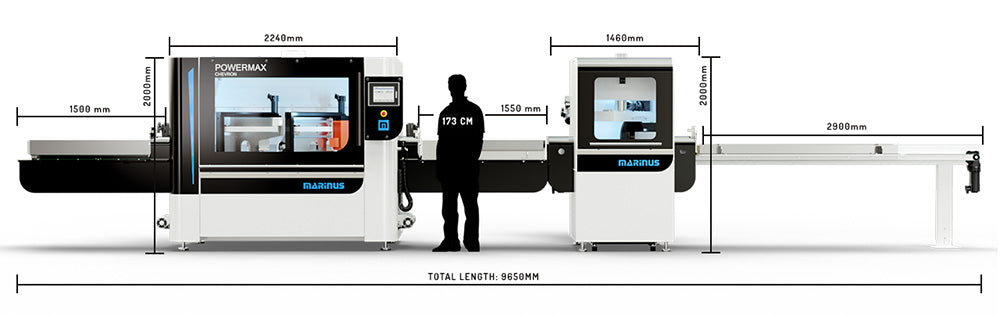

Functional Specs
| Description | Value |
| Lengths: | 350 - 1200 mm |
| Widths: | 50 - 200 mm |
| Thicknesses: | 8 - 22 mm |
| Capacity: | Up to 10 boards per minute |
| Length modes: | Fixed lengths |
