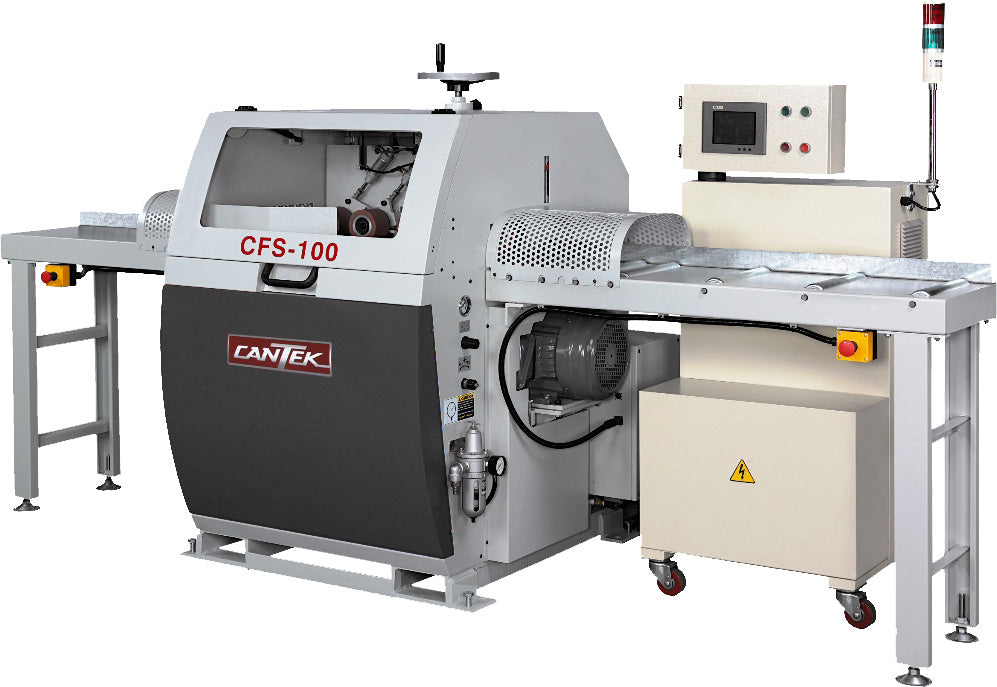

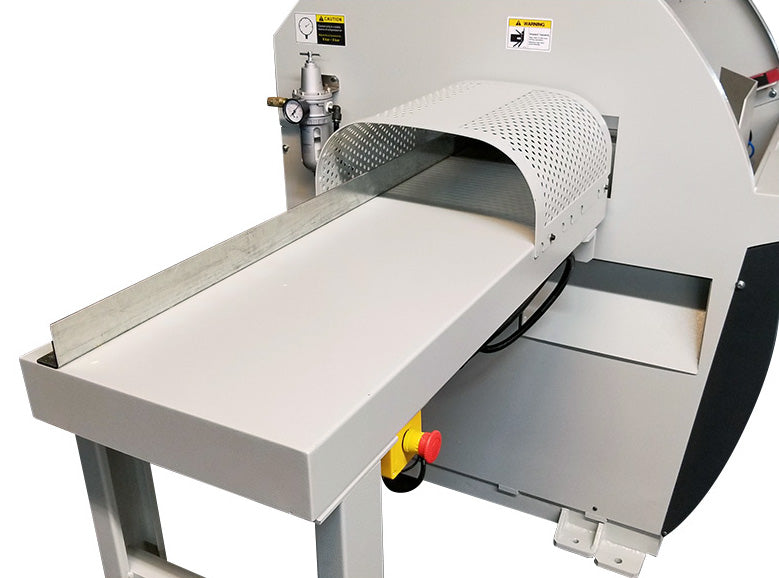

Cantek CFS100 Automatic Defect Cutoff Chop Saw

by Cantek
Original price $55,300.00 - Original price $55,300.00
Original price
$55,300.00 - $55,300.00
Current price $55,300.00

The Cantek CFS100 Automatic Defect Cutoff Chop Saw is the perfect upgrade from your manual cutoff saw with 3 to 5 times higher production output.  It is designed to scan for defects in your material which are indicated by a florescent crayon mark.  The saw will cut on the crayon mark allowing for fast defect removal. Equipped with several cutting modes like fixed, sequential, defect cutting modes the operator can select the program most suited to their needs. The powerful 10HP motor and 18” blade provide for effortless cutting from 11.8” (w) x 2.75” (t) or 5.9” (w) x 3.9” (t). An optional feature is available for cutting thin material down to 0.078” (2mm) which is ideal for lamellas for engineered flooring.

For flooring companies, the CFS100 can be combined in-line with the Cantek EM12 End Matcher for a highly efficient defecting & end matching solution.

Key Advantages

• Ideal for the defect cutting wood mouldings, wood flooring, finger joint blocks, wood paneling and more!

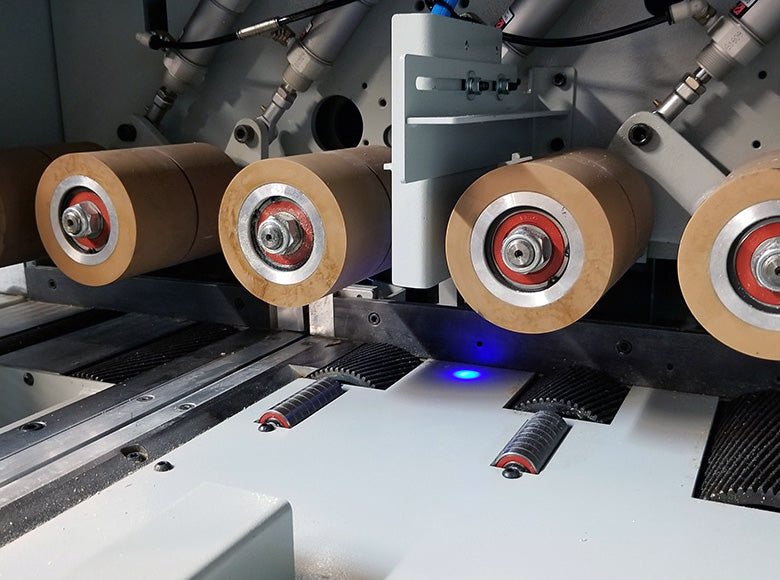

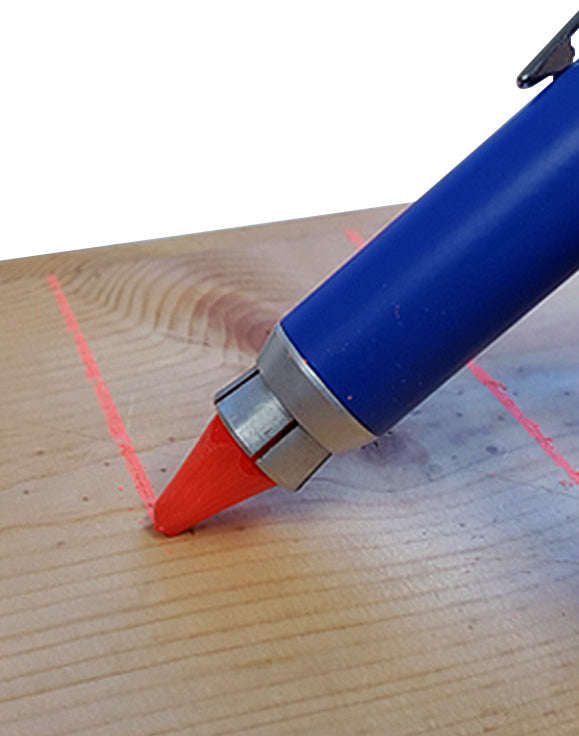

• Machine scans for defects marked with a florescent crayon allowing for high-speed defecting
• Provides 3 to 5 times higher production rate than manual cut-off saws.
• 5% increase in material yield over manual cutting operations
• +/- 1mm (0.0393”) accuracy
• Safe operation with automatic feeding and comprehensive safety guards
• Partial optimization with sequential and fixed part cutting functions or simply cut out defects

Saw Motor 10HP
Saw Spindle Speed 3200 RPM
Feed Motor (Servo motor) 2.7HP (2Kw)
Max. feed speed Variable to 262 ft/min (80 m/min)
Max. infeed weight 44 lbs (20 kgs)
Circular Saw Diameter Ø 18” (455mm)
Saw spindle diameter 30mm
Minimum distance between marks 0.787” (20mm)
Cutting Size – maximum See the diagram of cutting range
Air pressure: for machine 72~85 PSI (5~6 kg/cm2)

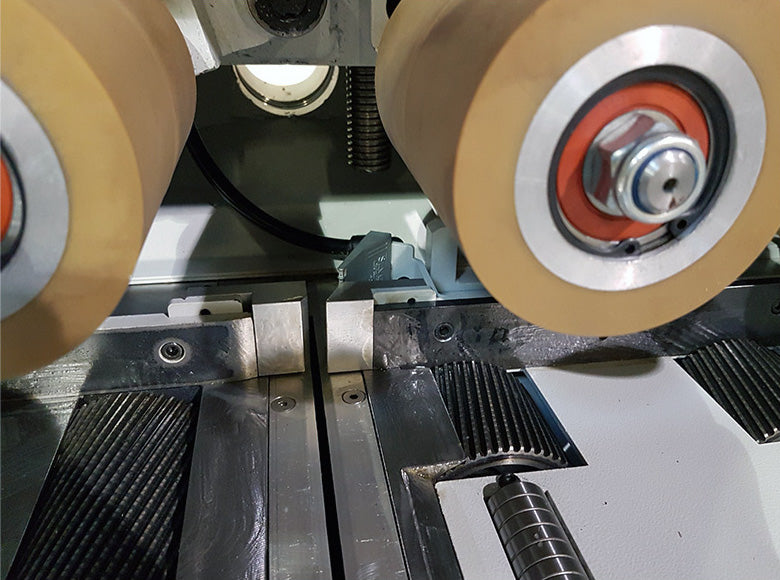

Air pressure: defect blowing system 7~9 kg/cm2 (99.5~128 PSI)
Dust Ports (2) 4"
Electrics 460/3/60 = 14 Full Load amps (Stock Machine)
230/3/60 = 28 Full Load amps (Factory order)
575/3/60 = 11 Full Load amps (Factory order)
