Cantek HR12E Horizontal Band Resaw

by Cantek
Original price $13,900.00 - Original price $13,900.00
Original price
$13,900.00
$13,900.00 - $13,900.00
Current price $13,900.00

The powerful yet economically priced Cantek HR12E horizontal resaw can produce a cut up to 11.8" wide and 4.92" thick.  Capable of handling material from 11.8" wide to 9.8" thick. The powerful 20HP motor makes easy work of even hard to cut wood material.  The thin kerf 1" wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will allow your resawing operation to get up to speed quickly.  It is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.

Key Advantages

• Single head horizontal configuration with
• Variable feed speed by inverter from 16 – 82 FPM
• Heavy duty solid steel saw wheels are precision ground and dynamically balanced
• Powerful 20HP saw wheel motor

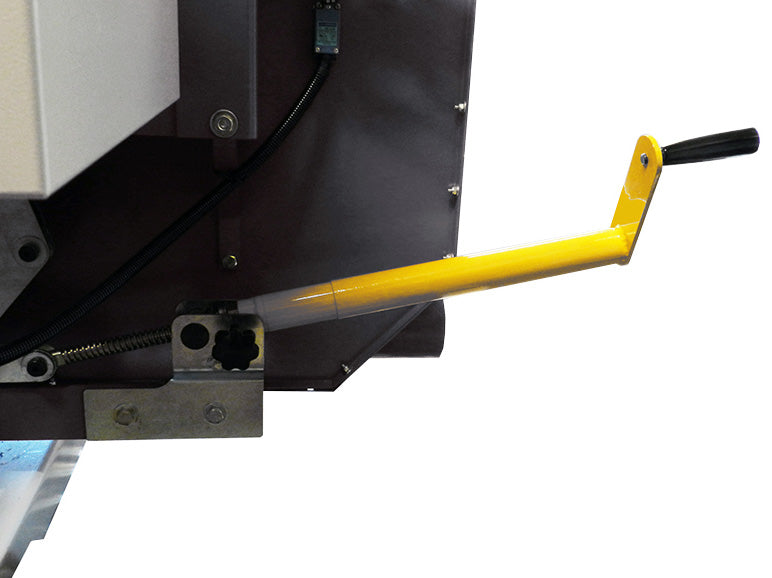

• Manual saw wheel elevation
• Both saw blade housing elevation screws are linked by a shaft to ensure synchronized movement and precisely level adjustment
• Adjustable sandwich style guide system

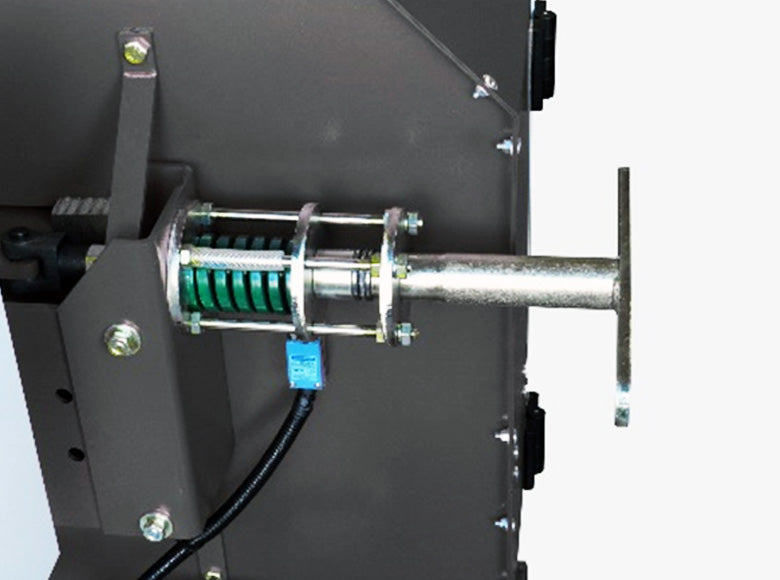

• Manual saw blade tension adjustment by handle
• Auto blade lubrication system

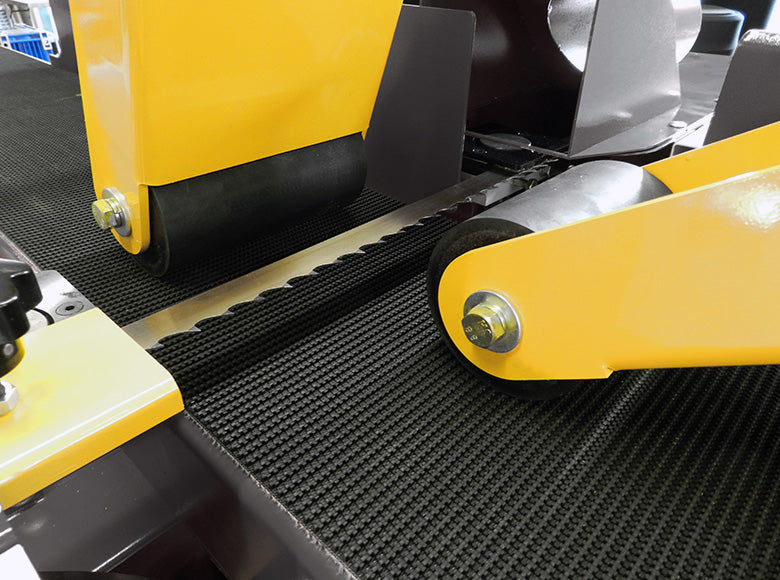

• (2) spring loaded hold down rollers ensure material is held firmly on the conveyor belt during material resawing
• Standard electrics are 230/3/60 to UL/CSA Standards (Other voltages available on request)

Specifications

Max. Input board size (W x T) 11.8" x 9.8" 300 x 250mm
Distance from blade to conveyor table 0.15" – 4.92" (4 – 125mm) 4 – 125mm
Conveyor belt size 11.2" x 215.3" 285 x 5470mm
Diameter of saw wheel 28" (dia) x 1" (W) 711mm (dia) x 24.5mm (W)
Variable feed speed 16 – 82 FPM 5 – 25 m/min
Saw blade dimensions 168" (L) x 1" 4625 x 24.5mm
Main motor 20 HP
Tolerance +/- 0.0039" +/- 0.1mm
Feed motor 2 HP
Electrical requirements 230/3/60 = 60.8 Full Load Amps
Dust Hood 4" x 4 pcs. 100mm x 4 pcs
Machine with Conveyor weight 2464 lbs 1120 kgs
Machine shipping dimensions 86" x 45" x 45" 2180 x 1140 x 1140mm
Machine shipping weight 1980 lbs 900 kgs
Conveyor shipping dimensions 113" x 22" x 28" 2870 x 560 x 700mm
Conveyor shipping weight 550 lbs 250 kgs
