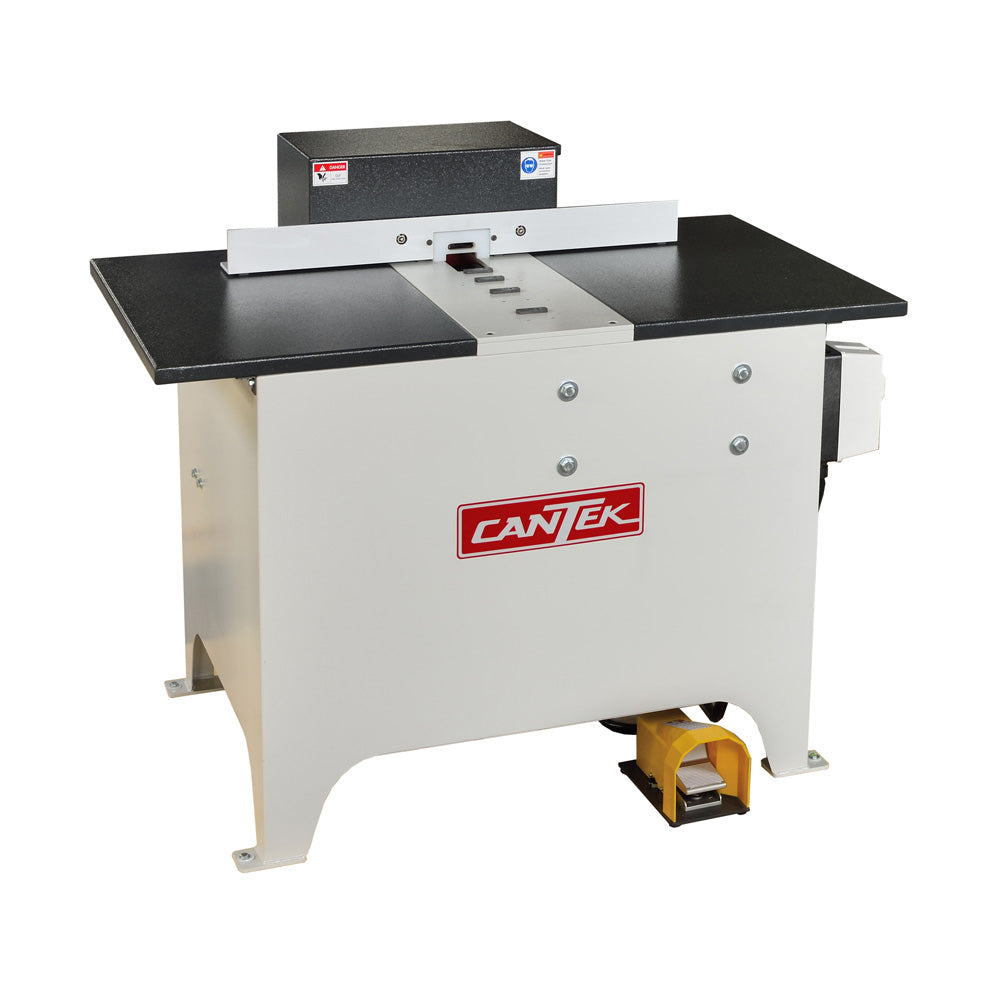

Cantek JEN60 Drawer Notcher

by Cantek
Original price $10,500.00 - Original price $10,500.00
Original price
$10,500.00 - $10,500.00
Current price $10,500.00

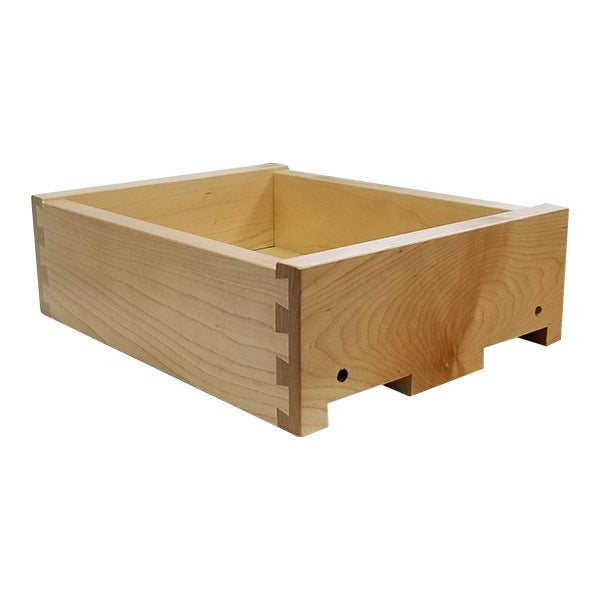

The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides.  The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching.  With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.

Key Advantages

• Pneumatic cutter & drill stroke by foot pedal operation.
• Cutter stroke and drill speed are adjustable for optimum finish results

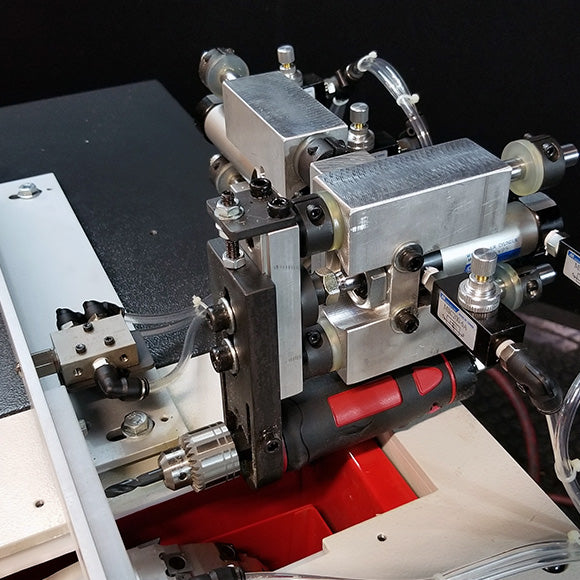

• Drill will automatically position for both left and right drawer notches by activating a switch in the fence

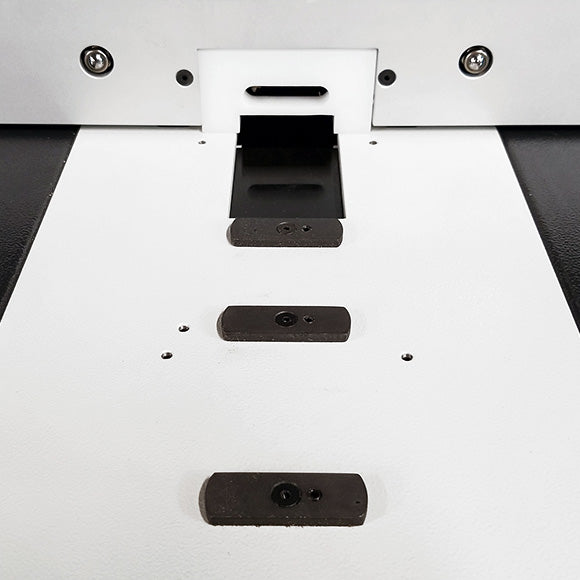

• Machine will not cycle unless a drawer is up against the switch for safe operation

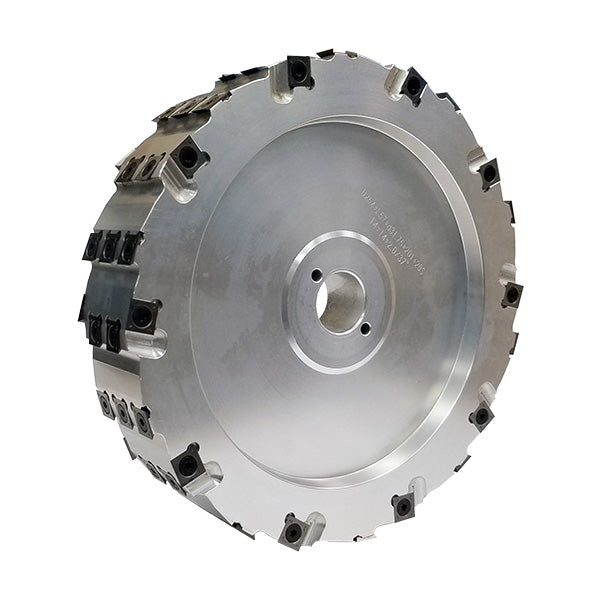

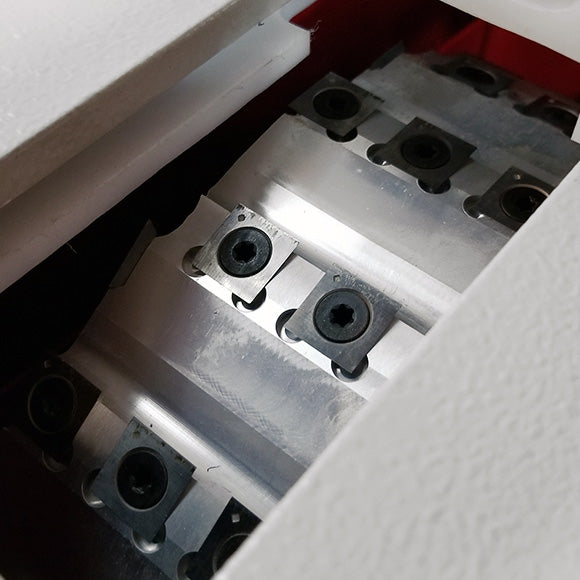

• Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
• 2 ¼" (57mm) wide cutter allows for a wide range of undermount slides
• Comes with insert cutterhead with inserts and ¼" (6.3mm) solid carbide drill bit.
• Capable of notching up to 220 drawer boxes (both left and right) per hour.


Main cutter motor 3 HP (230/3/60 or 460/3/60) | 2HP (230/1/60)
Notch dimensions 2 ¼" (57mm) x 0.5" high
Cutterhead diameter 10"
Drill diameter ¼"
Table size 49" x 22"
Table height from floor 32"
Dust port 2 x 4" (1,340 CFM requirement)
Compressed air required 90 – 100 PSI
Machine dimensions 48" x 37 ¾" x 39 ¾"
Machine weight 506 lbs.
Shipping dimensions 53" x 42" x 44"
Shipping weight 612 lbs.
Electrical requirements 230/3/60 = 9amps
460/3/60 = 4.8amps
230/1/60 = 10amps
575/3/60 = 3.9amps
