Cantek MX350 Automatic Edgebander

by Cantek
Original price $29,500.00 - Original price $29,500.00
Original price
$29,500.00 - $29,500.00
Current price $29,500.00

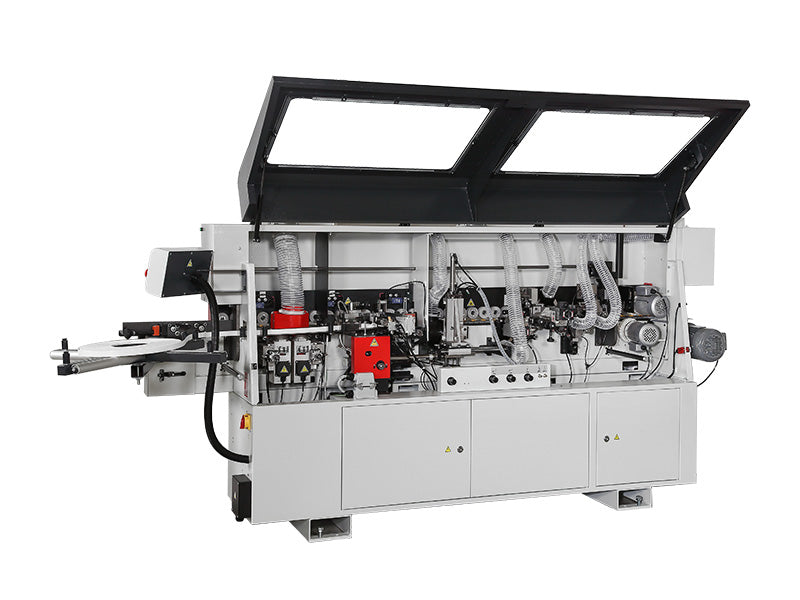

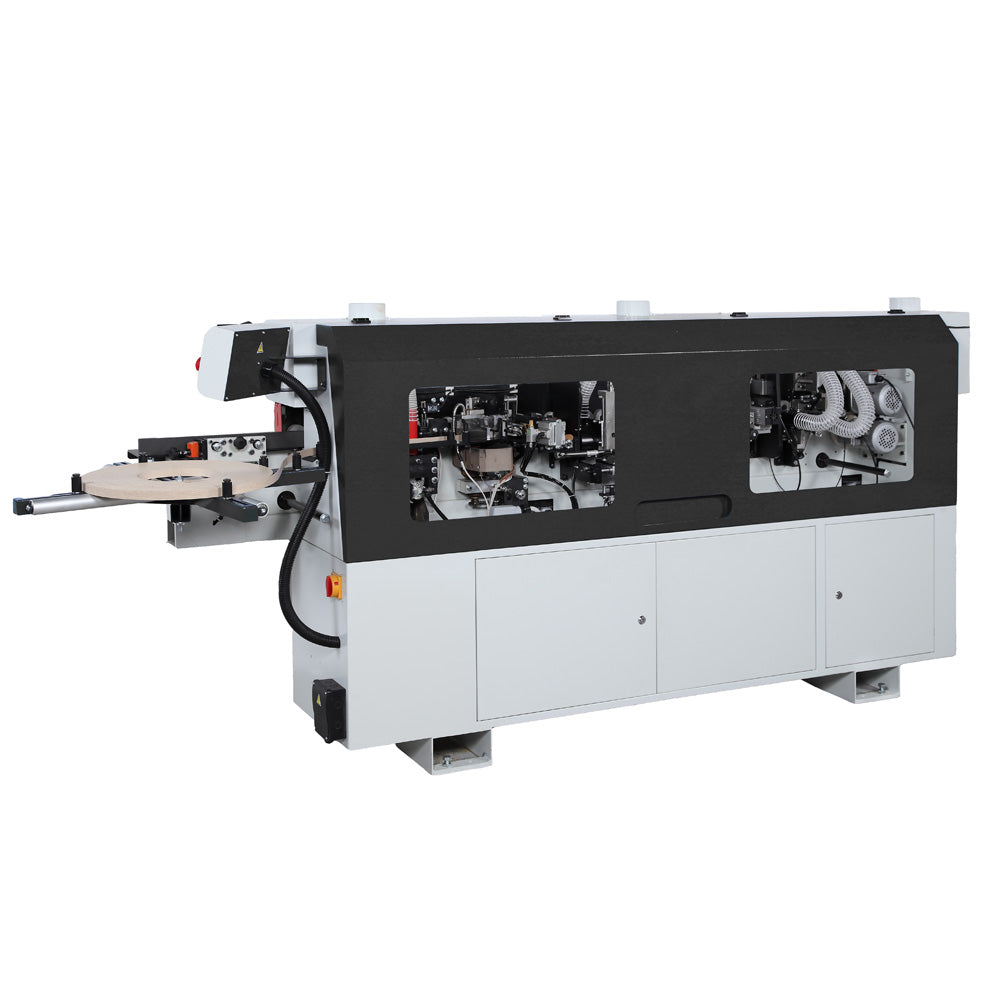

The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more.  The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint.  It comes equipped with high frequency motors on both the end trim and top & bottom trim.  In addition it is equipped with PVC radius scraping and buffing units.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.

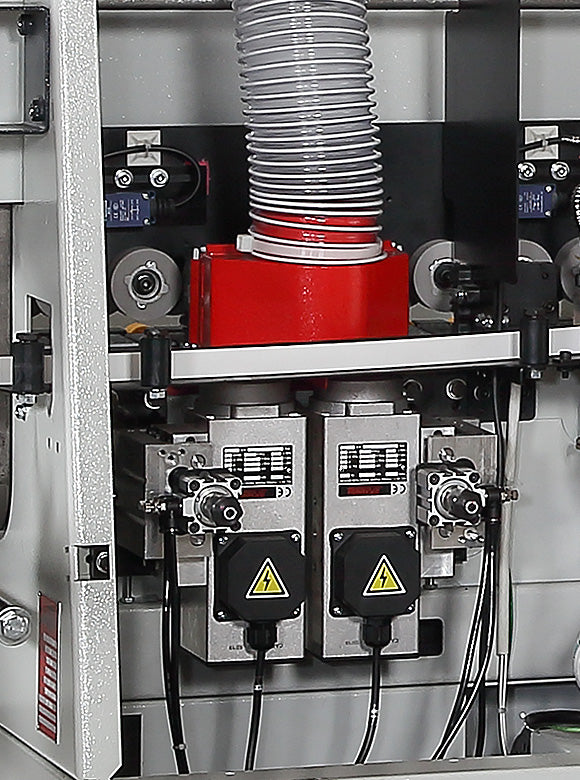

High-frequency pre-milling units can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels
(2) counter-rotating diamond cutterheads for optimum results and longevity

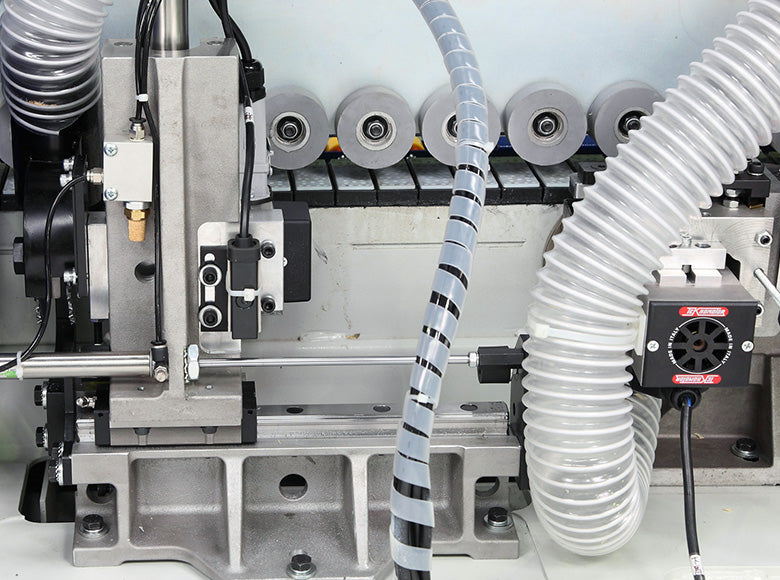

High frequency 12000 RPM end trimming unit, with Ø100mm (4") TC-Saw blades

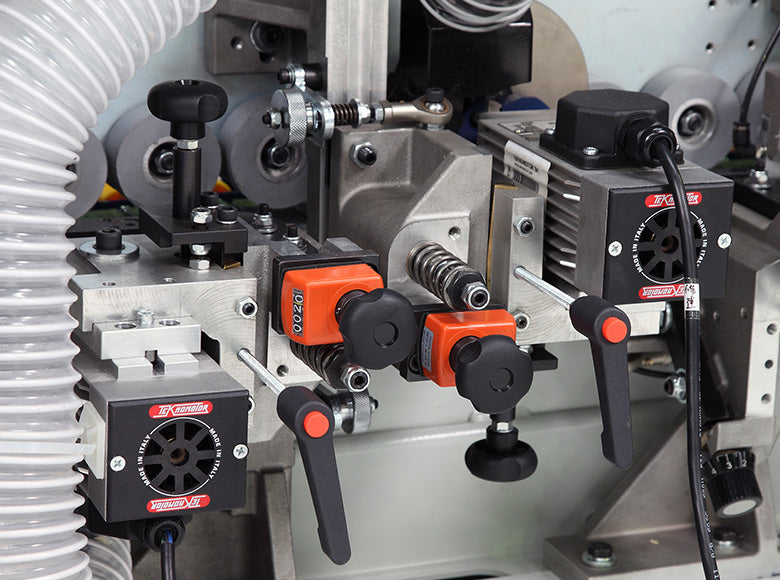

High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

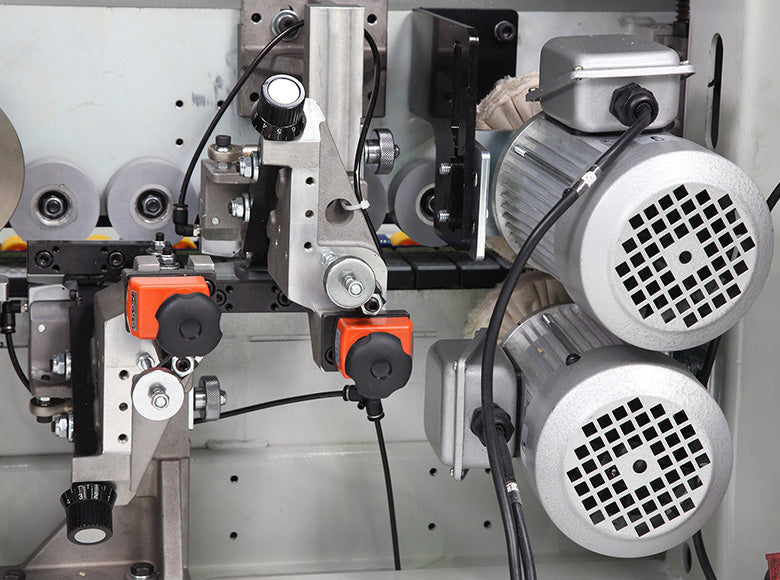

Radius scraper with 2mm radius

3000 RPM top & bottom buffing units to polish the machined edge

Key Advantages

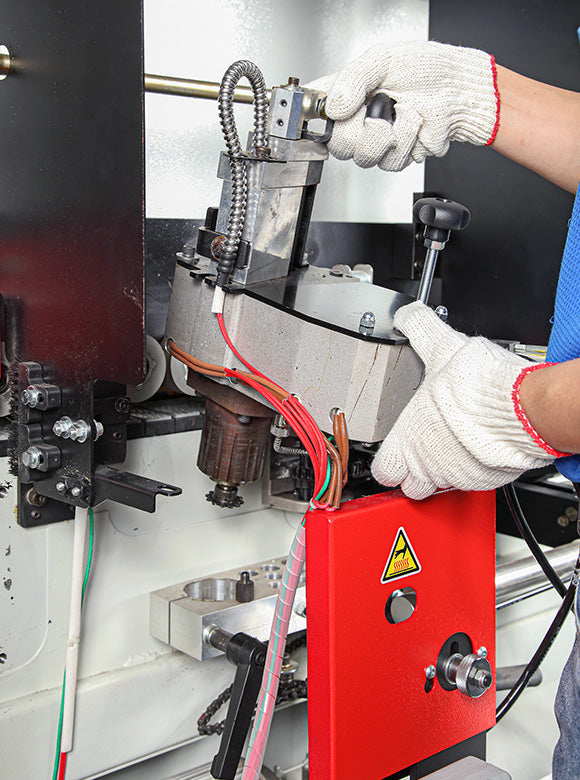

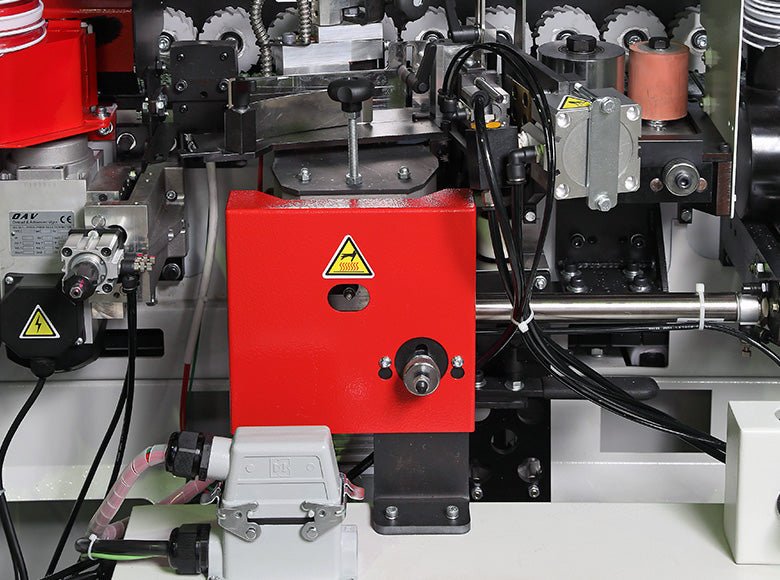

• Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
• Automatic edge feeding with a thickness capacity of 0.4–3 mm, strip material can be hand-fed

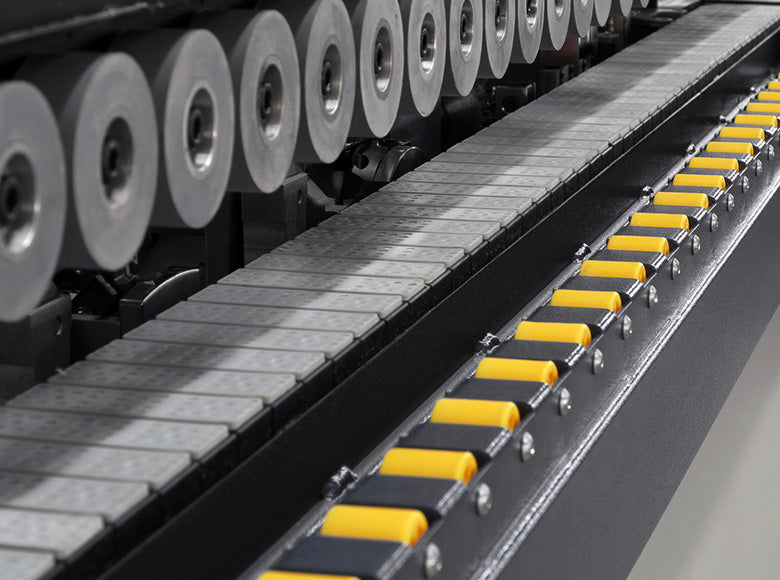

• Conveyor chain feed system for reliable results
• Heated infeed fence for pre-heating the panel for optimum glue penetration

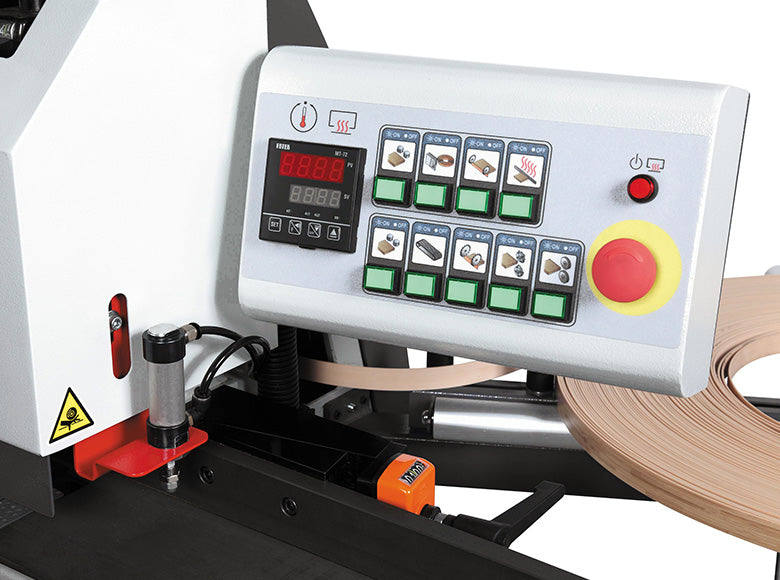

• PLC control system with LED display and keypad
• Workpiece is fed by chain

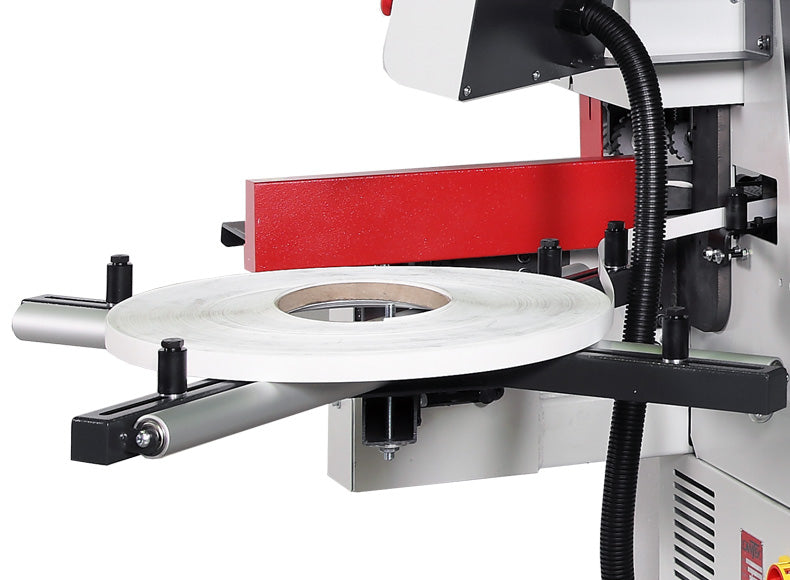

• Edge coil support plate: Ø 800mm (31 ½"), for PVC/ABS
• Spring-loaded pressure unit with (2) pressure rollers
• Heavy-duty pressure beam with extendable workpiece support


Inch Metric
Feeding speed 29FPM 9 m/second
Panel thickness 0.315"~1.77" 8~45 mm
Max. pre-milling thickness 1.77" 45mm
Edge thickness 0.0158"~0.118" 0.4~3 mm
Min. panel width 4" 100mm
Min. panel length 6.7" 170mm
Working table height 33.5" 850mm
Dust collection outlet Ø 5" x 3 Ø 127 mm x 3
Total connected power 10 HP 7.5 kW
Machine dimensions (LxWxH) 147" x 52" x 54" 3700 x 1310 x 1380mm
Machine weight 1452 lbs 660 kgs
Shipping dimensions (LxWxH) 91" x 29" x 54" 2290 x 720 x 1370mm
Shipping weight 1558 lbs 708 kgs
Electrical requirement 230/3/60: 40 amps
