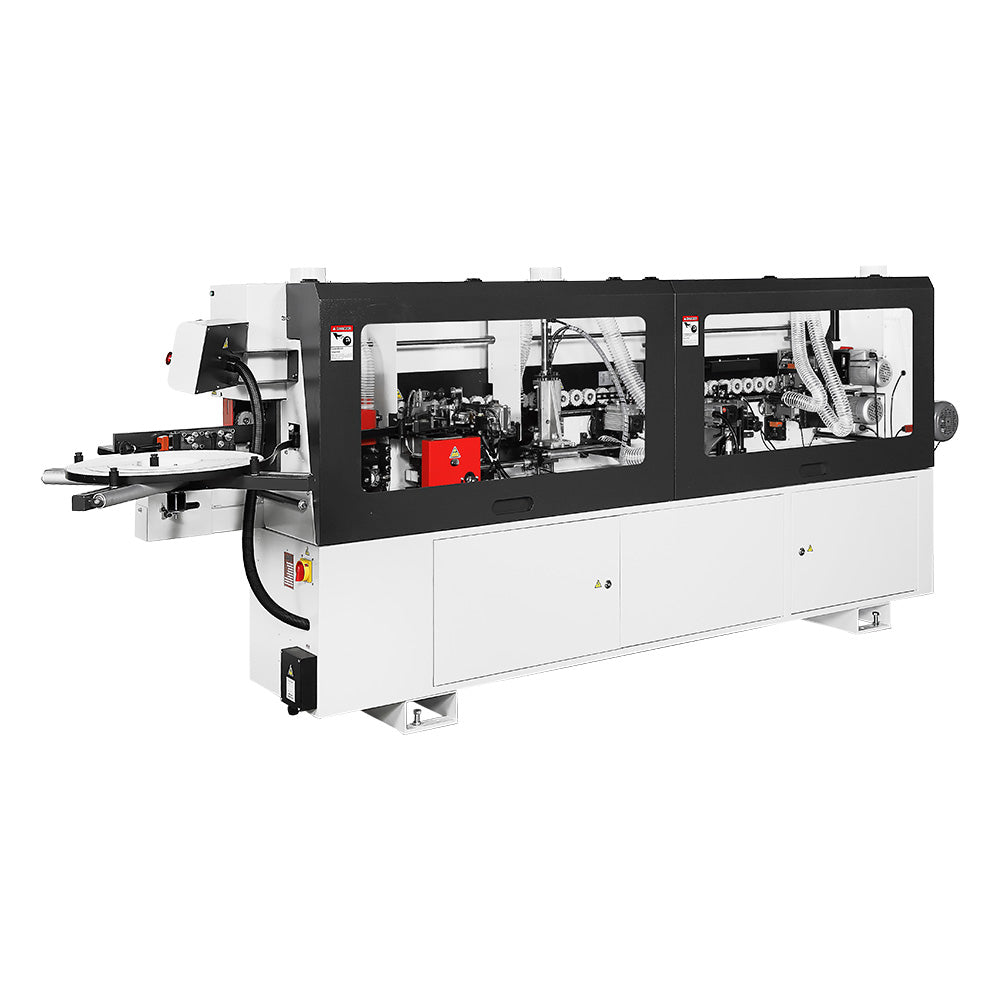

Cantek MX370P Edgebander

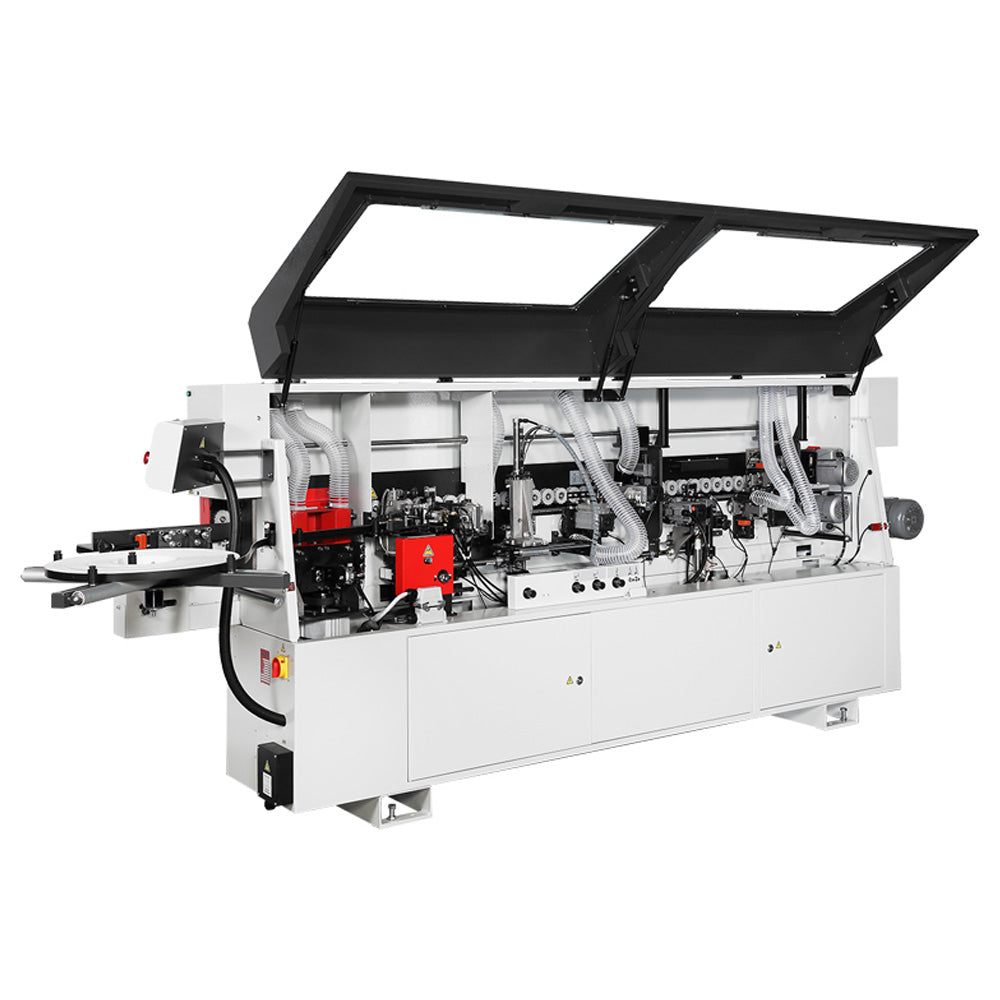

The Cantek MX370P Automatic Edgebander with Premilling and Corner Rounding is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

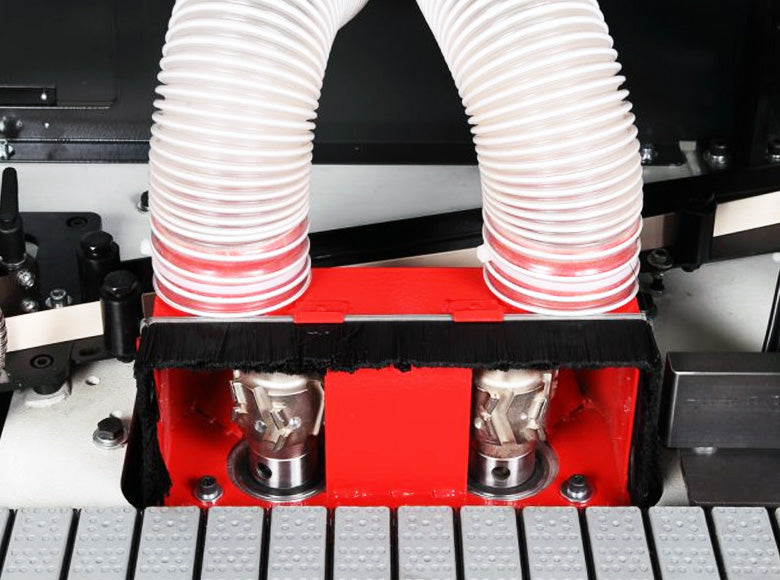

PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.

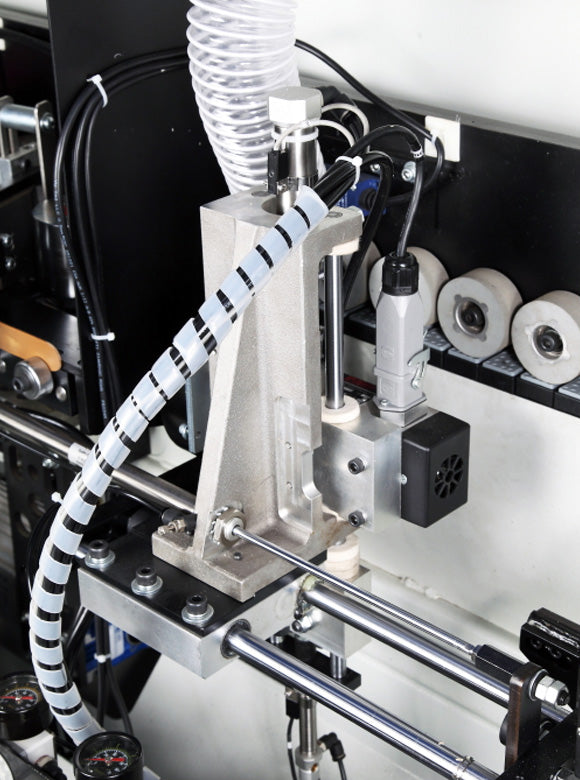

END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4") TC-Saw blades.

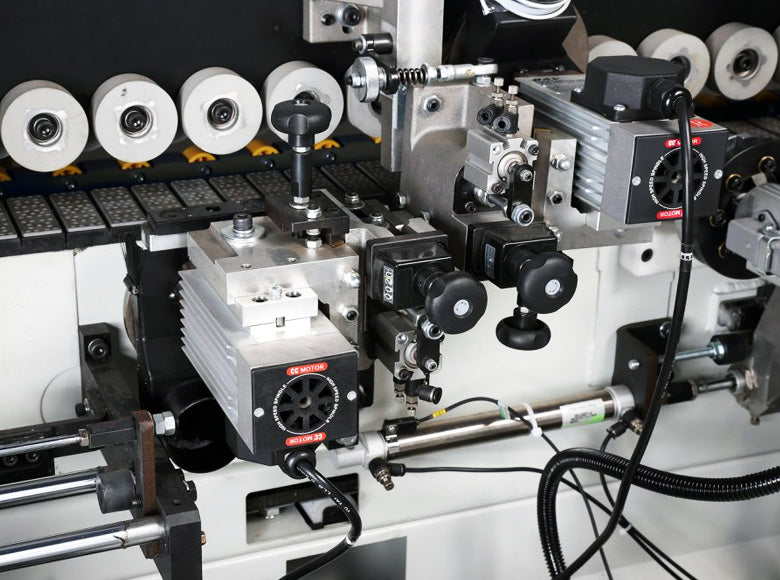

TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.

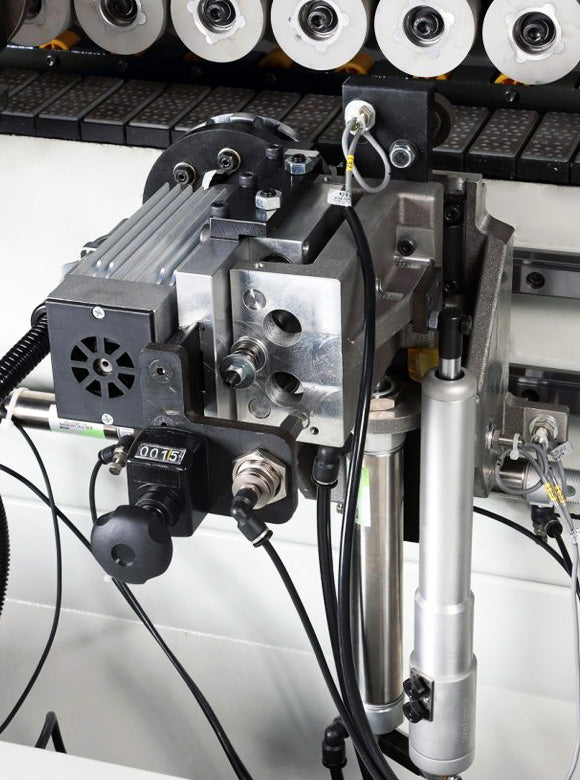

CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.

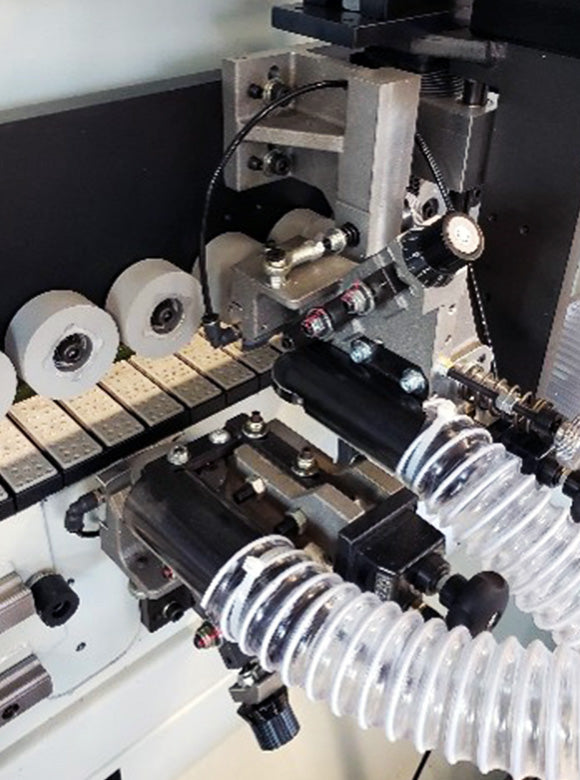

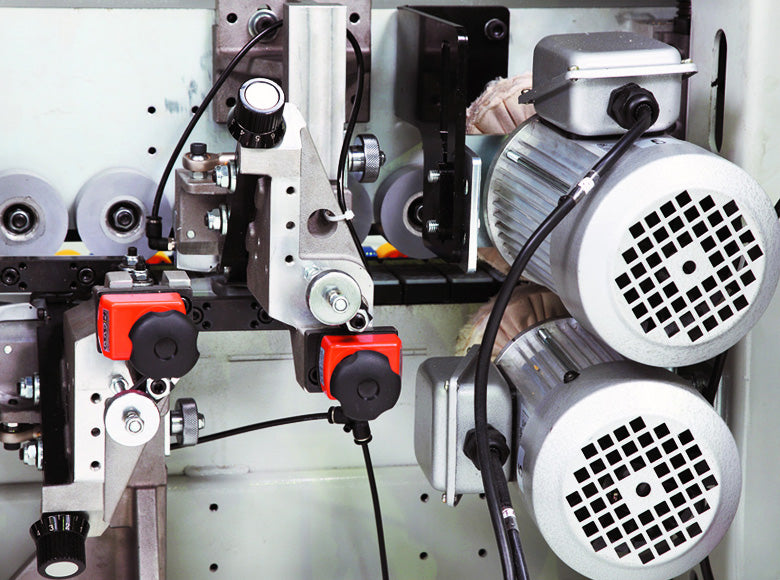

RADIUS SCRAPING
Radius scraper with 2mm radius.

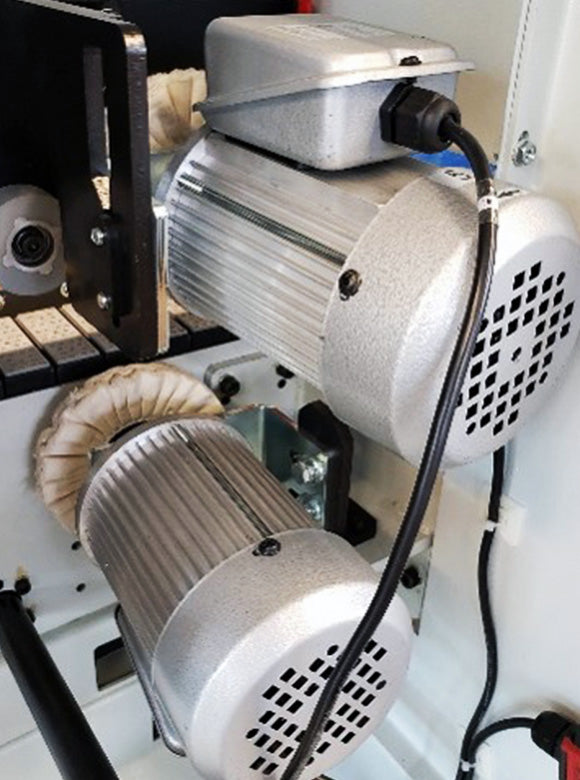

BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.
Key Advantages
• Automatic edge feeding with a thickness capacity of 0.4–3 mm. strip material can be hand-fed.

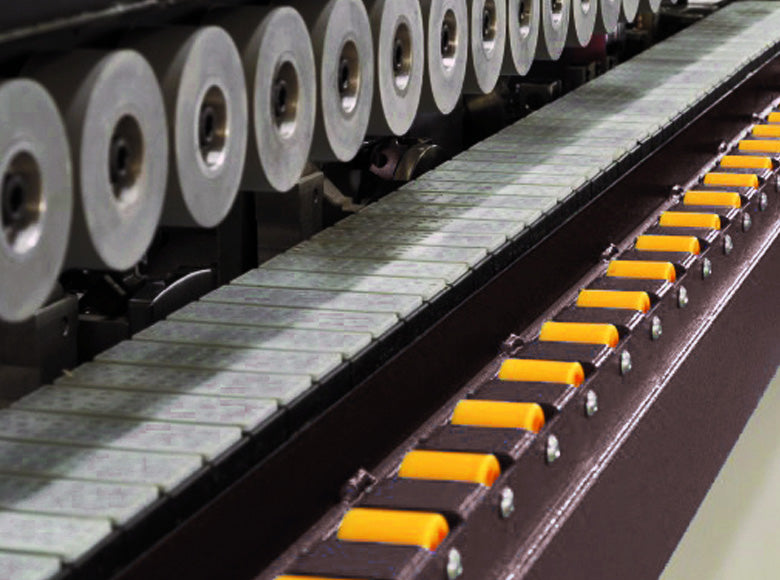

• Conveyor chain feed system for reliable results.

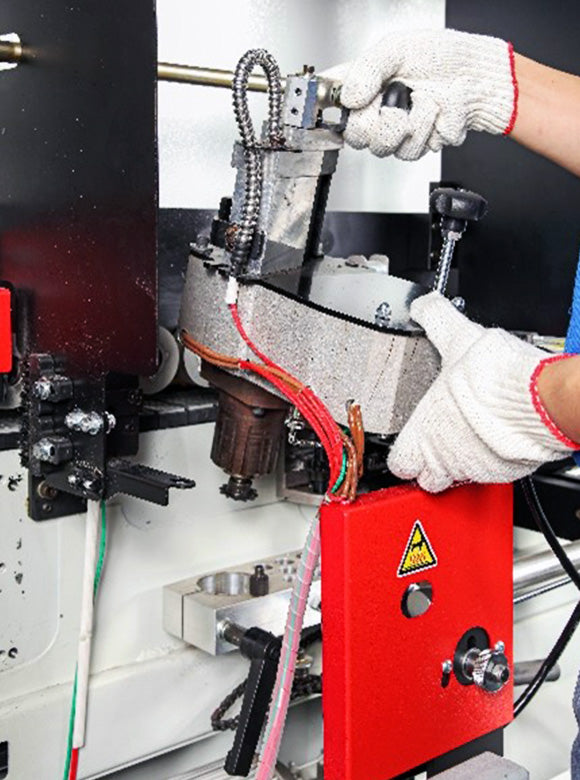

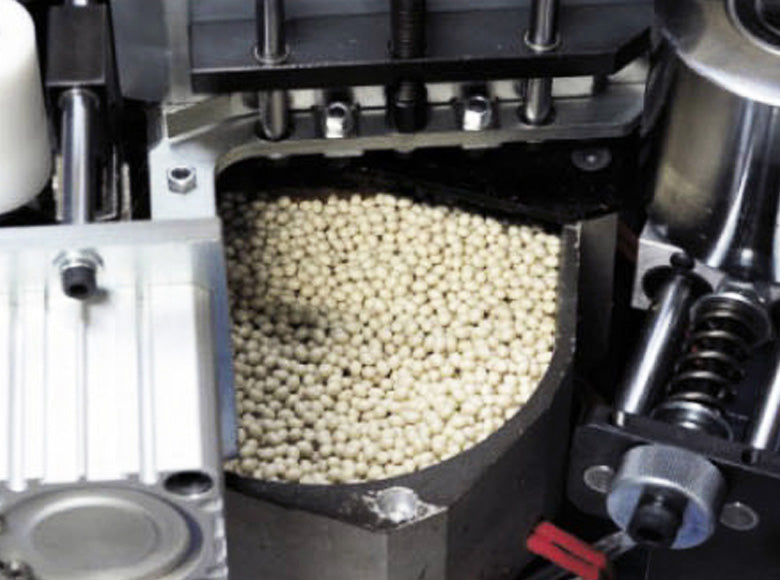

• Teflon-coated hot-melt glue pot.
• Heated infeed fence for pre-heating the panel for optimum glue penetration.

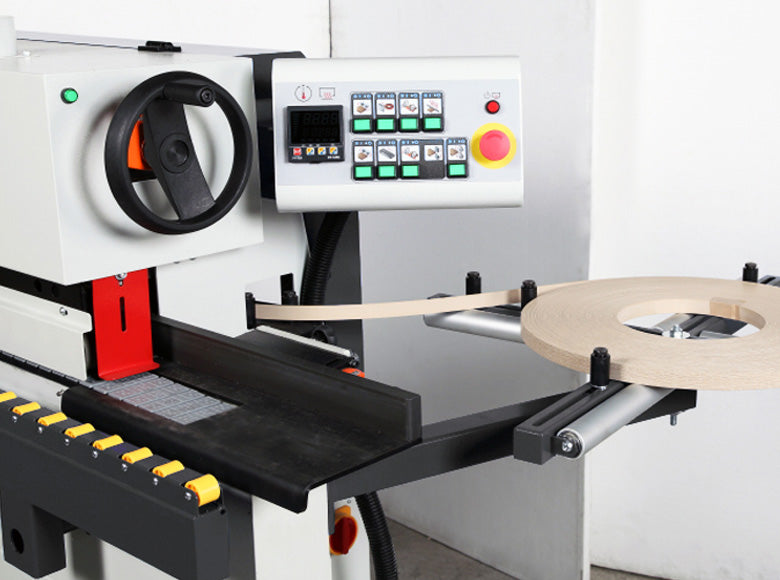

• PLC control system with LED display and keypad.
• Workpiece is fed by chain.
• Edge coil support plate: Ø 800mm (31 ½"), for PVC and ABS.

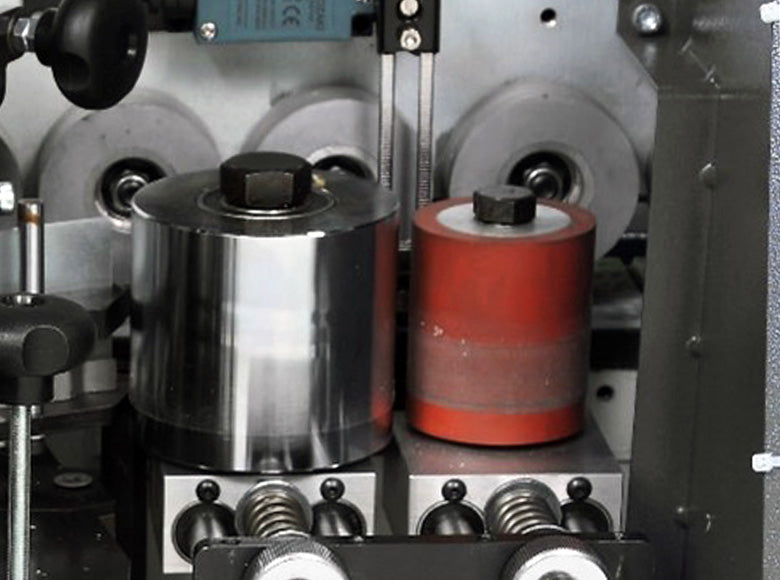

• Spring-loaded pressure unit with (2) pressure rollers.
• Heavy-duty pressure beam with extendable workpiece support.
Specifications
Feeding Speed | 29 FPM | 9 meters/min. |
Panel thickness | 0.315"~1.77" | 8~45 mm |
Edge thickness | 0.0158"~0.118" | 0.4 ~ 3 mm |
Min. panel width | 3 ¾" | 95 mm |
Min. panel length | 6.7" | 170 mm |
Working table height | 38" | 960 mm |
Extension support width | 22" | 560 mm |
Dust collection outlet | Ø 5" x3 | Ø 127 mm x3 |
Electrical consumption | 10.9 HP | 6.7 KW |
Electrical | 230/3/60 | 26 Full load amps |
Machine weight | 2024 lbs | 910 kgs |
Motor Specifications
Feeding motor | 1.5 kW |
Pre-milling motors (2 pcs) | 1.5 kW each (12000 RPM) |
Glue spindle motor | 0.25 kW |
Front/rear trimming motor | 0.22 kW (12000 RPM) |
Upper trimming motor | 0.37 kW (12000 RPM) |
Lower trimming motor | 0.37 kW (12000 RPM) |
Corner rounding motor | 0.37 kW (12000 RPM) |
Upper buffing motor | 0.12 kW (3000 RPM) |
Lower buffing motor | 0.12 kW (3000 RPM) |
Pre-heating | 0.4 kW |
Glue pot | 1.315 kW |
