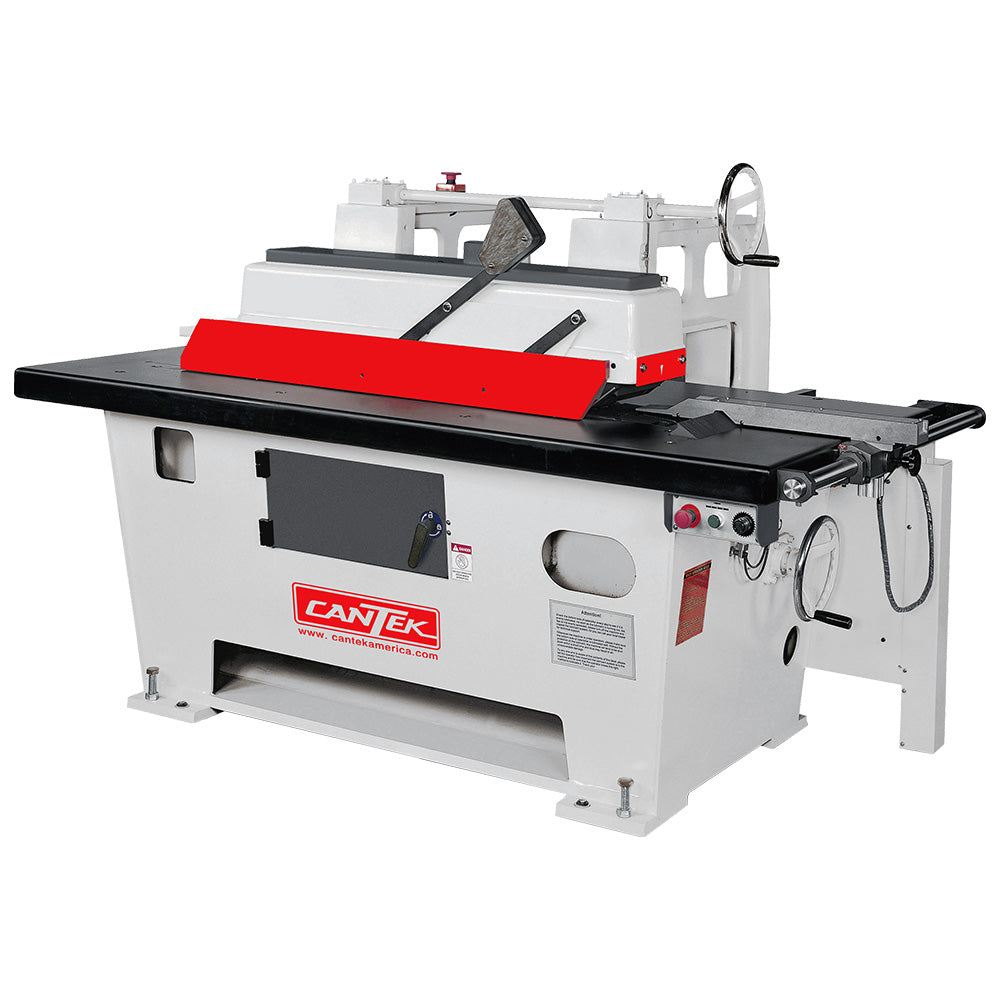

Cantek R18 Bottom Cutting Straight Line Ripsaw

by Cantek
Original price $28,300.00 - Original price $28,300.00
Original price
$28,300.00 - $28,300.00
Current price $28,300.00

The Cantek R18 bottom cutting straight line ripsaw is designed with performance and added safety in mind. Cutting from below forces the workpiece down on to the feed chain for superior hold down.  In addition, the blade can project up above the workpiece to allow the gullet to clear the chips which leads to less heat buildup resulting in longer blade life and improved cut quality. The R18 is capable of producing a glue joint cut up to 12 feet. The powerful 20HP direct drive ensures optimum feed rates no matter what material or thickness you are cutting.

Key Advantages

• Extra heavy-duty machine frame made of thick welded steel and cast iron
• Split chain, double feed track with HRC60 Rockwell Hardened Guideways
• Massive steel table with 26" maximum rip capacity

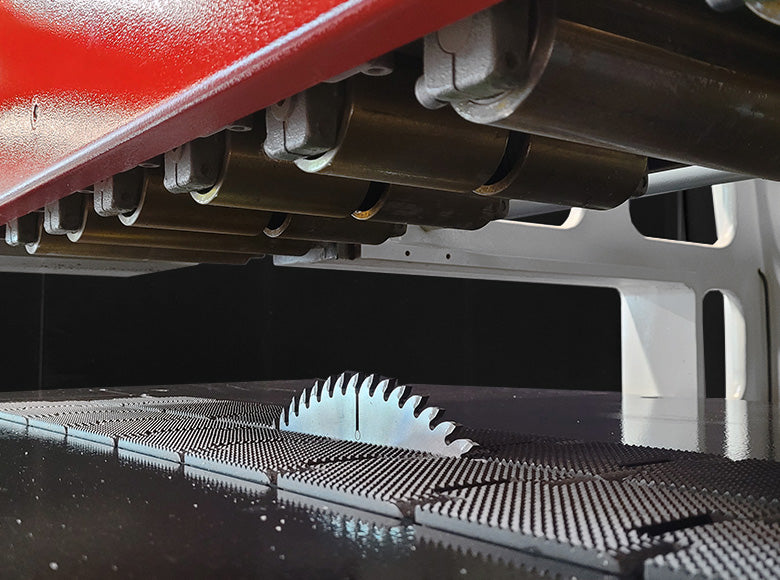

• (11) hold down rolls and 41" long chain above the table ensures precision straight-line ripping

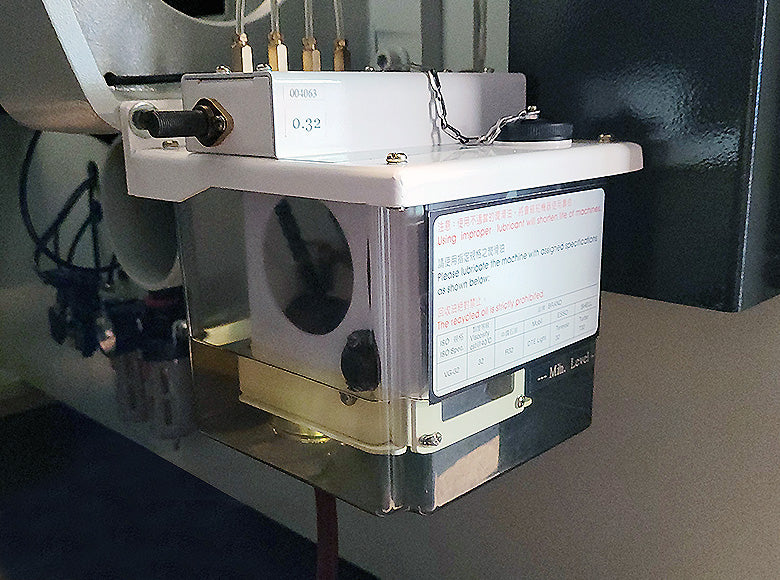

• Automatic chain and track lubrication system ensures long life of the chain & track assembly
• Saw arbor height is adjusted manually

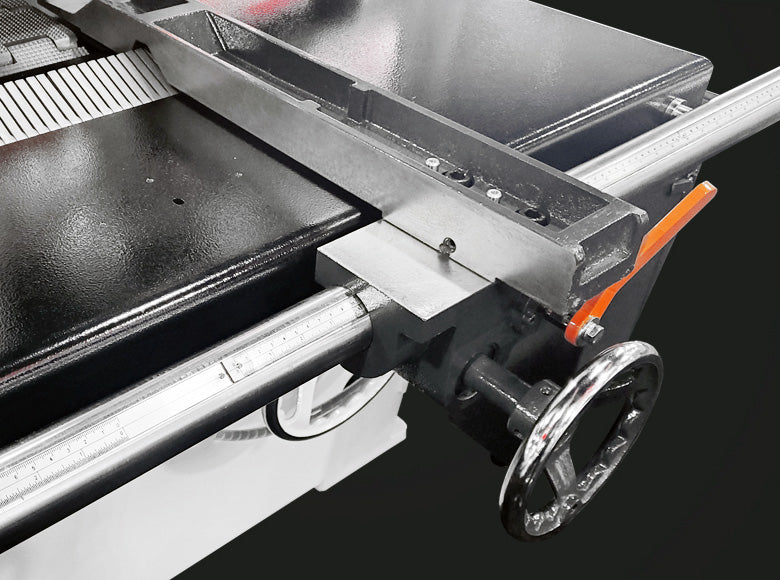

• Manual rip fence adjustment by handwheel and rack & pinion with dual inch/metric scale
• Manual thickness adjustment with linear scale
• Saw arbor brake included

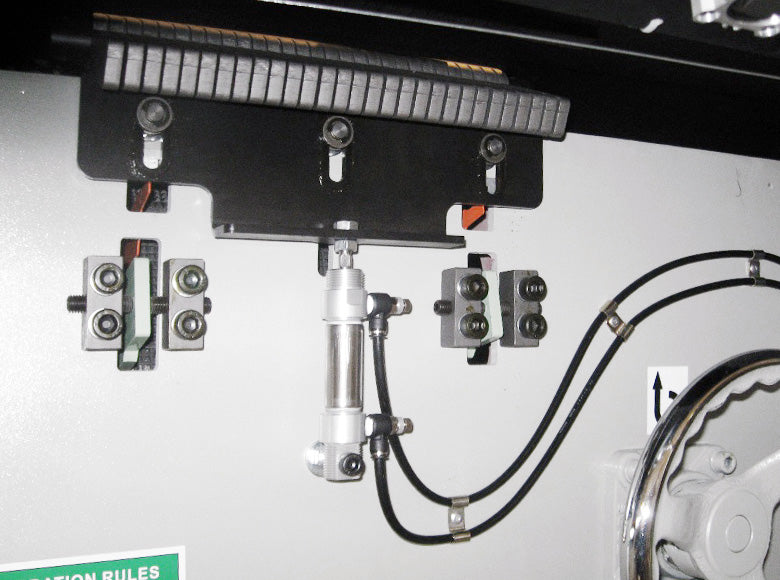

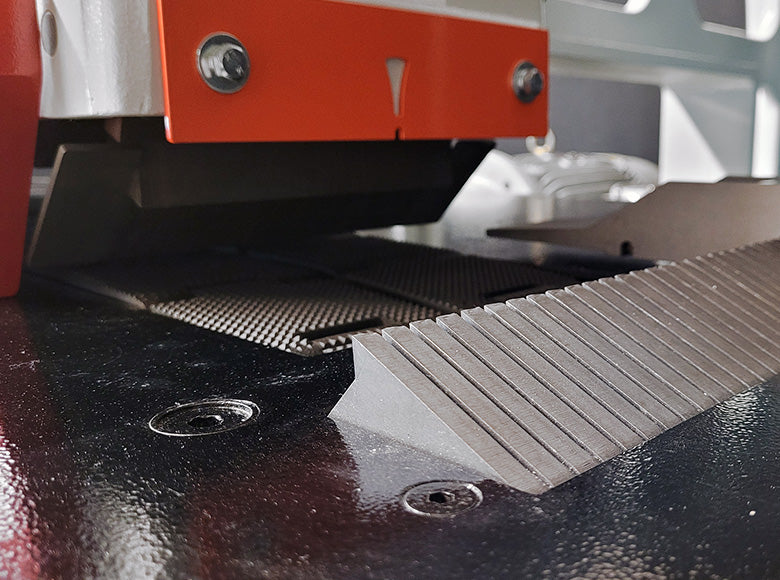

• Anti-kickback fingers top and bottom for safe operation
• Safety interlock on access door
• Comes with 14" rip saw blade: 14mm pin holes on 65mm centers
• Optional laser light to project the cutting line to help with cutting yield

Minimum length 6" 150mm
Maximum sawblade diameter 18" 455mm
Sawblade included with machine 14" 355mm
Maximum cutting thickness:
14" Blade
16" Blade
18" Blade
Sawblade bore 2" 50.8m
Main motor 20 HP
Feed motor 3 HP

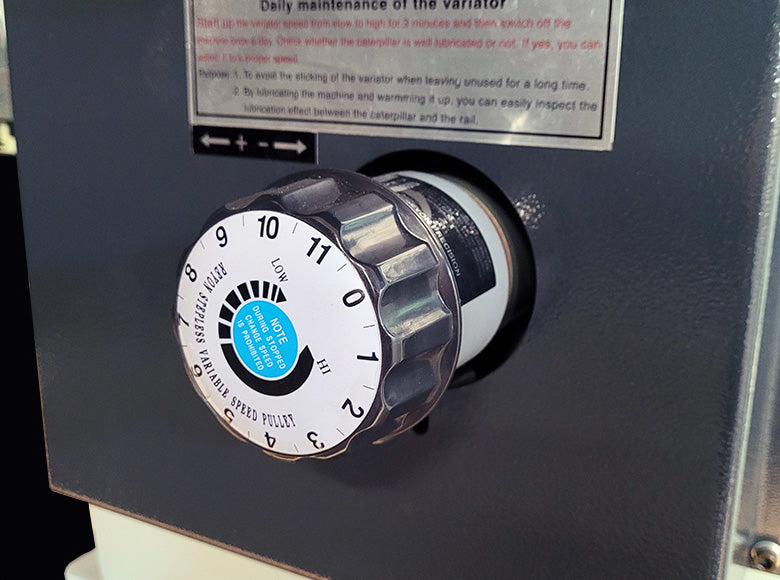

Feed speed (variable) 42~164 FPM 13-50 m/min
Saw arbor brake system Standard
Number of pressure rolls 8 rolls
Distance from saw blade to column 26" 660mm
Table dimensions 78 ¾" x 40" 2000 x 1015mm
Table height from floor 33.46" 850mm
Table width to left of blade 16.73" 425mm
Dust ports Top: 4" and Bottom: 6" Top: 100mm and Bottom: 150mm
CFM Required 1400 CFM
Machine dimensions (LxWxH) 91" x 66" x 53" 2299 x 1678 x 1343mm
Machine weight 3750 lbs 1700 kgs
Shipping dimensions (LxWxH) 89" x 66" x 65" 2240 x 1670 x 1650mm
Shipping weight 3970 lbs 1800 kgs
Electrics 460/3/60 @ 32 Amps 230V & 575V optional
