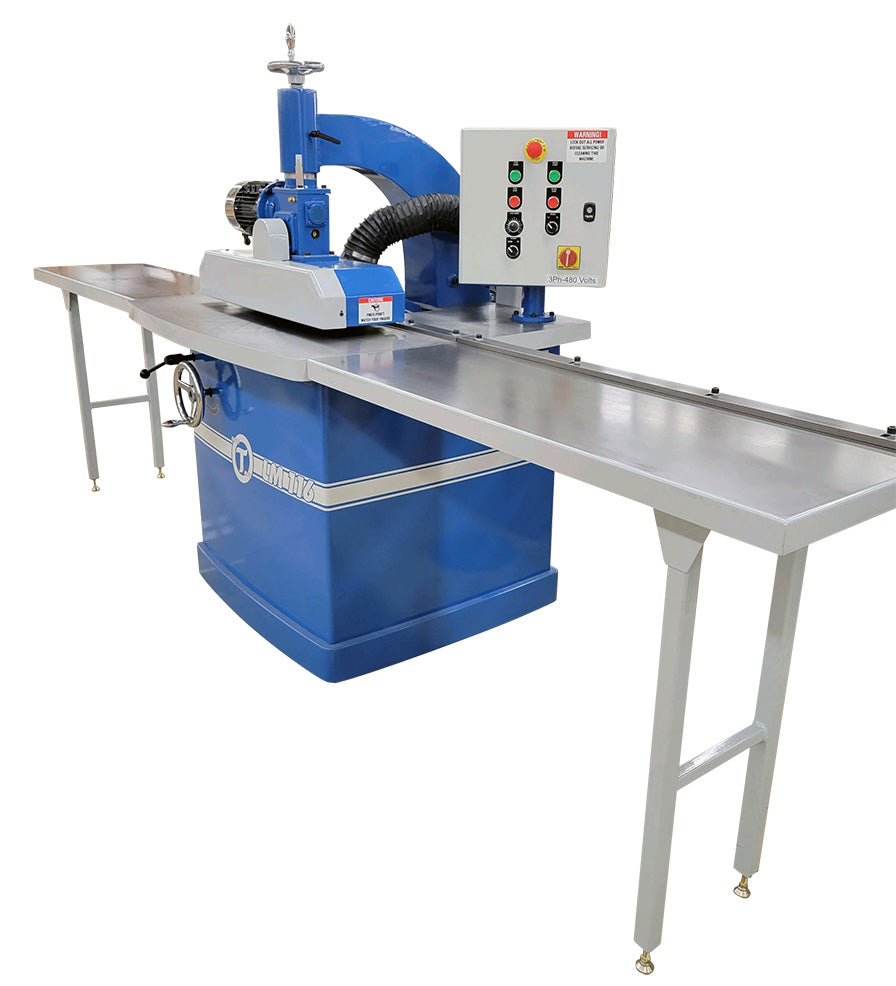

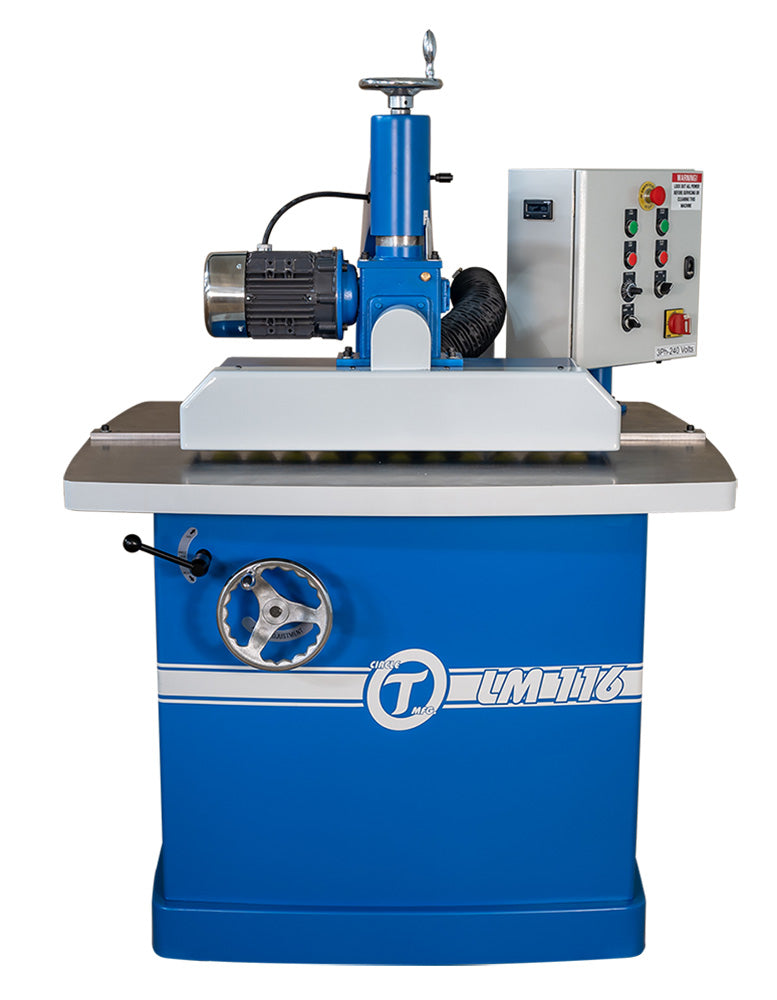

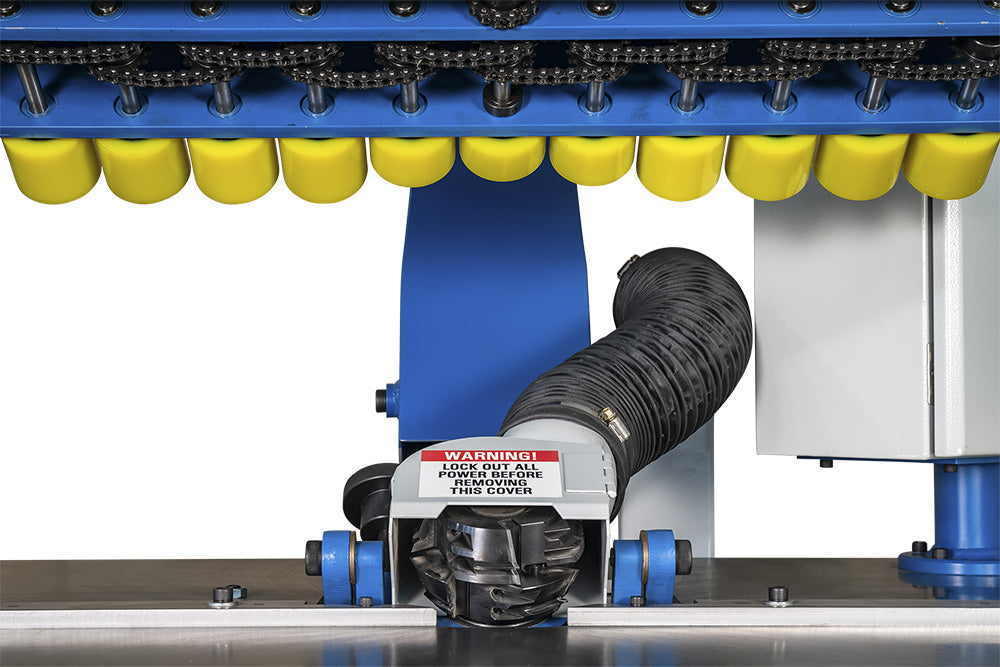

Circle T LM116 Easy Lock Miter Machine

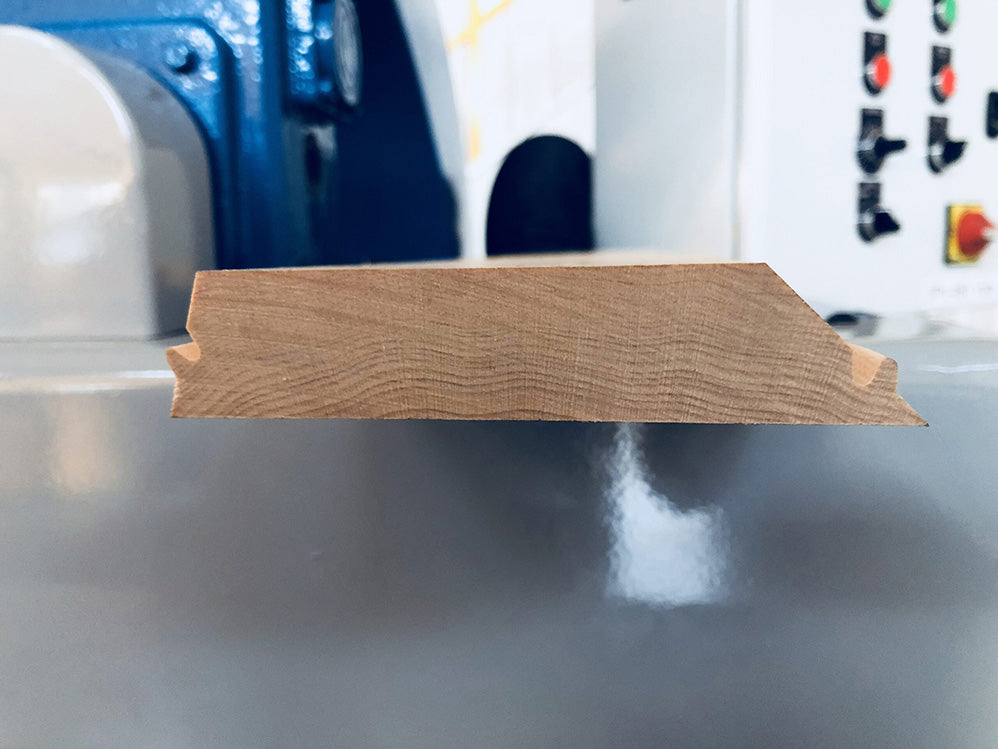

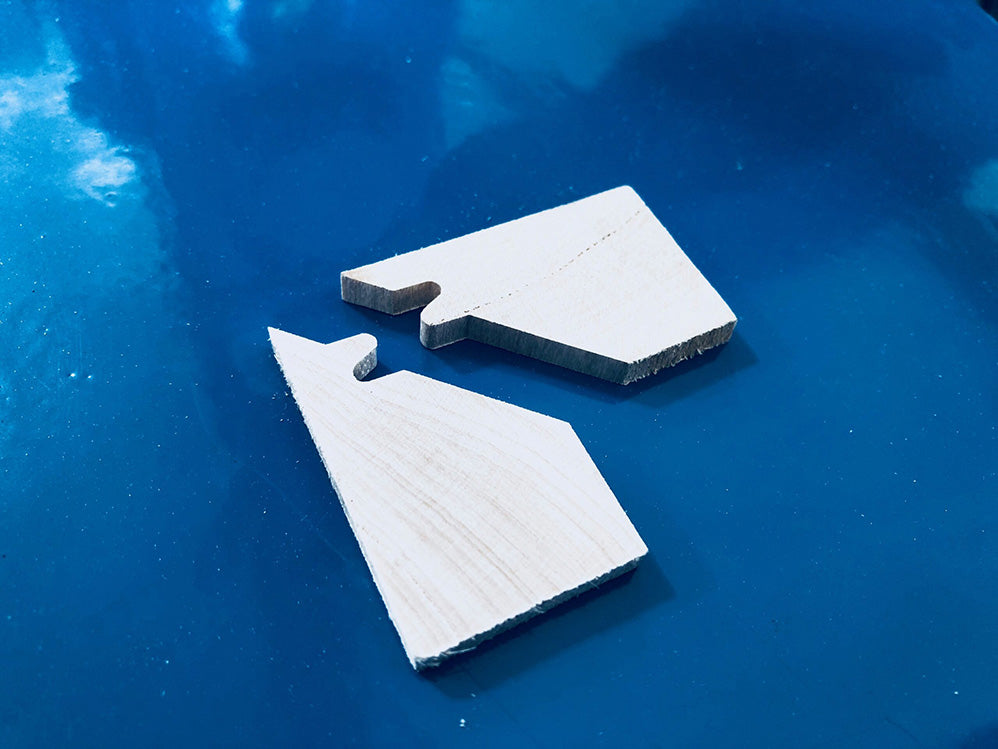

The LM116 lock miter machine by Circle T is uniquely designed to produce an extremely precise and easy lock miter joint. Many customers use this lock miter machine for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface and more!

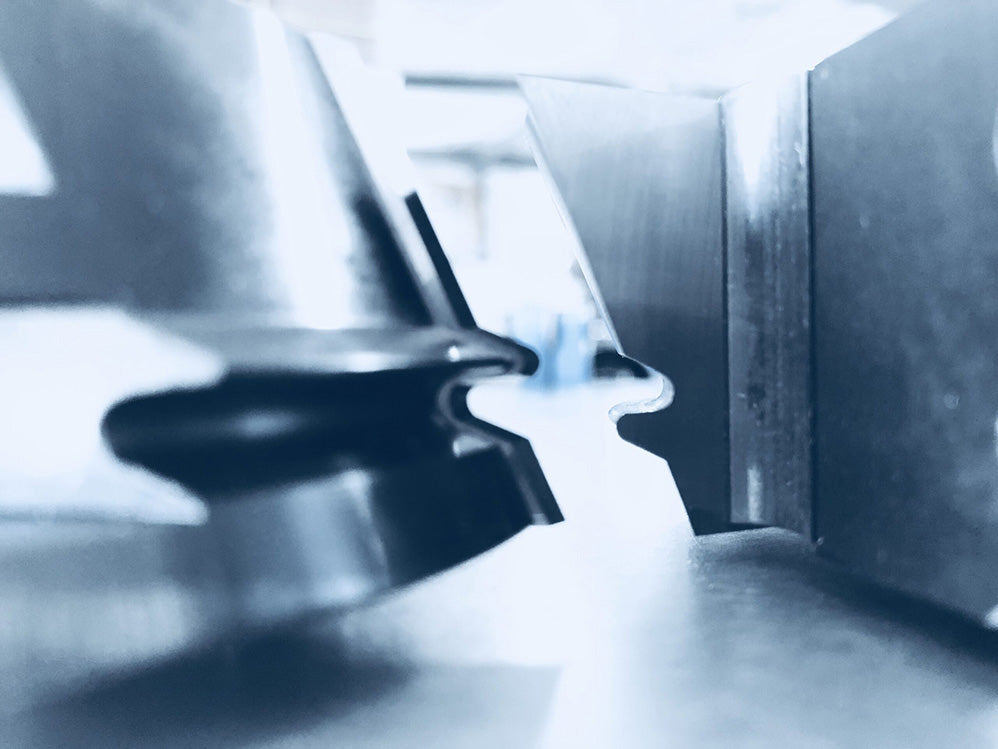

•    A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!

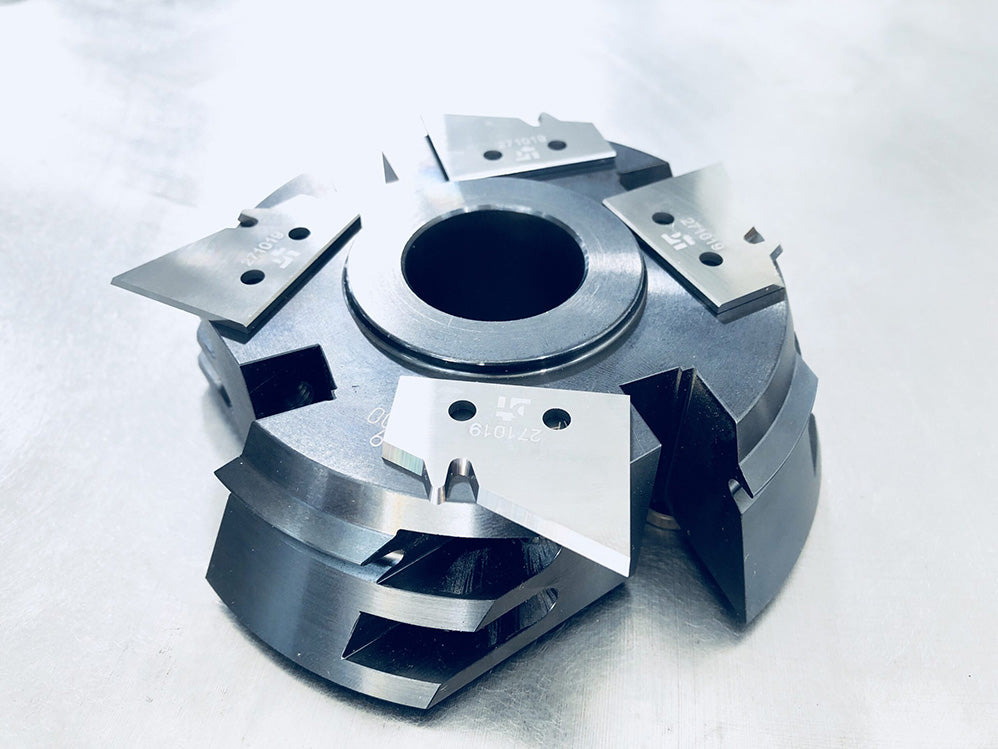

•    No more downtime setting up and changing out your tooling!
•    No more running pieces on their side!
•    Upgrade to our EASY LOCK MITER LM116

APPLICATION SPECS:
•    Maximum Material Thickness: 1"
•    Minimum Material Thickness: 1/2"
•    Minimum Material Width: 1-1/4"
•    Minimum Material Length: 12"
•    Capable of Machining Angles from 90 - 30 Degrees (Finish Angle)
•    Feeder Speed 5-30 FPM

APPLICATION SPECS:
•    Maximum Material Thickness: 1"
•    Minimum Material Thickness: 1/2"
•    Minimum Material Width: 1-1/4"
•    Minimum Material Length: 12"
•    Capable of Machining Angles from 90 - 30 Degrees (Finish Angle)
•    Feeder Speed 5-30 FPM

DRIVE PACKAGE SPECS:
•    Spindle Motor: 5 HP, 230/460v, 3ph
•    Feed Motor: 0.5 HP
•    Spindle Diameter: 1-1/4"
•    Spindle Speed: 8,200 RPM

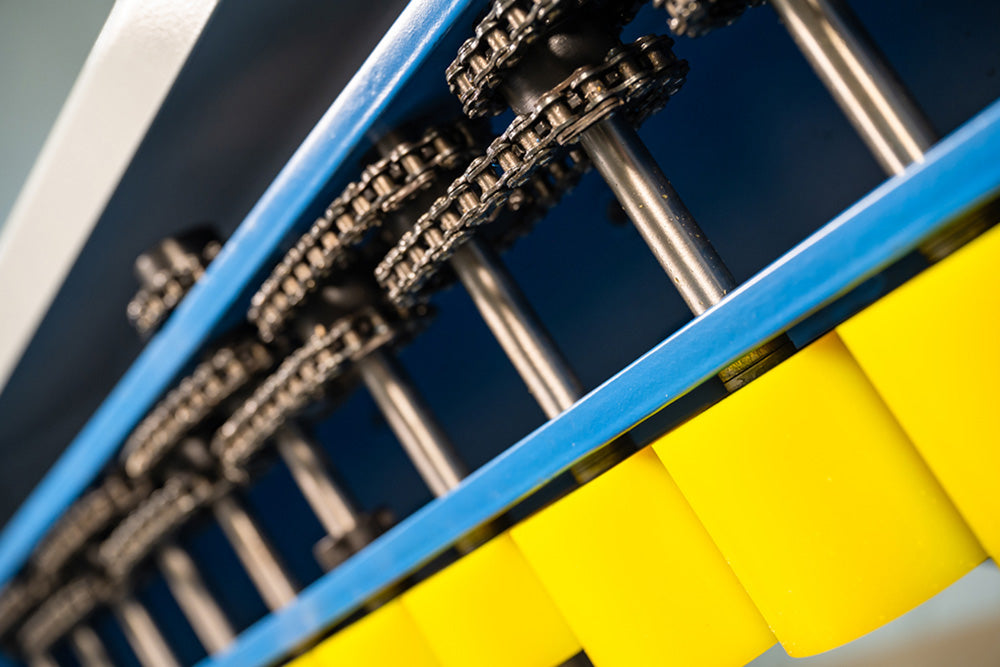

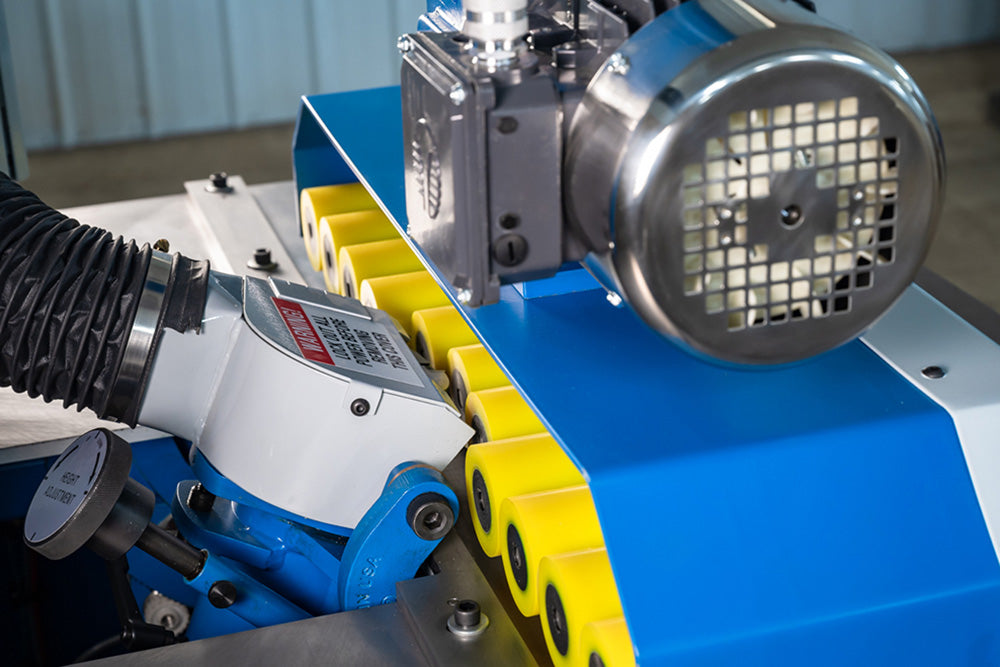

•    Variable Speed 11-Roll Positive Grip Feeder

UTILITY REQUIREMENTS:
•    Dust Collection Requirements: 670 CFM,
4" Outlet
•    Pneumatic Requirements: 100 PSI .5 CFM
•    25AMP Disconnect at 480 3phase

DIMENSION SPECS:
•    Table Size: 40" x 47"
•    Footprint: 54"W x 42"L x 60"H
•    Shipping Dimensions 57”L x 48”W x 76"H
•    Shipping Weight 1,400LBS

HYDRAULIC DRIVE PACKAGE SPECS:
•    Spindle Motor: .75 CID @ 3,600 RPM = 12 GPM
•    Feed Motor: 12.2 CID @ 6-40 RPM = .31 – 2.11 GPM

HYDRAULIC DRIVE OPTIONS:

SPINDLE MOTOR -
OPEN CENTER 12GPM
(Remote Mounted Air Ball Valve to Start/Stop Supplied by Other)
CLOSED CENTER 12 GPM

FEED MOTOR –
CLOSED CENTER .31-2.11 GPM
(Pressure Compensated Pump Supplied by Other)

ANGLE READOUT VOLTAGE –
120 VAC
12 VDC
