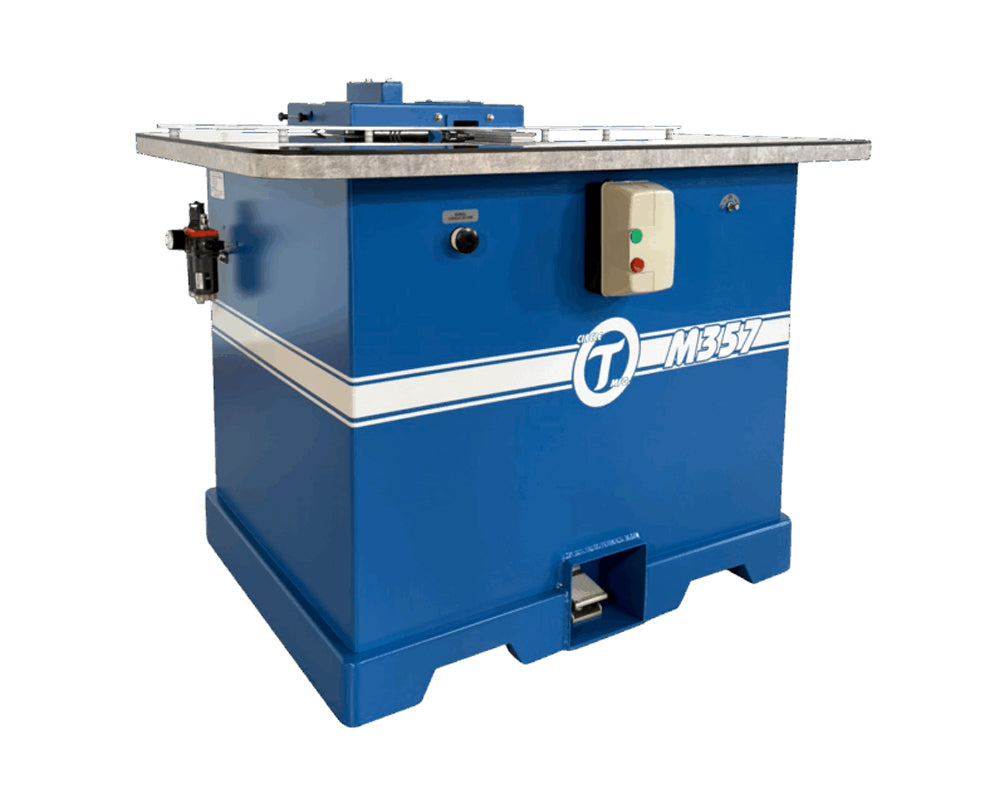

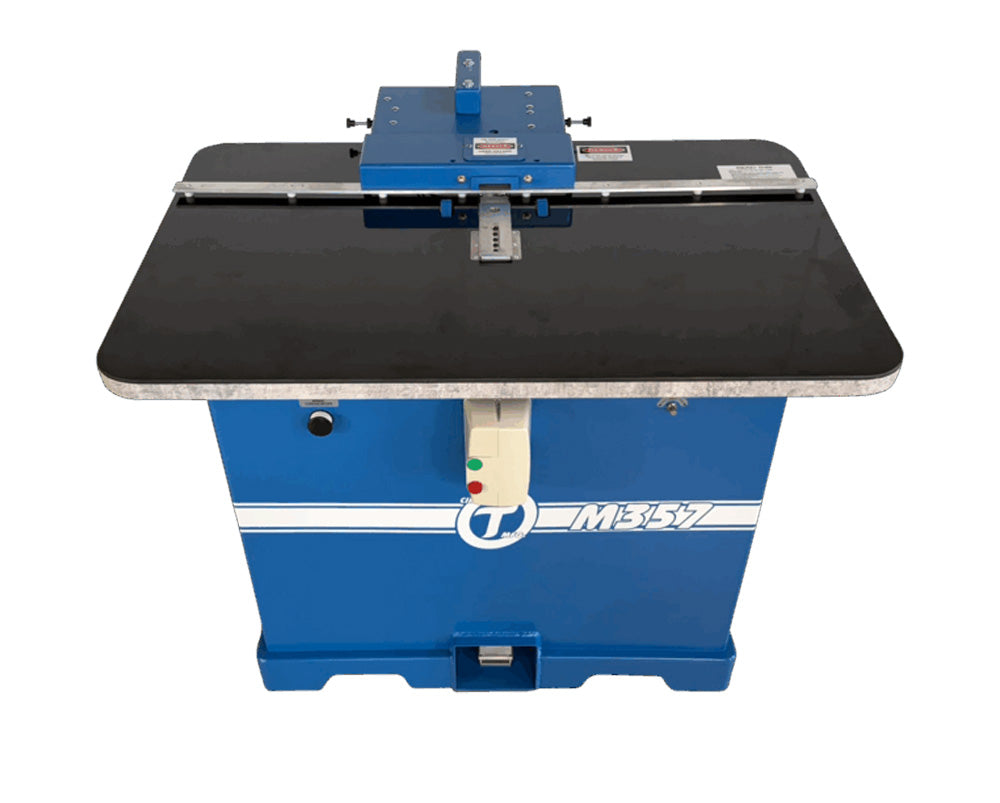

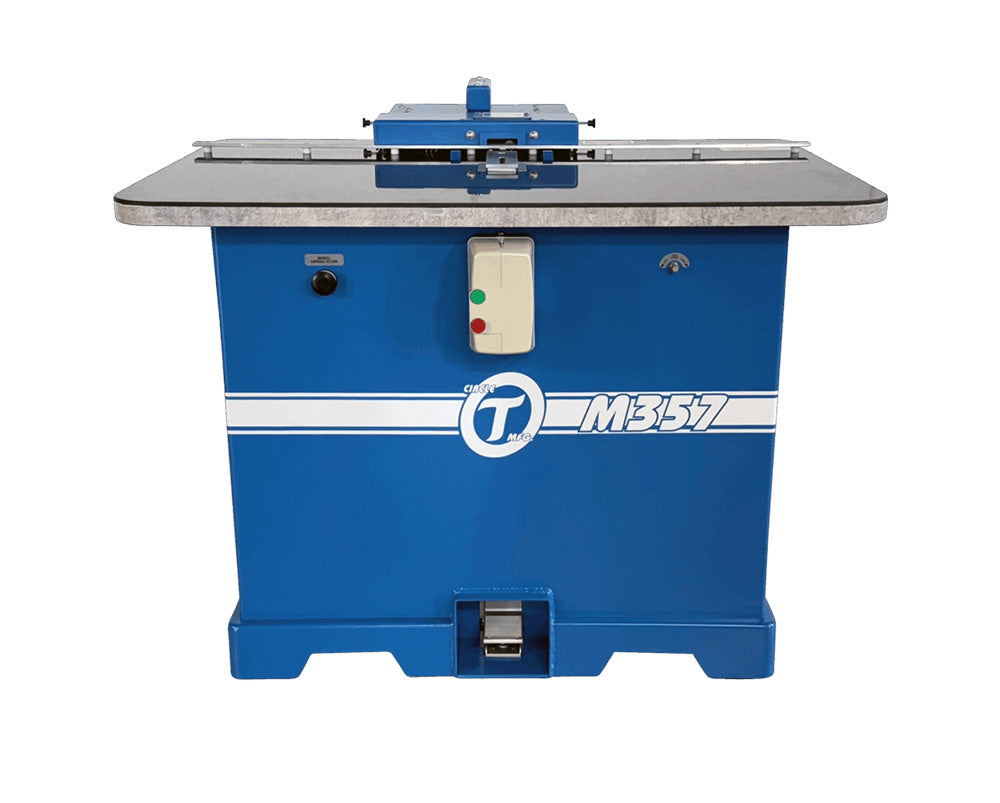

Circle T M357 Easy Drawer Notcher

EASY Controls + EASY Setup + EASY Drilling = EASY DRAWER NOTCHING!

• EASY Foot Pedal Cycle Start!
• EASY Notch and Drill Simultaneously!
• EASY Center Fence Drawer Box Alignment!
• HIGH WEAR RESISTANT Phenolic Top!
• FAST Operation = 10 Seconds per box!

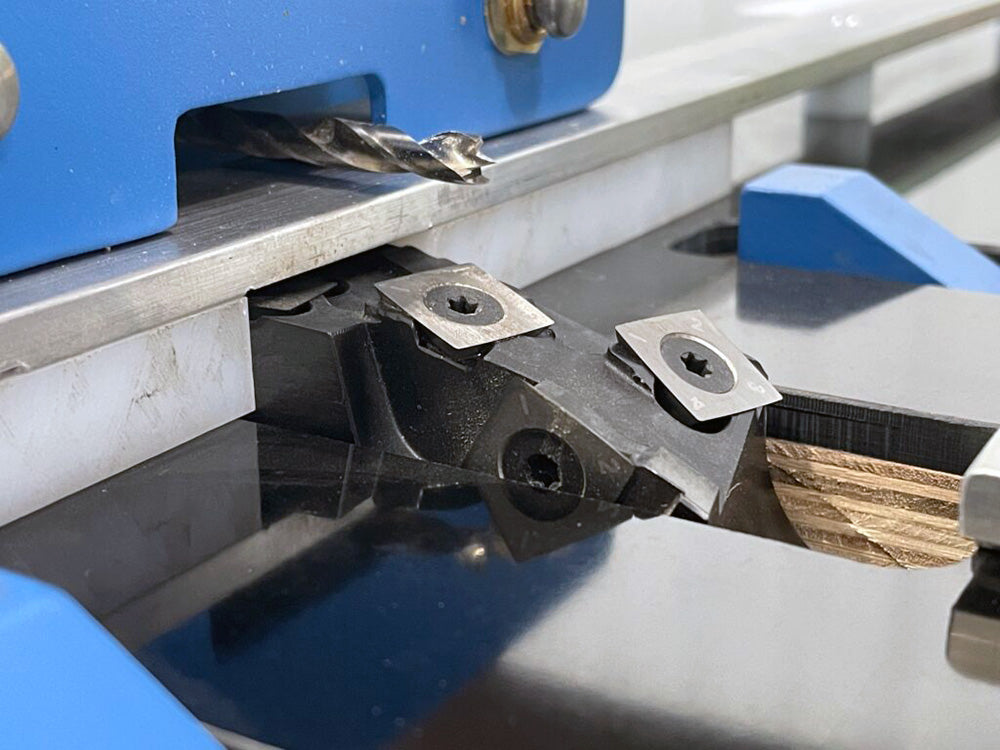

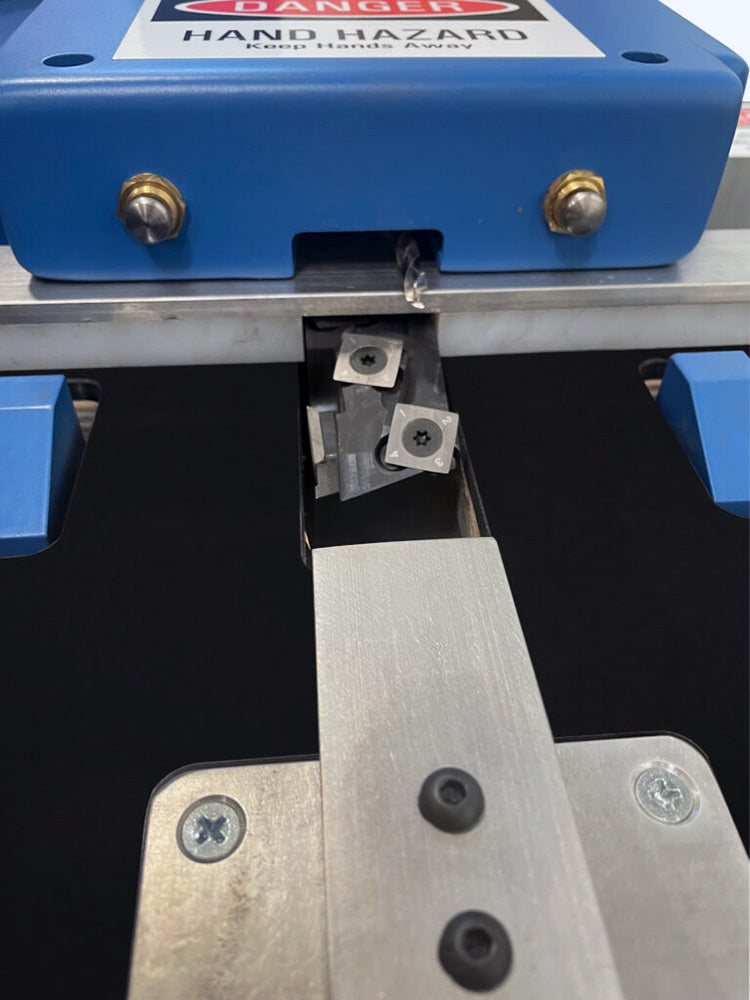

• INSERT Cutters!

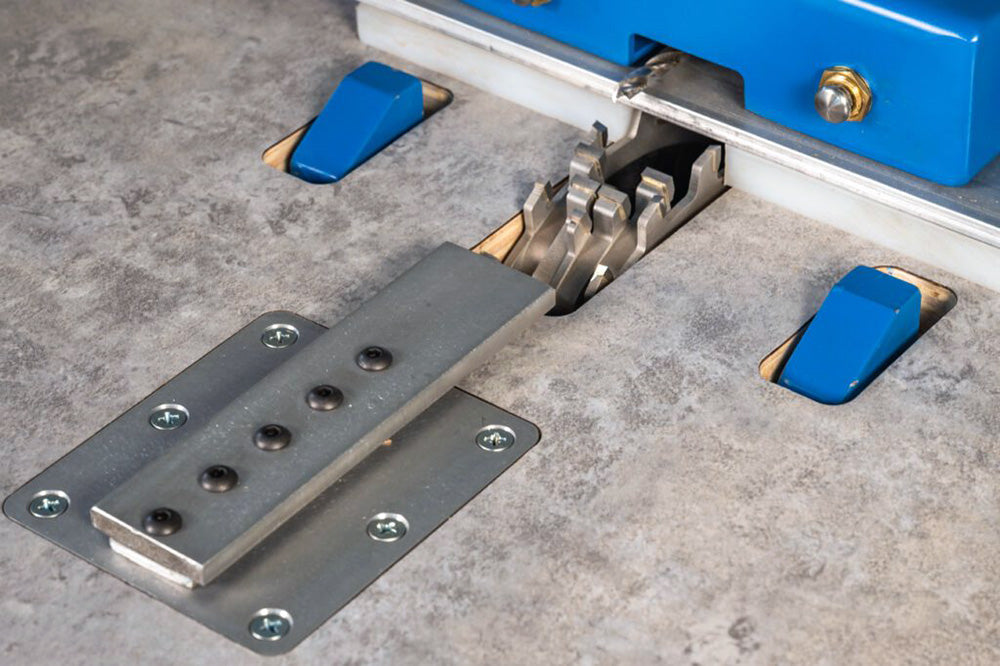

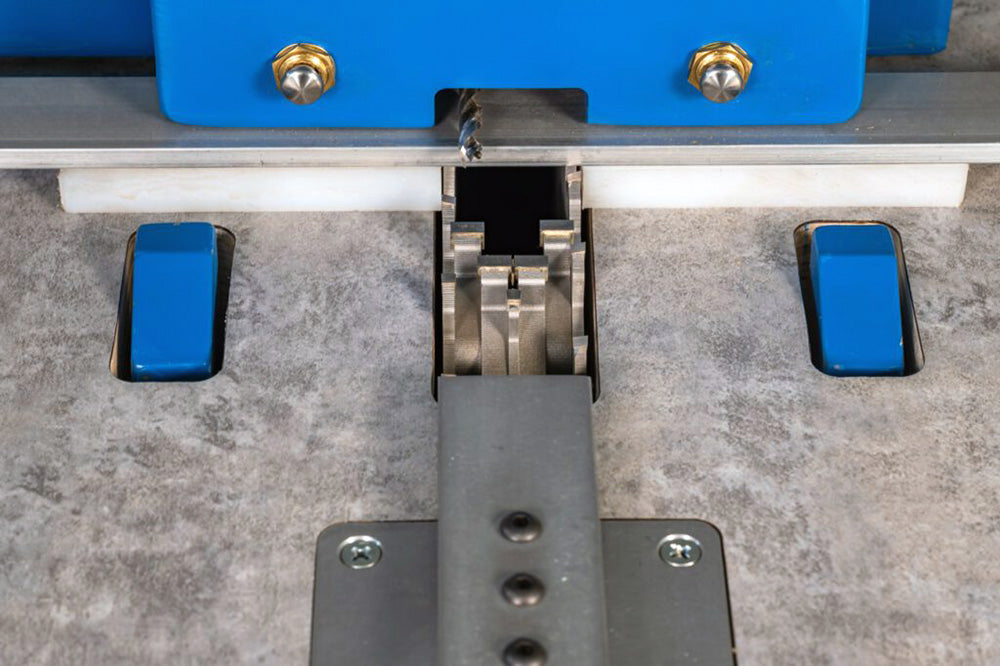

• SAFETY Drawer Clamps ensure drawer box does not move during cycle.
• SAFETY Switches ensure machine cannot cycle without a drawer present.
• SAFETY Retraction of cutter and drill between cycles

APPLICATION SPECIFICATIONS:
• Min Thickness of Drawer Box Back: 5/16"
• Max Thickness of Drawer Box Back: ¾"
• Min Width Inside of Drawer Box: 5 1/8"
• Min Length Inside of Drawer Box: 8 ¼"

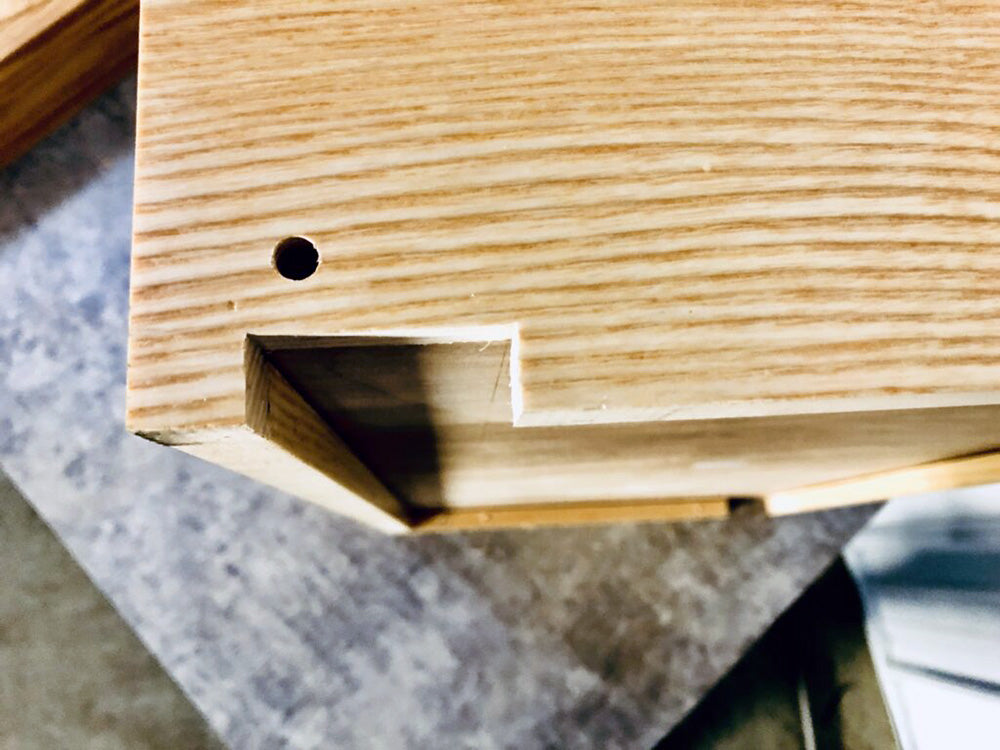

• Standard Notch Size 57mm (35mm and 51mm cutterheads also available for purchase)
• Standard Locating Hole Size 15/64"

DRIVE PACKAGE SPECIFICATIONS:
• Main Motor: 1.5 HP
• Pneumatic Drill Included
• 8" Insert Cutter
• Arbor Speed: 3,200 RPM
• Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Packages as well

UTILITY REQUIREMENTS
• Dust Collection Requirements: 670 CFM, 4" Outlet
• Electrical Version Pneumatic Requirement: 100 PSI, 6 CFM
• Pneumatic Version Requirement: 100 PSI, 76 CFM
• 20 AMP Disconnect at 110v 1ph
• 10 AMP Disconnect at 220v 1ph
• 6 AMP Disconnect at 230v 3ph
• 4 AMP Disconnect at 460v 3ph

DIMESION SPECIFICATIONS:
• Overall Table Size: 31.5" x 47.5"
• Table Operating Area: 21.75" x 47.5"
• Footprint: 52" W x 42" D X 42" H
• Shipping Dimensions: 52"L x 47"W x 39"H

SHIPPING WEIGHT: 650lbs
NET WEIGHT: 450lbs

Committed to Care, Quality, and Service
MADE IN THE U.S.A
