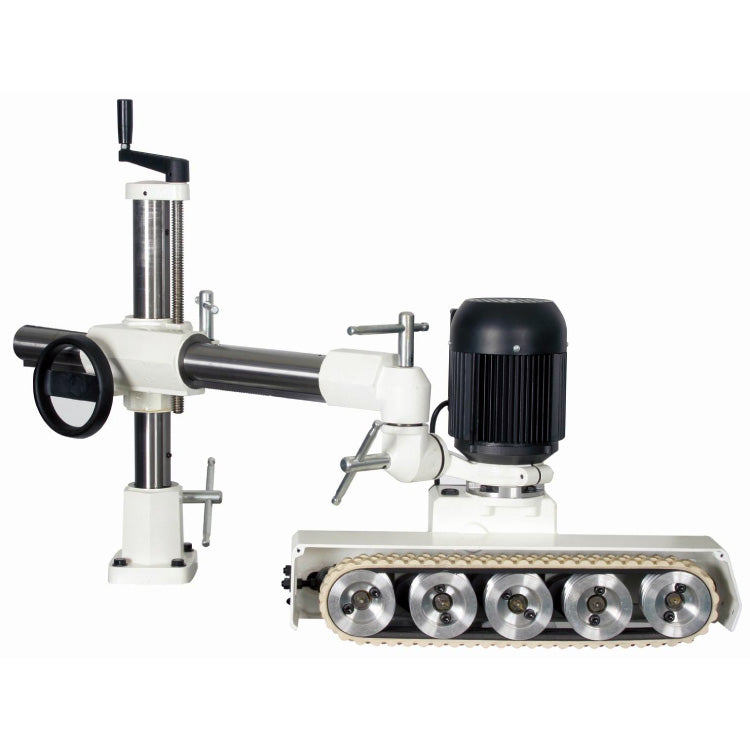

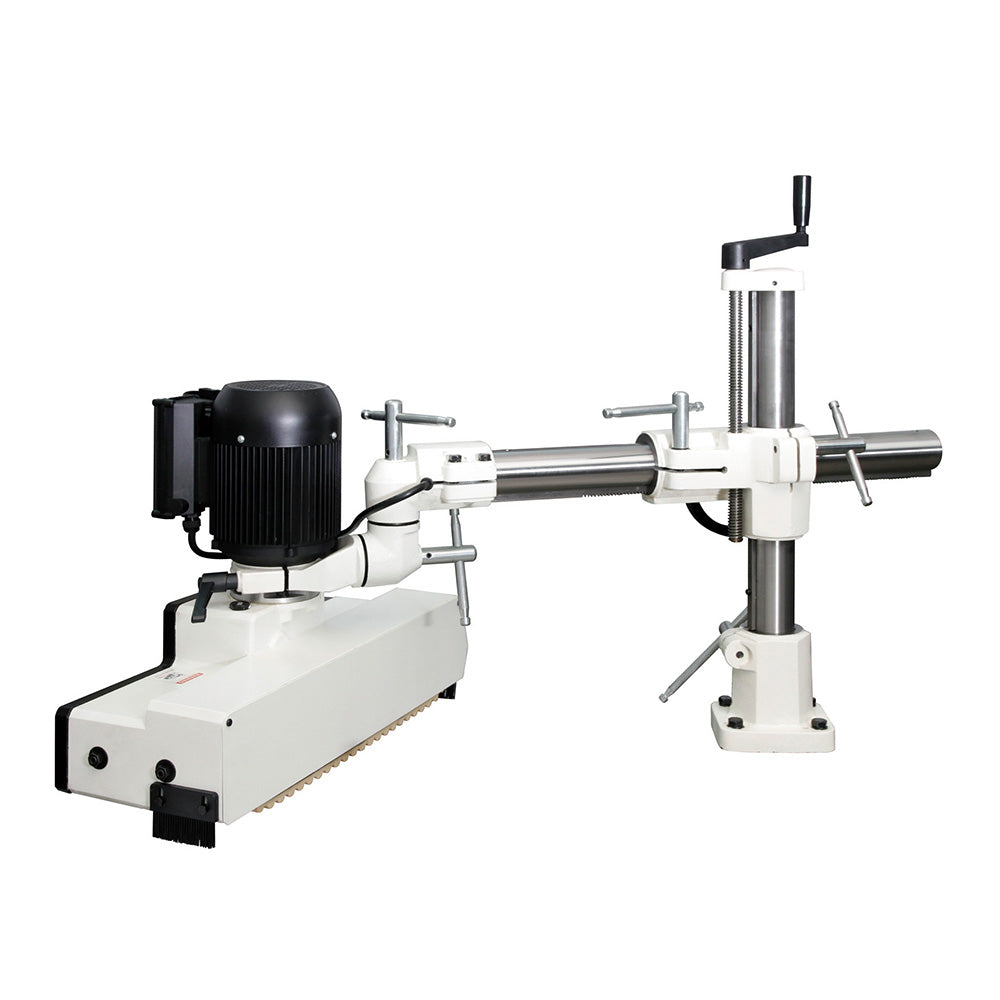

Co-Matic AF04-3-220 AF04 - 1HP 3phase 220V Track Power Feeder - 3 Belt Feeder
Co-Matic AF04-3-220 AF04 - 1HP 3phase 220V Track Power Feeder - 3 Belt Feeder is backordered and will ship as soon as it is back in stock.
The AF04 Track Feeder is specifically manufactured to feed small workpieces smoothly and efficiently that tend to wobble when ran through standard 3 and 4 wheel power feeders. The AF04 feeder may be mounted for use with a variety of wood machinery, the most common of which are shapers and table saws.
Heavy Duty Model
The Co-Matic AF04 Track Feeder can be adapted on many kinds of woodworking machines, the most common of which are shapers and table saws.
Made for Feeding Short Workpieces
The belts are designed to feed shorter parts while maintaining secure hold-down. Rollers are all spring loaded to maintain a constant pressure, with roller suspension up to 20mm (3/4″).
Feed Speed
Simply rearranging the drive gears, the Co-Matic AF04 Track Feeder provides the best speed options. Reverse feed is available via a selection switch.
Specifications
| Horsepower andamp; Rotation | 1 HP (0.75 KW), 1 or 3 phase; Forward / Reverse |
| Range of Speeds (50Hz)/(60Hz) | 4/8/10/20 M/min (13/26/33/66 FPM) |
| Optional Speeds (w/extra gear set) | 3/6/14/28 M/min (10/20/46/92 FPM) |
| Belts | 1118 x 12.7 mm x 3 pcs (44" x 1/2" x 3 pcs) / Synthetic Rubber |
| Rollers Suspension | 20mm (3/4") |
| Net Weight | 30 + 34 kg (66 + 75 lb) |
| Gross Weight | 32 + 36 kg (70 + 79 lb) |
| Packing Size | Body: 770 x 560 x 290 mm (30-3/8" x 22" x 11-1/2") Stand: 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2") |
