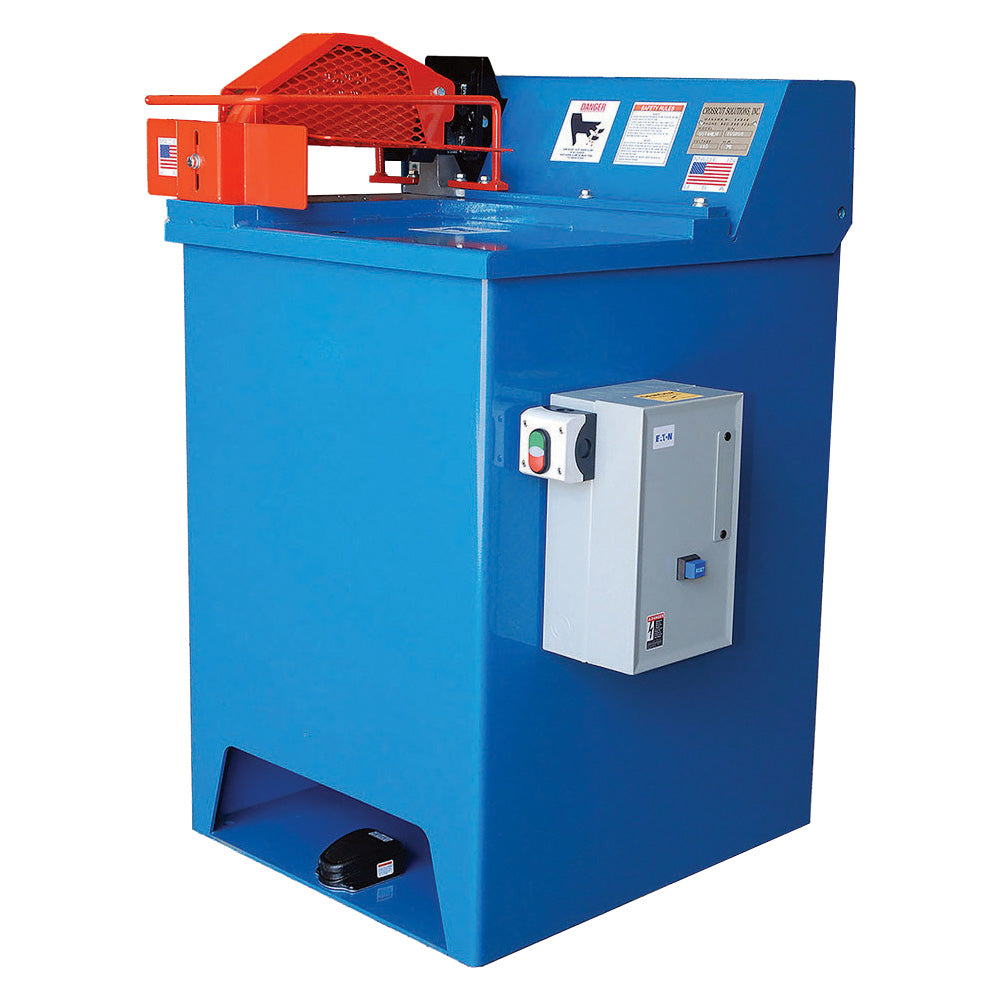

CS18P Pneumatic Cut-Off Saw
18" Pneumatic cut-off saw.
Quality top and bottom pneumatic cylinders cushion for a smooth operation plus a large rod diameter for years of dependable service.
Easily adjustable cycle speeds up to 90 strokes per minute.
Electrical foot switch, solenoid valve and reed switches replace air components to increase reliability while decreasing air consumption and maintenance cost.
• 2" x 12" capacity
• Powerful 7.5 HP TEFC motor (230/460V, 3-phase, 60 Hz) comes standard.
• 20/10 Amps
• Standard cycle speed of 90 cycles/minute

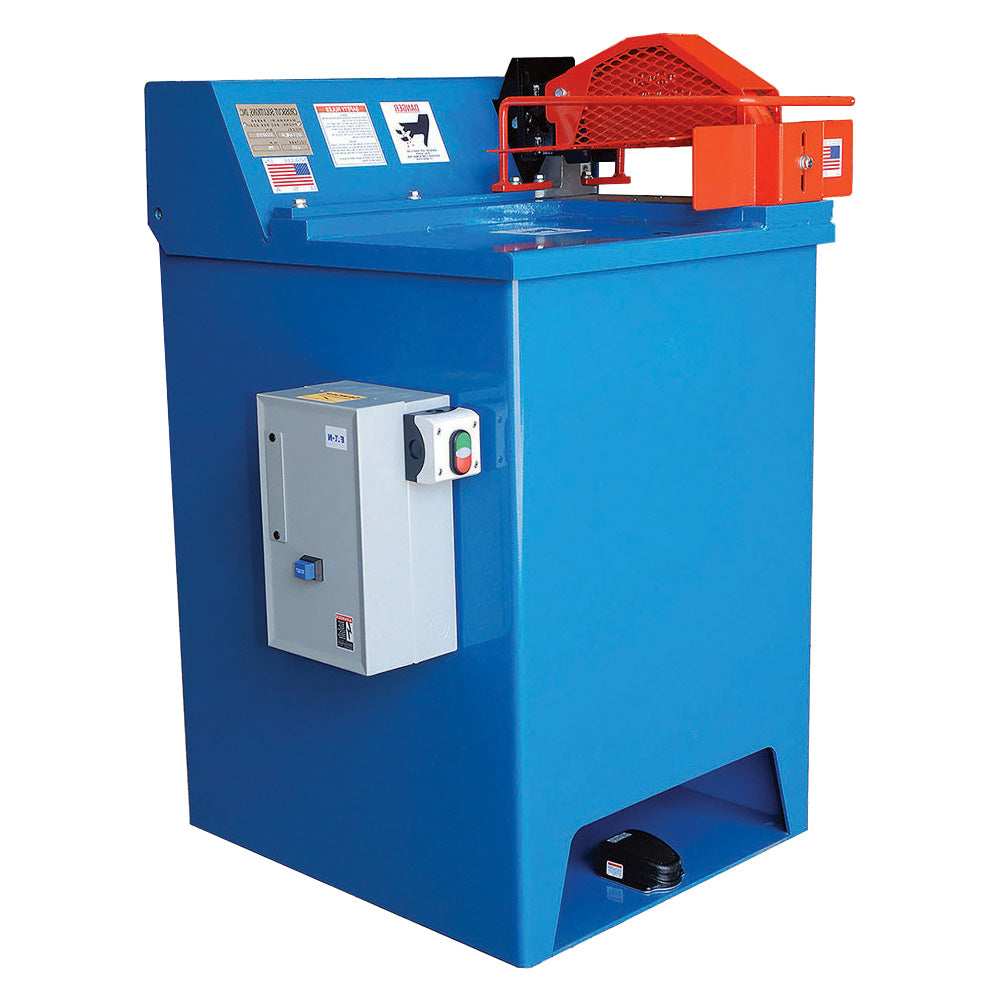

• Available in right or left hand.
• Arbor belts can be quickly replaced without affecting the arbor or bearings.
• 18" saw blade not included.
• Heavy duty frame - ¼" thick steel
• Heavy duty hold down adjustment
• Heavy duty aluminum saw guard
• Heavy duty arbor weldment will stabilize the saw to product a smooth and accurate cut.
• Mechanical clutch offers a smooth cutting action
Starter sized to be used with either 208, 230, or 460 volt 3 phase. A simple turn of the overload dial and a wire change in the motor is all that is needed for voltage modification.
Request a Quote
Enter your email and submit a request for a quote for the
Highland Article #: CS18P
CS18P Pneumatic Cut-Off Saw
