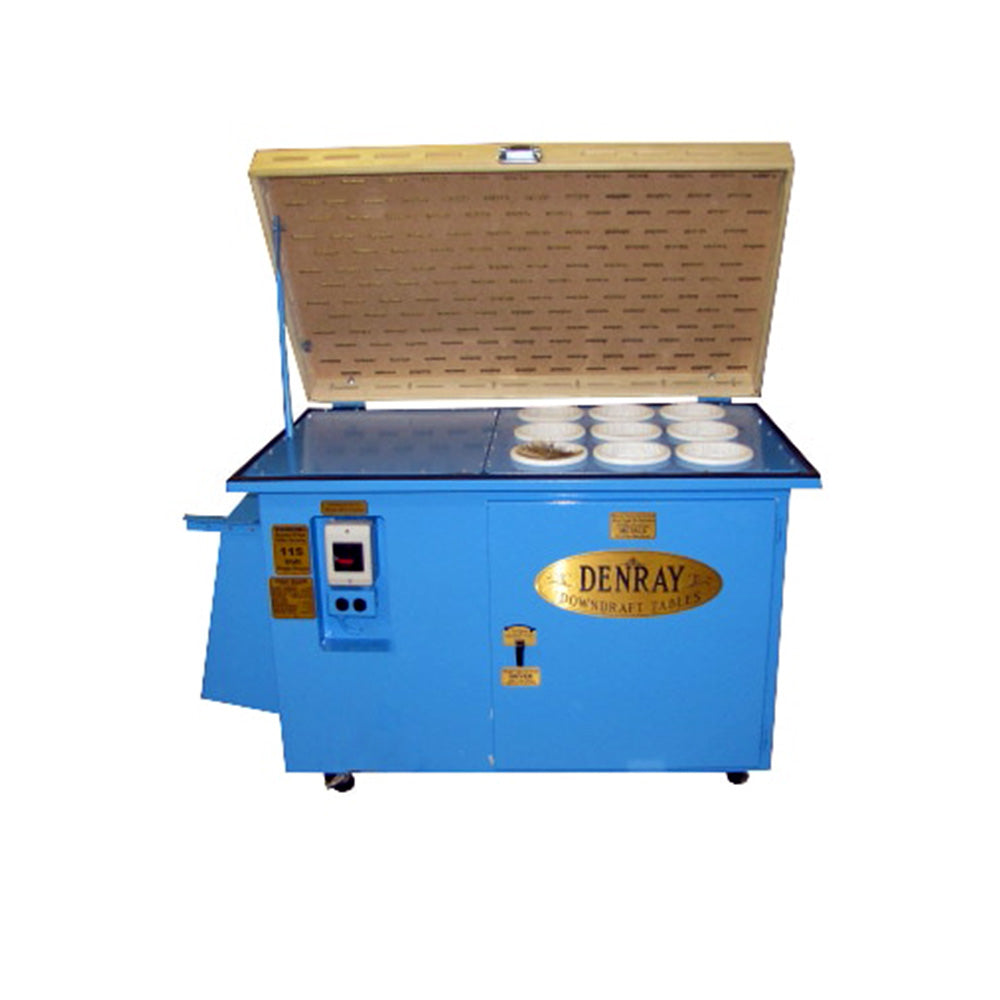

Denray Model 2800 Tube Filtration Downdraft Table

This model is ideal for sanding wood dust. The 2800 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood dust applications. This model comes standard with a filter brush/handle for manually cleaning the filters, casters, and a rubber coated top.

Product Information
• 28" x 48"
• 36" Height
• 400 lbs
• 1.5 HP Motor (1PH)
• 2 HP Motor (3PH)
• 15" Fan
• 2800 CFM
• 70 Decibels Sound Level
• 9 Tube Filters
• Casters
• 1 Receptacle (1PH)

Phase/Voltage Options

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE plastic tabletop
• Larger Motor/Fan Upgrade
