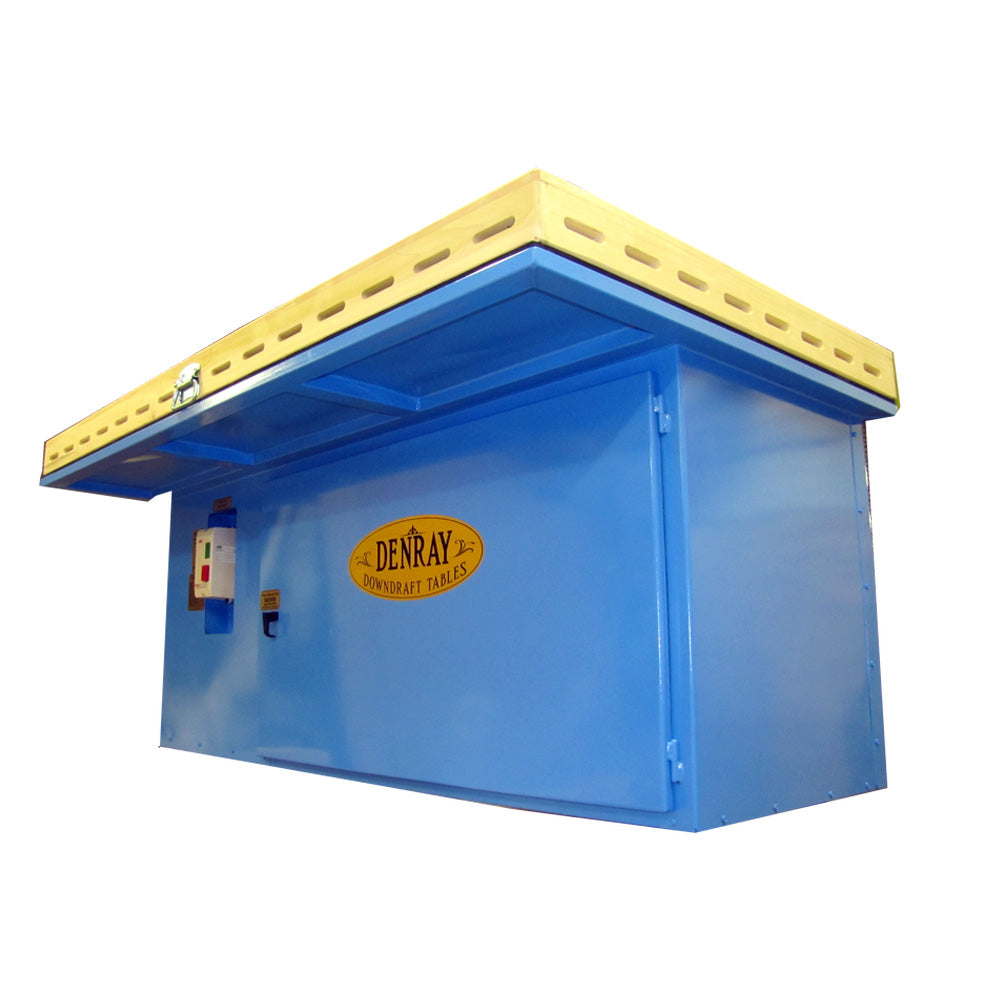

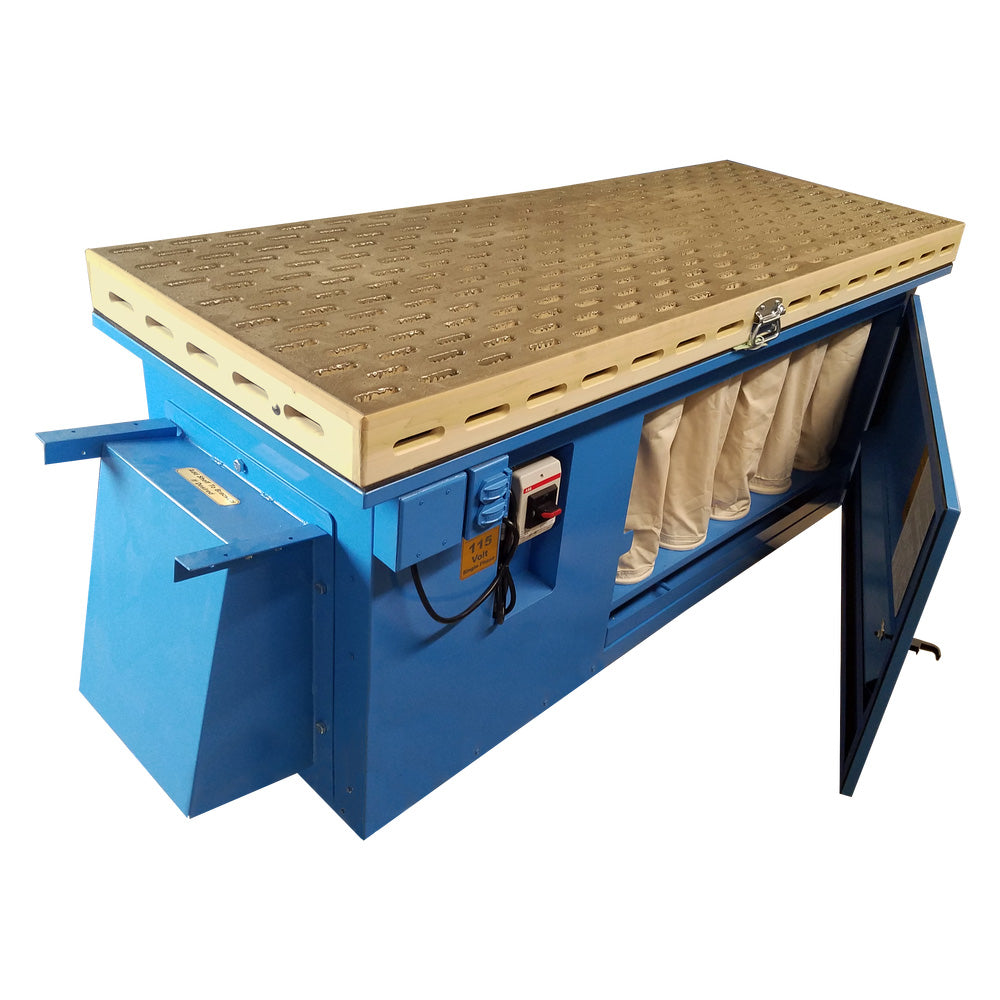

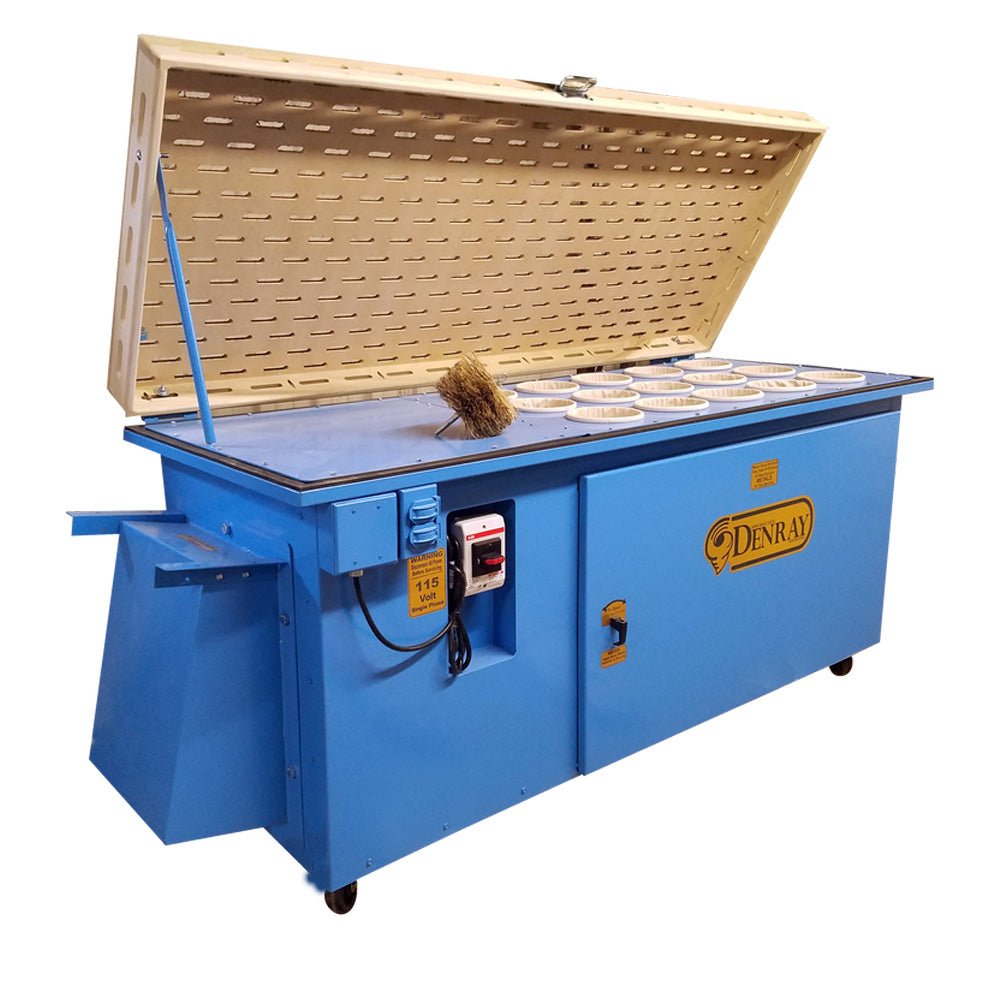

Denray Model 2872 Tube Filtration Downdraft Table

This model is great for medium sized jobs and can is ideal for working with wood dust. The 2872 comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood applications. This model also comes standard with filter brush/handle for manually cleaning filters, casters, and a rubber coated top.

Product Information
28" x 72"
36" Height
​460 lbs
2HP Motor
​16.5" Fan
3400 CFM
77 Decibels Sound Level
15 Tube Filters
Casters
1 Receptacle (1 PH)

Phase/Voltage Options

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE plastic tabletop
• Larger Motor/Fan Upgrade
