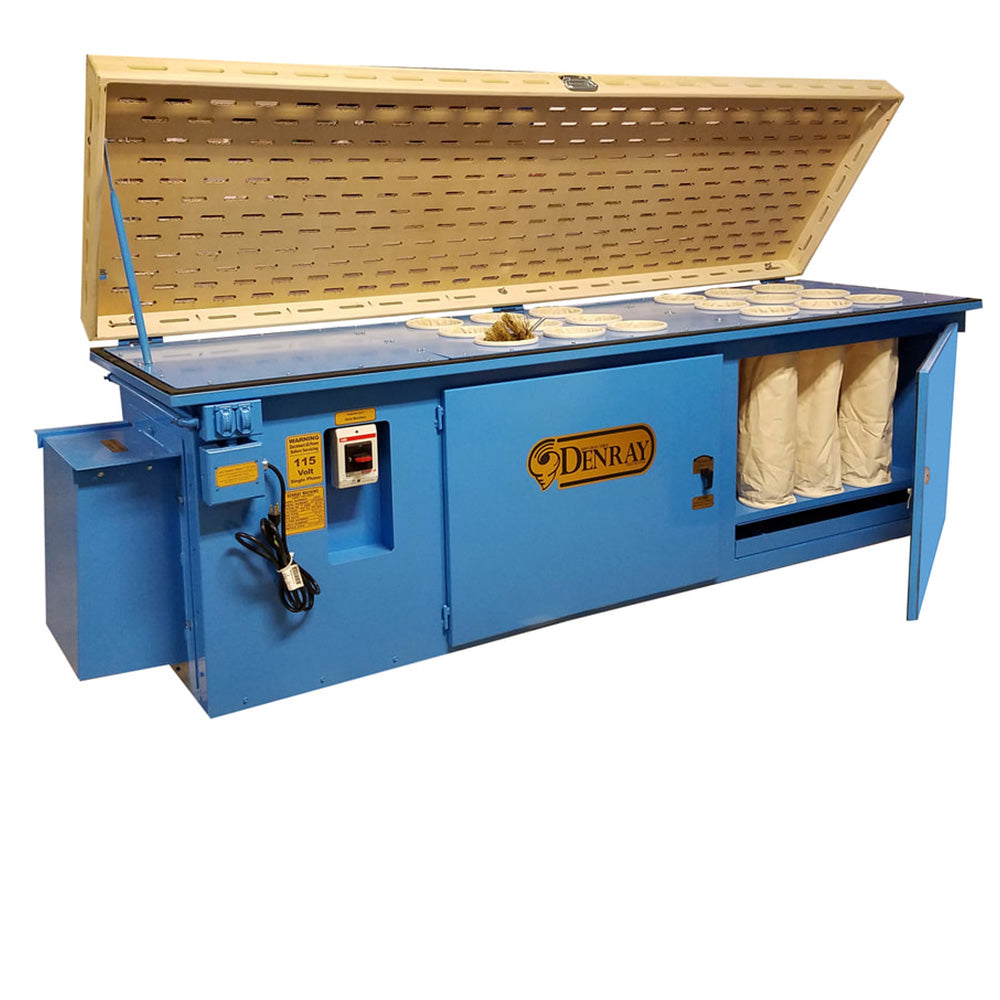

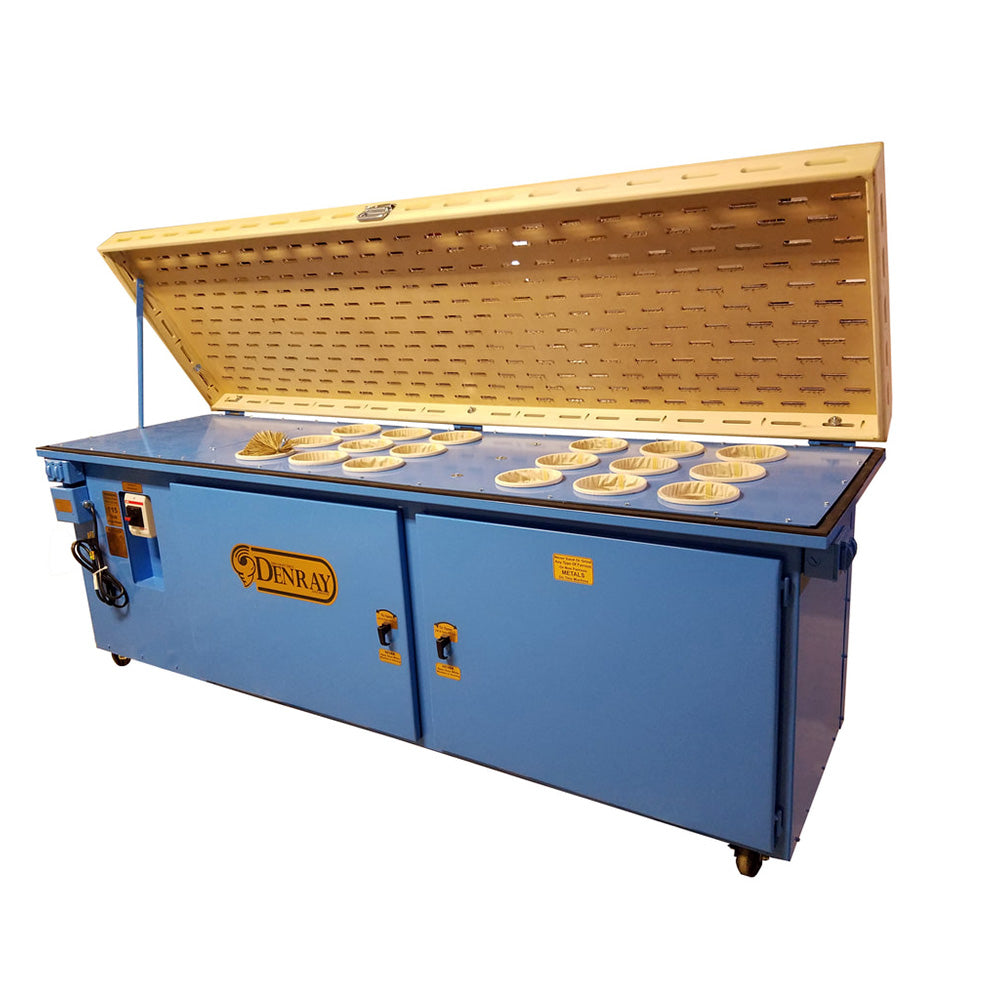

Denray Model 2896 Tube Filtration Downdraft Table

This model is ideal for medium sized jobs, and is ideal for sanding wood dust. The 2896 comes with tube filtration system which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood and many other airborne dust applications. This model also comes standard with a filter brush/handle for manually cleaning the filters, casters and a rubber coated top.

Product Information
• 28" x 96"
• 36" Height
• ​650 lbs
• 2HP Motor
• 16.5" Fan
• 3500 CFM
• 78 Decibels Sound Level
​• 18 Tube Filters
• Casters
• 1 Receptacle (1 PH)

Phase/Voltage Options

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE plastic tabletop
• Larger Motor/Fan Upgrade
