Denray Model 3444B Super Cartridge Filtration Downdraft Table

This model is similar to the 3444B, but contains a larger fan and motor, along with our typical rails and tops found on our larger tables. There are no intake dust ports or vise due to these modifications. The 3444B Super comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with casters, Denray's "Jet Pulse" push button cleaning, and a rubber coated top. This model does provide the option of a tilt out front edge as an add-on.

Product Information
• 34" x 44"
• 27", 31.5", 32", 37" Height (Four height options the operator can choose from in facility)
• 400 lbs
• 2 HP Motor
• 16.5" Fan
• 3000 CFM
• 70 Decibels Sound Level
• Caster/Leg Combo Kit

Phase/Voltage

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Tilt out front edge
• 7" Working Vice
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Auto-Timer
• Muffler (reduces sound level 10-12 dbs)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade

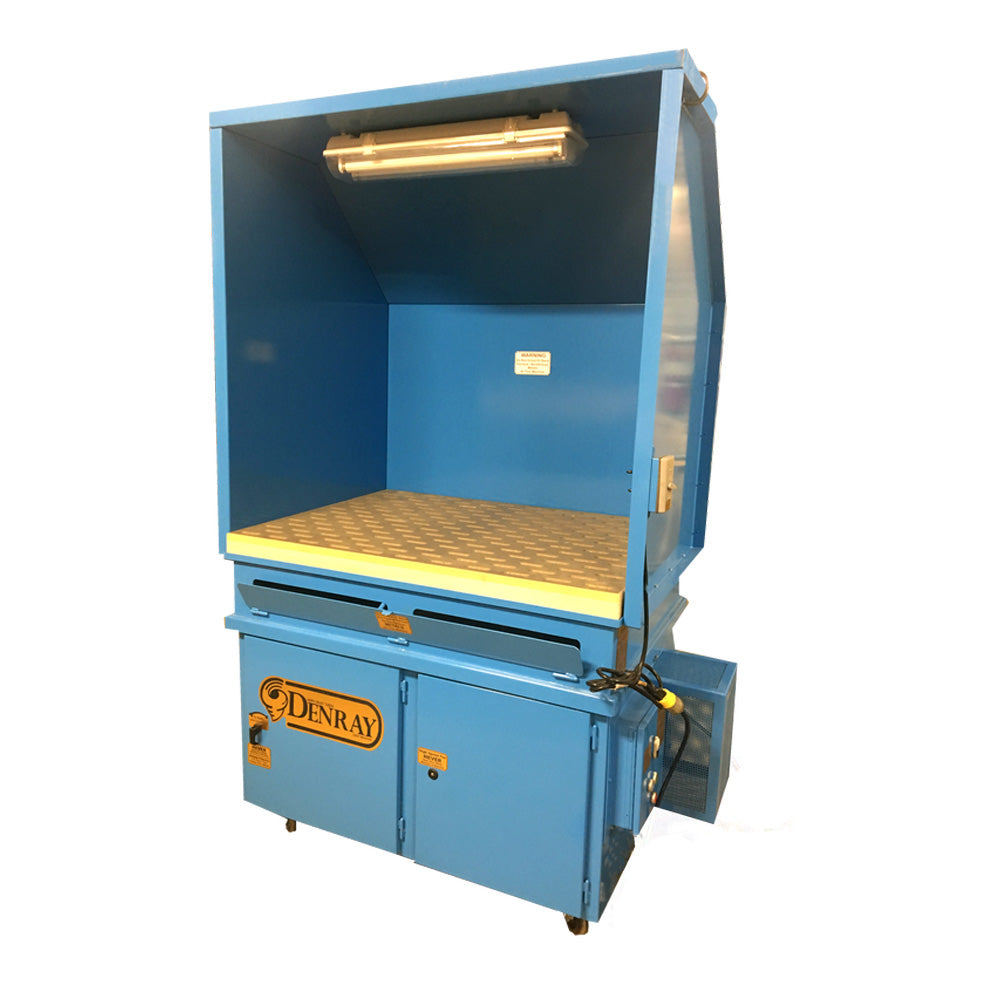

Last image shown with optional hood, light bar, and tilt-out front edge
