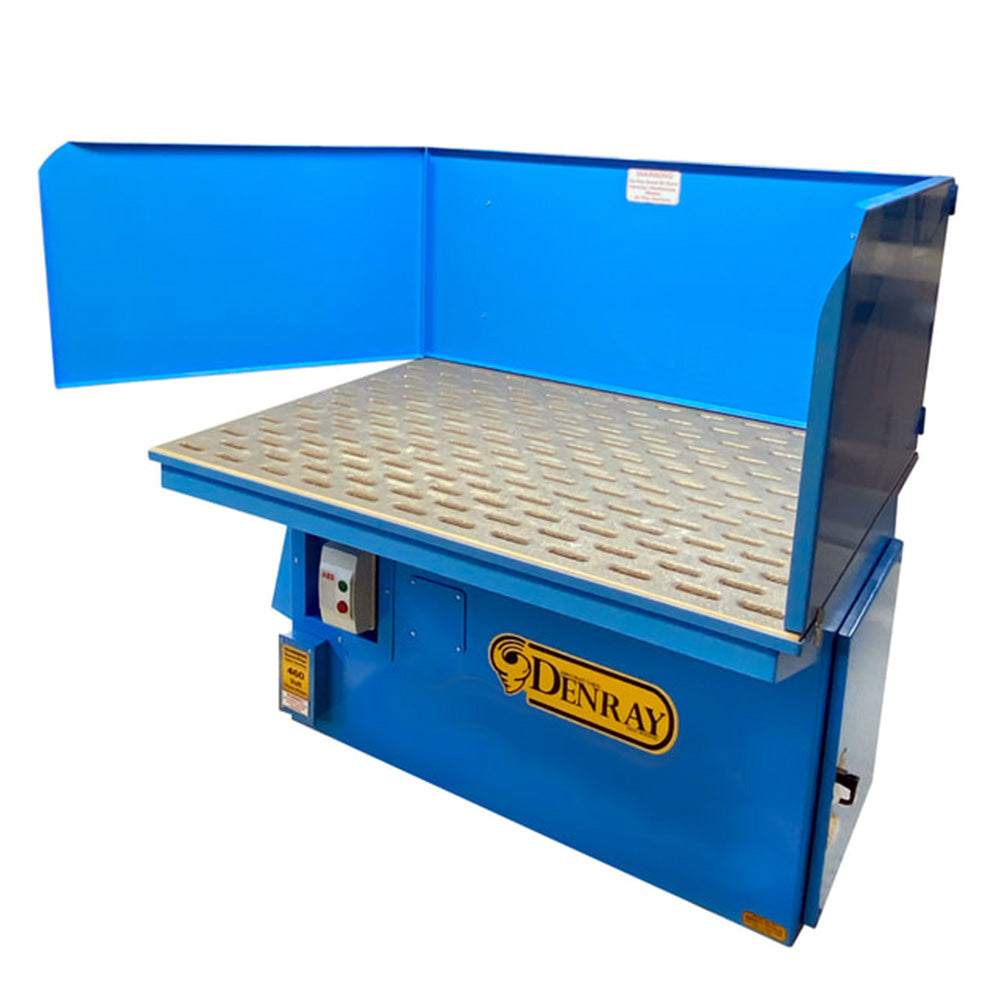

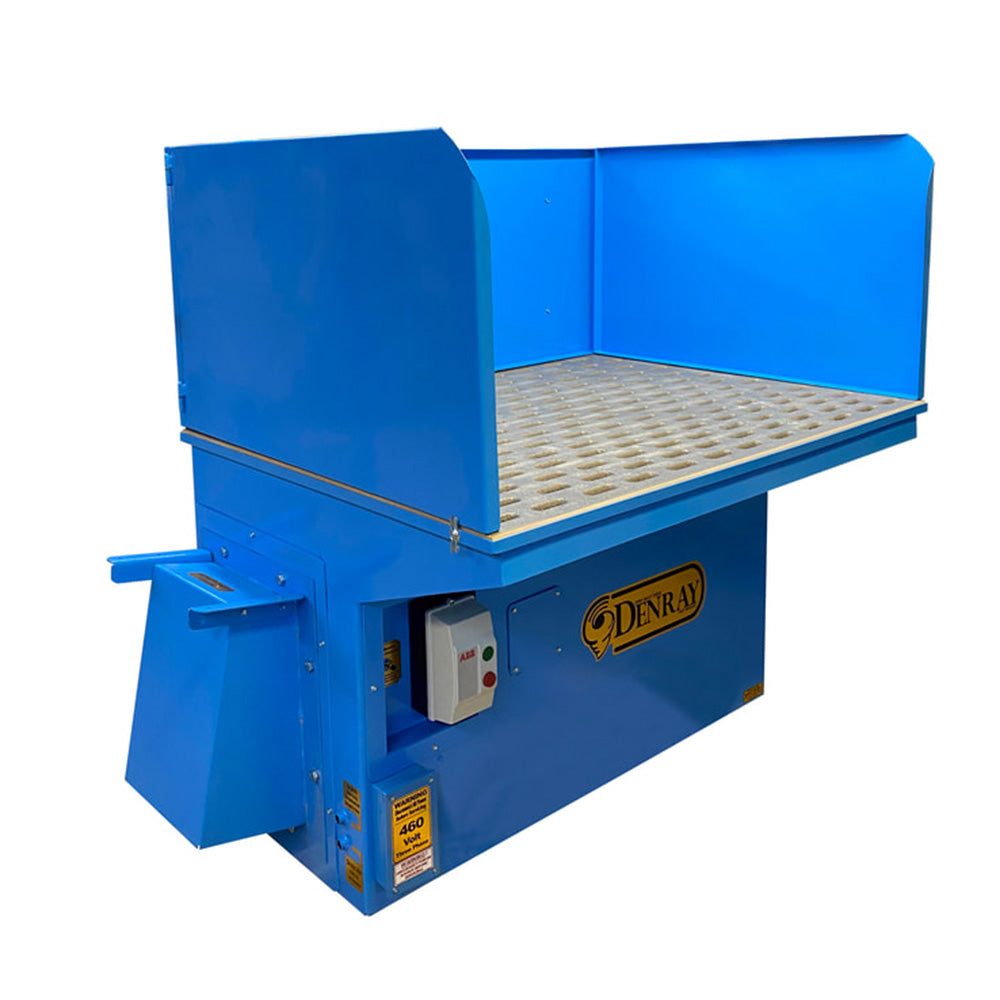

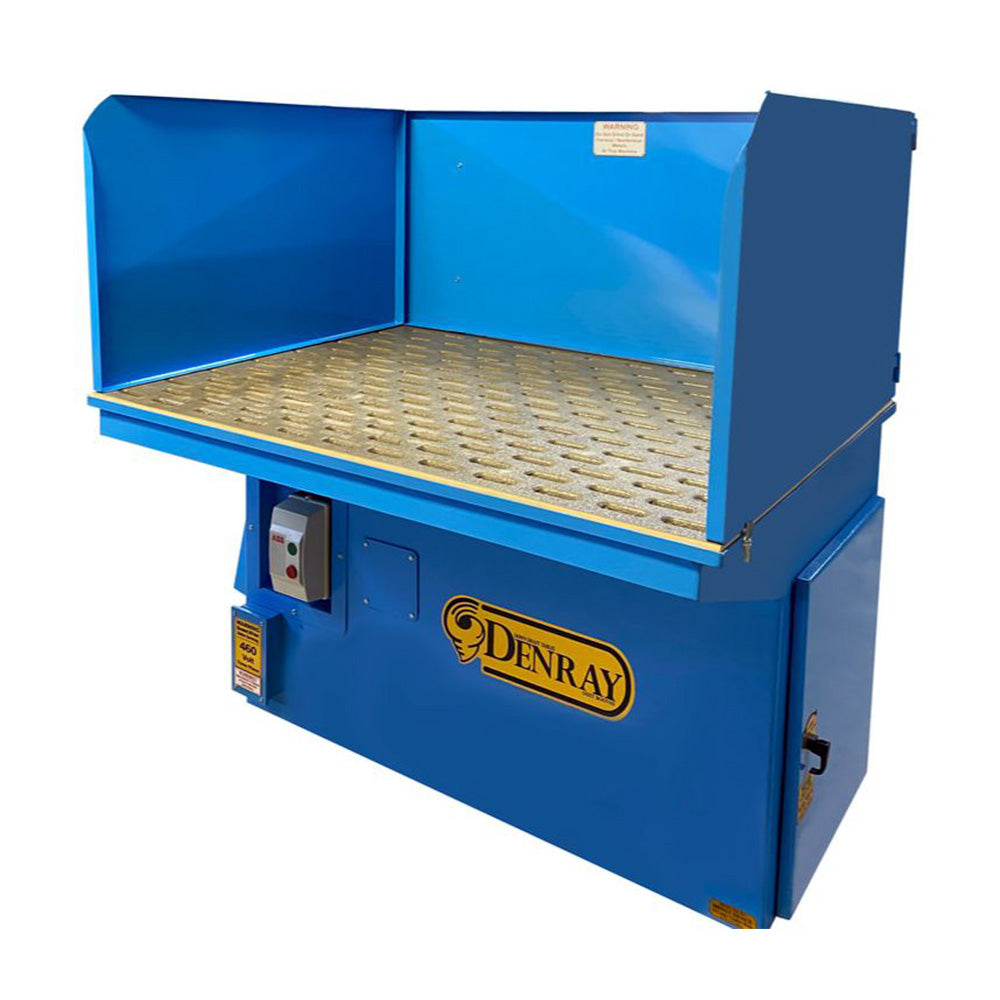

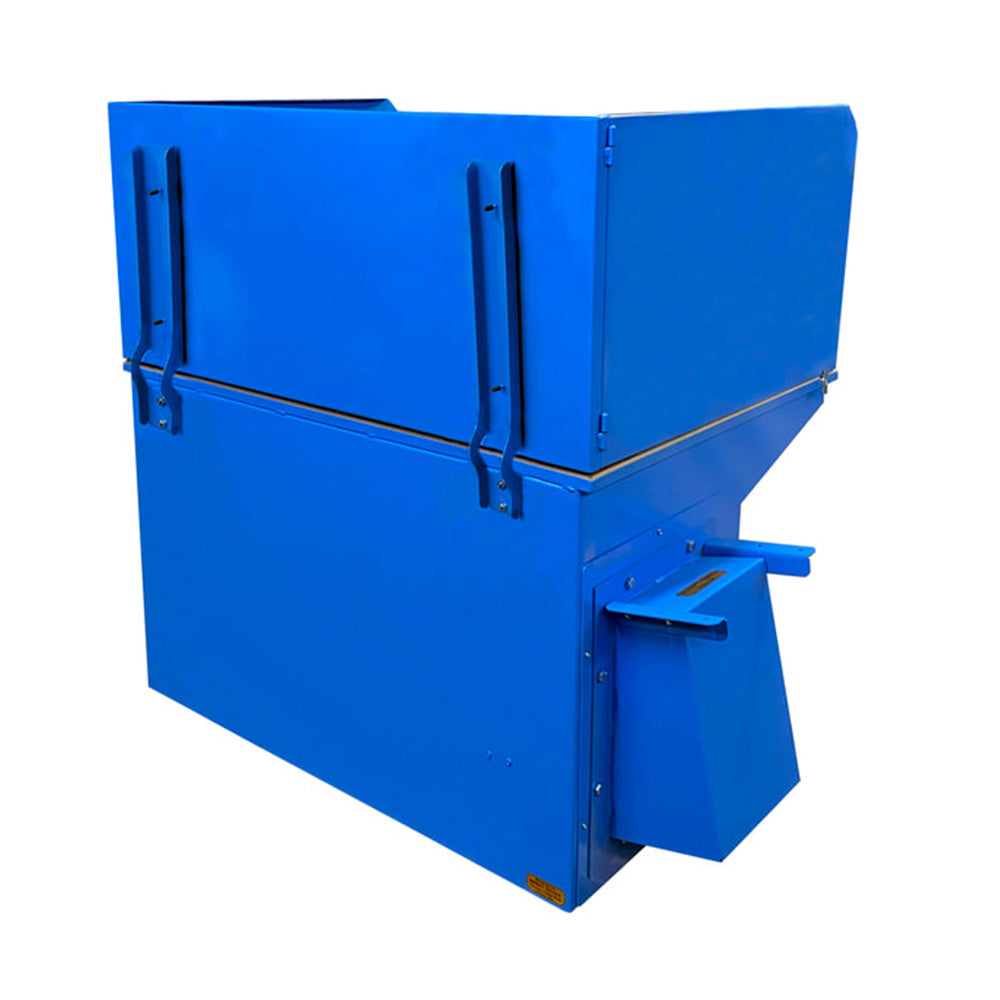

Denray Model 3648SD (Sit Down) Cartridge Filtration Downdraft Table

This model is perfect for small shops, accommodating situations where sitting is preferred. Complete with Denray "Jet Pulse" push–button cleaning, the 3648SD comes with 80/20 cartridge filter that cleans at 99.95% capture rate at .5 micron efficiency. This model comes standard with casters, rubber coated top, and three sided 20" safety shield.

Product Information
• 36" x 48"
• 34" Height
• 530 lbs
• 1.5 HP Motor (1 PH)
• 2 HP Motor (3 PH)
• 15" Fan
• 2400 CFM
• 65 Decibels Sound Level
• Casters

Phase/Voltage Options

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Auto-timer
• Muffler (reduces sound level 10-12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade
