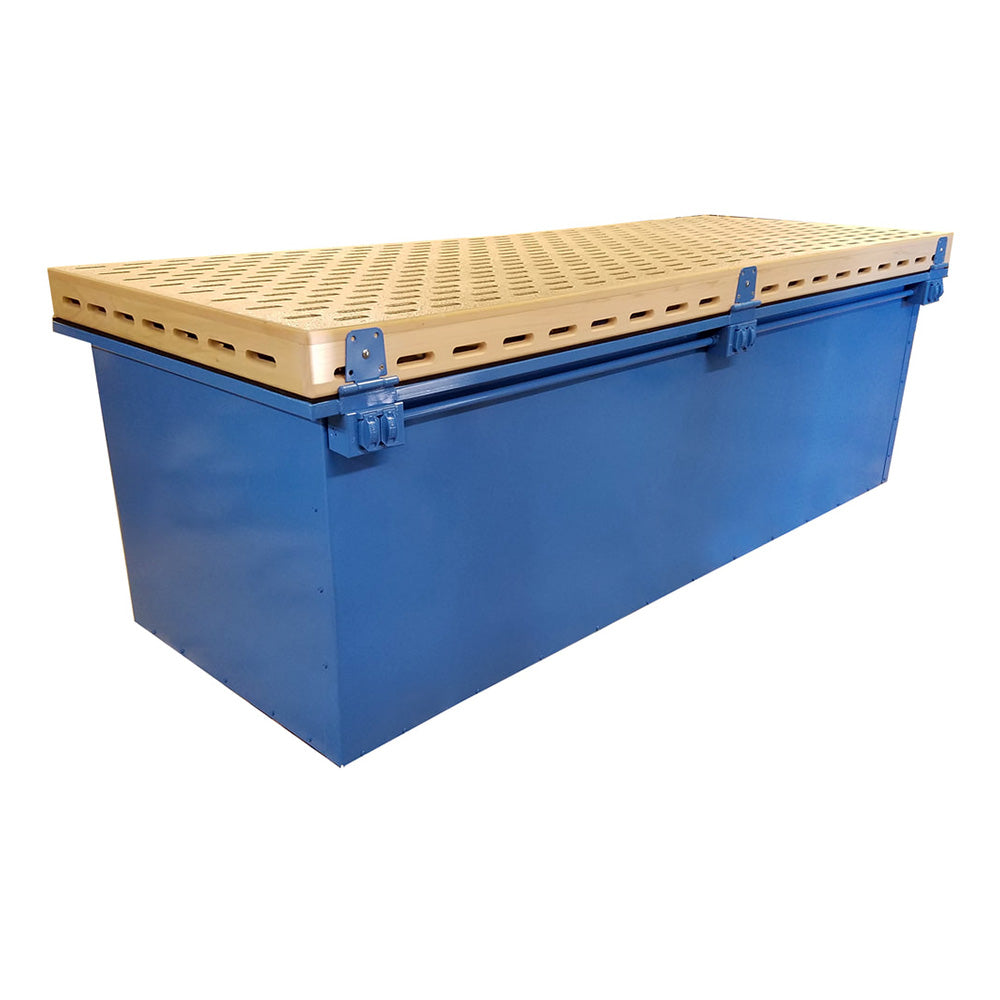

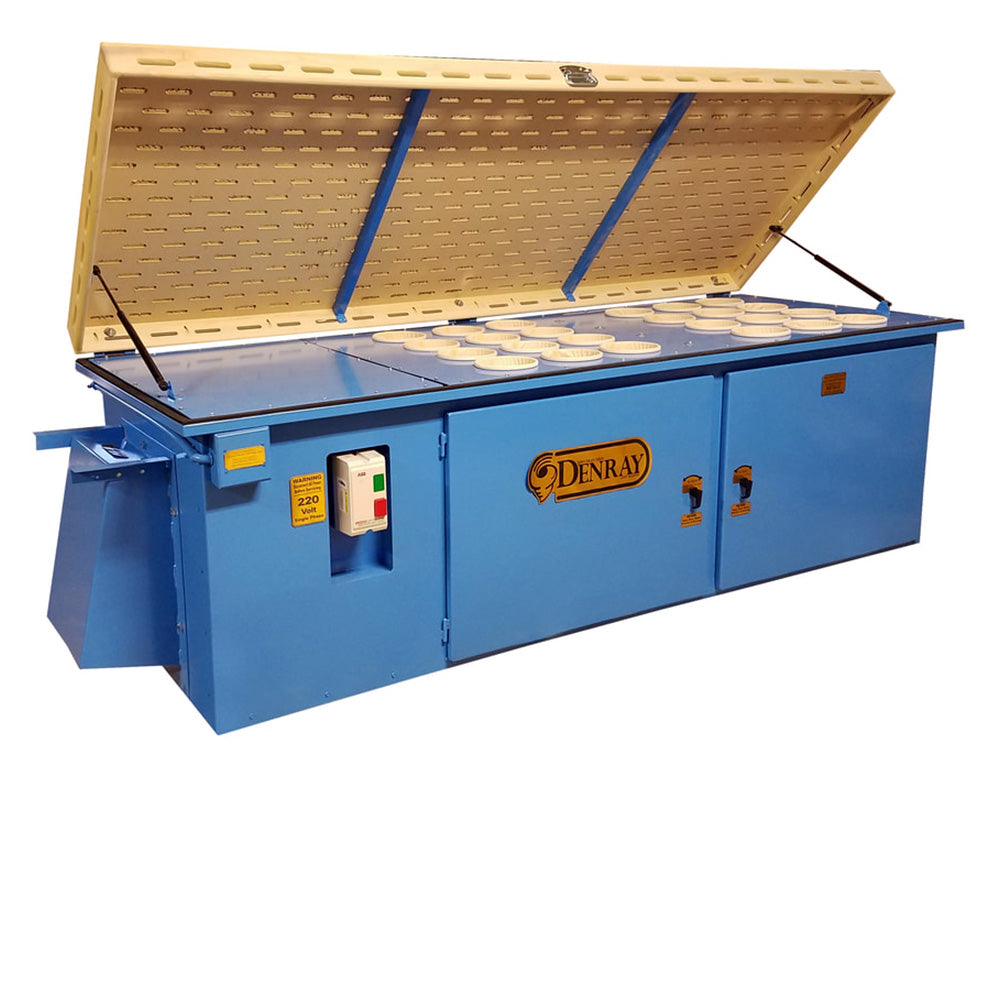

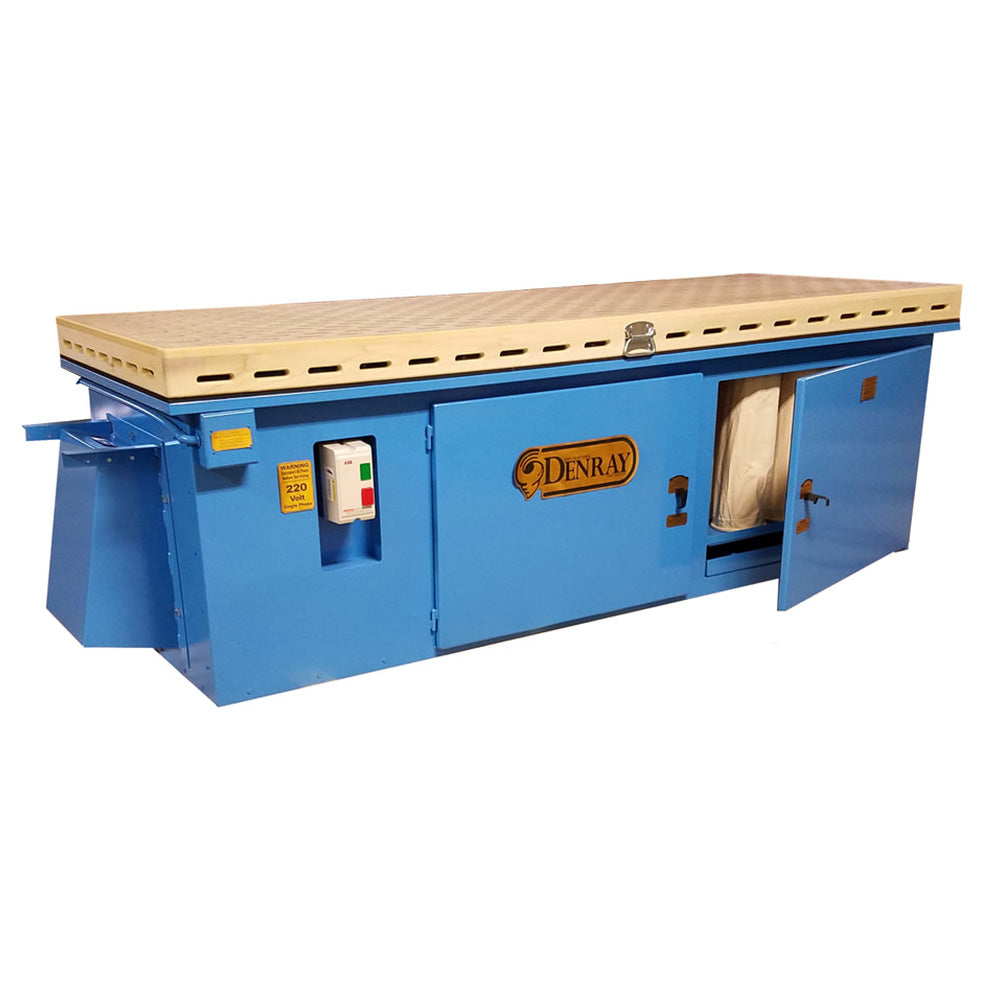

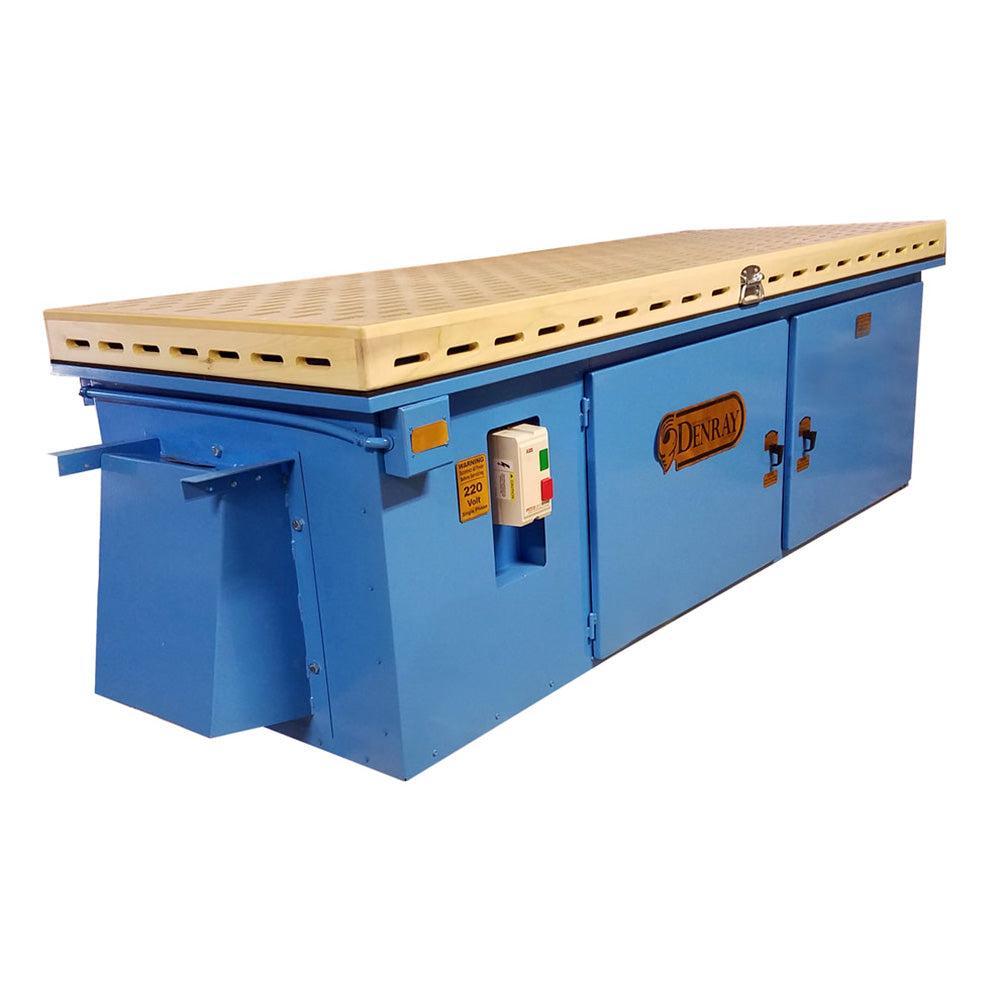

Denray Model 3696 Tube Filtration Downdraft Table

This model is great for medium sized jobs and is ideal for wood dust. The 3696 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood applications. This model also comes standard with filter cleaner brush/handle, casters, and a rubber coated top.

Product Information
• 36" x 96"
• 36" Height
• 750 lbs
• 2 HP Motor
• 16.5" Fan
• 3800 CFM
• 78 Decibels Sound Level
• 24 Tube Filters
• Casters
• 4 Receptacles

Phase/Voltage Options

SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE plastic tabletop
• Larger Motor/Fan Upgrade
