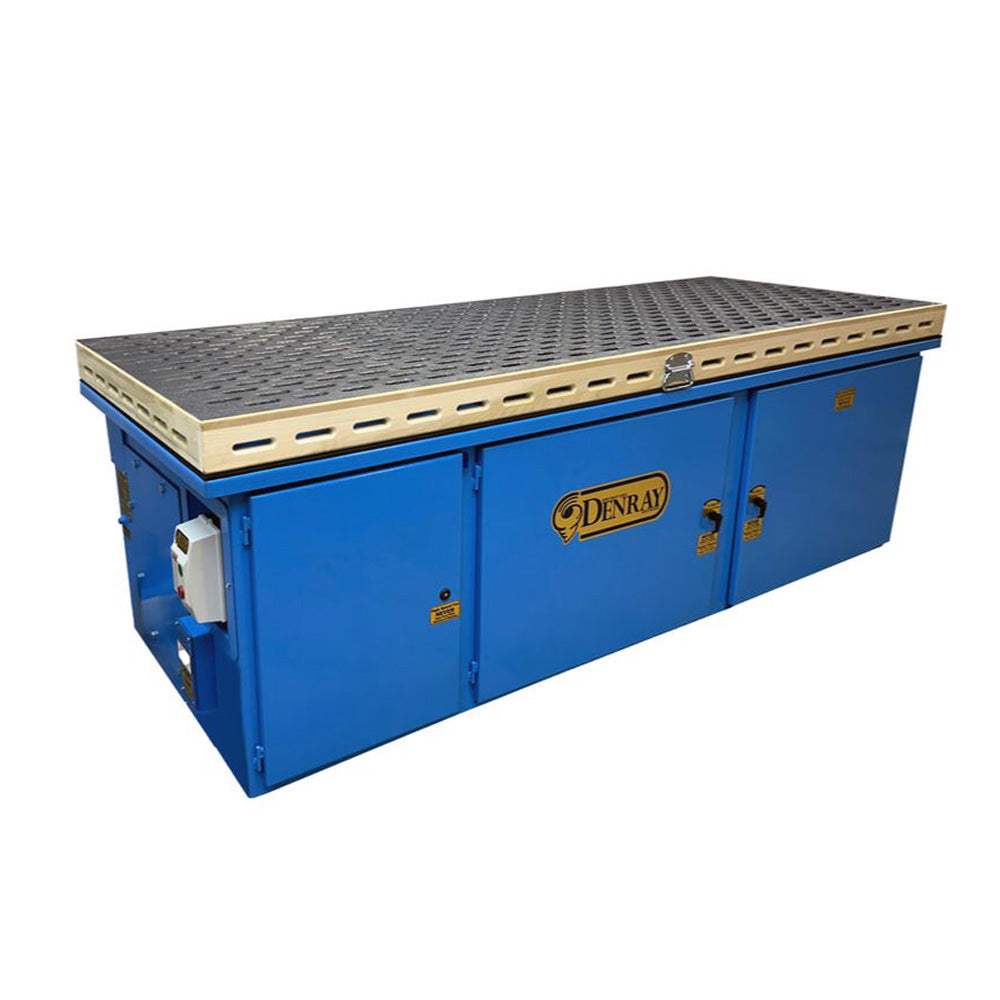

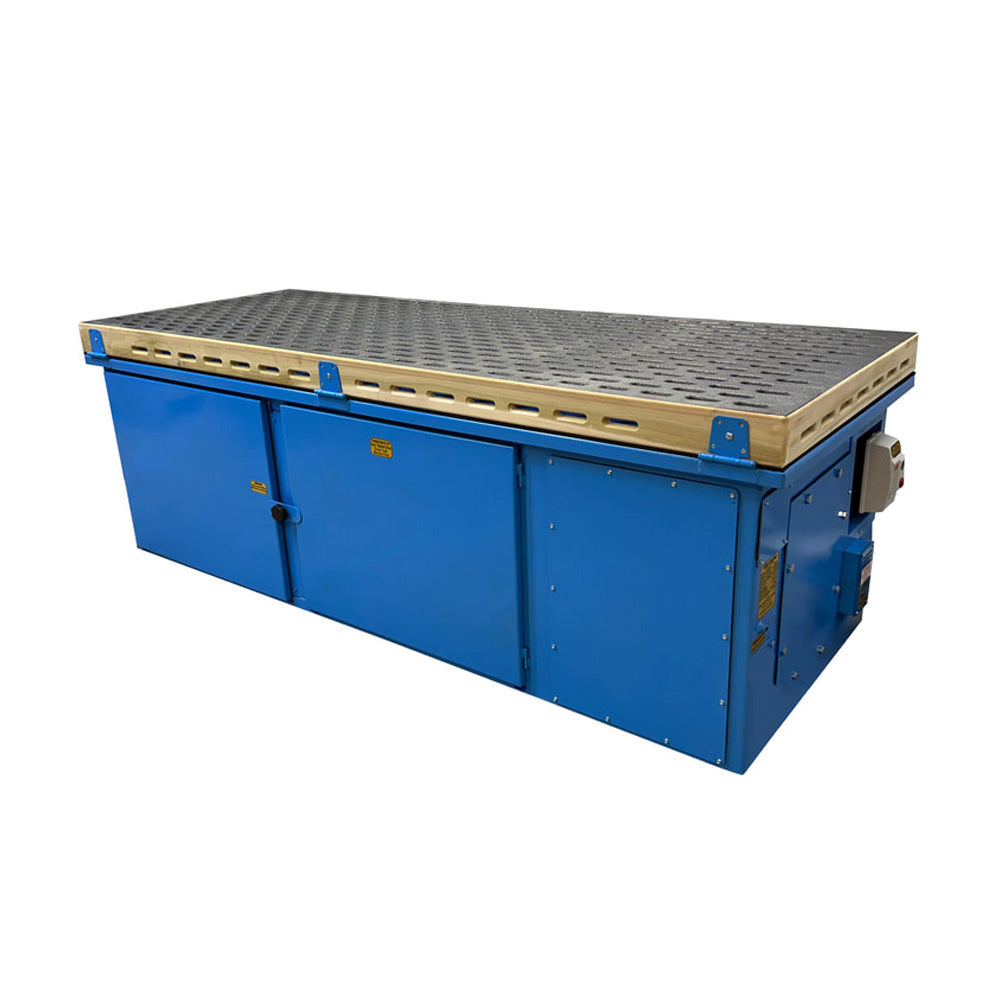

Denray Model 3696B Cartridge Filtration Downdraft Table

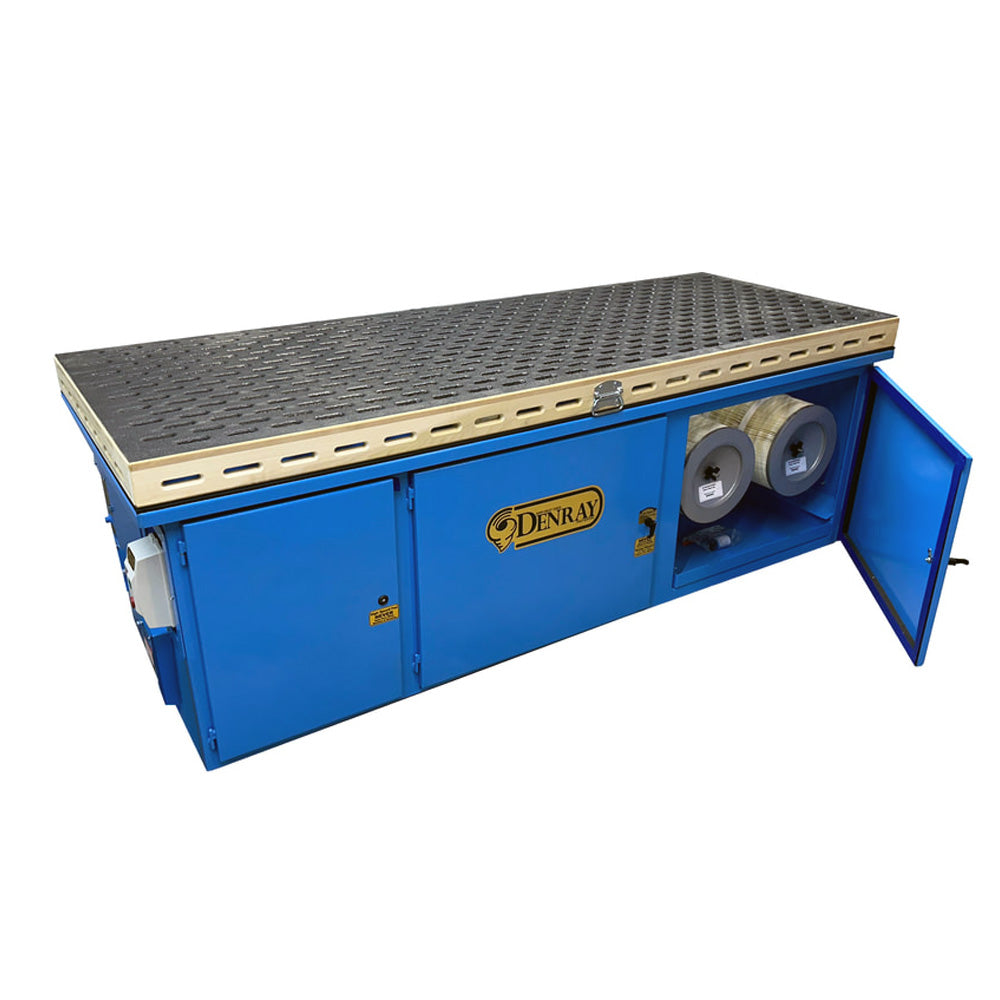

This model is ideal for medium and large sized jobs and is accommodating for two or three jobs going on at the same time on the same table. The 3696B is one of the larger tables in Denray's push–button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron, along with a magnetic starter and rubber coated top.

Please note that the starter box on this model is on the left side of the machine

Product Information
• 36" x 96"
• 36" Height
• 985 lbs
• 5 HP Motor
• 18" Fan
• 4800 CFM
• 82 Decibels Sound Level

Phase/Voltage Options

SINGLE–PHASE
220 VOLTAGE (23 AMPS)
THREE–PHASE
230 VOLTAGE (13.4 AMPS)
460 VOLTAGE (6.7 AMPS)
575 VOLTAGE (5.3 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto–timer
• Muffler (reduces sound level 10–12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three–sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor andamp; Fan Upgrade
