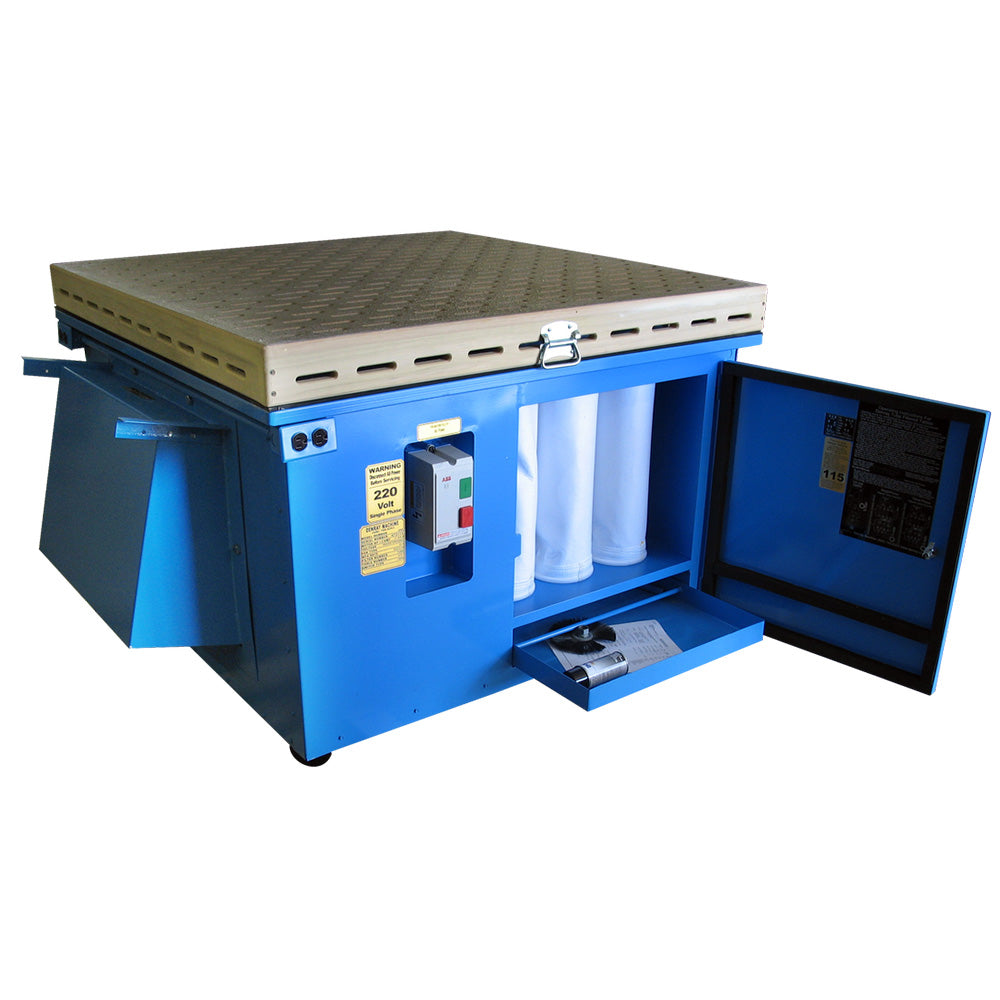

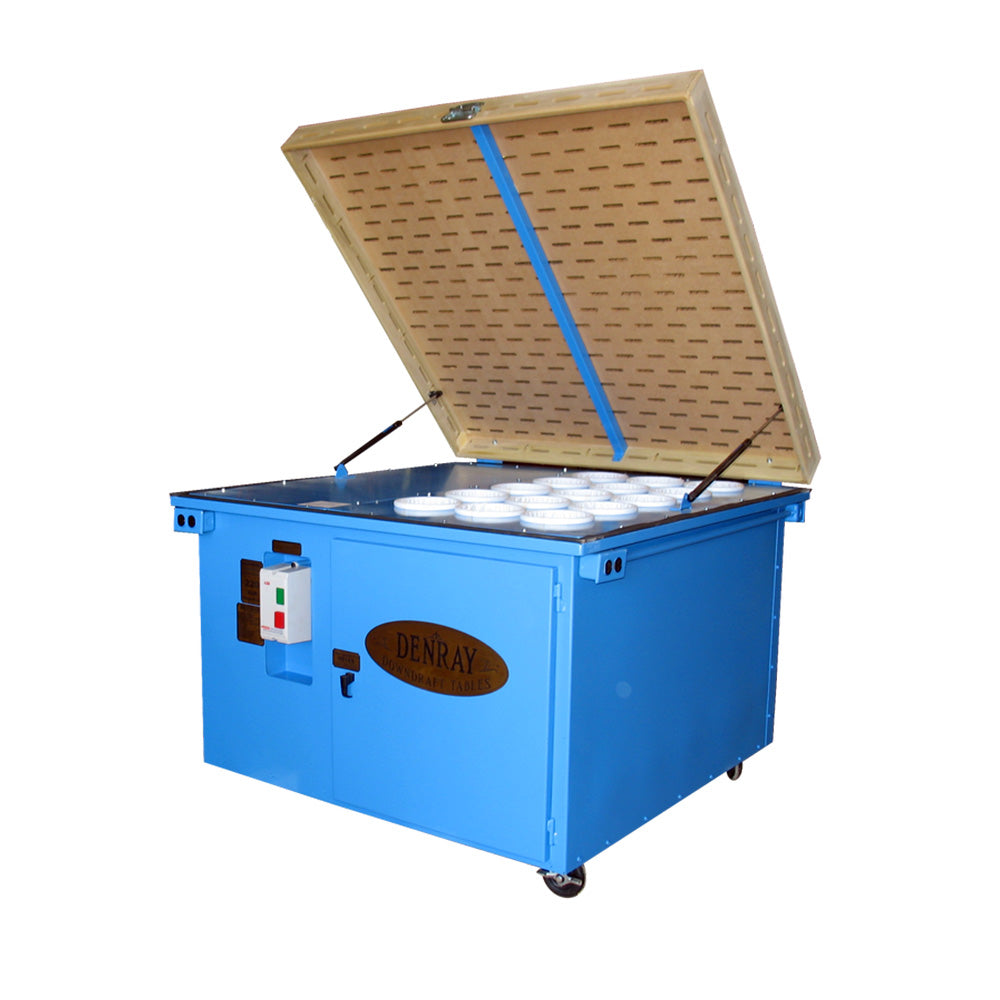

Denray Model 4800 Tube Filtration Downdraft Table

This model is great for medium sized jobs and is ideal for wood dust. The 4800 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood dust applications. This model also comes standard with a filter brush/handle for manually cleaning the filters, casters and a rubber coated top.

Product Information
• 48" x 48"
• 36" Height
• 580 lbs
• 2 HP Motor
• 16.5" Fan
• 3400 CFM
• 77 Decibels Sound Level
• 15 Tube Filters
• Casters
• 3 Receptacles

Phase/Voltage Options

SINGLE-PHASE
​115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
• ​Larger Motor/Fan Upgrade
