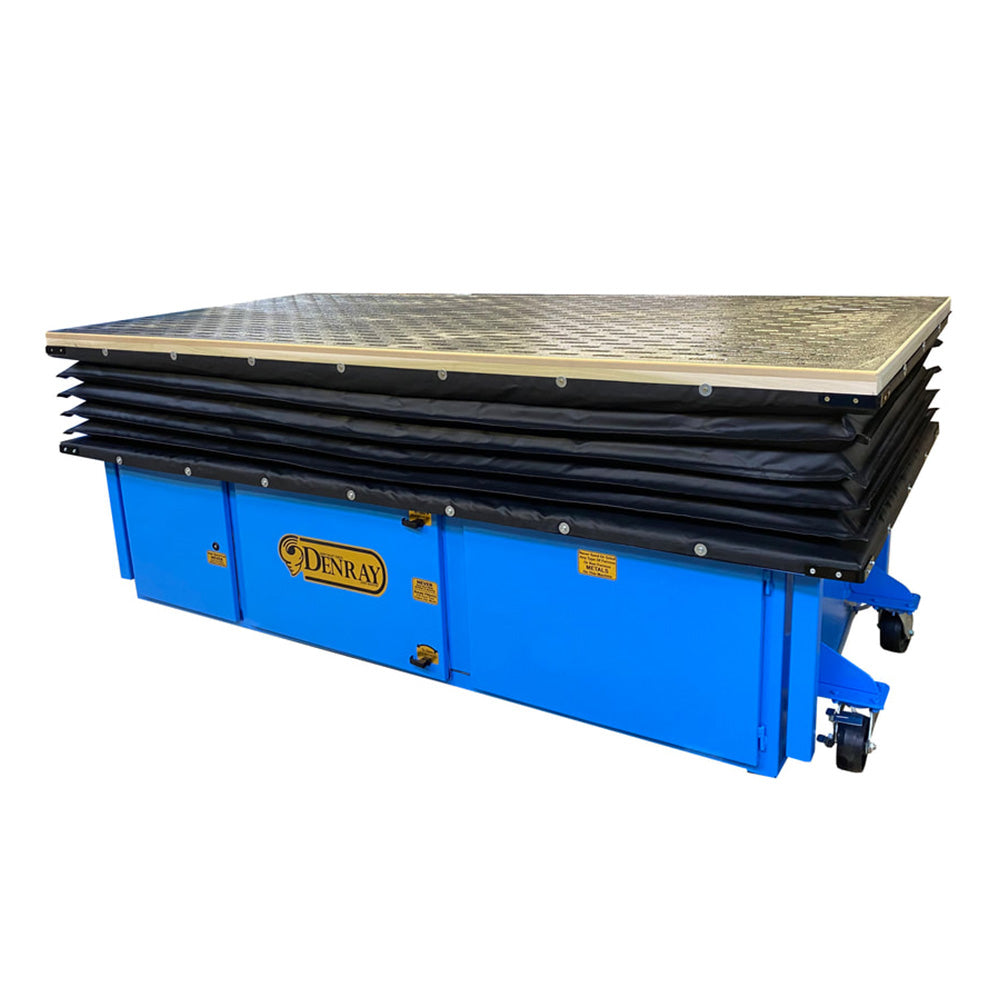

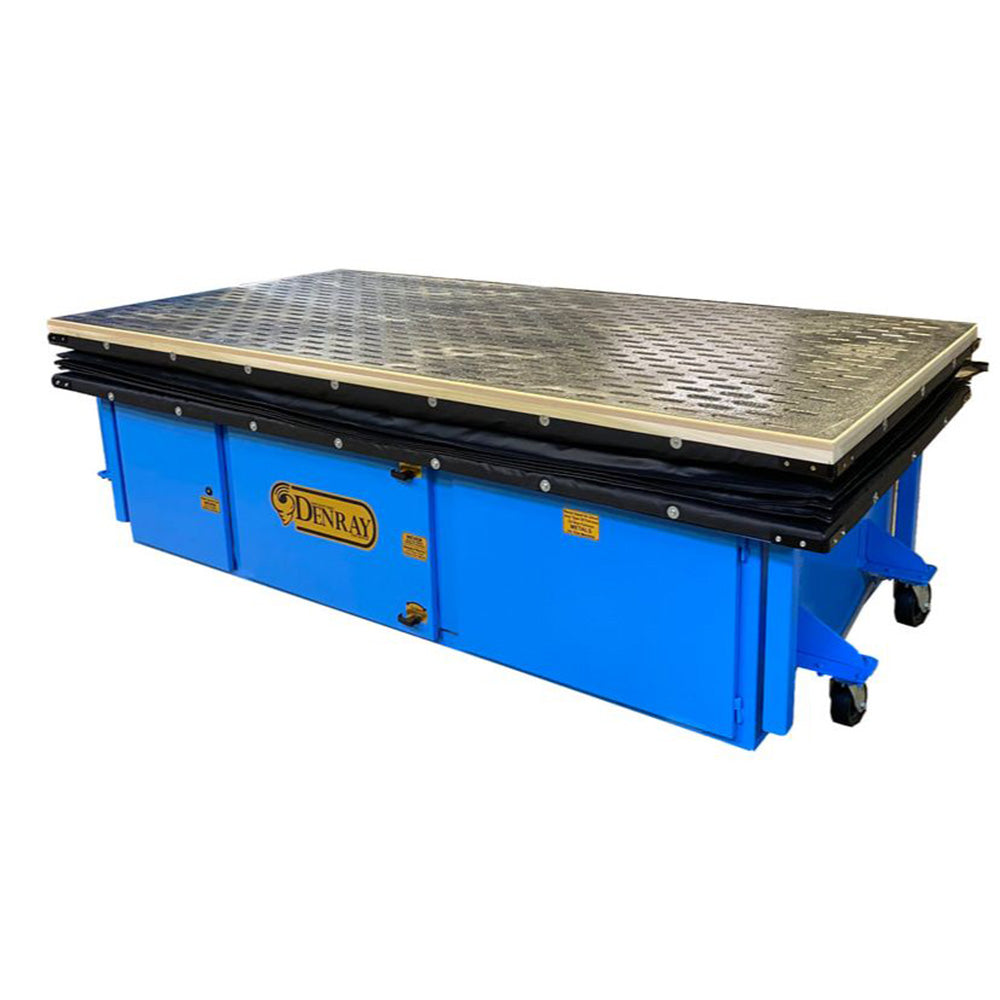

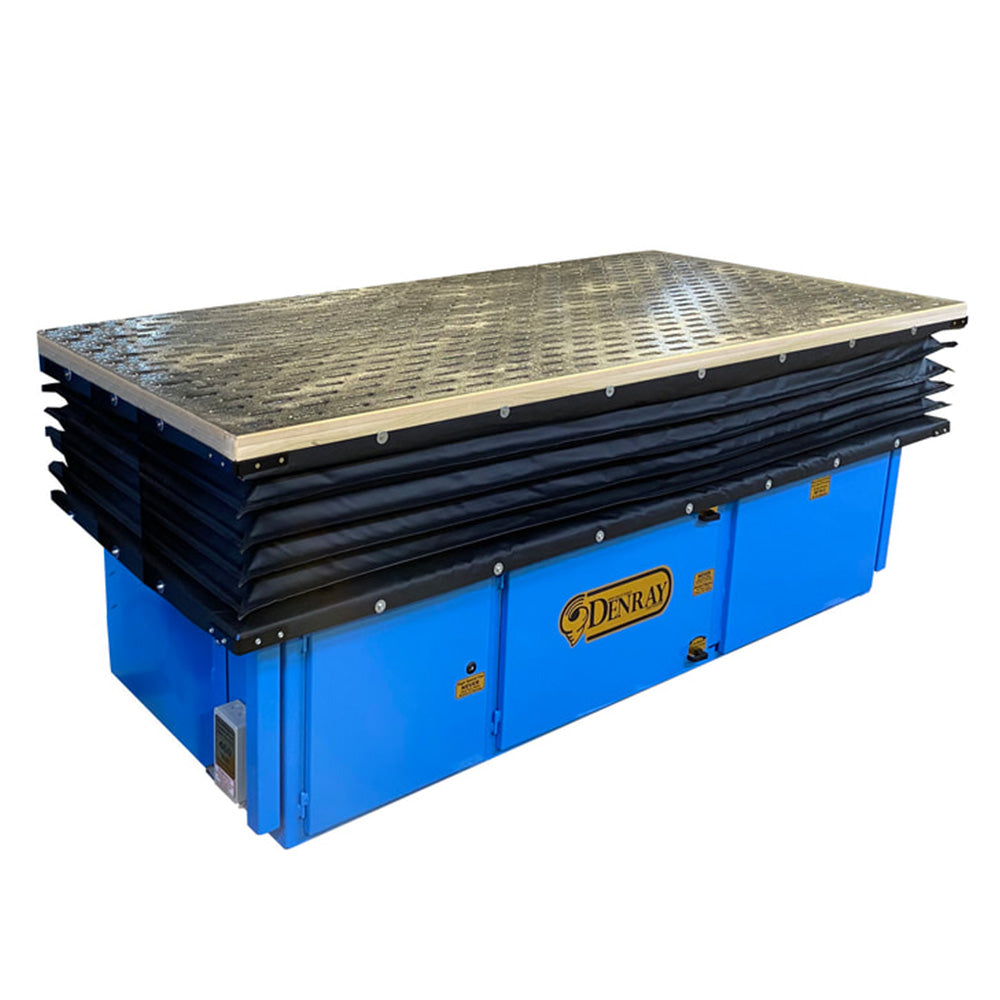

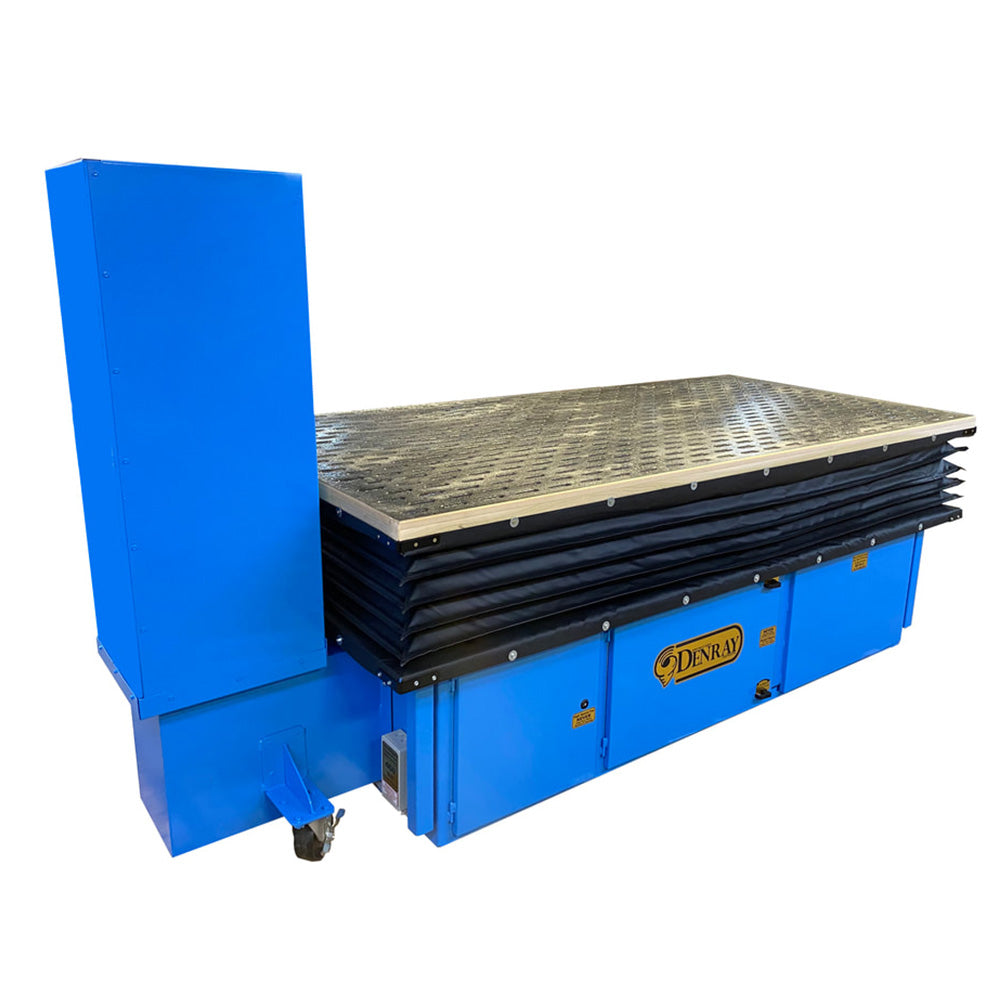

Denray Model 4896LP (Low Profile) Cartridge Filtration Downdraft Table

This model is great for medium sized jobs, designed to reach a low height of 28" all the way through a 40" high height. This table can be used for plastics, woods and finishing materials. The 4896LP comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with rubber coated top, and the Denray "Jet Pulse" push–button cleaning system.

Product Information
• 48" x 96"
• 28" - 40" Adjustable Height
• 1050 lbs
• 5 HP Motor
• 18" Fan
• 4800CFM
• 82 Decibels Sound Level

Phase/Voltage Options

SINGLE-PHASE
220 VOLTAGE (23 AMPS)
THREE-PHASE
230 VOLTAGE (13.4 AMPS)
460 VOLTAGE (6.7 AMPS)
575 VOLTAGE (5.3 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Casters
• Auto-timer
• Muffler (reduces sound level 10-12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
​• HDPE Plastic Tabletop
• Larger Motor/Fan Upgrade
