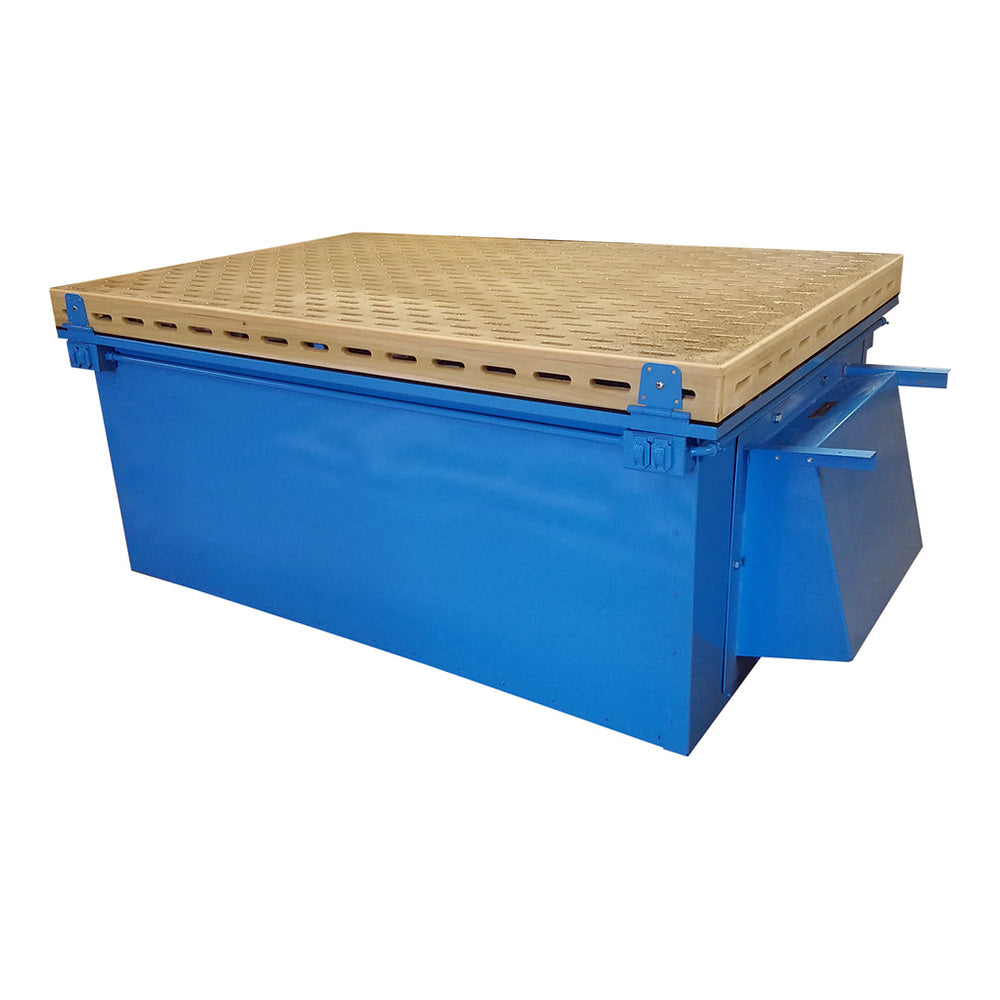

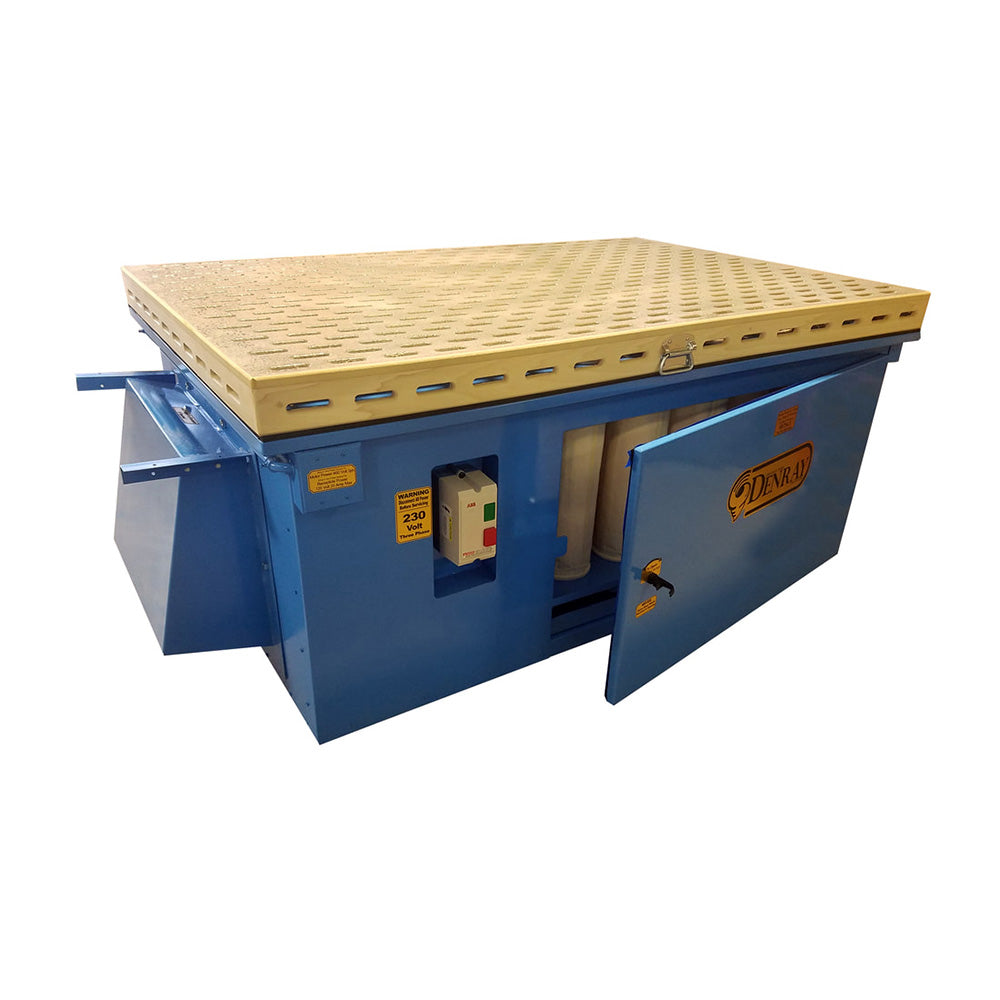

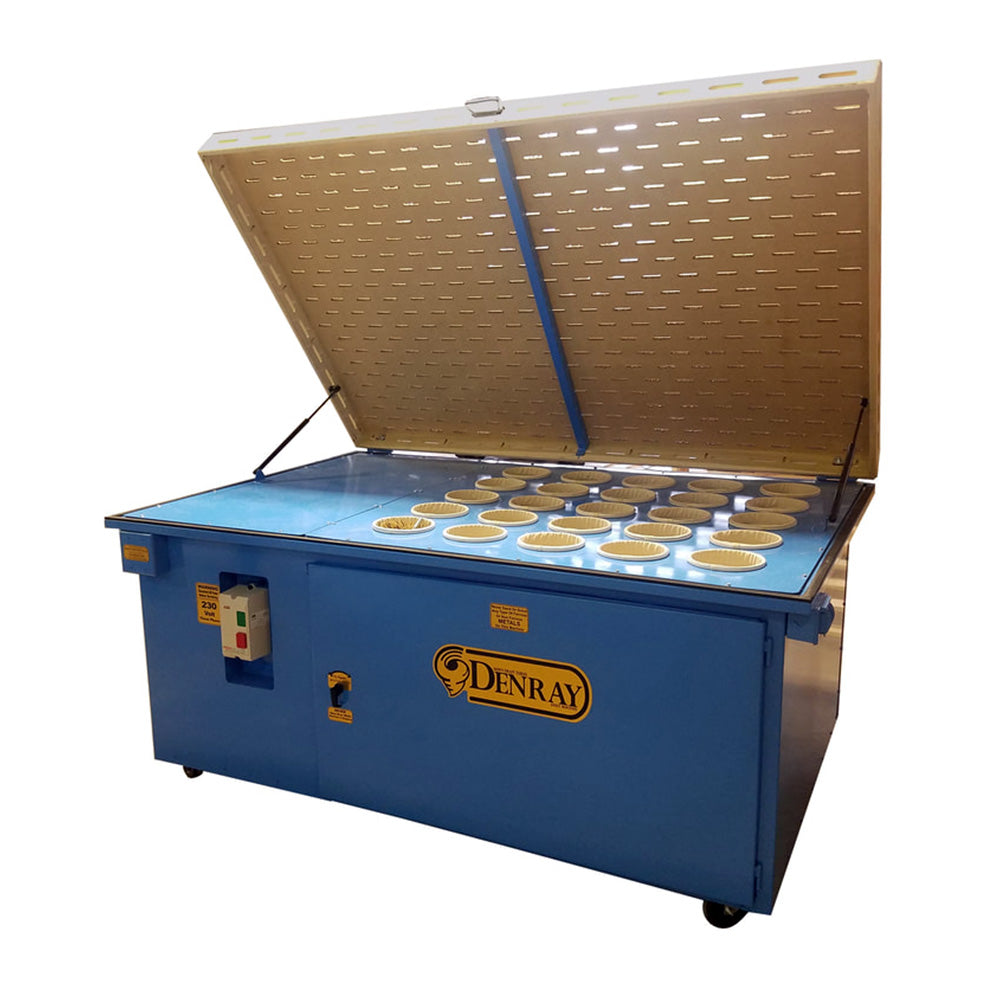

Denray Model 7200 Tube Filtration Downdraft Table

This model is ideal for larger jobs and can accommodate not only the large piece but also allows for two or three jobs to be going on at the same time. The 7200 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, creating a much superior filtration system than any pleated filters. This model  is suitable for all wood dust applications. This model also comes standard with filter cleaning brush/handle, casters, magnetic starter and a rubber coated top.

Product Information
• 72" x 48"
• 36" Height
• 750 lbs
• 2 HP Motor
• 16.5" Fan
• 3800 CFM
• 78 Decibels Sound Level
• 25 Tube Filters
• Casters
• 3 Receptacles

Phase/Voltage Options

SINGLE-PHASE
​115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
​• Larger Motor/Fan Upgrade
