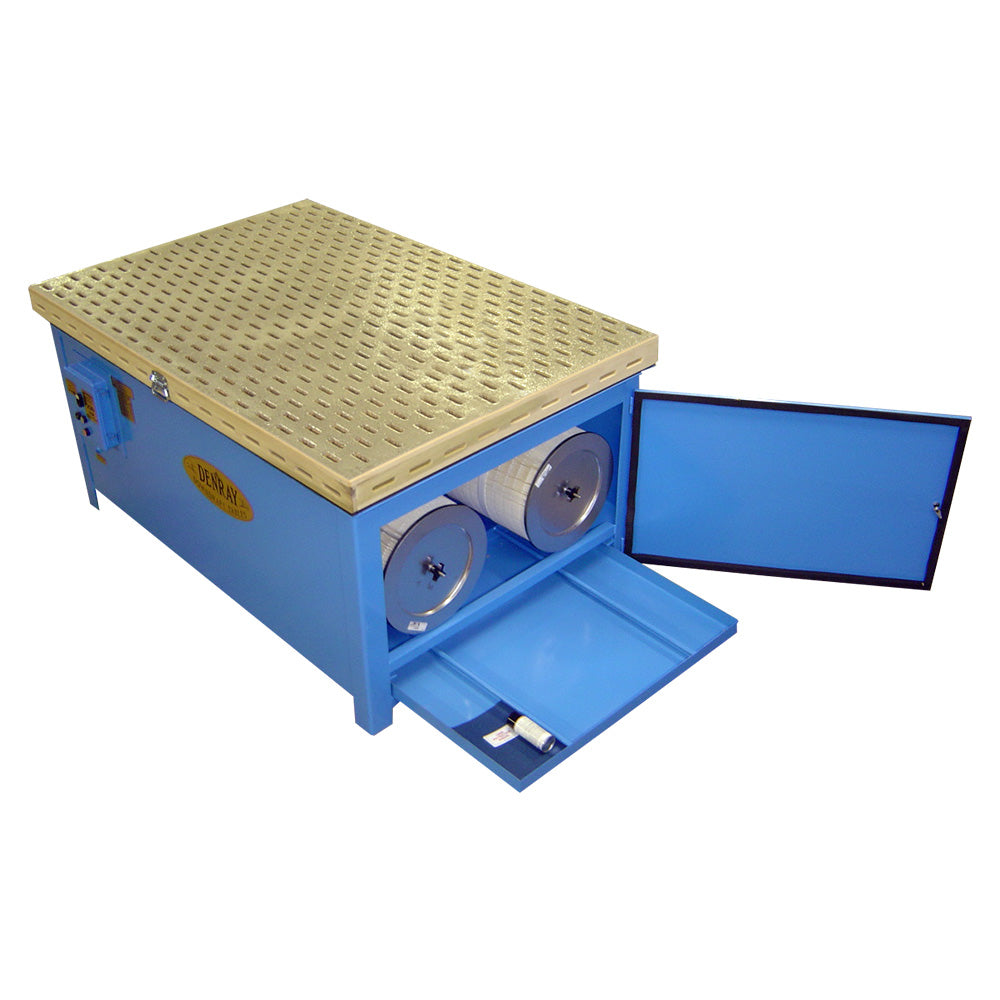

Denray Model 7200B Cartridge Filtration Downdraft Table

This model is designed for larger jobs and can accommodate not only the large single piece, but also has the size to have two or three jobs going at the same time on this table. The 7200B is one of the larger tables in Denray's push–button cleaning line. This model comes standard with a rubber coated top, magnetic starter and with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron.

Product Information
• 72" x 48"
• 36" Height
• 950lbs
• 5 HP Motor
• 18" Fan
• 3900 CFM
• 78 Decibels Sound Level

Phase/Voltage Options

SINGLE-PHASE
220 VOLTAGE (23 AMPS)
THREE-PHASE
230 VOLTAGE (13.4 AMPS)
460 VOLTAGE (6.7 AMPS)
575 VOLTAGE (5.3 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto-timer
• Muffler (reduces sound level 10-12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade
